Cobalt Digital 9433-EMDE-75/110-E00E 3G/HD/SD-SDI Fiber-Optic Transceiver openGear Card

ITEM #: CB-9433EMDE75110 MFG #: 9433-EMDE-75/110-EOOE

Primary Image
Cobalt Digital
Free Shipping with $49 Minimum Order

List Price:

$2,090.00

Our Price:

$2,089.95

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

9433-EMDE-75/110-EOOE - Overview

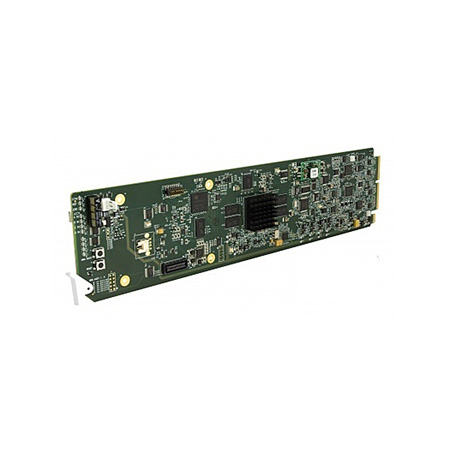

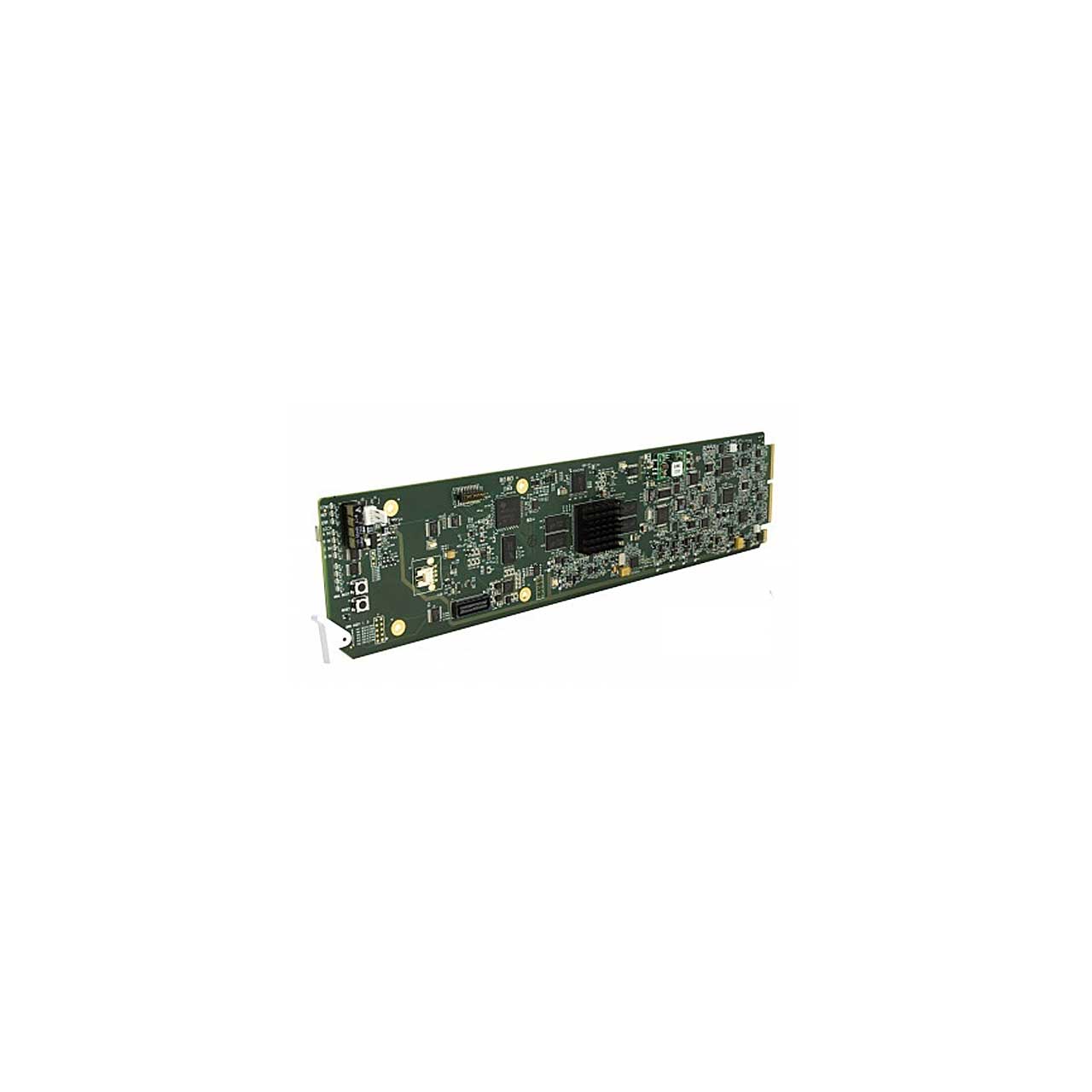

The all-new 9433-EMDE-75/110-EOOE 3G/HD/SD-SDI Fiber-Optic Transceiver from Cobalt Digital with 16-Channel Unbalanced/Balanced AES Embed / De-Embed offers full-flexibility AES embedding/de-embedding for unbalanced and balanced AES with the built-in versatility of both coaxial and fiber SDI I/O in a basic, economical, high-efficiency openGear card. More than only a basic embedder/de-embedder, the 9433-EMDE-75/110-EOOE offers the flexibility of SDI/Fiber EO - OE transceive as well as providing AES balun functions and fully flexible embedding/de-embedding.

The 9433-EMDE-75/110-EOOE provides full 16-channel embed / de-embed between both unbalanced and balanced AES and all four groups of embedded audio. Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair. Fully error-free pathological pattern operation is fully compatible with professional fiber video interfaces. The 9433-EMDE-75/110-EOOE is available with numerous CWDM wavelengths that allow the card to be used with CWDM systems.

Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Full user DashBoard or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.

Please Note: Rear Module is required and sold separately.

  • Features:

    • Versatile EO - OE fiber transceiver with fiber and coax as both inputs and outputs
    • 16-channel AES support for both balanced and unbalanced. Individual per-pair embedding or de-embedding. Can be used to provide cross-balun I/O as well as 4-group embed/de-embed.
    • DashBoard status display, audio meters, tone generators. GUI audio meters provide ready assessment of content presence and line-up.
    • Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair.
    • Low-power/high-density design – less than 18 Watts per card
    • Available with CWDM wavelength divisions allowing use in CWDM systems
    • Remote control/monitoring via Dashboard software or OGCP-9000 remote control panels


  • Specifications:

    • Power
    • <18 Watts
      SDI/Fiber Inputs/Outputs
    • 1-75Ω BNC input
    • 1-75Ω BNC output
    • SDI Receive Cable Length (1694A): 120m/180m/360m (3G/HD/SD)
    • SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
    • Note: SDI Return loss and receive cable length are affected by rear I/O module used. Specifications represent typical performance.
    • Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
    • 1 Fiber input; LC connector
    • 1 Fiber output; LC connector
    • Fiber Wavelength, Tx: 1310 nm
    • Fiber Rx Sensitivity: -23 dBm; 1260 to 1620 nm
    • Fiber Tx Power: -5.0 dBm (min)
    • SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
    • Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
      Audio Conversion Format
    • 48 kHz sampling, 24-bit. Auto-SRC bypass for Dolby inputs.
      AES Audio Input/Output
    • 8 Unbalanced AES (AES-3id; 75Ω) with per-pair port direction controls
    • 8 Balanced AES (AES/EBU; 110Ω) with per-pair port direction controls


  • Warranty:

    • 5 Years
