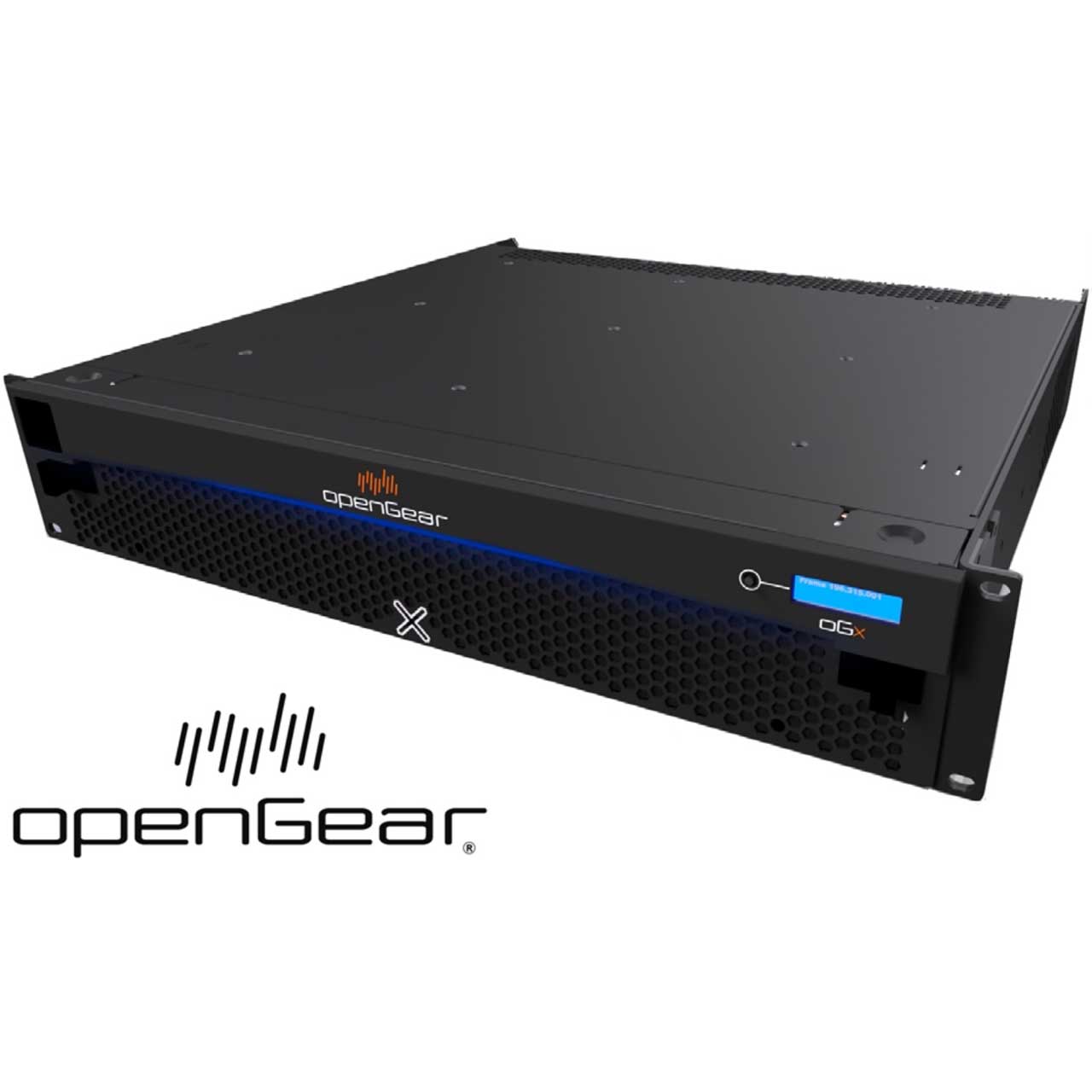

The OGX-FR-C-P is an oGx open gear frame with cooling, advanced networking, and SNMP. The oGx is a 2RU high-density openGear® modular frame offering 600 Watts of total power in a high-capacity 20-slot format. It uses the same form factor and DashBoard™ remote control as Cobalt's other 20-slot frames and supports all openGear compatible cards and rear I/O modules, but offers significantly more available user power. The oGx is designed to meet the demands of today's most complex IP and hybrid infrastructures, supporting evolving IP and UHD applications.
Please Note: Cobalt Digital frames can only be purchased with Cobalt Digital cards and i/o modules. Please call for details.
A new high-power mode allows 23 Watts per slot (460 W user net max). An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The single (standard) 600 Watt power supply can fully power a loaded frame, and the addition of a second (optional) supply gives the frame full power redundancy. oGx accommodates 2 front-loaded, hot-swappable power supplies. The split outside location of the power supplies makes installation easy. Each power supply contains an independent cooling fan, status LED, and a front mounted power switch.
In addition to an integrated LCD display that provides frame name, IP address and reports any alarms, the FrameGlow highly-visible programmable RGB LED bar provides "across-the-room" visibilty of any customizable status or frame ID functions, allowing personnel to see frame status/info literally anywhere in the room.
The openGear® 3.0 frame offers optional gigabit Ethernet to every slot within the frame chassis, enhancing communication speed, and connection options to all openGear® cards. The openGear® 3.0 frame provides more communication options and flexibility to openGear® card manufacturers. The 21-port Ethernet switch, built in to the frame's network control card, virtually future-proofs the openGear® 3.0 platform. (Gigabit Ethernet is only available with the Advanced Network Control option.) SNMP (optionally available) is loaded direct to the frame eliminating the need for any external gateways and runs on a separate software port allowing for simultaneous control from both DashBoard and SNMP clients. This is useful in applications where system wide monitoring is performed using SNMP and real-time control is performed using DashBoard.
The oGx uses the same rear I/O modules as our current 20-slot frames, allowing a seamless transition from a current 20-slot frame to the oGx. These rear modules offer a broad selection for a flexible and wide array of interfaces such as coaxial, twisted-pair audio, GPIO, comm, and fiber. Special high-density/high-ventilation rear I/O modules offer even greater packaging density when used with compatible Cobalt® cards.
