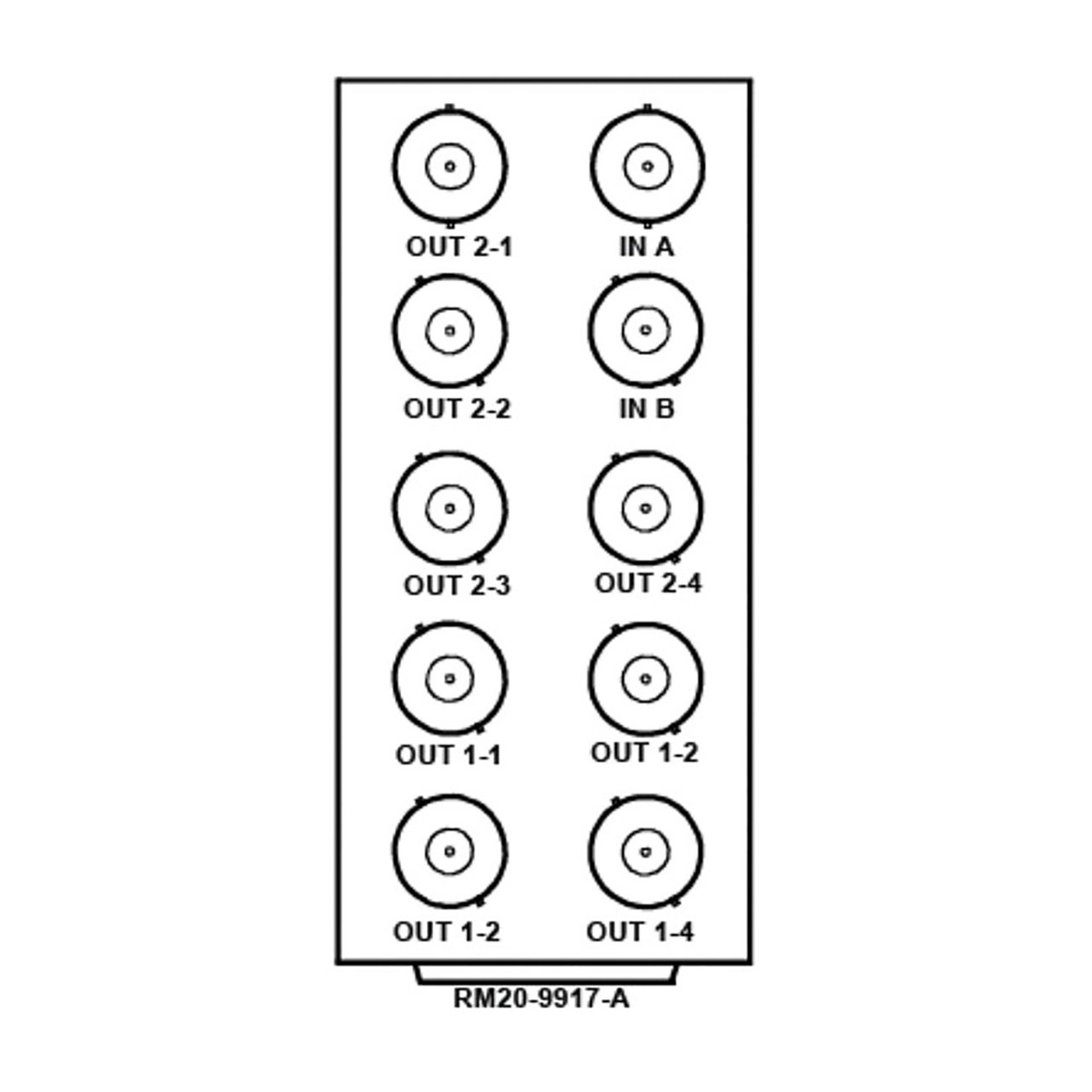

Cobalt RM20-9917-A 20-Slot openGear Frame Rear I/O Module - Two 12G-SDI/ASI/MADI Inputs / Eight 12G-SDI/ASI/MADI Output

RM20-9917-A - Overview

• Specifications:

  • Power: 3 Watts

    12G/6G/3G/HD/SD-SDI Inputs
  • Number of Inputs: 2
  • Standard: SMPTE 424M, 292M, and 259M
  • Return Loss:
    - >15 dB at 5 MHz - 1.485 GHz
    - >10 dB at 1.5 GHz to 3 GHz

    12G/6G/3G/HD/SD-SDI Output
  • Number of outputs: 8 (4 ASI Compatible)
  • Standard: SMPTE 424M, 292M, and 259M
  • Signal Level: 800 mV nominal
  • Return Loss:
    - >15 dB at 5 MHz - 1.485 GHz
    - >10 dB at 1.5 GHz to 3 GHz
  • Rise/Fall Time: <150 ps
  • Jitter (wideband): HD: <0.2 U

    Cable Length Equalized (w/ Belden 1694A)
  • RM20-9917-A Rear I/O Module:
    - 12G: 55m
    - 6G: 70m
    - 3G: 150m
    - 1.5G: 170m

    Please Note: Belden 1694A cable is generally considered capable of running 12G SDI for a distance of 55 meters; it is often used for shorter 12G SDI runs but it is considered suitable for distances within that 55m (180 feet) range.


• Item Includes:

  • 1x Cobalt RM20-9917-A openGear Rear Module


• Warranty:

  • 5 Year Limited Warranty
