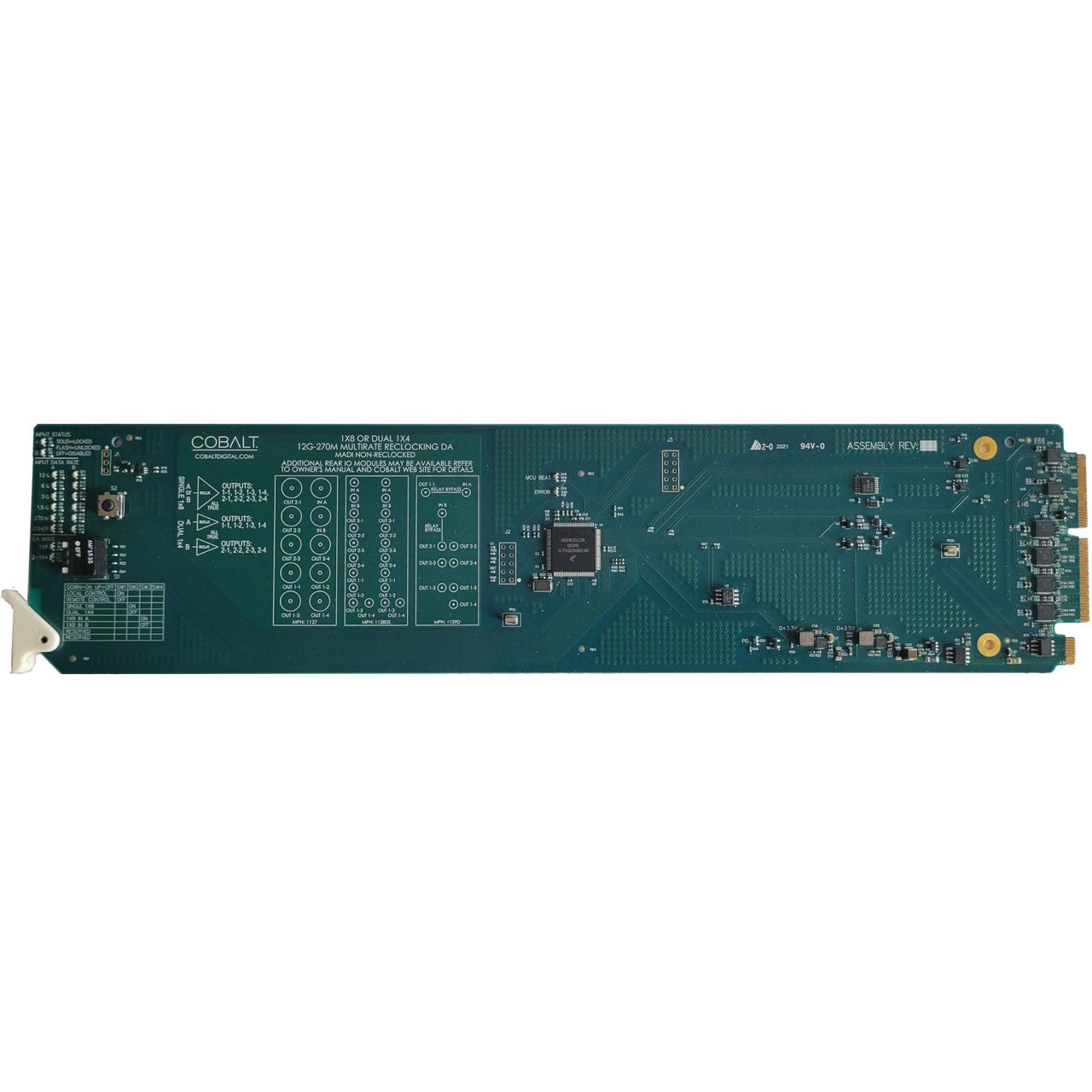

Cobalt Royal 9917-DA-1x8/2x4-12G Dual-Channel 12G/6G/3G/HD/SD Reclocking Distribution Amplifier

ROYAL 9917DA-1X8/2X4-12G - Overview

• Features:

  • Supports 12G/6G/3G/HD/SD-SDI

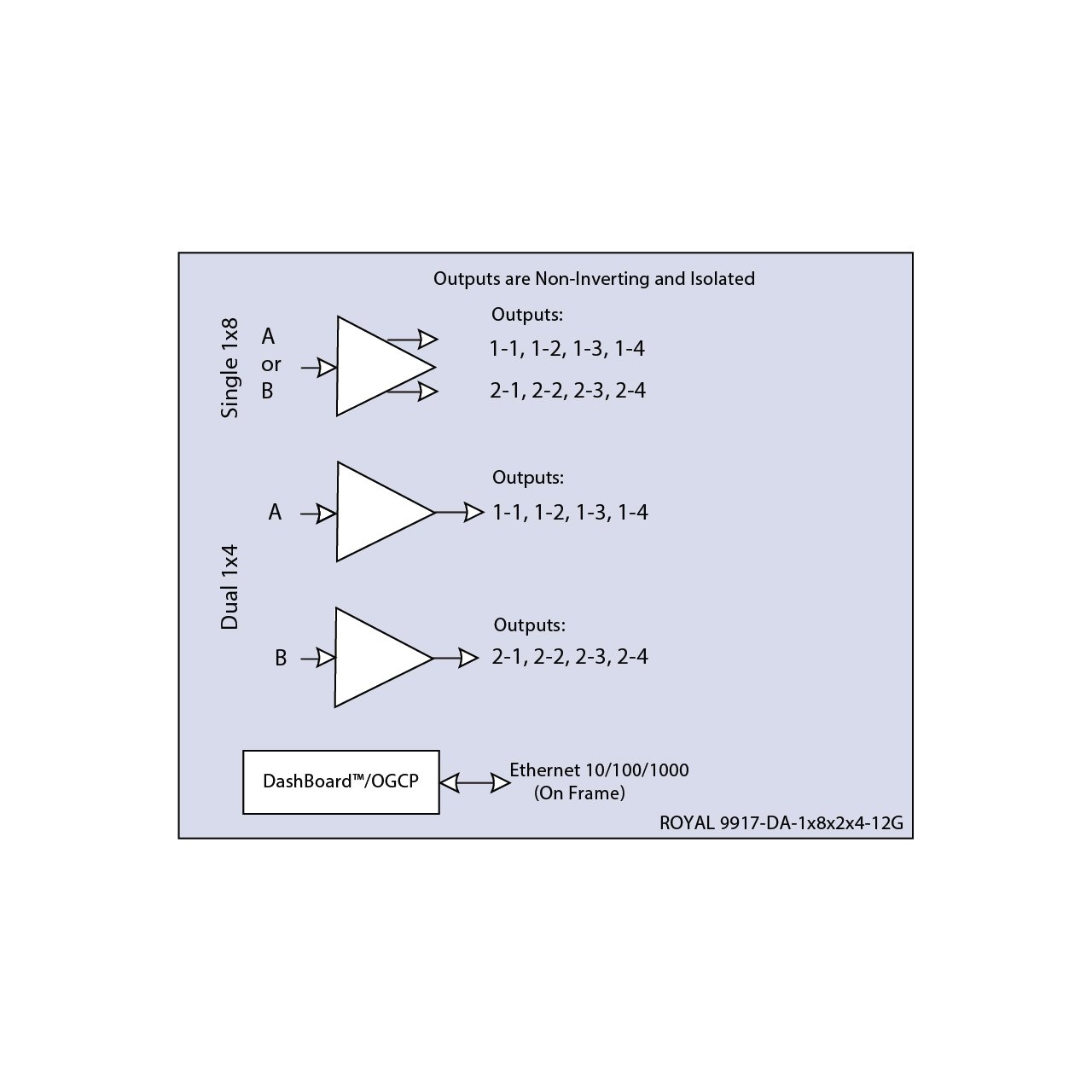

  • Dual or single input with user-configurable modes
  • Automatic rate detection for all industry-standard data rates
  • Equalize up to 160m of Belden 1694A cable at 1.485 Gbit
  • Not-inverting and isolated outputs
  • Failsafe mode automatically switches to secondary input on loss of primary input
  • Passes embedded audio, all ancillary data including closed caption and time code
  • HDR Video support
  • Available high-density rear modules allow up to 20 cards per frame
  • Remote control/monitoring via Dashboard software or OGCP-9000 remote control panels
  • Hot-swappable


• Specifications:

  Electrical
  • Power: 3 Watts

    12G/6G/3G/HD/SD-SDI Inputs
  • Number of Inputs: 2
  • Standard: SMPTE 424M, 292M, and 259M
  • Return Loss: >15dB at 5MHz - 1.485GHz, >10dB at 1.5GHz to 3GHz

    Cable Length (tested with Belden 1694A) *Please note that cable length is dependent on the rear I/O module
  • RM20-9917-A Rear I/O Module:
    - 12G: 55m
    - 6G: 70m
    - 3G: 150m
    - 1.5G: 170m
    - 270MBps: 440m
  • RM20-9917-B/S-HDBNC Rear I/O Module:
    - 12G: 25m
    - 6G: 60m
    - 3G: 120m
    - 1.5G: 140m
    - 270MBps: 250
  • RM20-9917-B-HDBNC Rear I/O Module:
    - 12G: 20m
    - 6G: 40m
    - 3G: 100m
    - 1.5G: 100m
    - 270MBps: 150m


• Item Includes:

  • 1x Cobalt Royal 9917-DA-1x8/2x4-12G Dual-Channel Reclocking Distribution Amplifier


• Warranty:

  • 5 Year Limited Warranty
