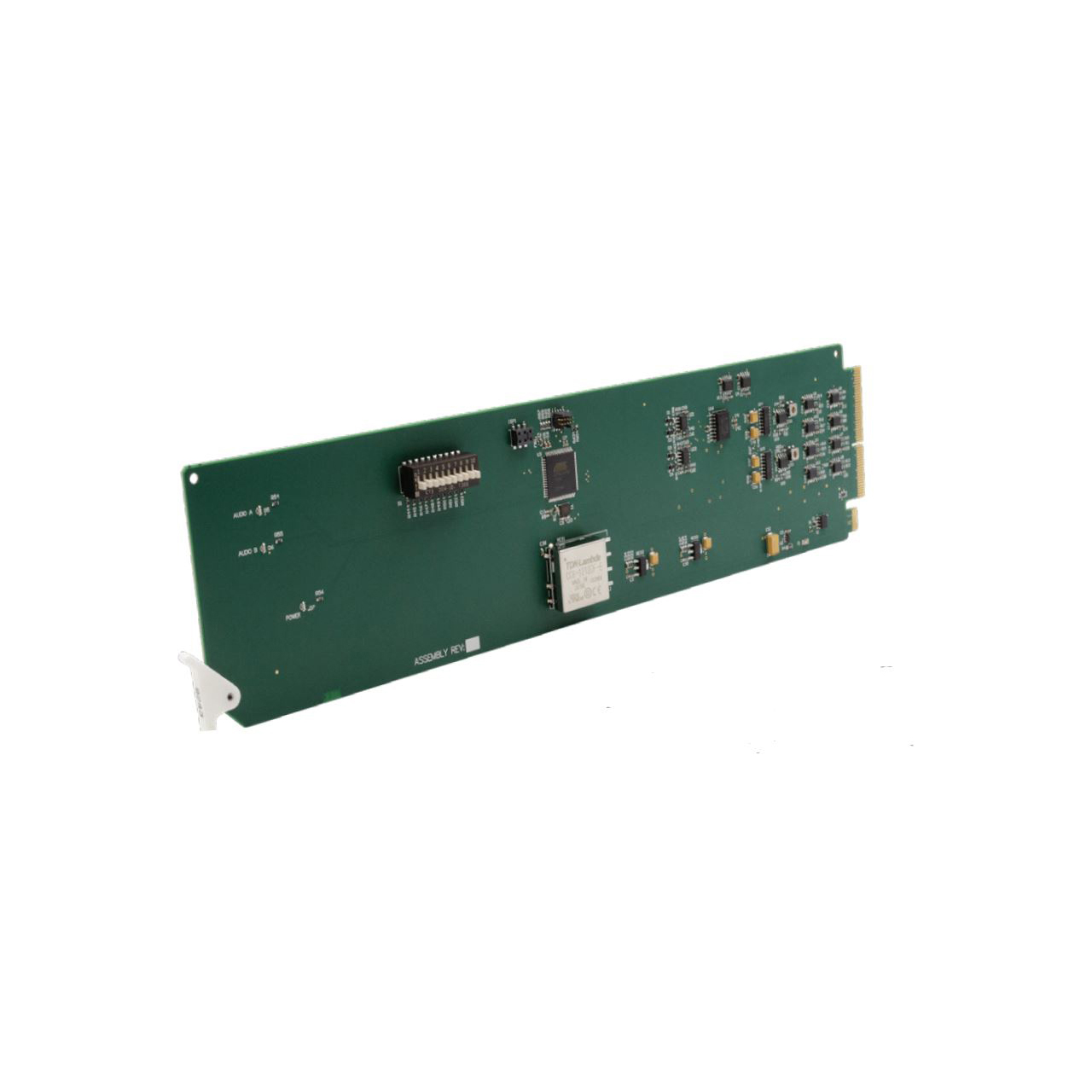

Cobalt ROYAL 9243 Analog Audio (Balanced) Distribution Amplifier openGear Card with Remote Gain Control

ROYAL 9243 - Overview

• Features:

  • Full remote control of operating mode and gain control

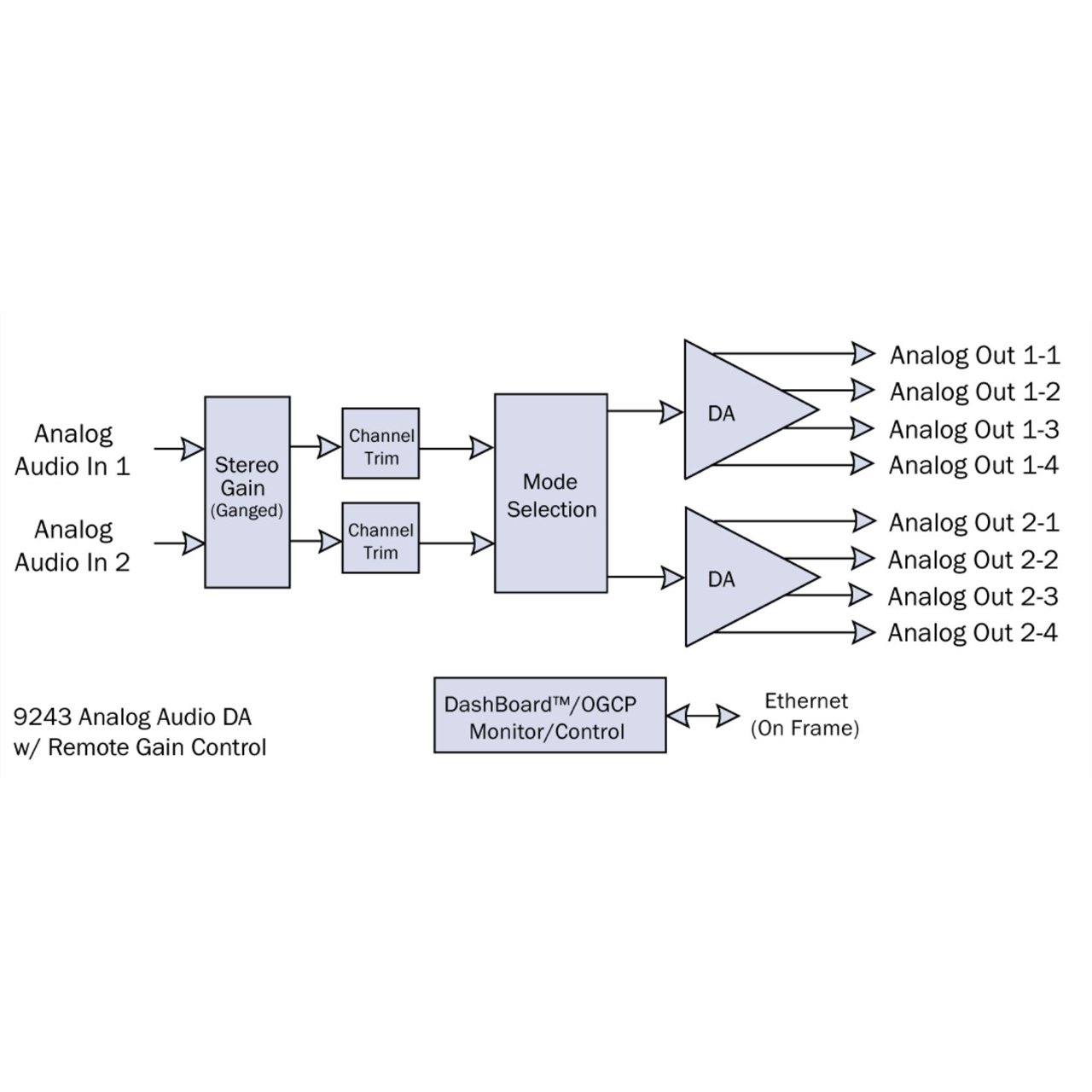

  • Multiple modes - stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs
  • Full broadcast-grade balanced signal capability with 27dBu maximum input level support. Low-impedance outputs.
  • Selectable card switch control or DashBoardT remote control (usable with DashBoard and Cobalt OGCP-9000 remote control panels)
  • Remote control via Ethernet using free DashBoardT software. Full remote control of operating mode and gain control or use the optional OGCP-9000 remote control panel
  • Hot swappable openGear card


• Specifications:

  • Analog Audio Inputs
  • Number of Inputs: 2x balanced
  • Impedance: > 20kΩ, balanced
  • Maximum Input Level: +27 dBu
  • Connector Type: Phoenix removable modular

    Analog Audio Outputs
  • Number of Outputs: 8x balanced; available as stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs
  • Impedance: 60Ω, balanced
  • Output Isolation: > 60dBFF
  • Max Level: +26dBu
  • Connector Type: Phoenix removable modular

    Performance
  • Gain: -15dB to +15dB
  • Frequency Response: 20Hz - 20kHz ±0.1dB
  • Noise: < -85dBu, 10Hz - 22 kHz at unity gain
  • Harmonic Distortion: < 0.01%


• Warranty:

  • 5 Year Warranty
