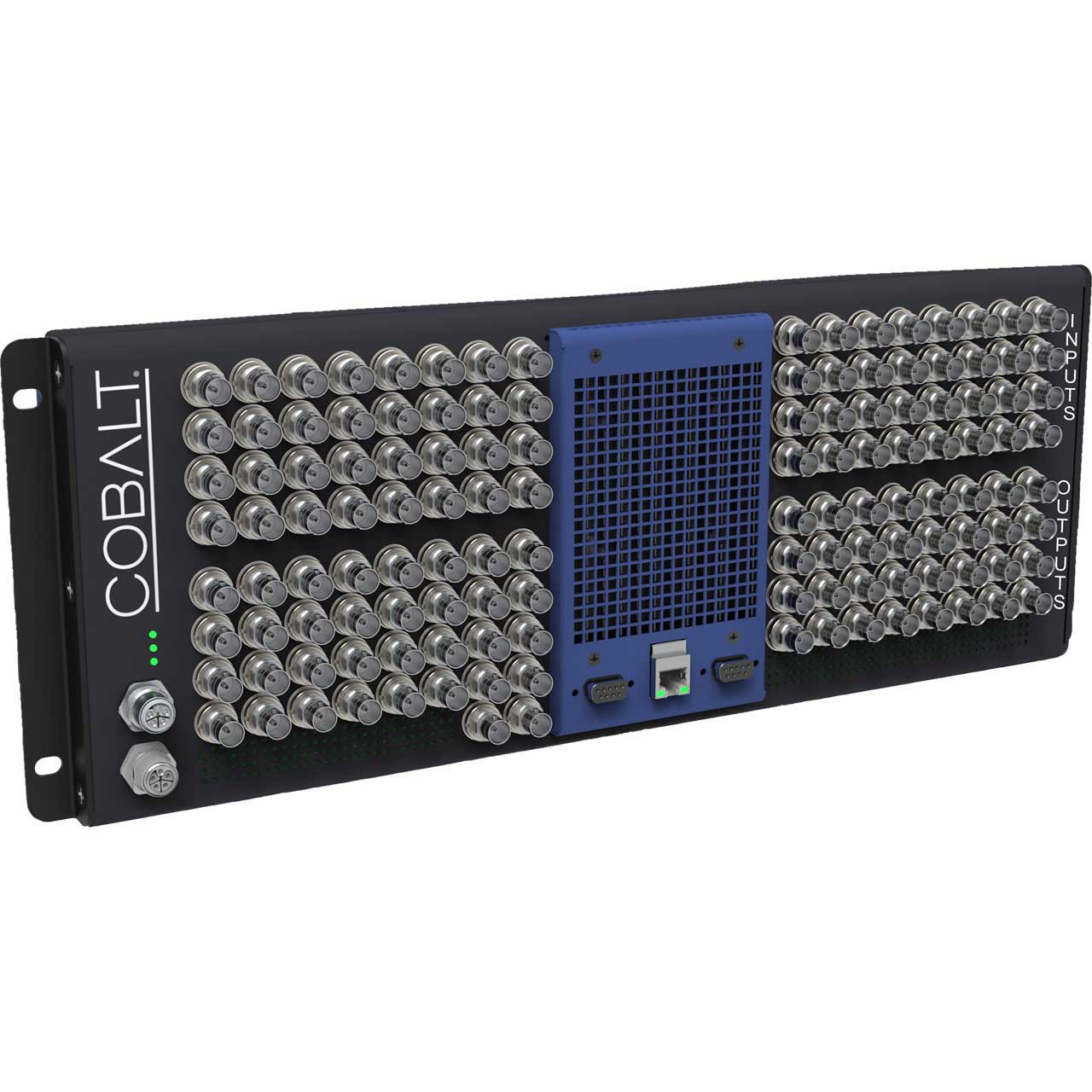

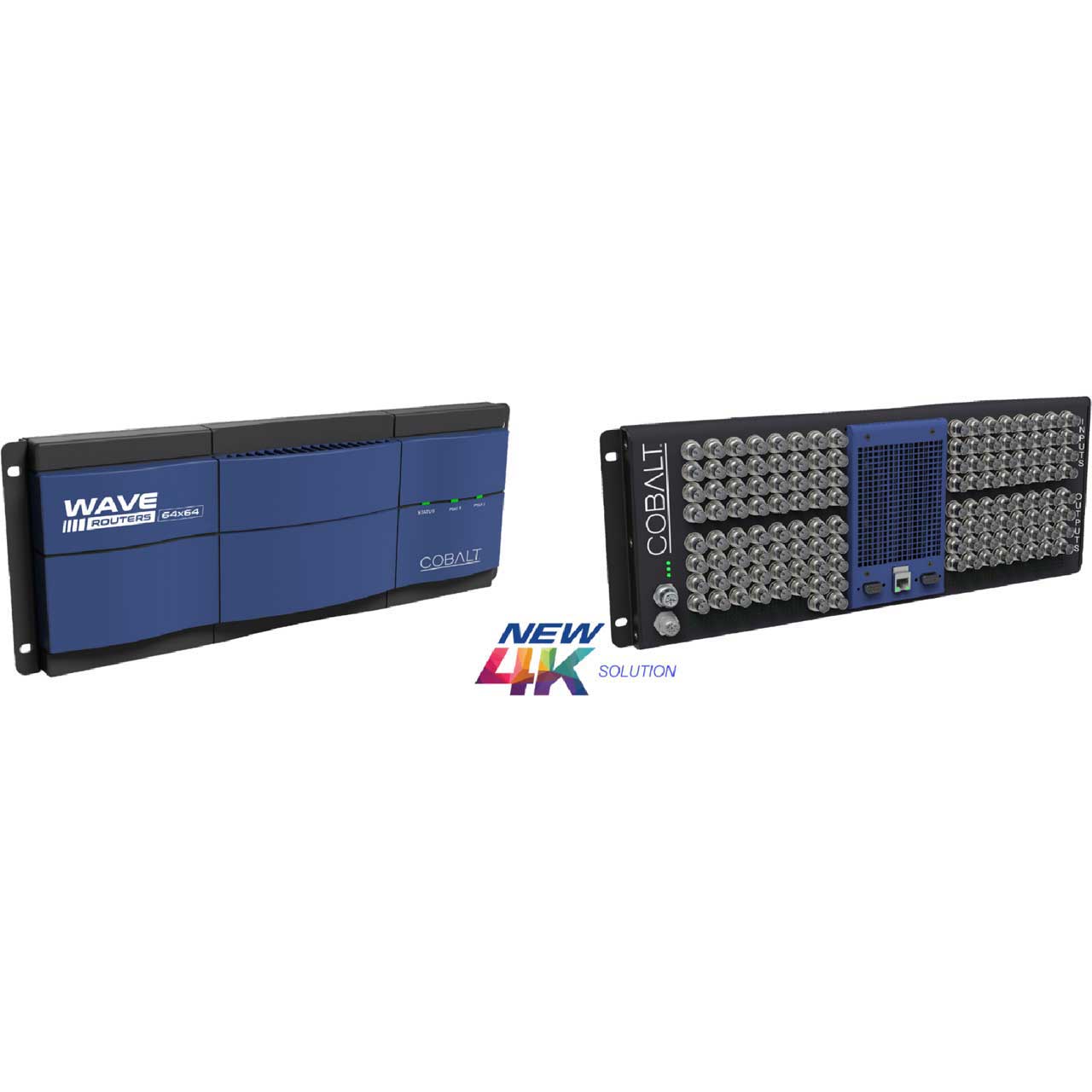

Cobalt Digital Inc. introduces the WAVE RTR-64x64 12G SDI/ASI/MADI router. It is a midsize 64x64 Crosspoint solution contained within a compact 4RU (7 inch) tall frame.
This router provides a high density solution that offers unprecedented flexibility, ease of use & integration. The frame is a thin 3.75 inch deep chassis.
A single 10/100/1000 Ethernet port for IP based controls such as General Remote protocol SW-P-08 and PESA PNET.
The unit also has RS 422 and RS 232 9pin serial communication ports. The integrated web server supports browser control and system setups which can be saved and recalled quickly.
This compact design is specifically optimized for 12G SDI operation but handles lower SDI rates with ease.
