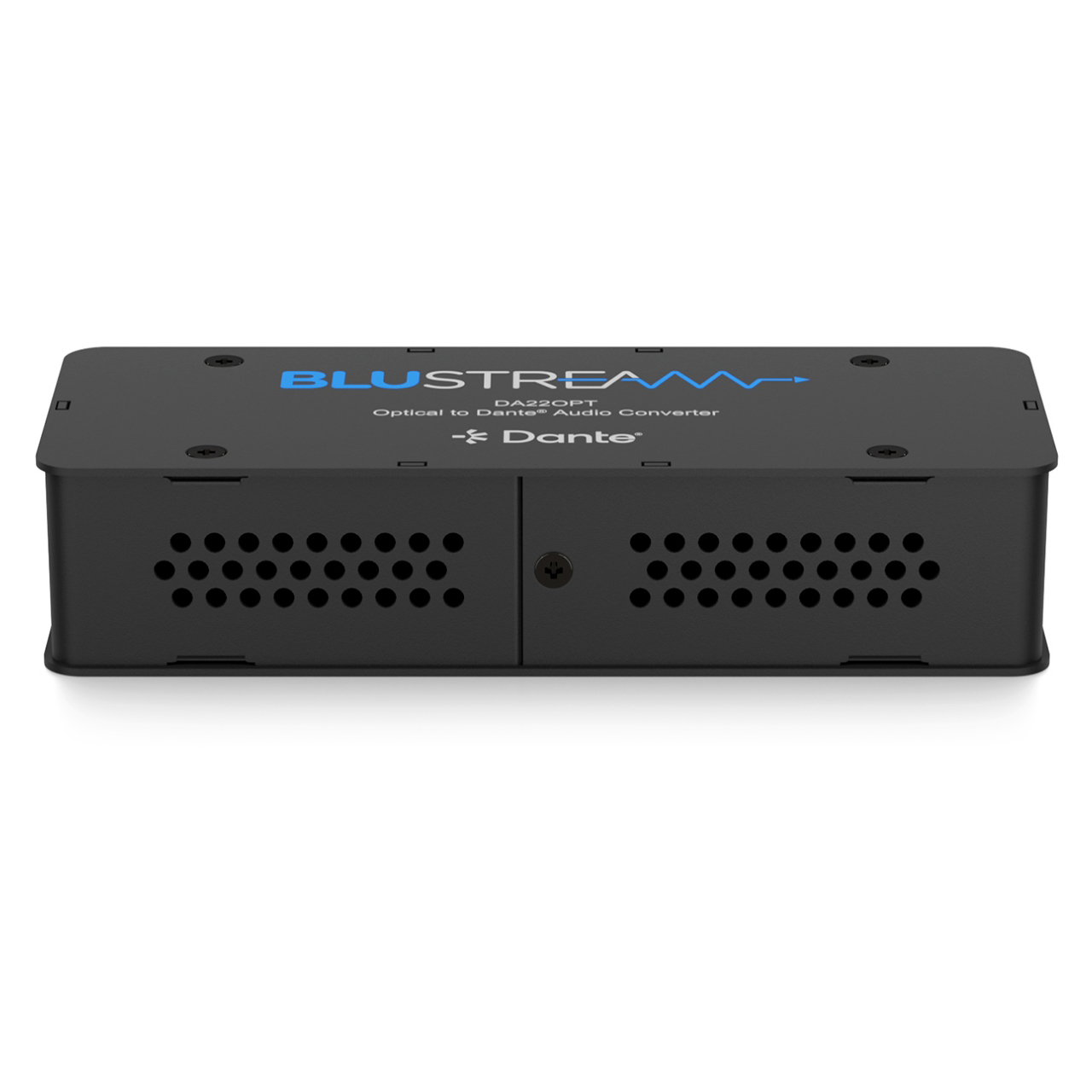

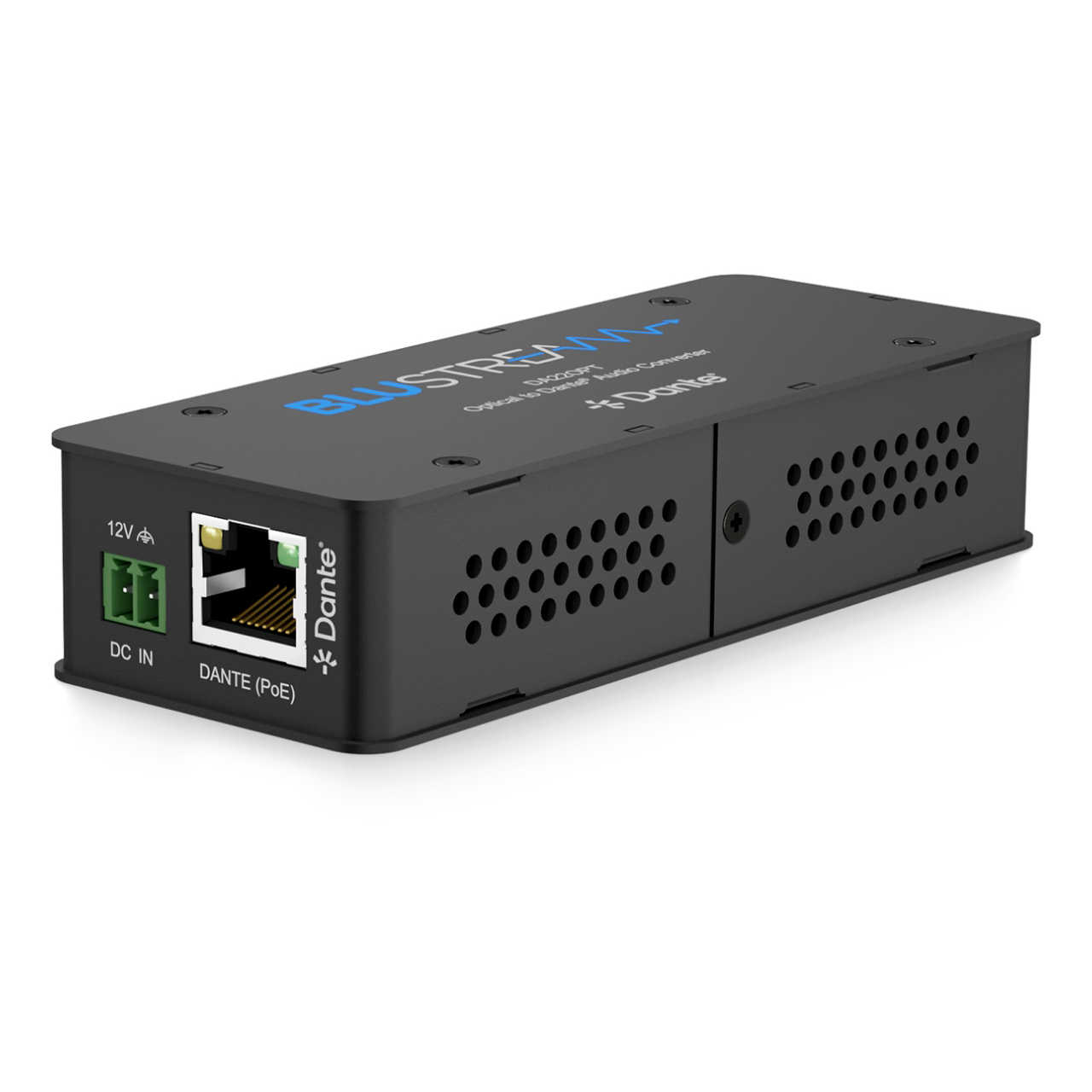

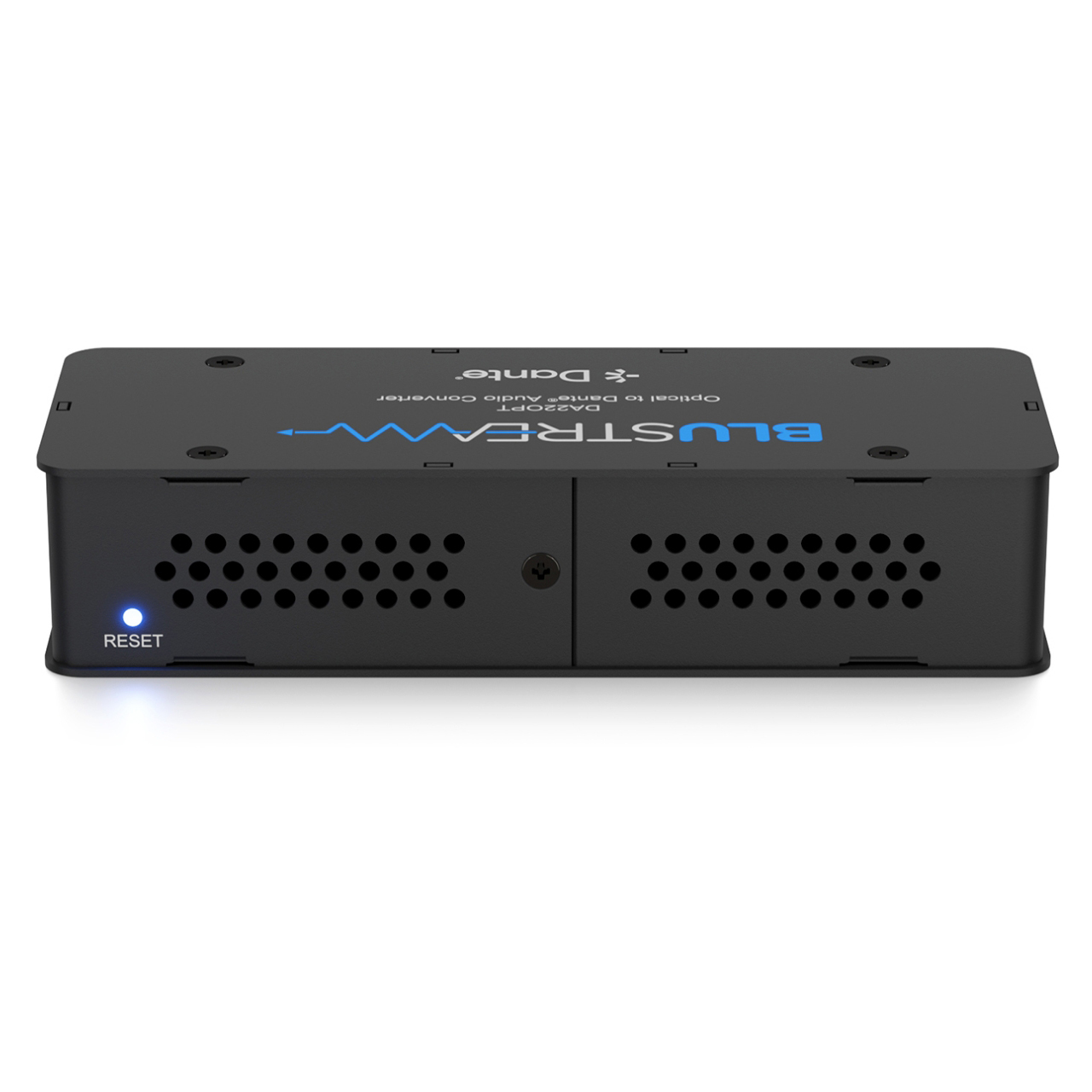

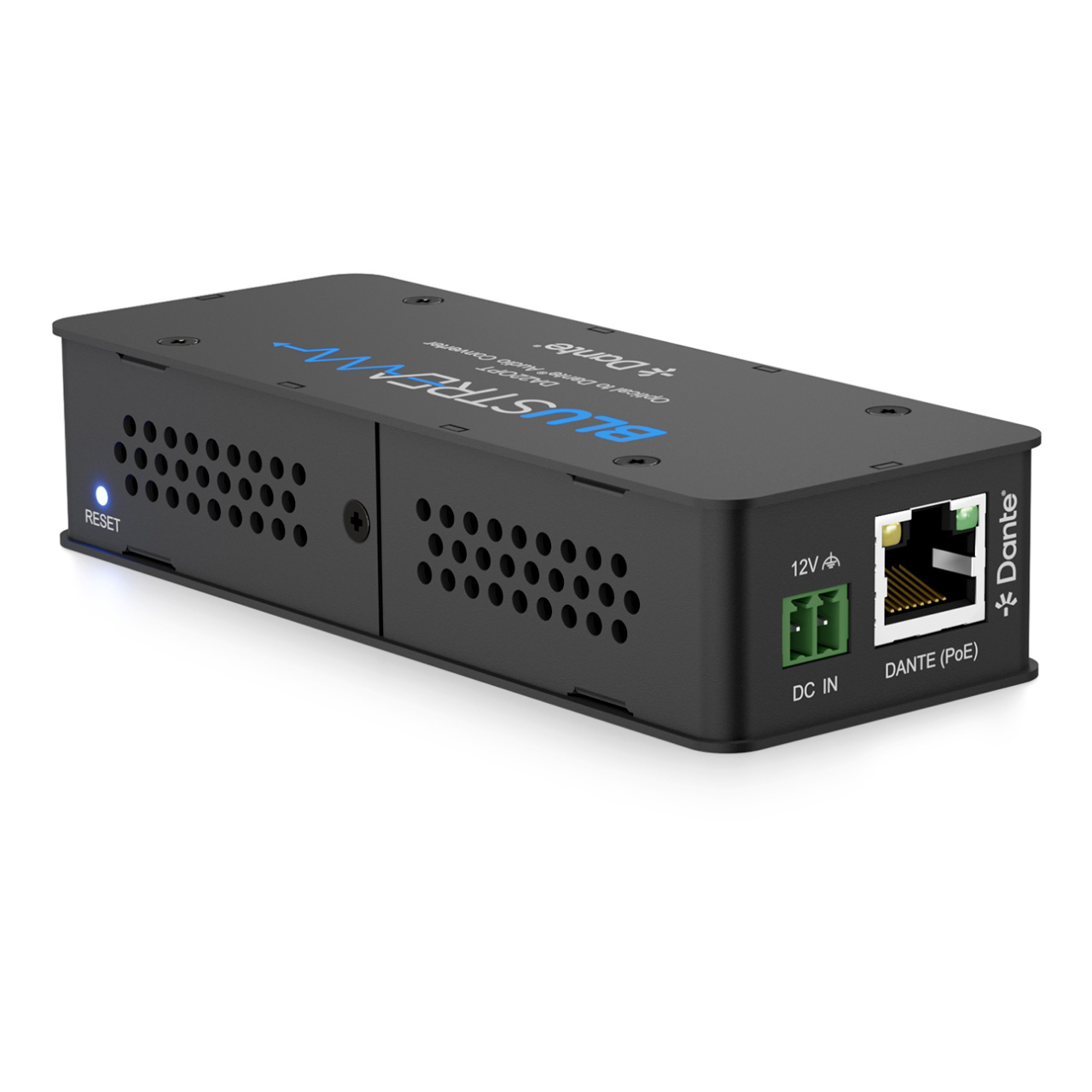

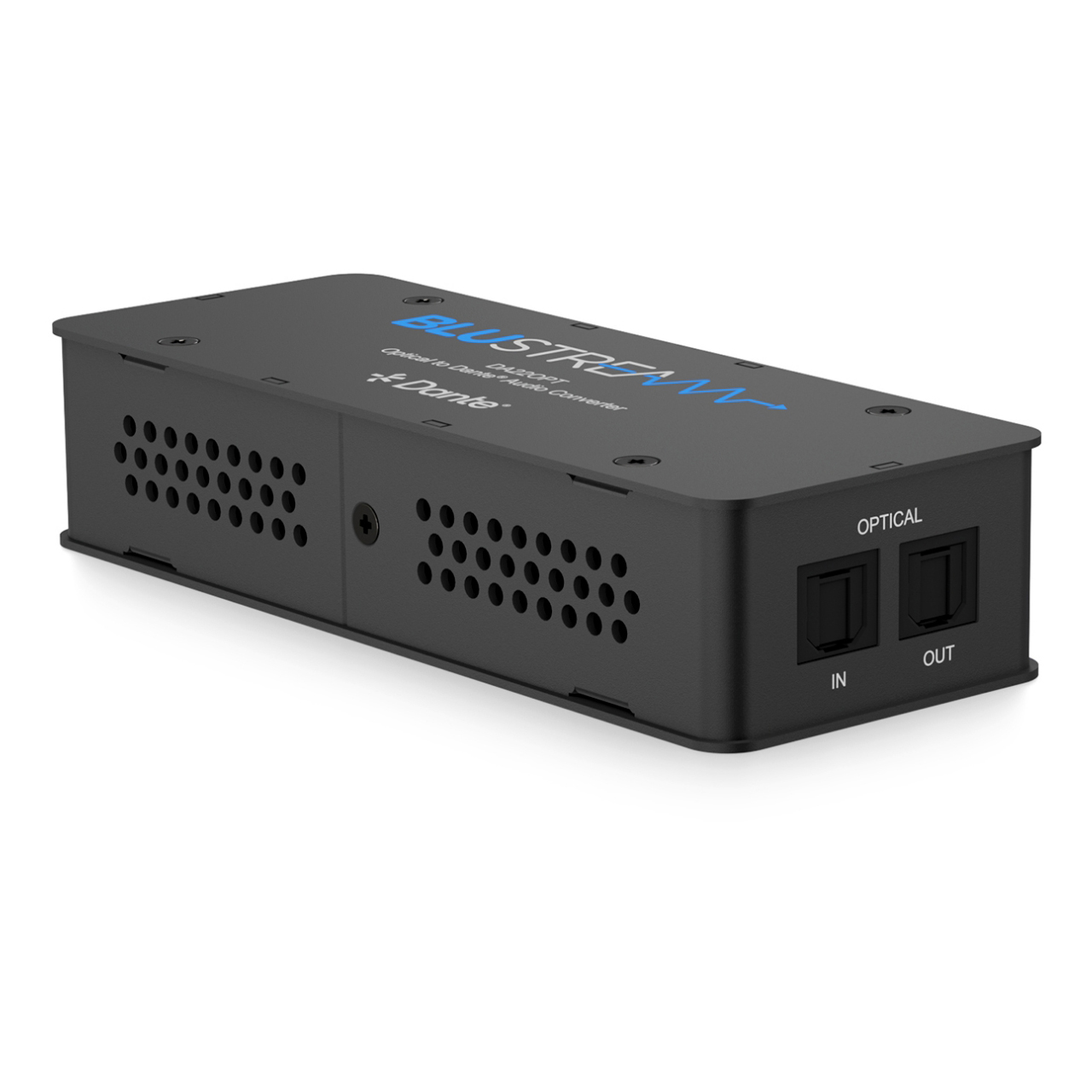

Blustream DA22OPT Optical S/PDIF Audio to Dante Digital Converter - PoE Powered

DA22OPT - Overview

• Features:

  • Encodes 2ch optical S/PDIF audio to a Dante® digital signal
  • Decodes a 2ch Dante digital signal to optical S/PDIF audio
  • Optical S/PDIF signal can be routed from Input to Output by binding the connection in Dante Controller
  • Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
  • Configurable Dante device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante Controller)
  • +6dB/-24dB input sensitivity and output gain control adjustment
  • Supports AES67 RTP audio transport
  • Features Class 0 802.3af PoE for powering of product from any PoE switch
  • Local 12v power supply input for when network switch does not support PoE*
    Please Note: PS121PH power supply sold separately.


• Specifications:

  • Audio Input/Output Connectors:
    - 1x RJ45, female (100 Mbps Danter network)
    - 2x Optical Toslink (S/PDIF)
  • Casing Dimensions (LxWxH): 4.72" x 1.85" x 1.02" (120mm x 47mm x 26mm)
  • Shipping Weight: 0.61lbs (0.3kg)
  • Storage Temperature: 4°F - 140°F (-20°C - 60&Deg;C)


• Item Includes:

  • 1x DA22OPT
  • 1x Quick Reference Guide


• Warranty:

  • 5 Year Limited Warranty
