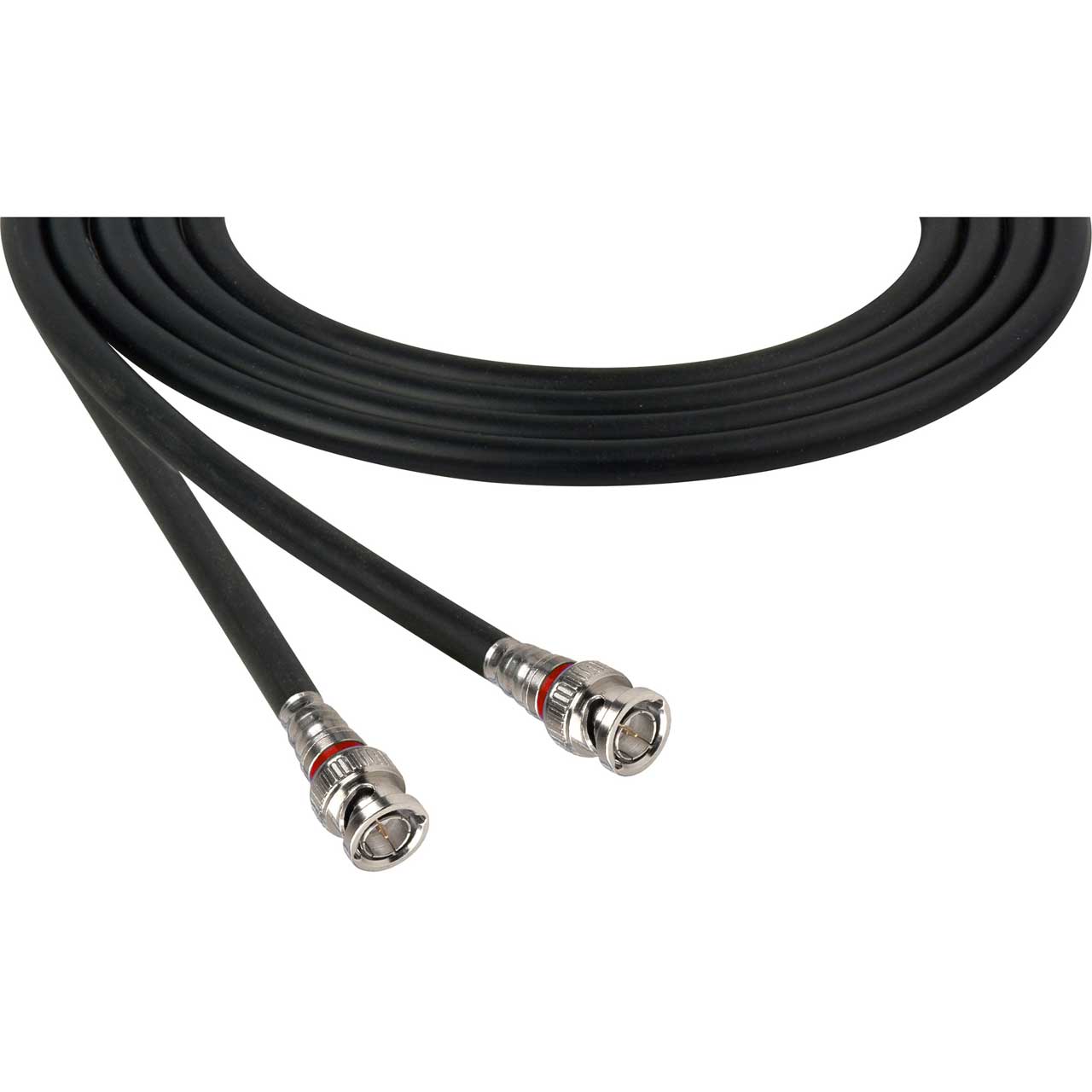

Laird Belden 1505A RG59 3G-SDI BNC Cable w/ Compression Connectors - 3 Foot

Name: Laird Belden 1505A RG59 3G-SDI BNC Cable w/ Compression Connectors - 3 Foot
Brand: Laird Digital Cinema
SKU: CBNC-003-BK
Price: 16.49 USD
Availability: PreSale

ITEM #: CBNC-003-BK MFG #: CBNC-003-BK

Laird Digital Cinema

Lengths:

Colors:

Lengths

Colors

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CBNC-003-BK - Overview

Compression connectors grip with 360 Degree high strength retention resulting in more reliable and robust connections when compared to solder connectors. Internal "O" sealing rings prevent moisture migration, while the large ferrule surface insures proper RF and digital interface. Meet SCTE-IPC and Bellcore requirements. CUSTOM LENGTHS ALSO AVAILABLE - PLEASE CALL OR EMAIL

Features:
- Belden 1505A RG59/20 SDI Coaxial Cable
- ICM Double Bubble BNC compression connectors
- Double Bubble Connectors by ICM
- Create Two 360 Compression Connections(one interior and one exterior)
- Ideal for Exposed Wiring Ideal for Trucks and OB Vans
Specifications:
- Number of Coax: 1
- RG Type: 59/U
- AWG: 20
- Stranding: Solid
- Conductor Material: BC - Bare Copper
- Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
- Outer Shield Material Trade Name: Duofoil
- Outer Shield Material: Dual Shield - Bonded Duofoil/TC - Tinned Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): N
- Plenum Number: BL-1506A
- Nom. Characteristic Impedance: 75 +/- 1.5O
- Applications: Precision Video Cable for Analog and Digital, Broadcast Coax, Precision Video Cable for Analog and Digital, HDTV/SDI, Coax Cables
- *Custom Lengths Available In All Colors
Warranty:
- 1 Year
