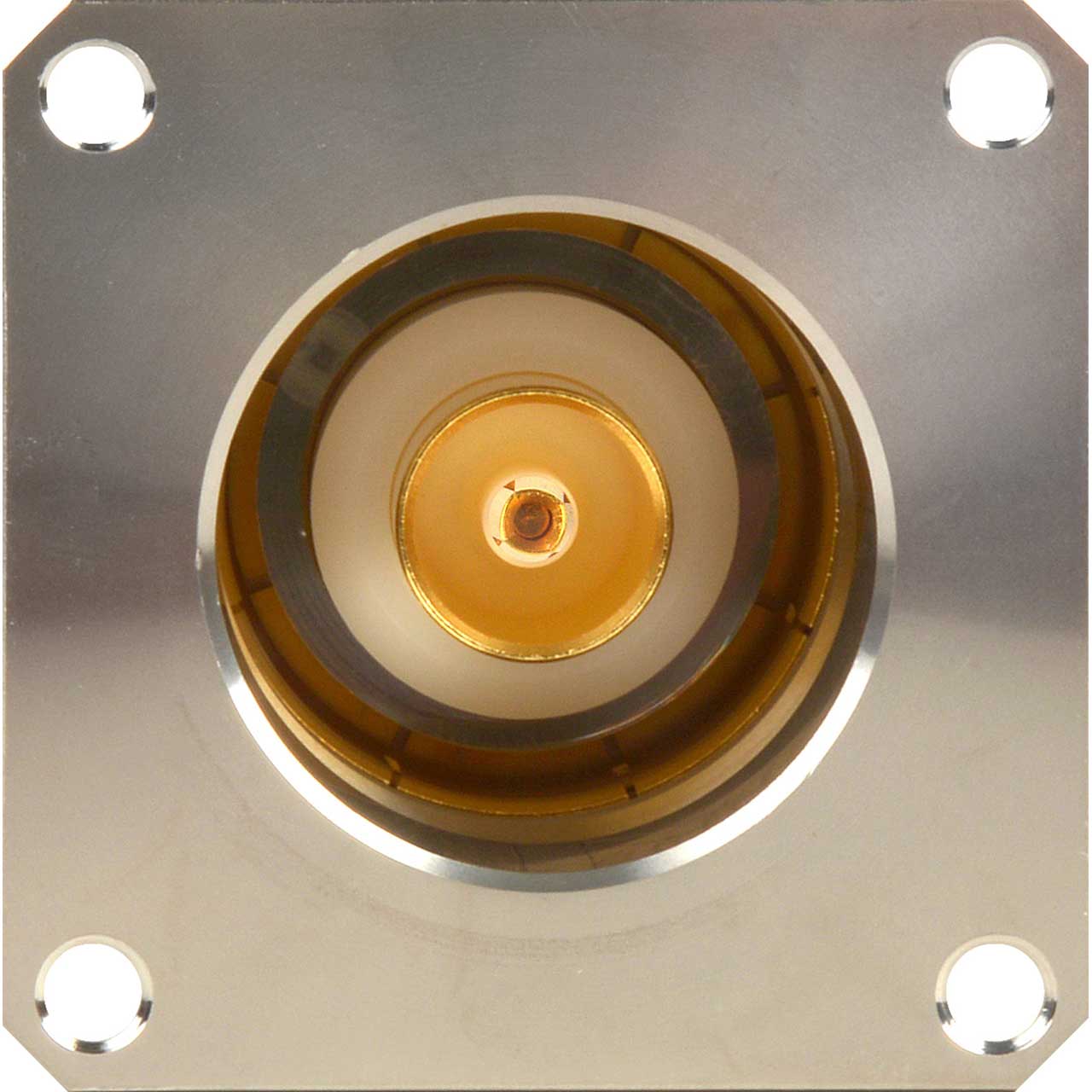

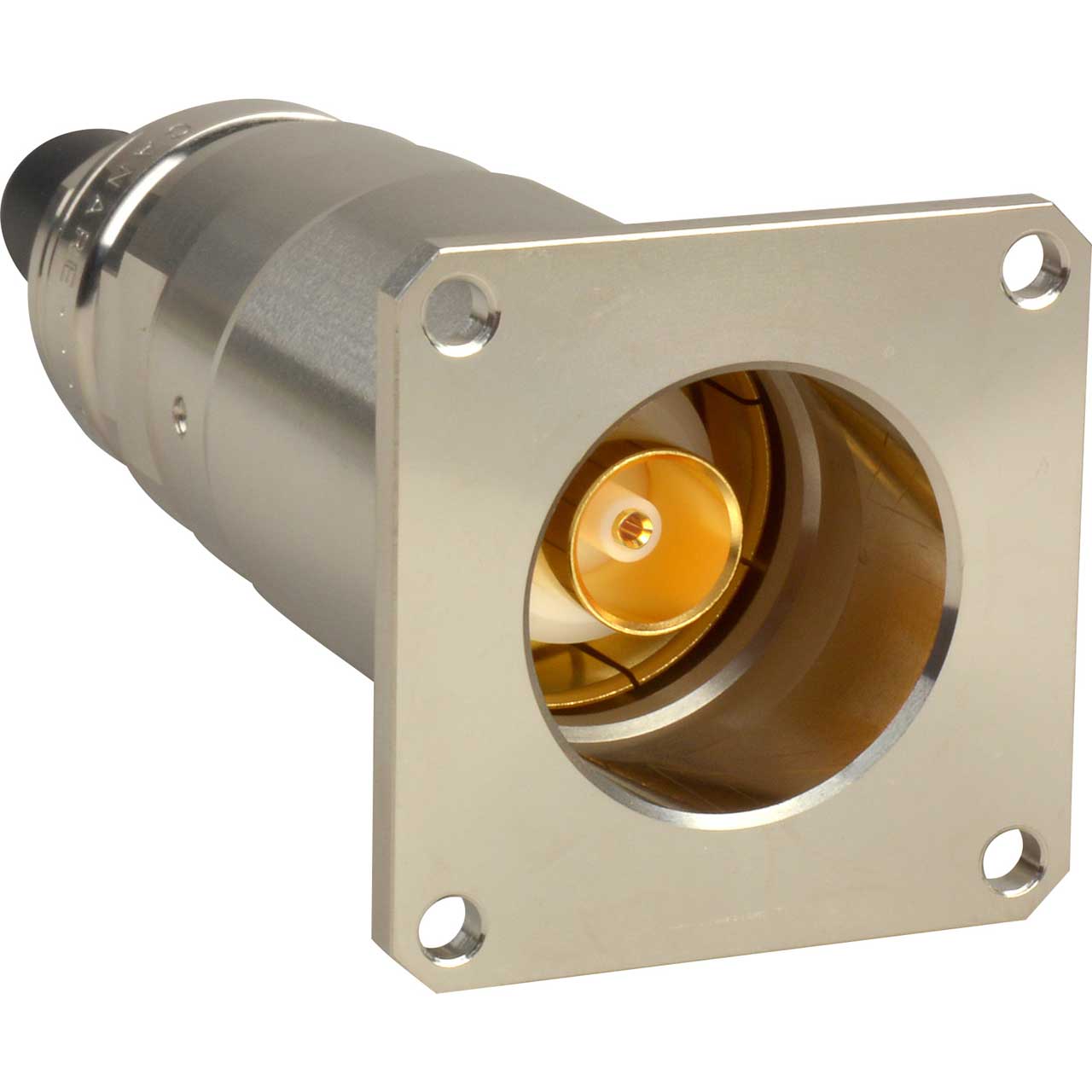

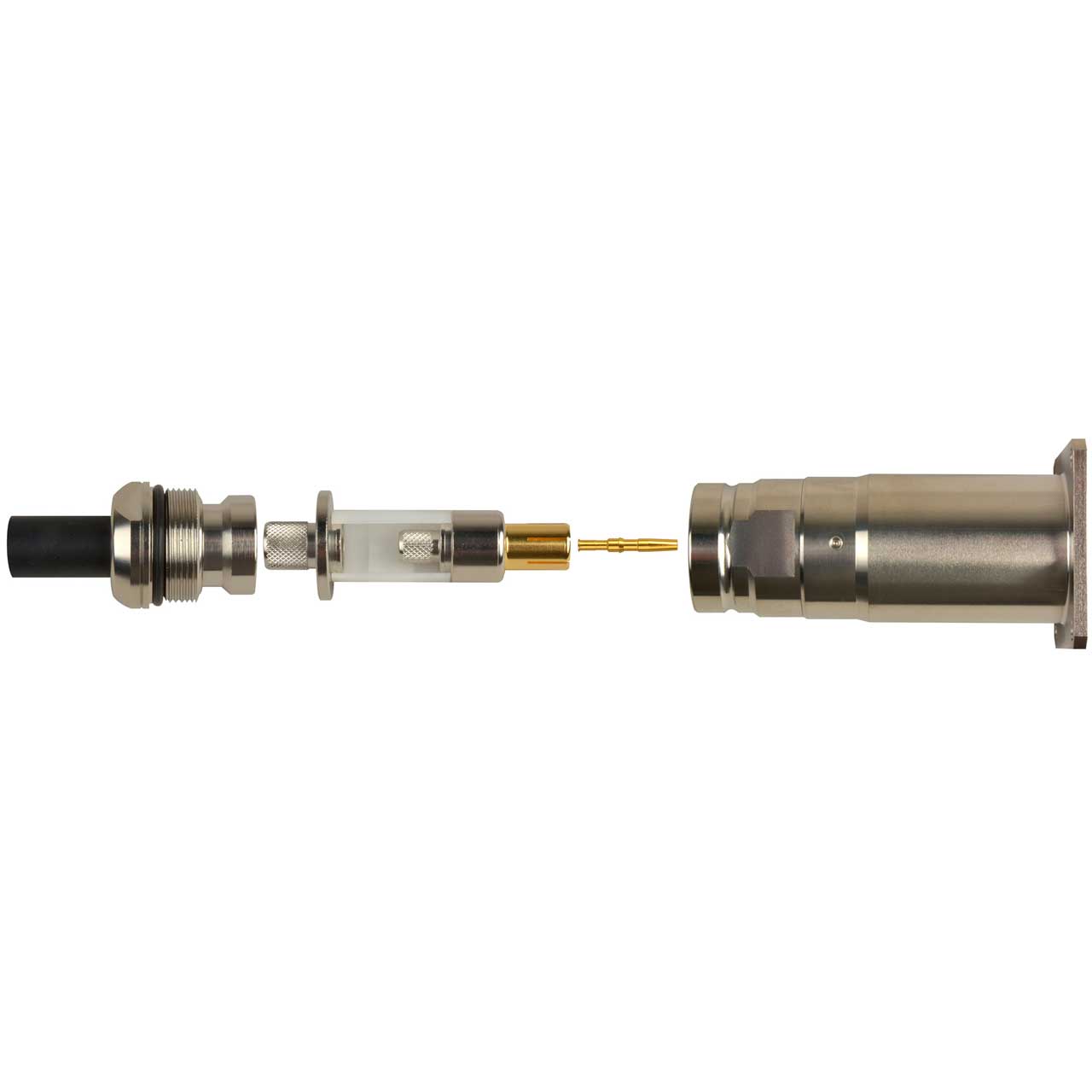

Canare CCF4-JKR Tri-K Pro Female Triax Panel Mount

Name: Canare CCF4-JKR Tri-K Pro Female Triax Panel Mount
Brand: Canare
SKU: CCF4-JKR
Price: 178.99 USD
Availability: InStock

ITEM #: CCF4-JKR MFG #: CCF4-JKR

Canare

List Price:

$243.00

Our Price:

$178.99

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CCF4-JKR - Overview

Long lasting performance - superior design Fully Compatible with Kings triaxial connectors Crimp with TC-1 crimp tool & TCD-316C die Secure push-lock mechanism Operating frequency up to 2.0 GHz

Features:
- Push-lock mechanism - no cable stress when detatching to prevent cable disconnection
- Simple construction for easy assembly
- Sturdy construction
- Long lasting performance - superior design
- Fully Compatible with Kings triaxial connectors
- Crimp with TC-1 crimp tool & TCD-316C die
- Secure push-lock mechanism
- Operating frequency up to 2.0 GHz
Specifications:
- Use with: Belden 9267, 1856A, 1857A; Gepco LVT 61859, VT 61859
- Compatible with Canare L-4CFTX cable (available in black, red, green jacket colors)
- Detailed instructions included
- Retro-Fit Kit available

CCF4-JKR - Recommended Accessories

Canare TS100E 5-In-1 Multi Stripper
TS100E
Our Price: $84.64
Belden 1856A Flexible Indoor/Outdoor RG59/U Type Triaxial Cable Solid BC/Braided Shield 20 AWG - Per Foot
BL-1856A
Our Price: $3.29
Canare DCM02 Dust Boot for Tri-K Pro Triaxial CCF4-JKR
DCM02
Our Price: $12.46
Canare BN9127 Retro Kit For CCF-4JK & CCF-4JKR
BN9127
Our Price: $38.00
Canare CCM4-PK Tri-K Pro Male Triax Connector Cable End
CCM4-PK
Our Price: $142.00
Connectronics CTX-TRIAX-TXT Triax Cable Tester
CTX-TRIAX-TXT
Our Price: $755.49
Camplex 45 Degree 2RU 8-Position Empty Rack Frame
HY45-45D2RU
Our Price: $144.49

CCF4-JKR - Reviews

CCF4-JKR - Attachments

See Canare CCF4-JKR Specifications (PDF)

Overview

CCF4-JKR - Overview

Long lasting performance - superior design Fully Compatible with Kings triaxial connectors Crimp with TC-1 crimp tool & TCD-316C die Secure push-lock mechanism Operating frequency up to 2.0 GHz

Features:
- Push-lock mechanism - no cable stress when detatching to prevent cable disconnection
- Simple construction for easy assembly
- Sturdy construction
- Long lasting performance - superior design
- Fully Compatible with Kings triaxial connectors
- Crimp with TC-1 crimp tool & TCD-316C die
- Secure push-lock mechanism
- Operating frequency up to 2.0 GHz
Specifications:
- Use with: Belden 9267, 1856A, 1857A; Gepco LVT 61859, VT 61859
- Compatible with Canare L-4CFTX cable (available in black, red, green jacket colors)
- Detailed instructions included
- Retro-Fit Kit available
