Belden 1856A Flexible Indoor/Outdoor RG59/U Type Triaxial Cable Solid BC/Braided Shield 20 AWG - Per Foot

ITEM #: BL-1856A MFG #: BL-1856A

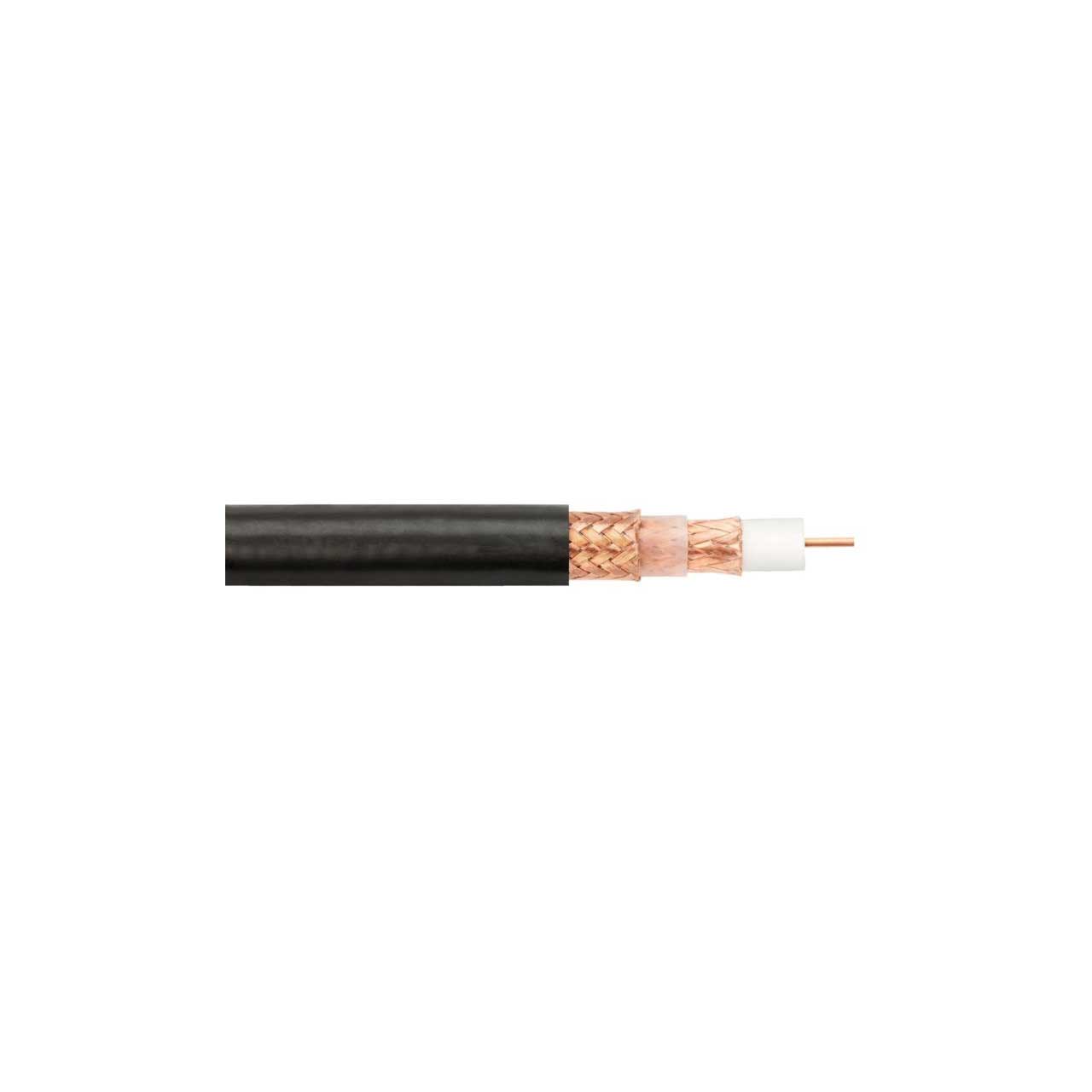

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.80

Our Price:

$3.29

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

BL-1856A - Overview

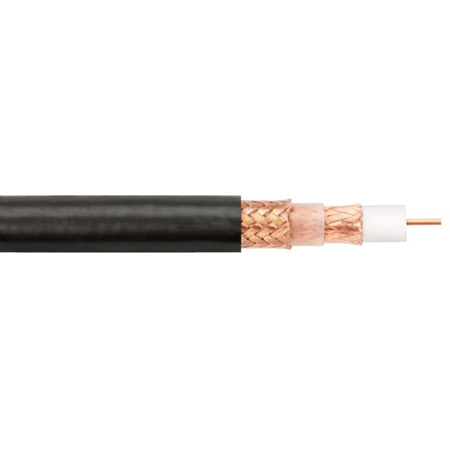

Belden 1856A is a 20 AWG RG59 Triax Cable. It features a Solid Bare Copper Conductor with PE Insulation, a 95% Bare Copper Braid Shield with PE Insulation and a 95% Bare Copper Braid Shield in a Belflex® Jacket.

If you need a cable that provides more bandwidth and rejection of interference than traditional coax, Belden Video Triaxial Cables meet those needs with the utmost quality standards. Belden has a comprehensive offering ranging from 14 AWG to 22 AWG that can be used for flexible or permanent installs. Common applications analog video cameras in the broadcast and television industries.

Applications
Analog Video
Interconnect camera to CCU (camera control unit)

  • Features:

    • Flexible Options: Indoor/Outdoor cable
    • Jacket: Belflex provides extra flexibility for deployable applications


  • Specifications:

    • Number of Coax: 1
    • RG Type: 59/U
    • Conductor AWG: 20
    • Conductor Stranding: Solid
    • Conductor Nom. Diameter: 0.032 in
    • Conductor Material: BC - Bare Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Nom. Insulation Diameter: 0.145 in (3.68 mm)
    • Inner Shield Type: Braid
    • Inner Shield Material: BC - Bare Copper 95%
    • Inner Jacket Material: PE - Polyethylene
    • Outer Shield Material: BC - Bare Copper
    • Outer Jacket Material Trade Name: Belflex
    • Outer Jacket Material: PVC Blend - Polyvinyl Chloride Blend
    • Outer Jacket Nom. Diameter: 0.360 in (9.14 mm)
    • Overall Cable Diameter: 0.360 Inch
    • Plenum (Y/N): N
    • Nom. Characteristic Impedance: 75 Ohms
    • Nom. Conductor DCR: 10.1 Ohm/1000ft
    • Nom. Inner Shield DCR: 2.5 Ohm/1000ft
    • Nom. Outer Shield DCR: 1.6 Ohm/1000ft
    • Nom. Capacitance Cond-to-Shield: 16.3 pF/ft
    • Temperature Operating: -45°C to +60°C
    • Bulk Cable Weight: 76 lbs/1000ft
    • Max. Pull Tension: 106 lbs
    • Environmental Suitability: Indoor/Outdoor, Indoor


  • Item Includes:

    • 1856A RG59/U Type Triaxial Cable 20 AWG - Per Foot


  • Warranty:

    • Limited 10 Year Warranty
