Belden 1857A BeFlex RG59/22 Type Triaxial Cable - 500 Foot

Name: Belden 1857A BeFlex RG59/22 Type Triaxial Cable - 500 Foot
Brand: Belden
SKU: BL-1857A-500
Price: 635.63 USD
Availability: PreSale

ITEM #: BL-1857A-500 MFG #: 1857A B59500

Belden

List Price:

$1,915.60

Our Price:

$635.63

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1857A B59500 - Overview

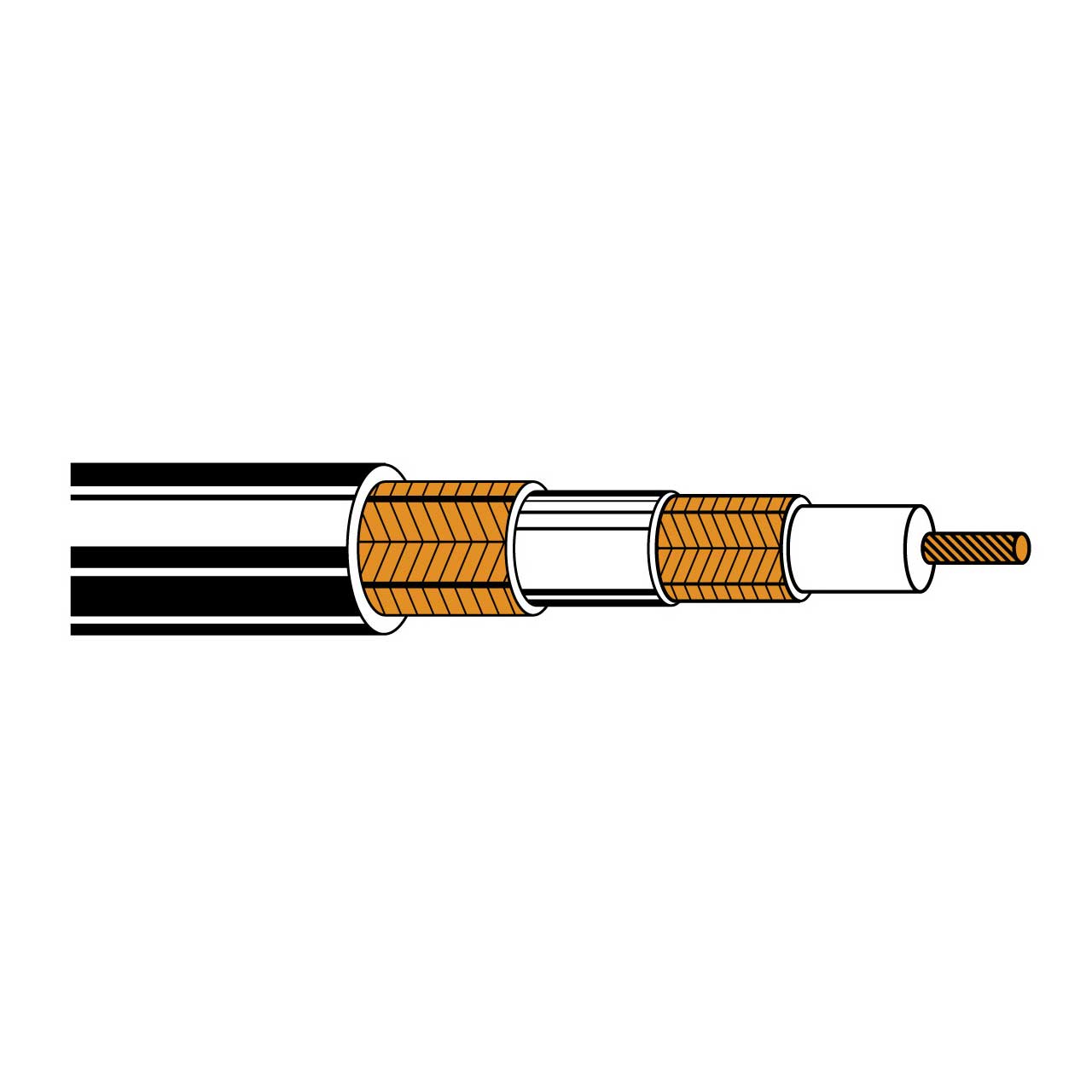

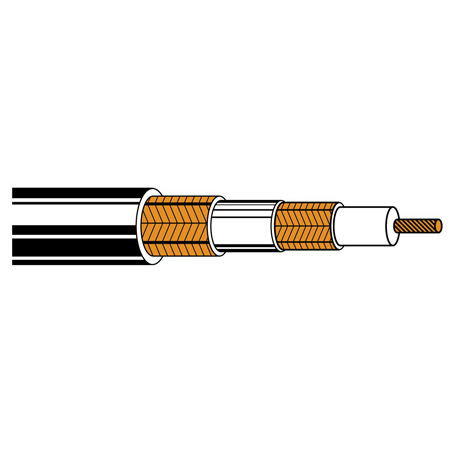

Belden 1857A Triax, RG59, 22 AWG (19x34) Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PE Insulation, 95% Bare Copper Braid Shield, Belflex Jacket, Flexible. Suitable for Analog Video; Interconnect camera to CCU (camera control unit) applications.

Specifications:
- Number of Coax: 1
- RG Type: 59/U
- AWG: 22
- Stranding: 19x34
- Conductor Material: SBC - Soft Bare Copper
- Insulation Material: FPE - Foam Polyethylene
- Inner Shield Material: BC - Bare Copper
- Inner Jacket Material: PE - Polyethylene
- Outer Shield Material: BC - Bare Copper
- Outer Jacket Material Trade Name: Belflex
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Overall Diameter: 0.360 Inch Plenum (Y/N): N
- Nom. Conductor DCR: 14.0 Ohm/1000ft
- Nom. Inner Shield DCR: 2.5 Ohm/1000ft
- Nom. Outer Shield DCR: 1.6 Ohm/1000ft
- Nom. Capacitance Cond-to-Shield: 17.0 pF/ft
- Nom. Impedence: 75 Ohm
- Non-UL Voltage Rating: 300 V
- Temperature Operating: -45°C to +60°C
- Bulk Cable Weight: 78 lbs/1000ft
- Max. Pull Tension: 102 lbs
- Environmental Suitability: Indoor/Outdoor, Indoor
GTIN:
0612825358404
