Belden 1857A BeFlex RG59/22 Type Triaxial Cable - 1000 Foot

Name: Belden 1857A BeFlex RG59/22 Type Triaxial Cable - 1000 Foot
Brand: Belden
SKU: BL-1857A-1000
Price: 2375.10 USD
Availability: PreSale

ITEM #: BL-1857A-1000 MFG #: 1857A B591000

Belden

List Price:

$3,818.80

Our Price:

$2,375.10

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1857A B591000 - Overview

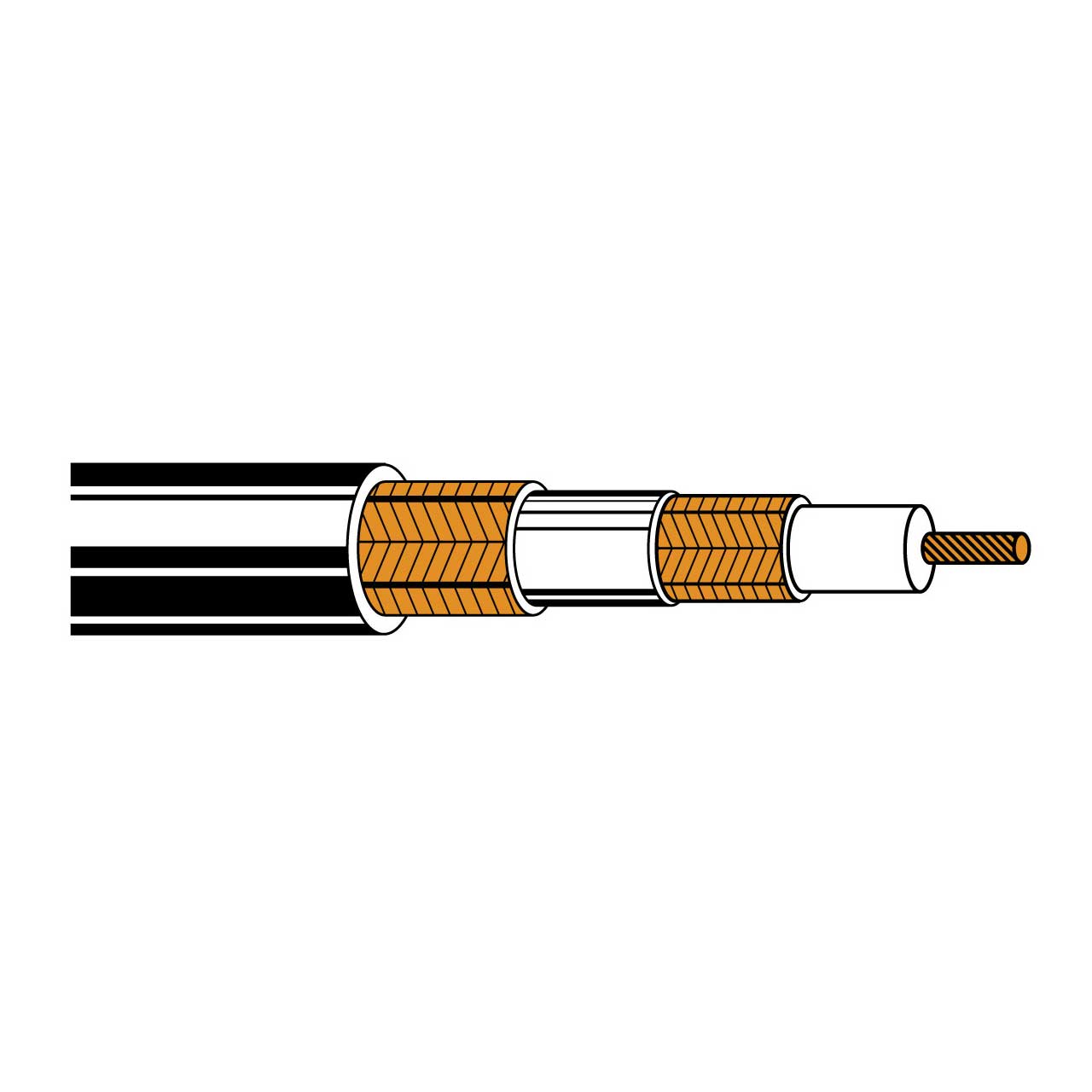

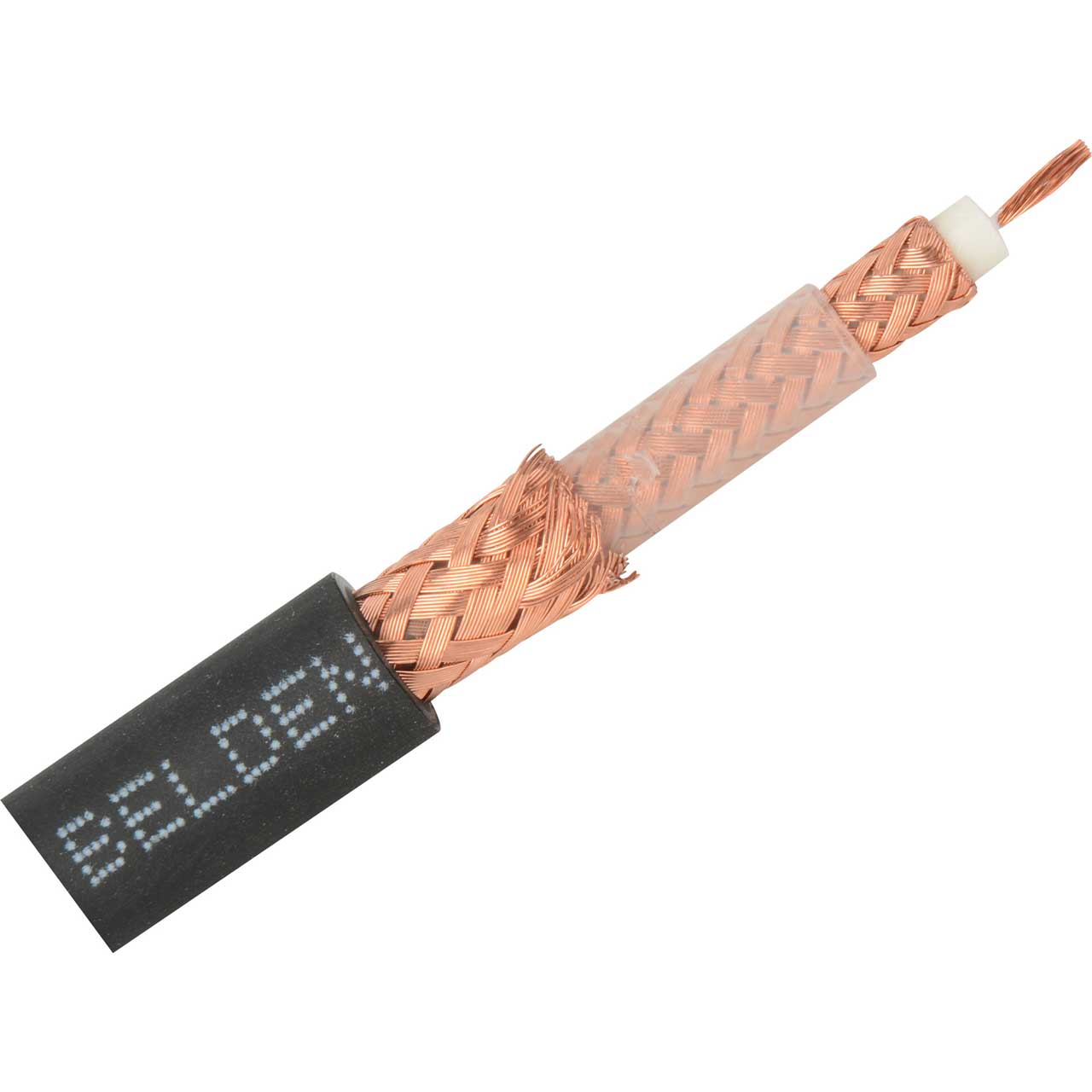

Belden 1857A Triax, RG59, 22 AWG (19x34) Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PE Insulation, 95% Bare Copper Braid Shield, Belflex Jacket, Flexible. Suitable for Analog Video; Interconnect camera to CCU (camera control unit) applications.

Specifications:
- Number of Coax: 1
- RG Type: 59/U
- AWG: 22
- Stranding: 19x34
- Conductor Material: SBC - Soft Bare Copper
- Insulation Material: FPE - Foam Polyethylene
- Inner Shield Material: BC - Bare Copper
- Inner Jacket Material: PE - Polyethylene
- Outer Shield Material: BC - Bare Copper
- Outer Jacket Material Trade Name: Belflex
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Overall Diameter: 0.360 Inch Plenum (Y/N): N
- Nom. Conductor DCR: 14.0 Ohm/1000ft
- Nom. Inner Shield DCR: 2.5 Ohm/1000ft
- Nom. Outer Shield DCR: 1.6 Ohm/1000ft
- Nom. Capacitance Cond-to-Shield: 17.0 pF/ft
- Nom. Impedence: 75 Ohm
- Non-UL Voltage Rating: 300 V
- Temperature Operating: -45°C to +60°C
- Bulk Cable Weight: 78 lbs/1000ft
- Max. Pull Tension: 102 lbs
- Environmental Suitability: Indoor/Outdoor, Indoor
GTIN:
0612825358411

1857A B591000 - Recommended Accessories

Kings 7705-2 Triax Tri-Loc Male Cable End for Belden 9267
KC-77052
Our Price: $252.86
Kings 7708-2 Triax Tri-Loc Male Retro Fit Kit for 7705-2/7705-4/7705-9
KC-77082
Our Price: $40.34
Kings 7703-2 Tri-Loc Female Cable End for Belden 9267 and 1857A
KC-77032
Our Price: $252.00
Kings 7708-5 Triax Tri-Loc Female Retro Fit Kit for 7703-2 / 7703-6 /7703-9
KC-77085
Our Price: $44.04
Kings Tri-Loc Crimp Die For Belden 1856a
KTH-2002
Our Price: $320.27
Kings KTH-1000 BNC Crimp Tool with Removable Die (Die Not Included)
KTH1000
Our Price: $552.96
Connectronics CTX-TRIAX-TXT Triax Cable Tester
CTX-TRIAX-TXT
Our Price: $755.49

1857A B591000 - Reviews

1857A B591000 - Attachments

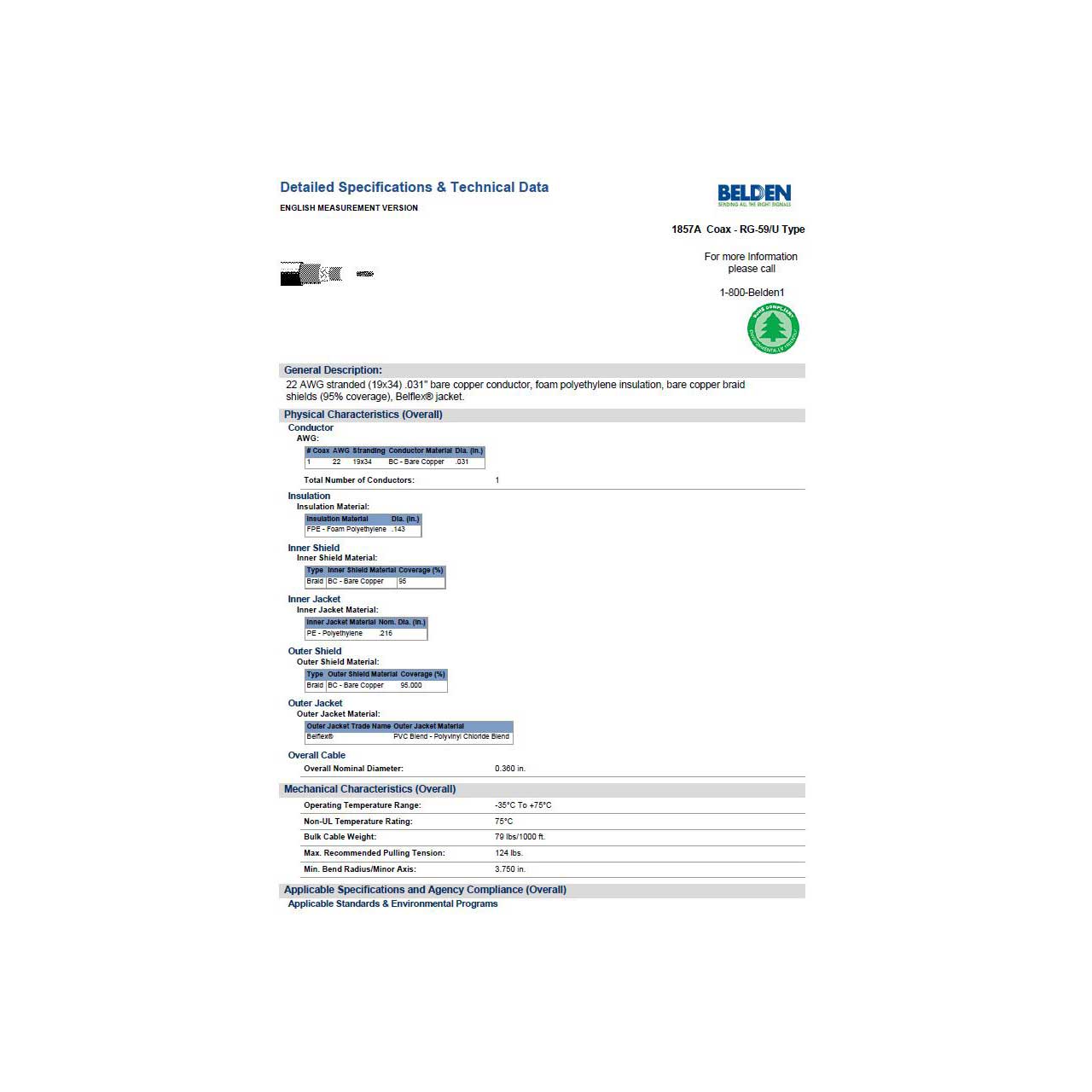

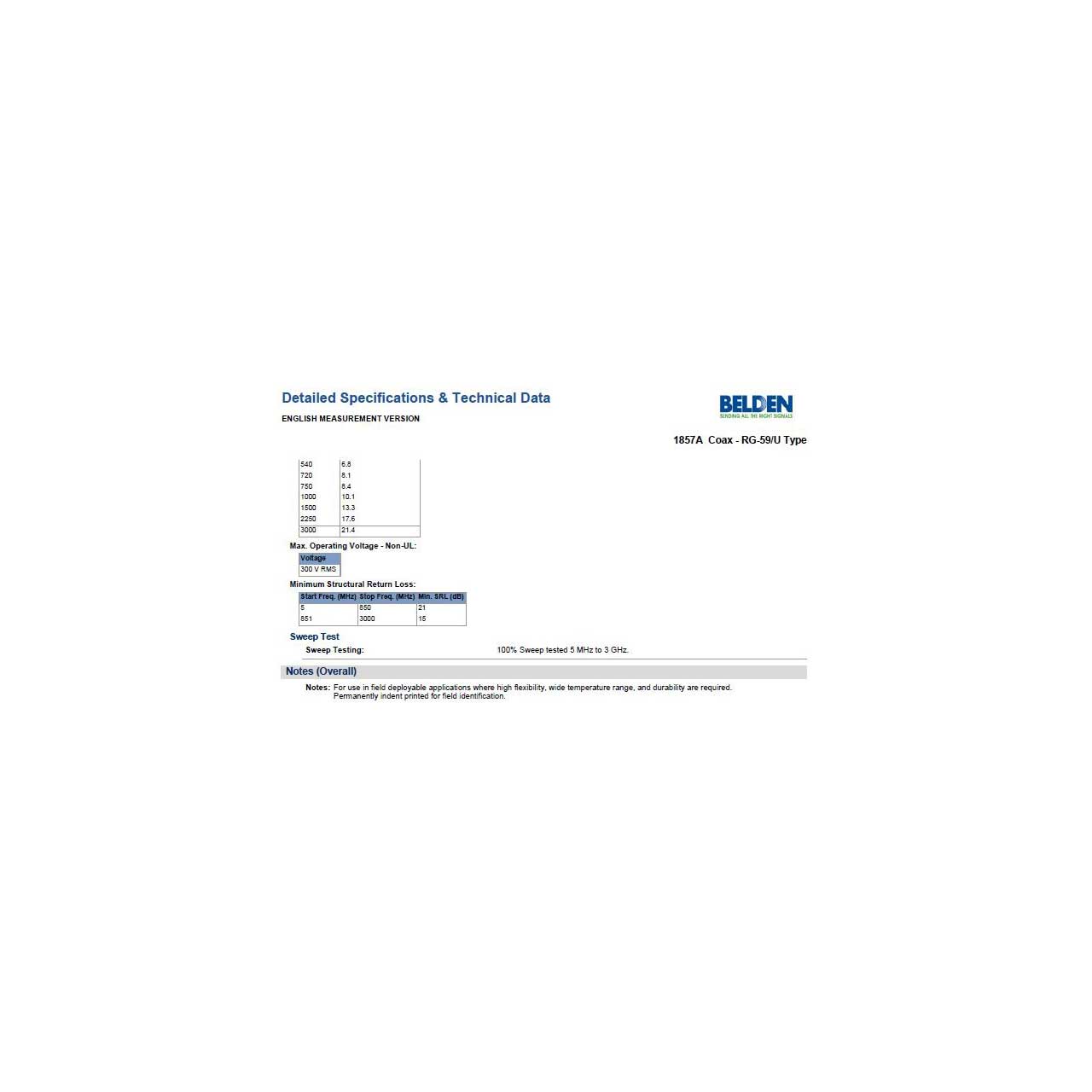

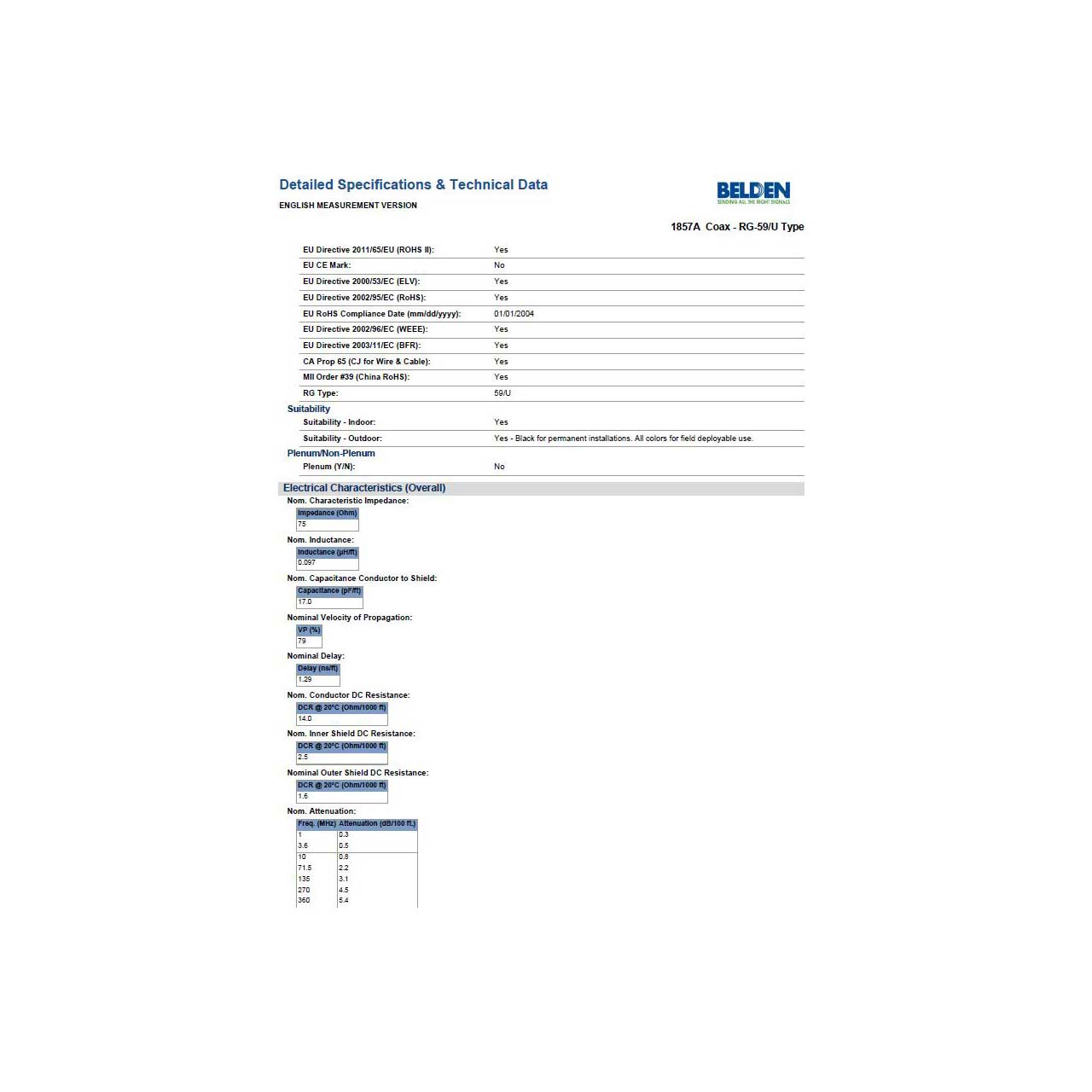

See Belden BL-1857A-1000 Specifications (PDF)
