Belden 8233 RG11 Type Triaxial Cable - 1000 Foot

ITEM #: BL-8233-1000 MFG #: 8233 0101000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,088.40

Our Price:

$3,362.12

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

8233 0101000 - Overview

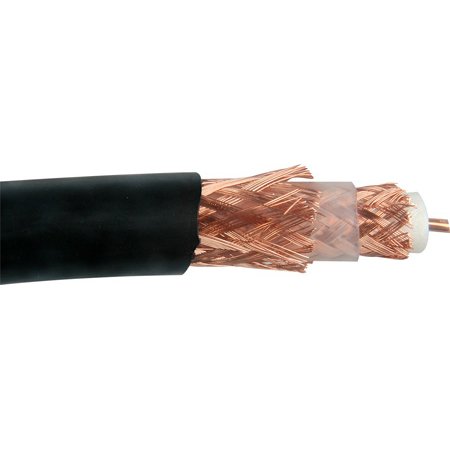

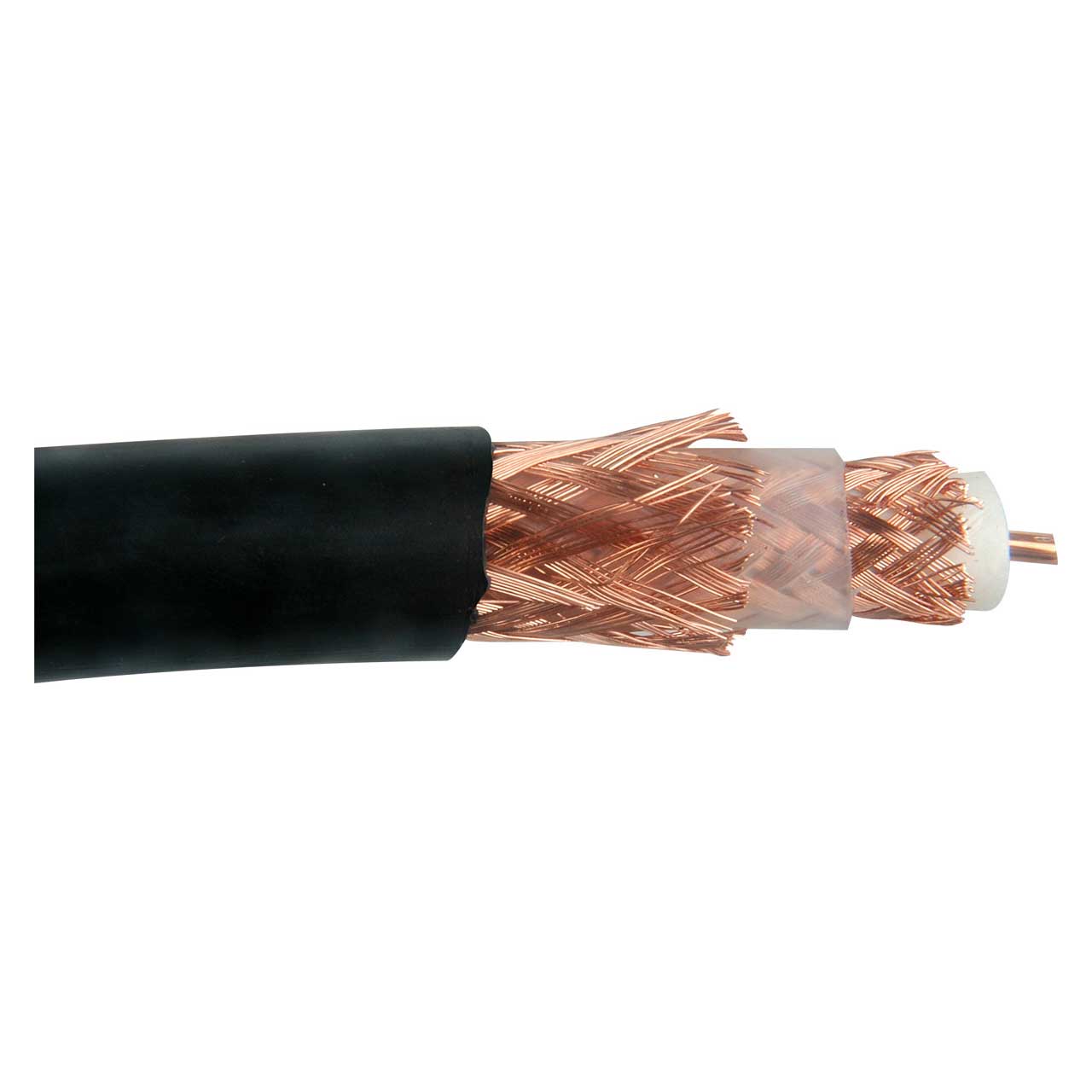

14 AWG solid .064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% and 80% coverage), polyethylene jacket

  • Specifications:

    • Number of Coax: 1
    • RG Type: 11/U
    • AWG: 14
    • Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: FPE - Foam Polyethylene Inner
    • Shield Material: BC - Bare Copper
    • Inner Jacket Material: PE - Polyethylene
    • Outer Shield Material: BC - Bare Copper
    • Outer Jacket Material: PE - Polyethylene
    • Plenum (Y/N): N
    • Nom. Characteristic Impedance: 75 Ohms
    • Overall Nominal Diameter: 0.475 Inch


  • Applications

    :

    • Triaxial Video/Camera Cable
    • Video Triax Cable


  • GTIN:

    0612825355588
