Belden 1859A 75 Ohm 15AWG Plenum Video RG-11/U Triax Cable - 1000 Foot

ITEM #: BL-1859A-1000 MFG #: 1859A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$15,856.60

Our Price:

$12,698.54

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1859A 0101000 - Overview

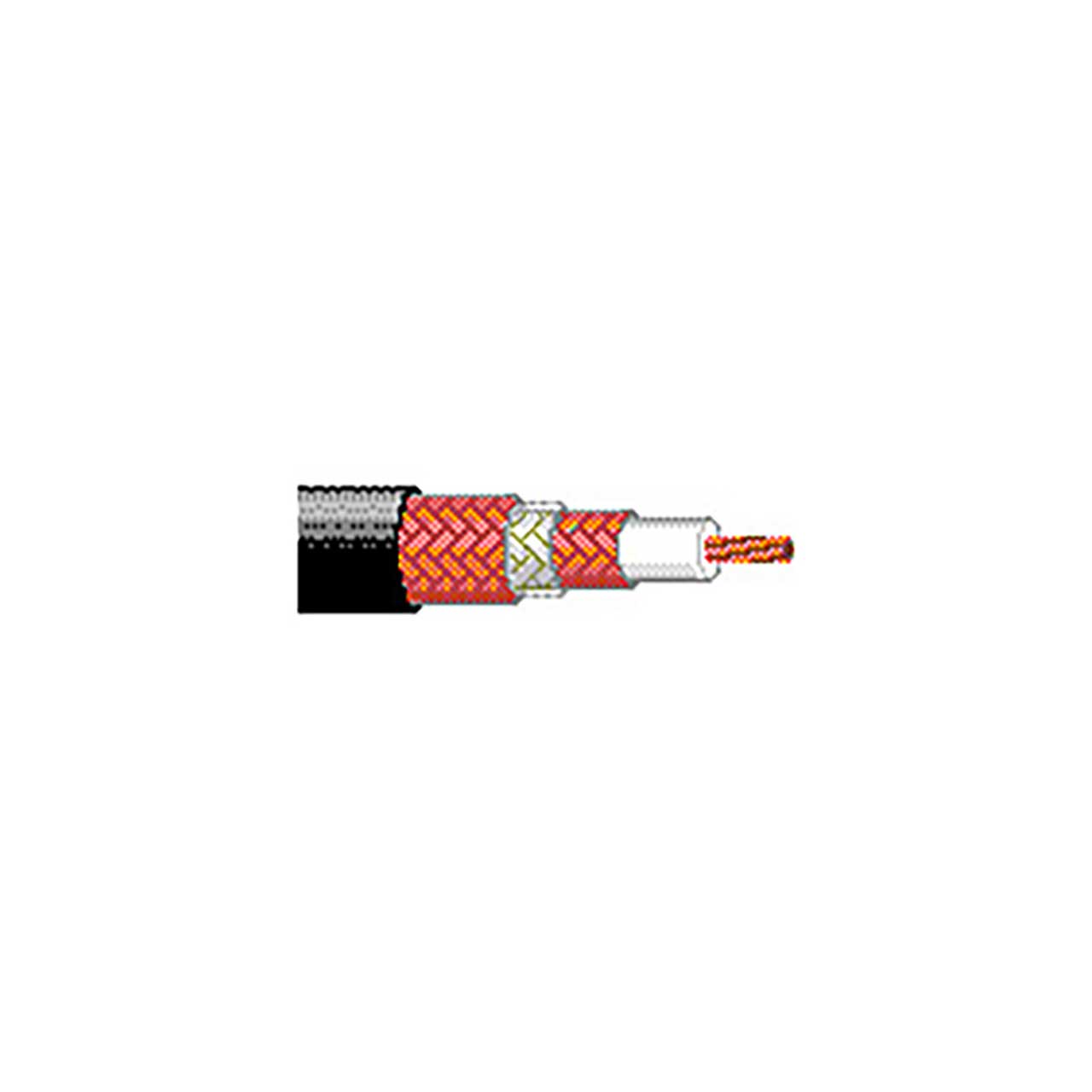

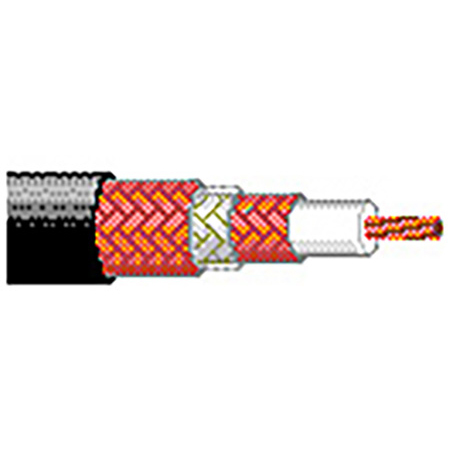

Belden 1859A Triax, RG11, 15 AWG (19x27) Bare Copper Conductor, FEP Insulation, 95% Bare Copper Braid Shield, PVDF Insulation, 90% Bare Copper Braid Shield, PVDF Jacket, CMP. Suitable for Analog Video; Interconnect camera to CCU (camera control unit) applications.

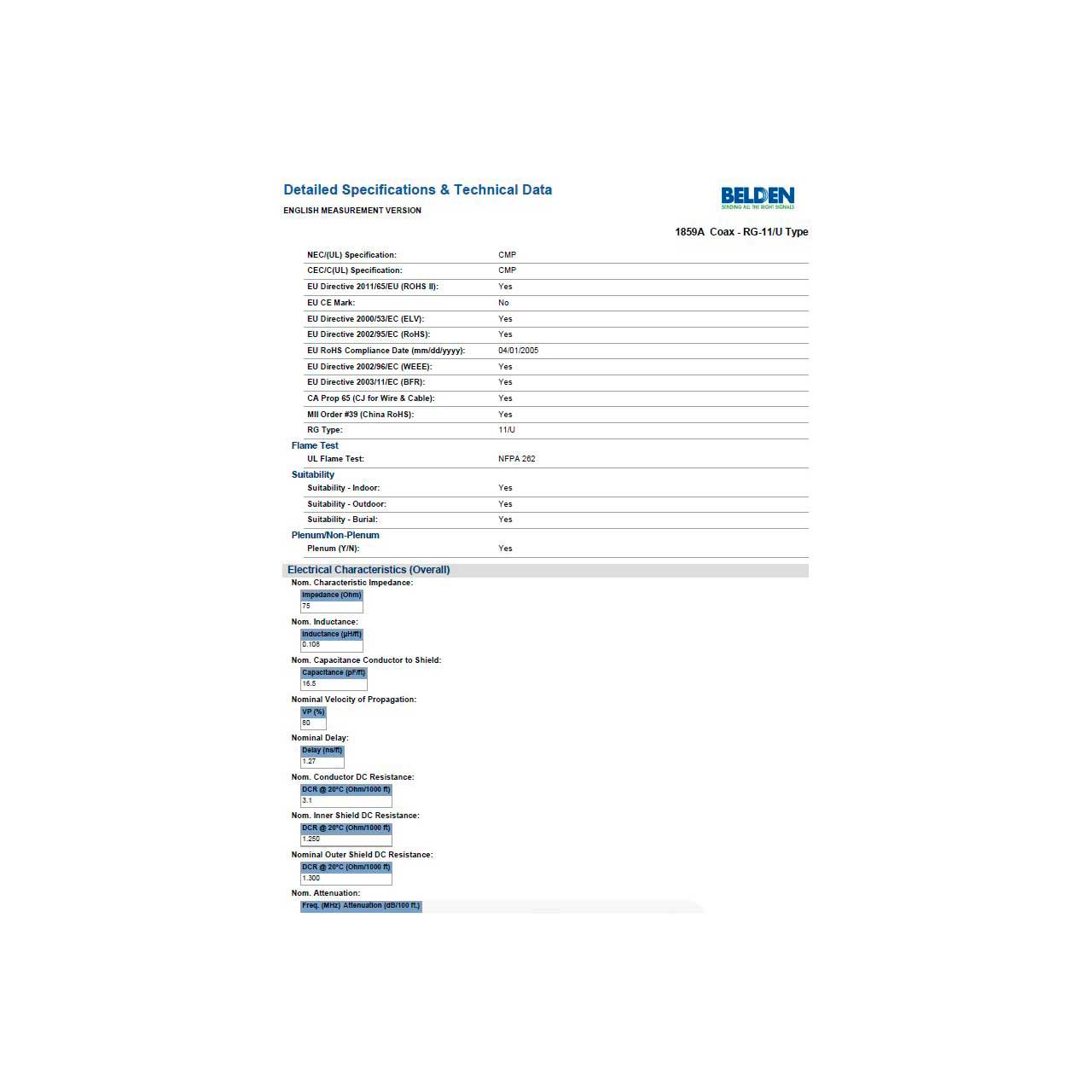

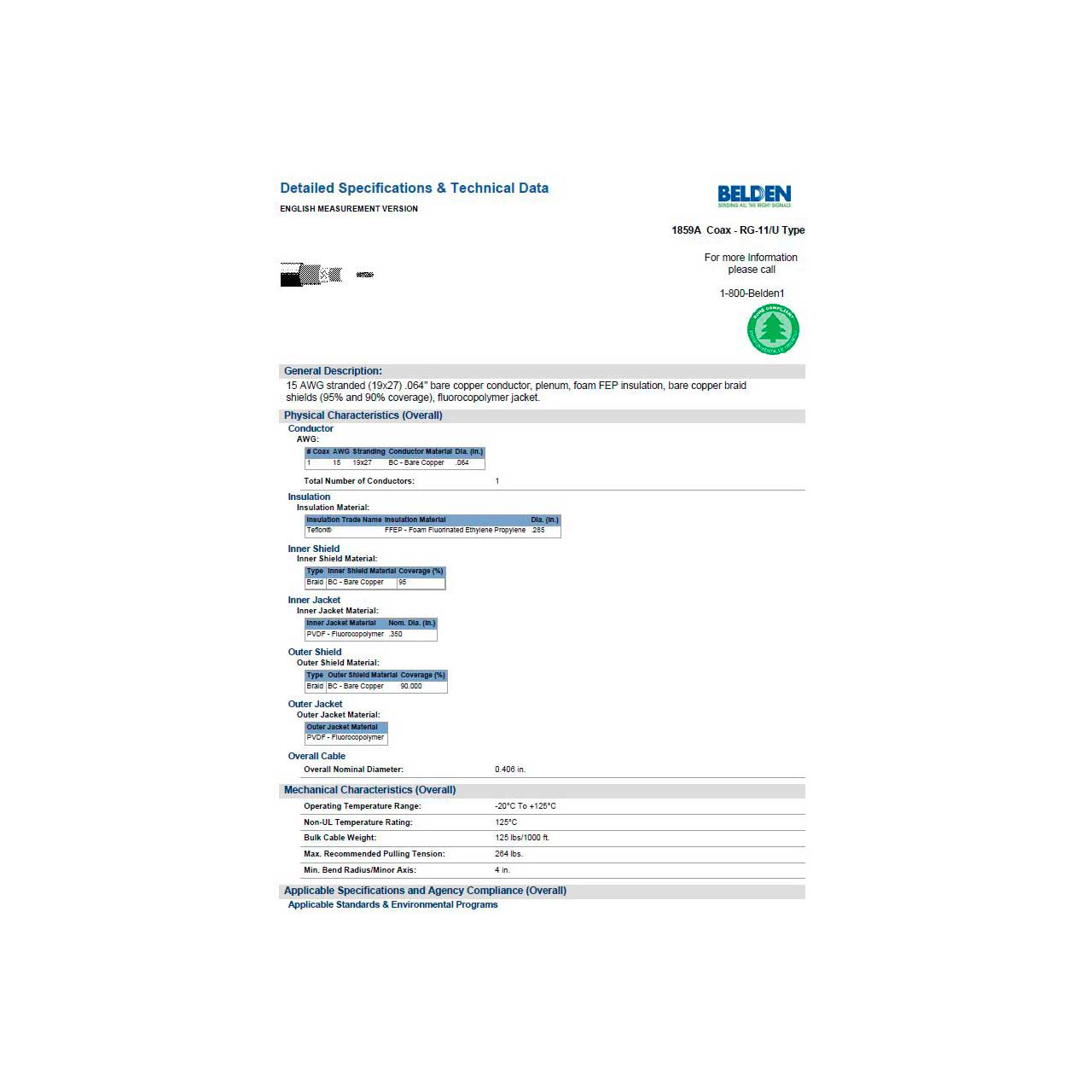

  • Specifications:

    • AWG: 15
    • Stranding: 19x27
    • Nom Diameter: 0.064 in
    • Material: BC - Bare Copper
    • Nom. Conductor DCR: 3.0 Ohm/1000ft
    • Nom. Inner Shield DCR: 1.4 Ohm/1000ft
    • Nom. Outer Shield DCR: 1.3 Ohm/1000ft
    • Nom. Capacitance Cond-to-Shield: 16.5 pF/ft
    • Nom. Impedence: 75 Ohm
    • UL Voltage Rating: 300 V (CMP)
    • UL Rating Temp: 125°C
    • Operating Temp: -20°C to +125°C
    • Bulk Cable Weight: 127 lbs/1000ft
    • Max. Pull Tension: 209 lbs
    • Environmental Suitability: Indoor - Plenum, Indoor


  • GTIN:

    0612825125129
