Belden 1858A Flex RG11 Type Triaxial Cable - 1000 Foot

Name: Belden 1858A Flex RG11 Type Triaxial Cable - 1000 Foot
Brand: Belden
SKU: BL-1858A-1000
Price: 4402.20 USD
Availability: PreSale

ITEM #: BL-1858A-1000 MFG #: 1858A B591000

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5,432.70

Our Price:

$4,402.20

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Shipped truck freight.
Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1858A B591000 - Overview

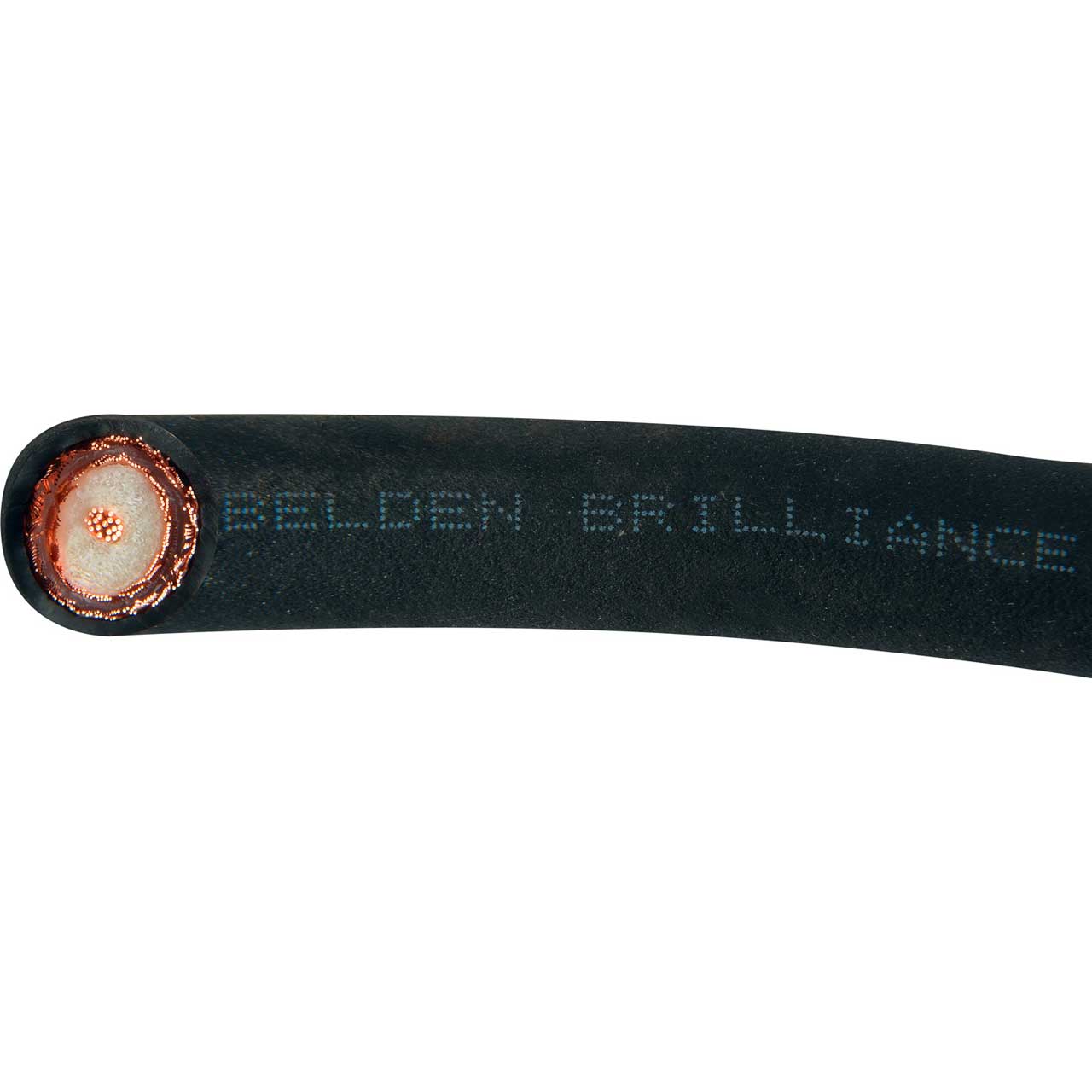

Belden 1858A is a Flexible, RG-11 Video Triax Cable. It features a 15 AWG stranded (19x27) .064" bare copper conductor, with foam HDPE insulation, bare copper braid shields (95% coverage), in a Belflex PVC jacket.

Applications
Analog Video
Interconnect Camera to CCU (Camera Control Unit)

Features:
- Number of Coax: 1
- AWG: 15
- Stranding: 19x27
- Nominal Diameter: 0.064in
- No. of Coax: 1
- Conductor Material: BC - Bare Copper
- Insulation Material: FPE - Foam Polyethylene
- Inner Shield Material: BC - Bare Copper
- Inner Jacket Material: PE - Polyethylene
- Outer Shield Material: BC - Bare Copper
- Outer Jacket Material Trade Name: Belflexr
- Outer Jacket Material: PVC Blend - Polyvinyl Chloride Blend
- Overall Diameter: 0.520 Inch
- Nominal Conductor DCR: 3.1 Ohm/1000ft 3.1
- Nominal Conductor DCR Conductor Resistance: 3.1 Ohm/1000ft
- Nominal Inner Shield DCR: 1.8 Ohm/1000ft
- Nominal Outer Shield DCR: 1.4 Ohm/1000ft
- Nom. Capacitance Conductor to Shield: 17.3 pF/ft
- Nom. Characteristic Impedance: 75 Ohms
- Nominal Delay: 1.3 ns/ft
- Non-UL Voltage Rating: 300 V RMS
- Non-UL Temp Rating: 75°C
- Operating Temp Range: -35°C To +75°C
- Bulk Cable Weight: 147 lbs/1000ft
- Max. Pull Tension: 264 lbs
- Min Bend Radius/Minor Axis: 5.5 in
- RG Type: 11/U Type
- Environmental Space: Indoor/Outdoor
GTIN:
0612825356653

1858A B591000 - Recommended Accessories

Kings Triax Tri-Loc Male Cable End for Belden 1858A/9232
KC-77053
Our Price: $299.00
Kings 7708-3 Triax Tri-Loc Male Retro Fit Kit for KC-77053
KC-77083
Our Price: $47.28
Kings Tri-Loc Female Cable End for Belden 1858A/9232
KC-77033
Our Price: $265.22
Kings 7708-6 Triax Tri-Loc Female Retro Fit Kit for KC-77033
KC-77086
Our Price: $34.96
Kings KTH-1000 BNC Crimp Tool with Removable Die (Die Not Included)
KTH1000
Our Price: $552.96
Connectronics TRX2BNCF Triax Female to BNC Female Adaptor
TRX2BNCF
Our Price: $201.49
Connectronics CTX-TRIAX-TXT Triax Cable Tester
CTX-TRIAX-TXT
Our Price: $676.95
Camplex 45 Degree 2RU 8-Position Empty Rack Frame
HY45-45D2RU
Our Price: $144.49

1858A B591000 - Reviews

1858A B591000 - Attachments

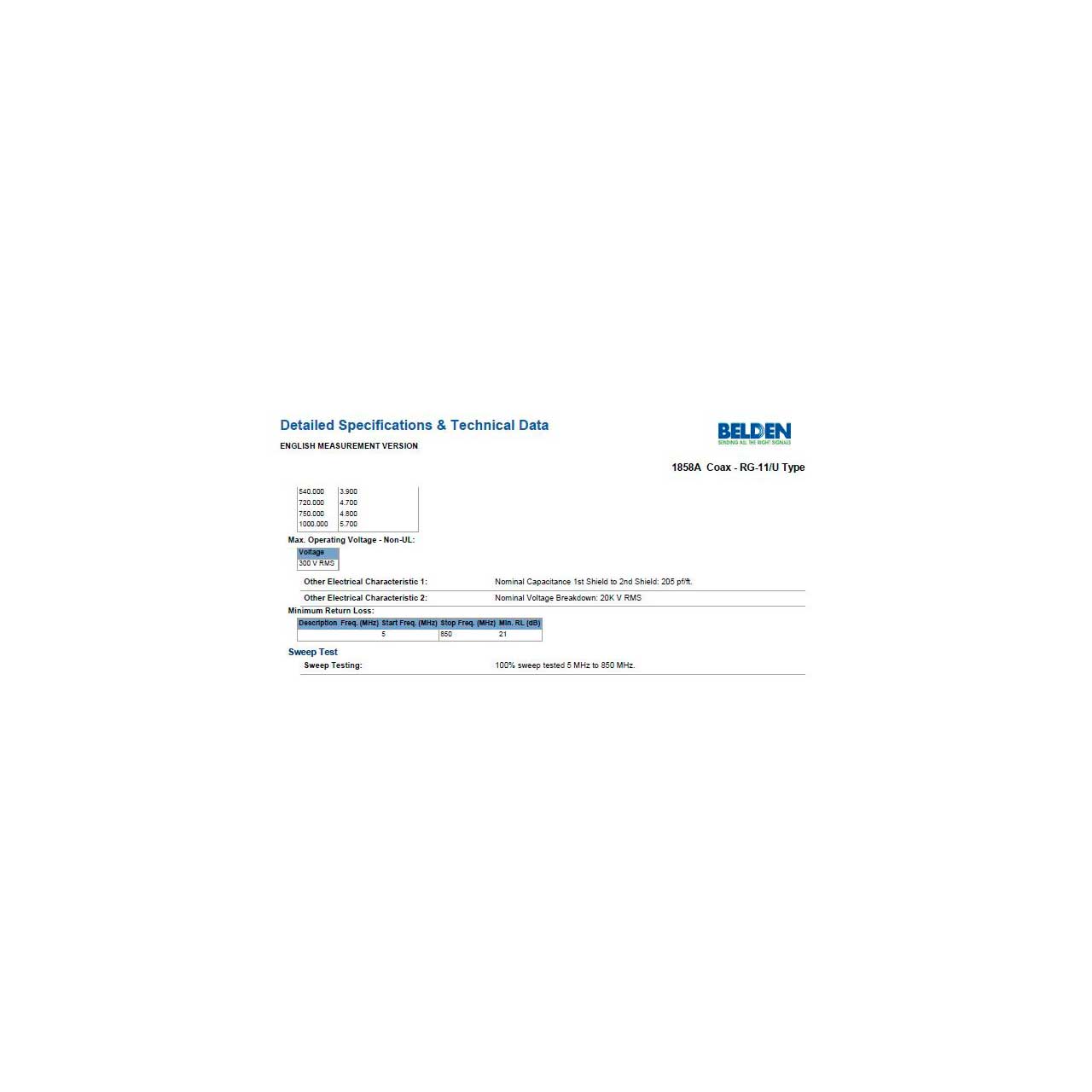

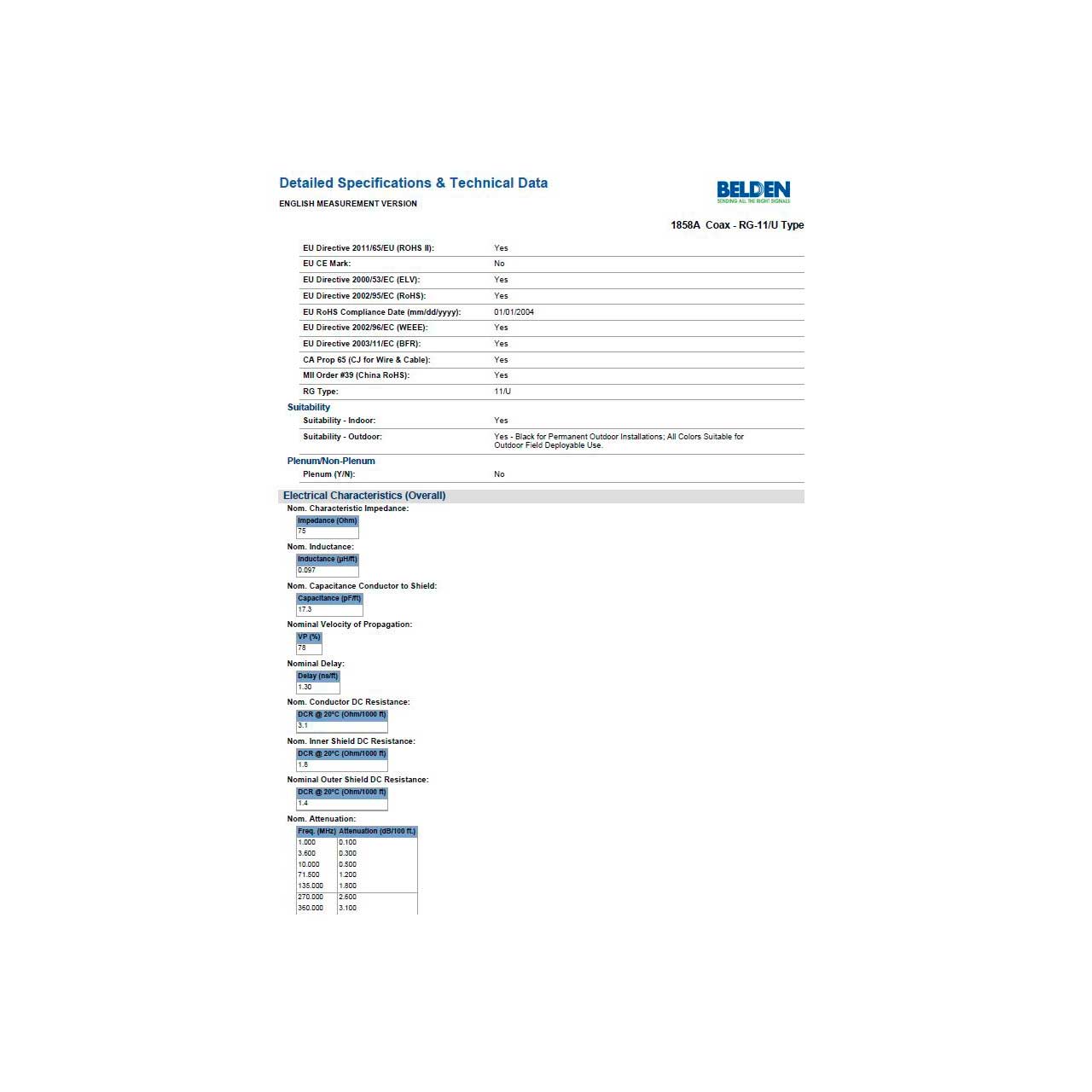

See Belden BL-1858A-1000 Specifications (PDF)

Overview

1858A B591000 - Overview

Applications
Analog Video
Interconnect Camera to CCU (Camera Control Unit)

Features:
- Number of Coax: 1
- AWG: 15
- Stranding: 19x27
- Nominal Diameter: 0.064in
- No. of Coax: 1
- Conductor Material: BC - Bare Copper
- Insulation Material: FPE - Foam Polyethylene
- Inner Shield Material: BC - Bare Copper
- Inner Jacket Material: PE - Polyethylene
- Outer Shield Material: BC - Bare Copper
- Outer Jacket Material Trade Name: Belflexr
- Outer Jacket Material: PVC Blend - Polyvinyl Chloride Blend
- Overall Diameter: 0.520 Inch
- Nominal Conductor DCR: 3.1 Ohm/1000ft 3.1
- Nominal Conductor DCR Conductor Resistance: 3.1 Ohm/1000ft
- Nominal Inner Shield DCR: 1.8 Ohm/1000ft
- Nominal Outer Shield DCR: 1.4 Ohm/1000ft
- Nom. Capacitance Conductor to Shield: 17.3 pF/ft
- Nom. Characteristic Impedance: 75 Ohms
- Nominal Delay: 1.3 ns/ft
- Non-UL Voltage Rating: 300 V RMS
- Non-UL Temp Rating: 75°C
- Operating Temp Range: -35°C To +75°C
- Bulk Cable Weight: 147 lbs/1000ft
- Max. Pull Tension: 264 lbs
- Min Bend Radius/Minor Axis: 5.5 in
- RG Type: 11/U Type
- Environmental Space: Indoor/Outdoor
GTIN:
0612825356653
