Belden 8233 RG-11 14 AWG Triax Cable - Per Foot

ITEM #: 8233 MFG #: 8233

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$4.09

Our Price:

$3.94

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

8233 - Overview

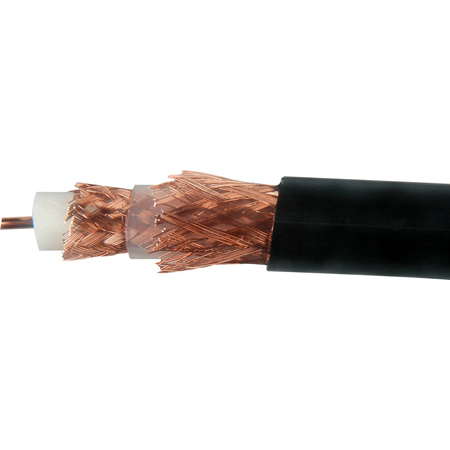

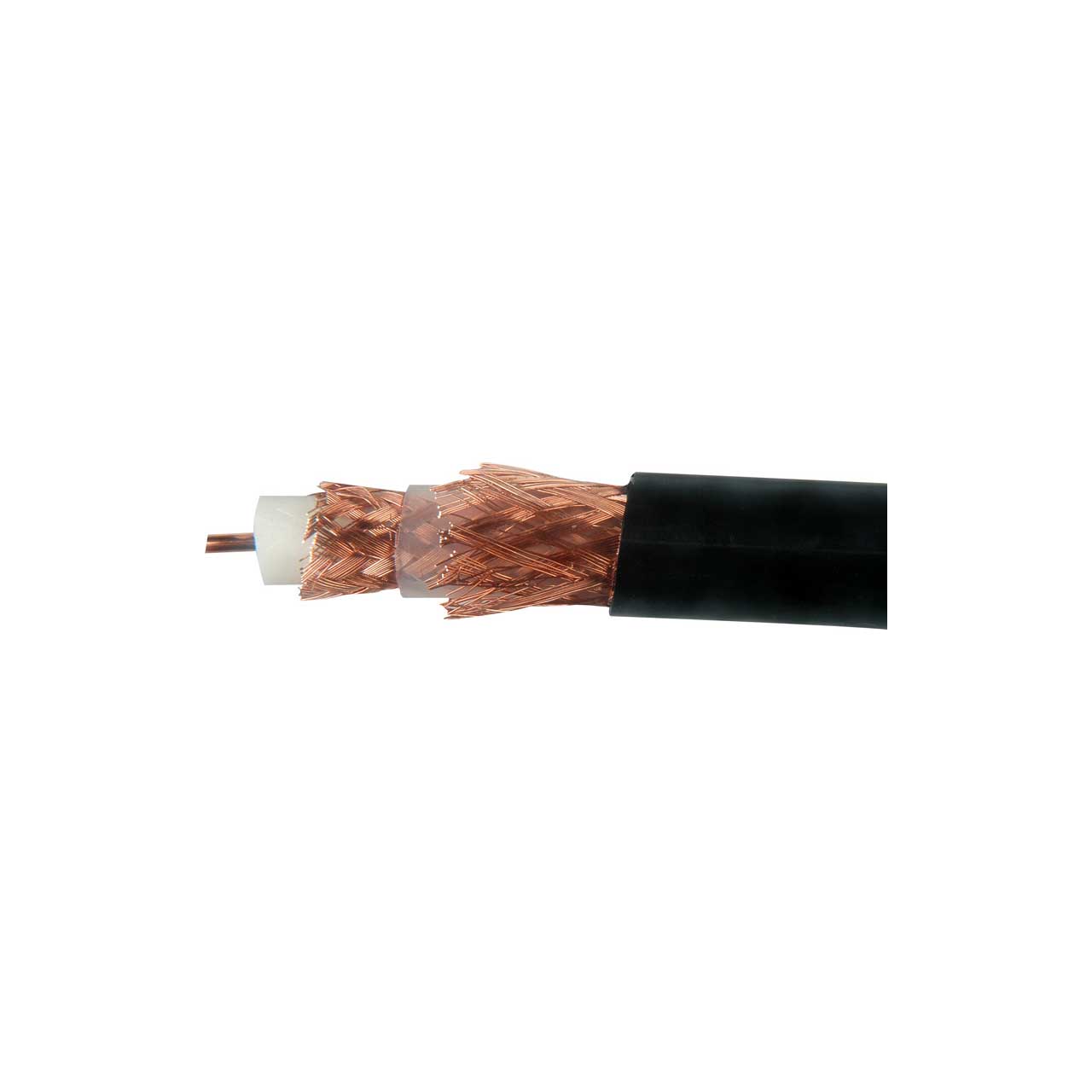

Belden 8233 14 AWG solid .064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% and 80% coverage), polyethylene jacket.

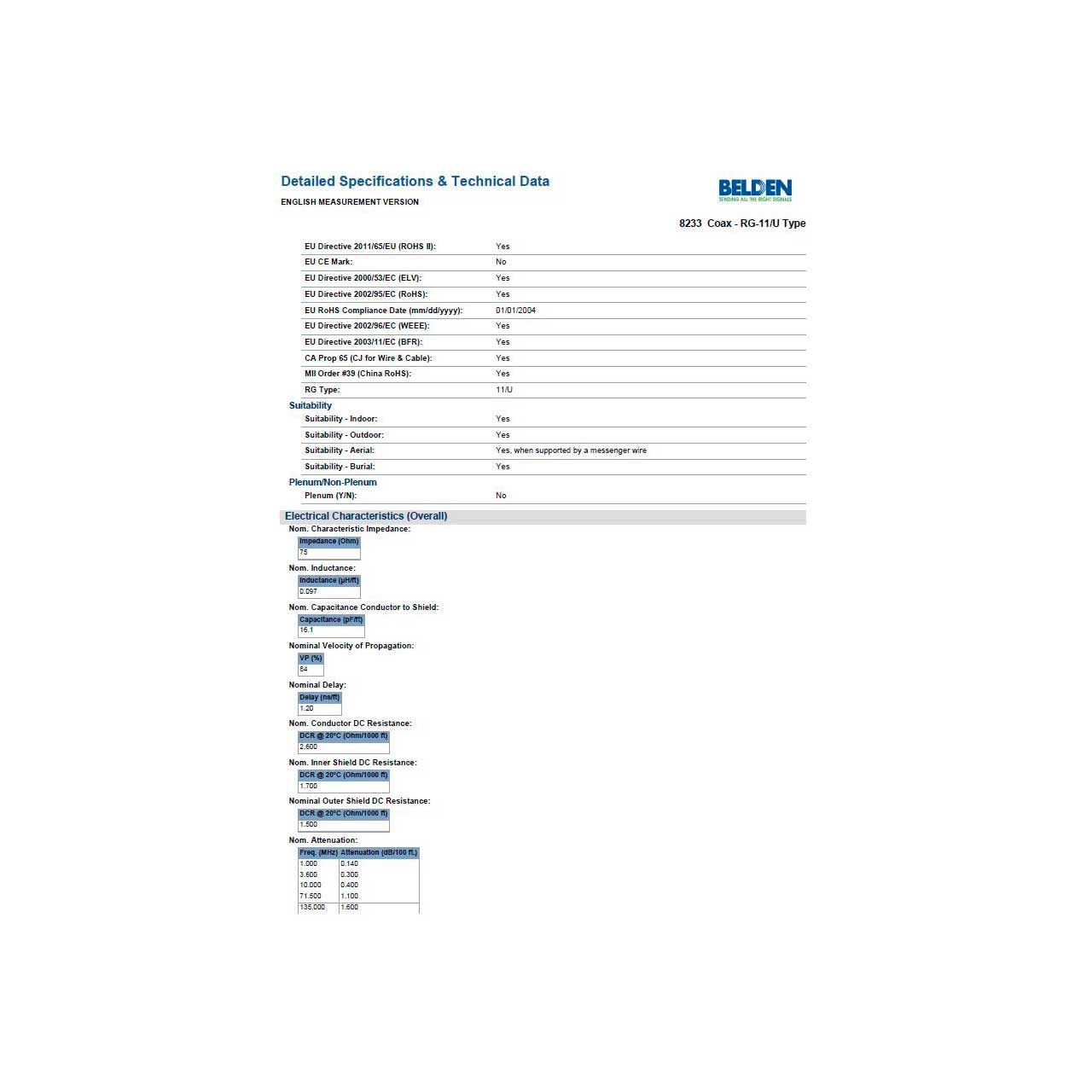

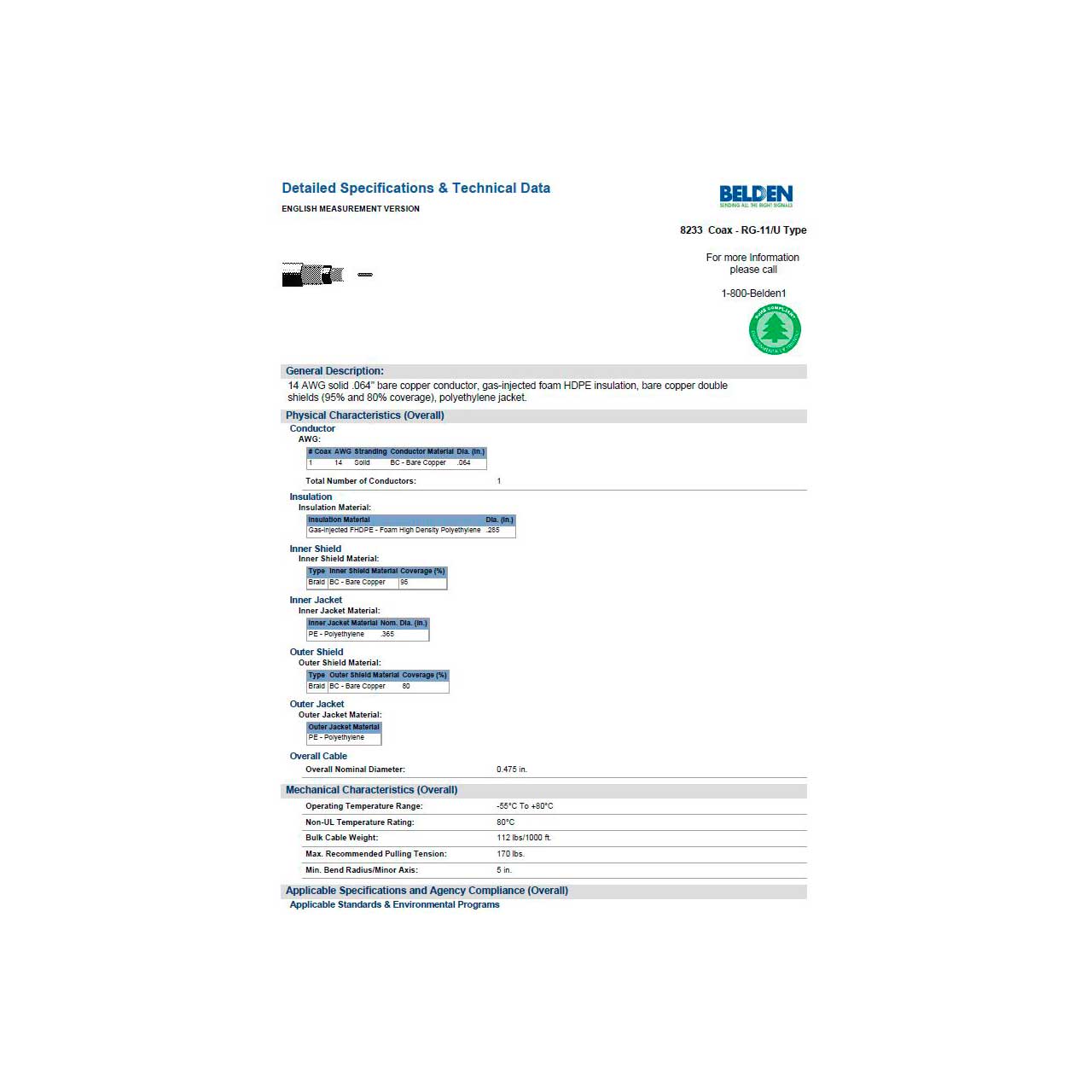

  • Specifications:

    • AWG: 14
    • Stranding: Solid
    • Material: BC - Bare Copper
    • Nominal Diameter: 0.064in
    • No of Coax: 1
    • Nom. Capacitance Conductor to Shield: 16.1 pF/ft
    • Nominal Inductance: 0.097 uH/ft
    • Nominal Characteristic Impedance: 75 Ohm
    • Non-UL Voltage Rating: 300 V RMS
    • Non-UL Temp Rating: 80°C
    • Operating Temp Range: -55°C To +80°C
    • Bulk Cable Weight: 112 lbs/1000ft
    • Max. Pull Tension: 170 lbs
    • Min Bend Radius/Minor Axis: 5 in
    • Environmental Space: Indoor/Outdoor
