Belden 1856A Flexible Indoor/Outdoor RG59/U Type Triaxial Cable Solid BC/Braided Shield 20 AWG - 1000 Foot

Name: Belden 1856A Flexible Indoor/Outdoor RG59/U Type Triaxial Cable Solid BC/Braided Shield 20 AWG - 1000 Foot
Brand: Belden
SKU: BL-1856A-1000
Price: 3079.13 USD
Availability: PreSale

ITEM #: BL-1856A-1000 MFG #: 1856A B591000

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,799.60

Our Price:

$3,079.13

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1856A B591000 - Overview

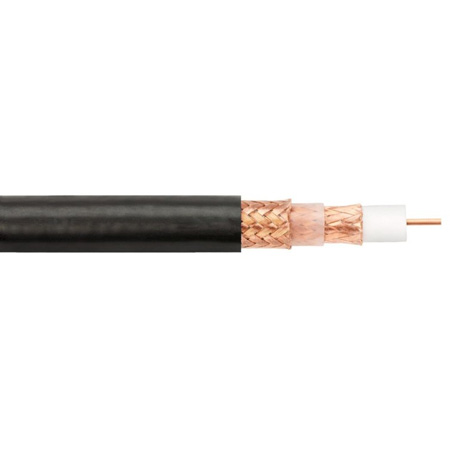

Belden 1856A is a 20 AWG RG59 Triax Cable. It features a Solid Bare Copper Conductor with PE Insulation, a 95% Bare Copper Braid Shield with PE Insulation and a 95% Bare Copper Braid Shield in a Belflex® Jacket.

If you need a cable that provides more bandwidth and rejection of interference than traditional coax, Belden Video Triaxial Cables meet those needs with the utmost quality standards. Belden has a comprehensive offering ranging from 14 AWG to 22 AWG that can be used for flexible or permanent installs. Common applications analog video cameras in the broadcast and television industries.

Applications
Analog Video
Interconnect camera to CCU (camera control unit)

Features:
- Flexible Options: Indoor/Outdoor cable
- Jacket: Belflex provides extra flexibility for deployable applications
Specifications:
- Number of Coax: 1
- RG Type: 59/U
- Conductor AWG: 20
- Conductor Stranding: Solid
- Conductor Nom. Diameter: 0.032 in
- Conductor Material: BC - Bare Copper
- Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
- Nom. Insulation Diameter: 0.145 in (3.68 mm)
- Inner Shield Type: Braid
- Inner Shield Material: BC - Bare Copper 95%
- Inner Jacket Material: PE - Polyethylene
- Outer Shield Material: BC - Bare Copper
- Outer Jacket Material Trade Name: Belflex
- Outer Jacket Material: PVC Blend - Polyvinyl Chloride Blend
- Outer Jacket Nom. Diameter: 0.360 in (9.14 mm)
- Overall Cable Diameter: 0.360 Inch
- Plenum (Y/N): N
- Nom. Characteristic Impedance: 75 Ohms
- Nom. Conductor DCR: 10.1 Ohm/1000ft
- Nom. Inner Shield DCR: 2.5 Ohm/1000ft
- Nom. Outer Shield DCR: 1.6 Ohm/1000ft
- Nom. Capacitance Cond-to-Shield: 16.3 pF/ft
- Temperature Operating: -45°C to +60°C
- Bulk Cable Weight: 76 lbs/1000ft
- Max. Pull Tension: 106 lbs
- Environmental Suitability: Indoor/Outdoor, Indoor
Item Includes:
- 1856A RG59/U Type Triaxial Cable 20 AWG - 1000 Foot
Warranty:
- Limited 10 Year Warranty
GTIN:
0612825356899

1856A B591000 - Recommended Accessories

Kings 7705-2 Triax Tri-Loc Male Cable End for Belden 9267
KC-77052
Our Price: $252.86
Kings 7708-2 Triax Tri-Loc Male Retro Fit Kit for 7705-2/7705-4/7705-9
KC-77082
Our Price: $40.34
Kings 7703-2 Tri-Loc Female Cable End for Belden 9267 and 1857A
KC-77032
Our Price: $252.00
Kings 7708-5 Triax Tri-Loc Female Retro Fit Kit for 7703-2 / 7703-6 /7703-9
KC-77085
Our Price: $44.04
Kings Tri-Loc Crimp Die For Belden 1856a
KTH-2002
Our Price: $320.27
Kings KTH-1000 BNC Crimp Tool with Removable Die (Die Not Included)
KTH1000
Our Price: $552.96
Connectronics CTX-TRIAX-TXT Triax Cable Tester
CTX-TRIAX-TXT
Our Price: $676.95

1856A B591000 - Reviews

1856A B591000 - Attachments

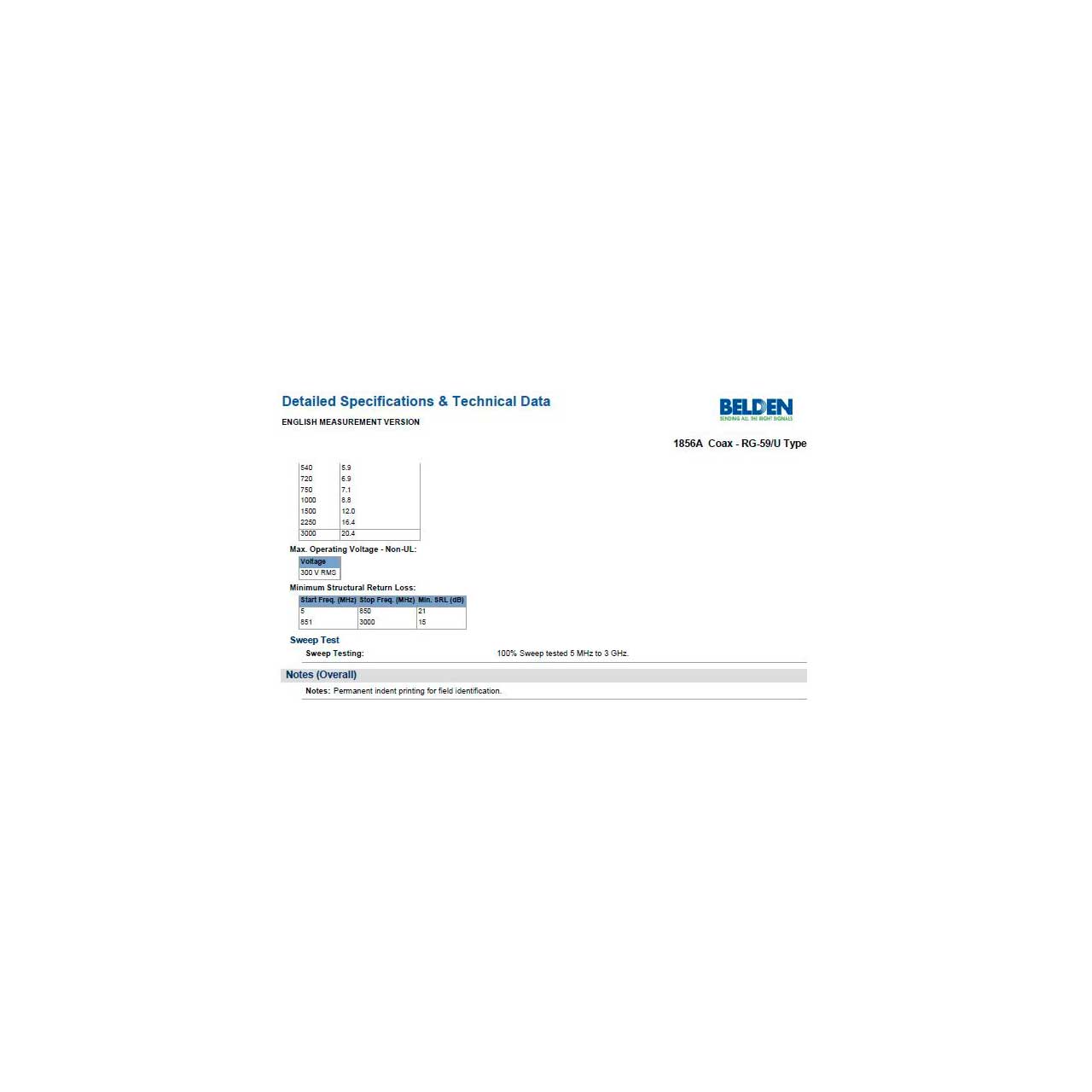

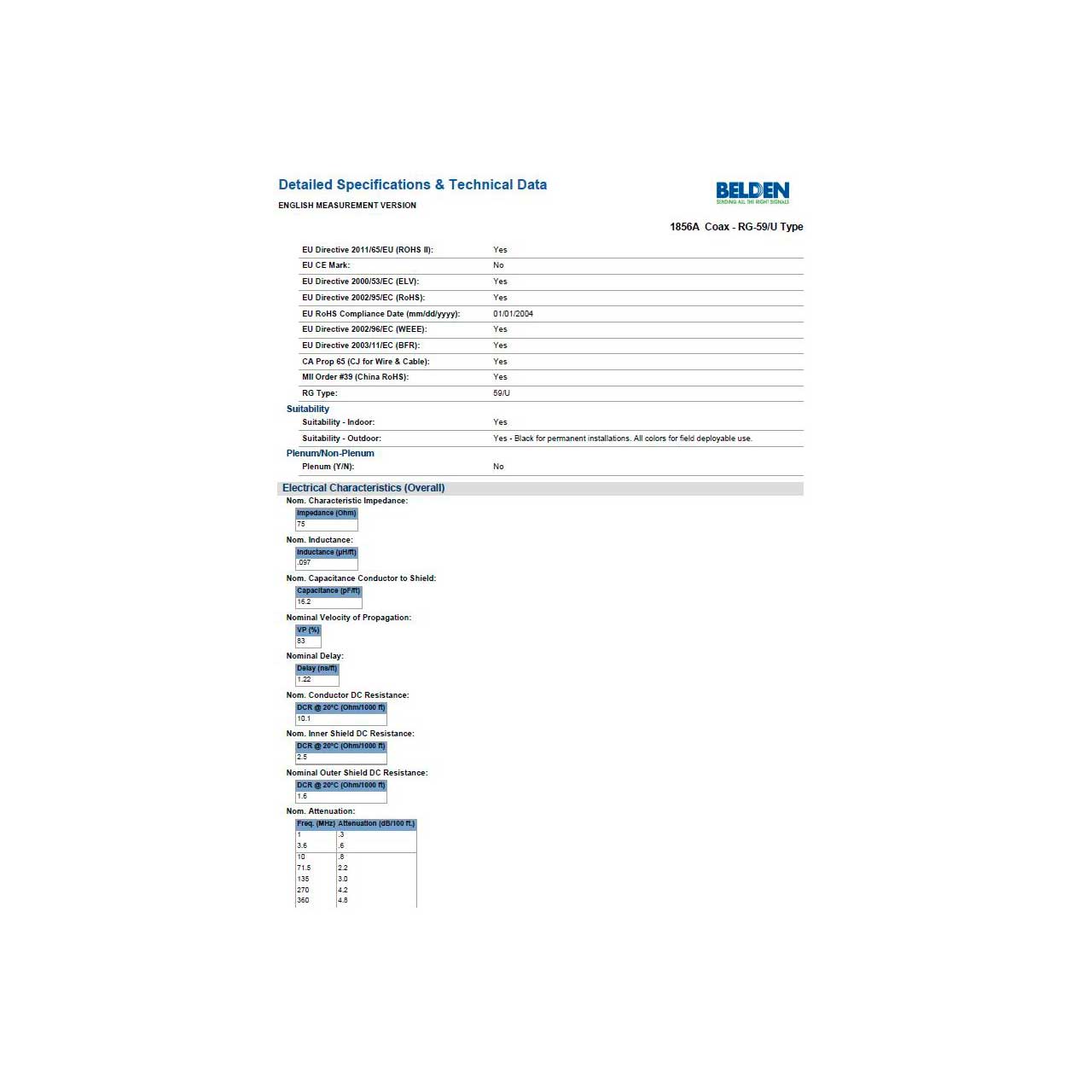

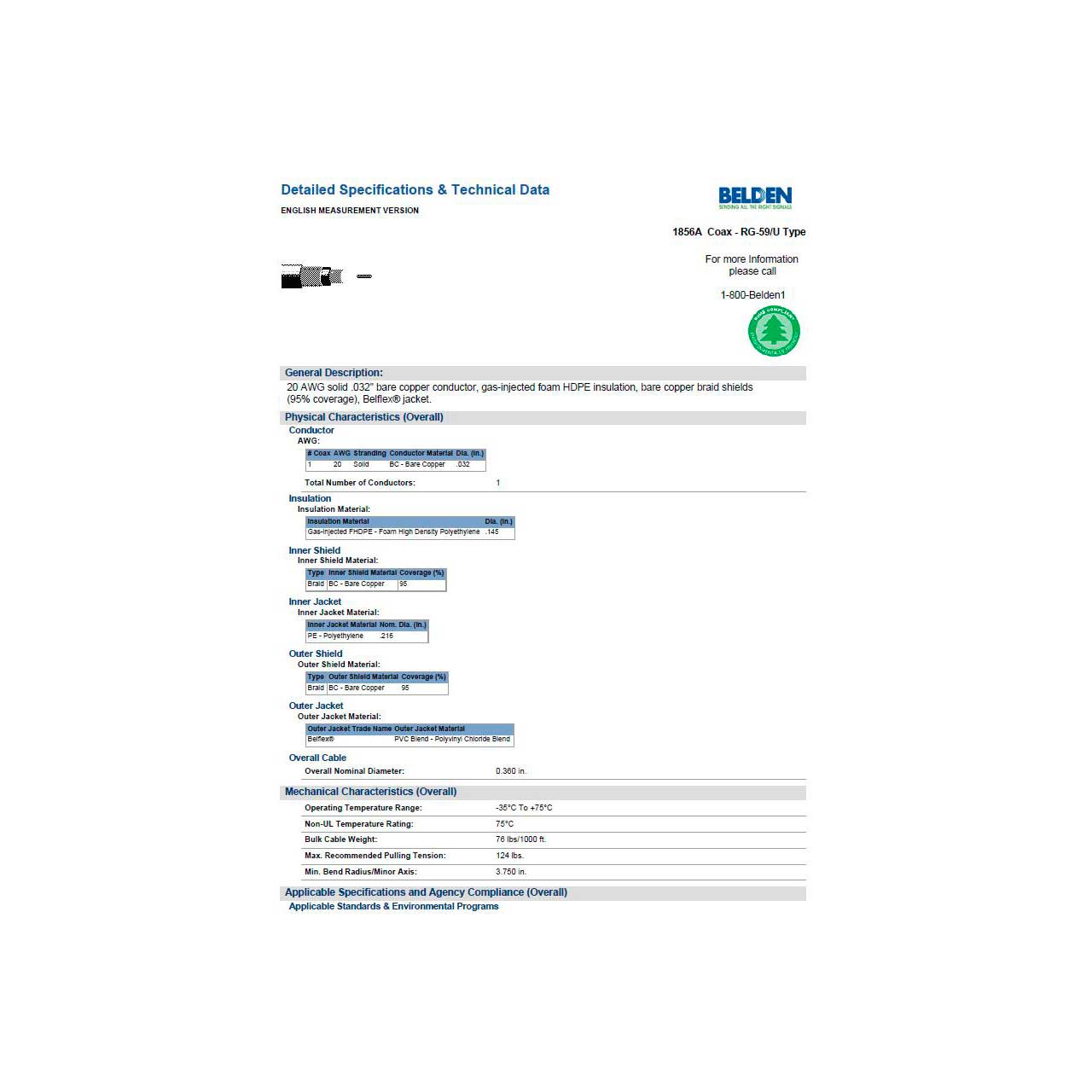

1856A Spec Sheet
