Belden 8232 Indoor/Outdoor RG59 Video Triax Broadcast Cable Shld/BC Solid 20AWG - Black - 500 Foot

ITEM #: BL-8232-500 MFG #: 8232 010500

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,495.80

Our Price:

$1,320.50

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

8232 010500 - Overview

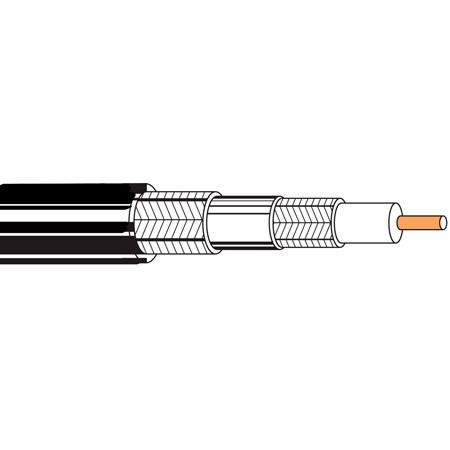

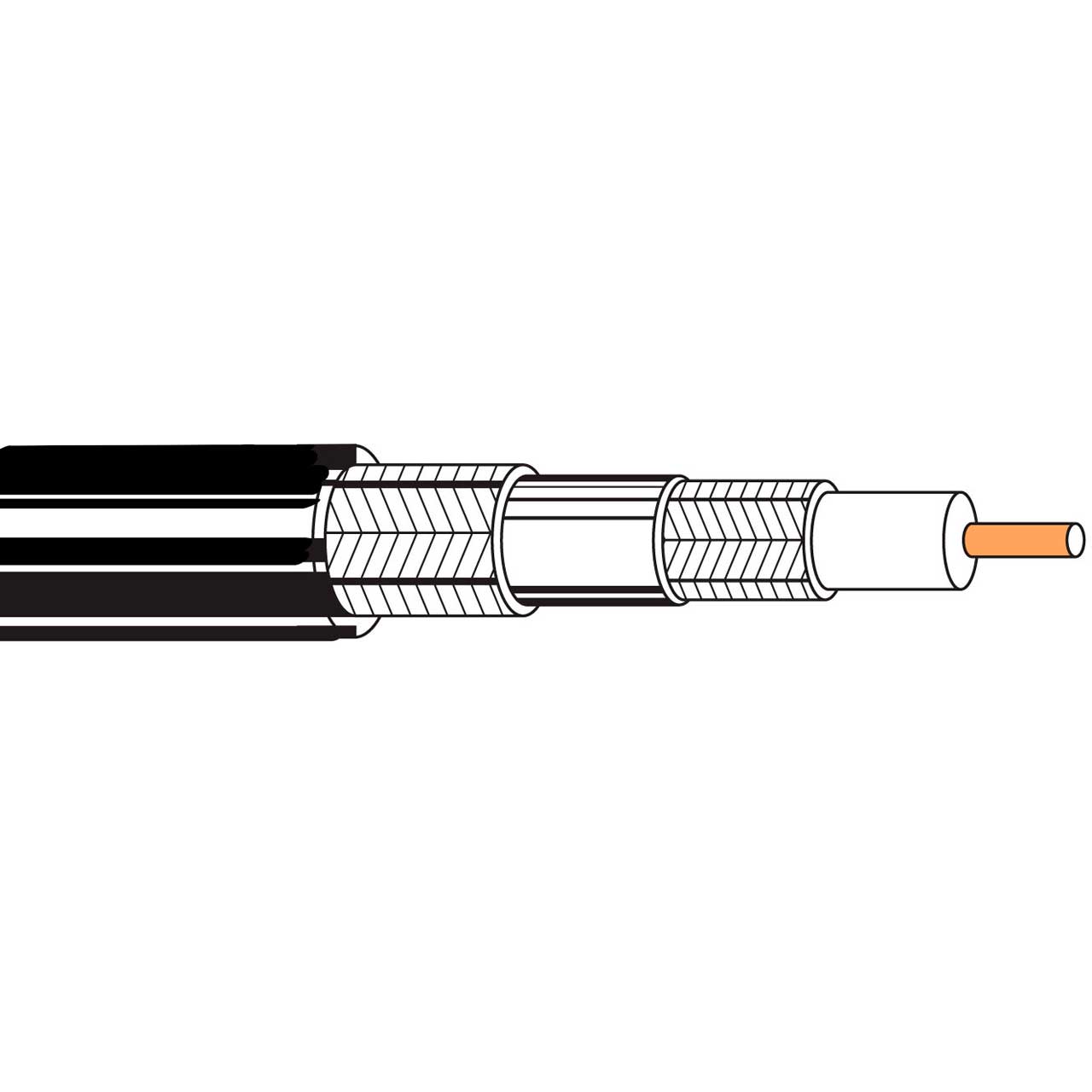

Belden 8232 is an RG59 Video Triax Broadcast Cable. It features a 20 AWG solid .032" bare copper conductor, with gas-injected foam HDPE insulation, bare copper braid shields (95% and 80% coverage) in a polyethylene jacket.

If you need a cable that provides more bandwidth and rejection of interference than traditional coax, Belden Video Triaxial Cables meet those needs with the utmost quality standards. Common applications analog video cameras in the broadcast and television industries.

  • Specifications:

    • Conductor Number of Coax: 1
    • Conductor RG Type: 59/U
    • Conductor AWG: 20
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor Stranding: Solid
    • Conductor Nominal Diameter: 0.032 in
    • Insulation Nominal Diameter: 0.145 in
    • Insulation Material: PE - Polyethylene (Gas-Injected Foam)
    • Inner Shield Type: Braid
    • Inner Shield Material: BC - Bare Copper 95%
    • Inner Jacket Nominal Diameter: 0.225 in
    • Inner Jacket Material: PE - Polyethylene
    • Environmental Space: Indoor/Outdoor
    • Outer Shield Material: Braid - BC - Bare Copper - 80%
    • Outer Jacket Material: PE - Polyethylene
    • Outer Jacket Nominal Diameter: 0.315 in
    • Plenum (Y/N): N
    • Plenum Number: BL-88232
    • Nom. Characteristic Impedance: 75 Ohm
    • Overall Nominal Diameter: 0.315 Inch


  • Item Includes:

    • 8232 RG59 Video Triax Broadcast Cable - Black - 500 Foot


  • Warranty:

    • 10 Year Limited Warranty


  • Applications

    :

    • Triaxial Video/Camera Cable Video Triax Cable


  • GTIN:

    0612825355670
