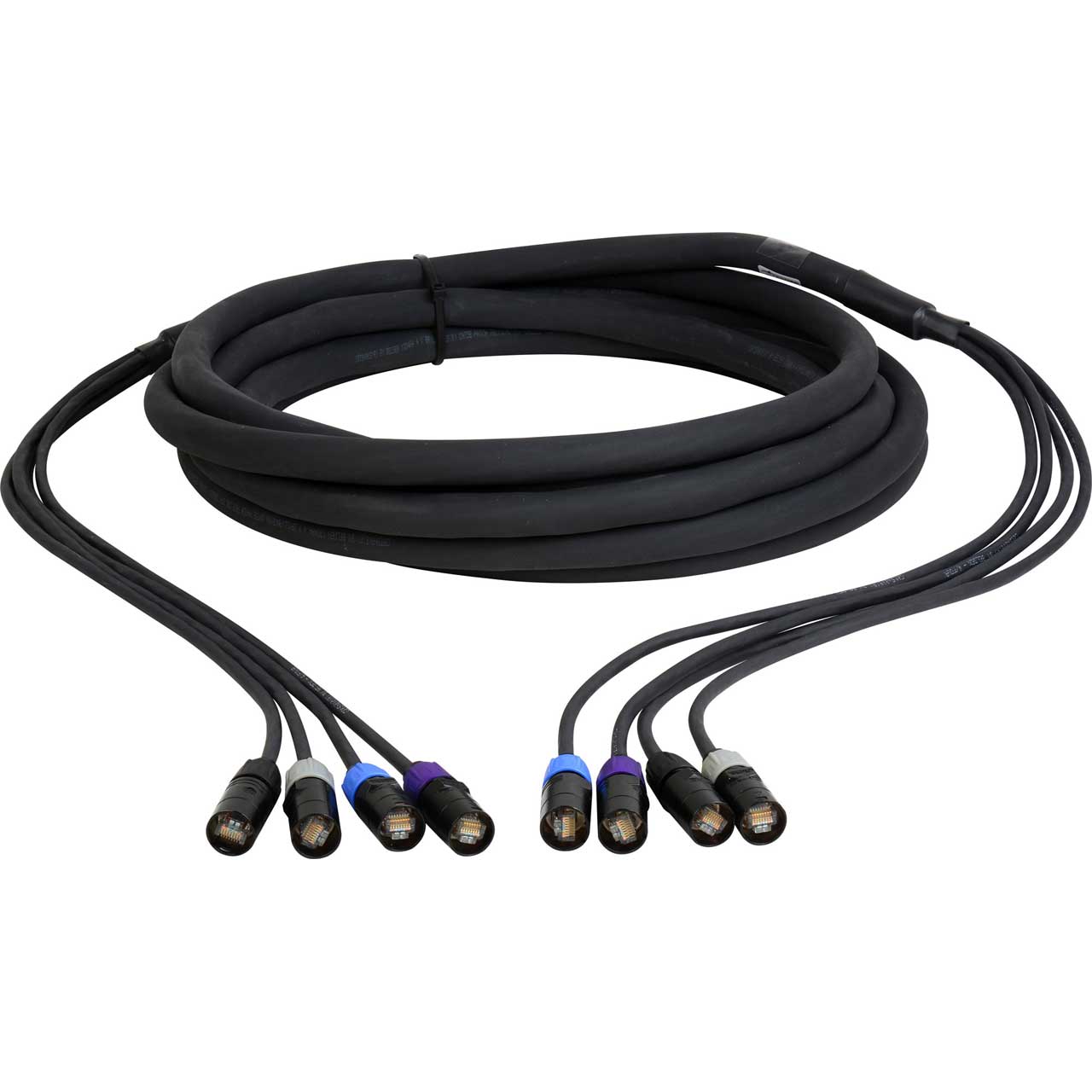

Laird 4-Channel Belden 1304A4 & Neutrik etherCON CAT5e Tactical Ethernet Snake - 250 Foot

ITEM #: CES-EC8-250 MFG #: CES-EC8-250

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,623.95

Our Price:

$1,476.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CES-EC8-250 - Overview

To compliment applications with balun systems, our shop has crafted a series of CAT5E Tactical Ethernet Snakes. These can be used with balun products or as Datacom products. Perfect for all professional audio applications. Designed with heavy duty, tour-grade flexible jacket. This series features the RJ45 connection protected in the Neutrik Ethercon NE8MC-B Black shell. EtherCon series is especially developed for, but not limited to, audio and stage applications including DMX systems. Nevertheless the operational area of EtherCon is not limited to the entertainment industry. The EtherCon male cable connector carrier comes along in a robust die cast shell and the unique Neutrik chuck-type strain relief for optimal cable and plug protection.


Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

  • Features:

    • Complements balun systems, ideal for professional audio applications
    • Suitable for use with balun products or as Datacom products
    • Heavy-duty, tour-grade flexible jacket for durability
    • RJ45 connection protected in Neutrik Ethercon NE8MC-B Black shell for secure connections
    • Neutrik chuck-type strain relief ensures optimal cable and plug protection
    • Designed for audio and stage applications, including DMX systems
    • Robust die-cast shell for durability in various environments
    • Reliable data transmission and signal integrity for professional audio setups

  • Specifications:

    • Belden 1304A4 24 AWG CatSnake Cable
    • Bend Radius: 7.6 in (190 mm)
    • Max. Pull Tension: 176 lbs (79.8 kg)
    • Conductor Size: 24 AWG
    • Conductor Stranding: 7x32
    • Conductor Material BC - Bare Copper
    • Insulation Material: Polypropylene
    • Inner & Outer Jacket: PVC
    • Overall Cable Diameter: 0.757 in (19.2 mm)
    • Max. Conductor DCR: 90 Ohm/km (27 Ohm/1000ft)
    • Voltage Rating: 300 V
    • Operating Temperature: -30°C to 75°C

  • Warranty:

    • 1 Year
