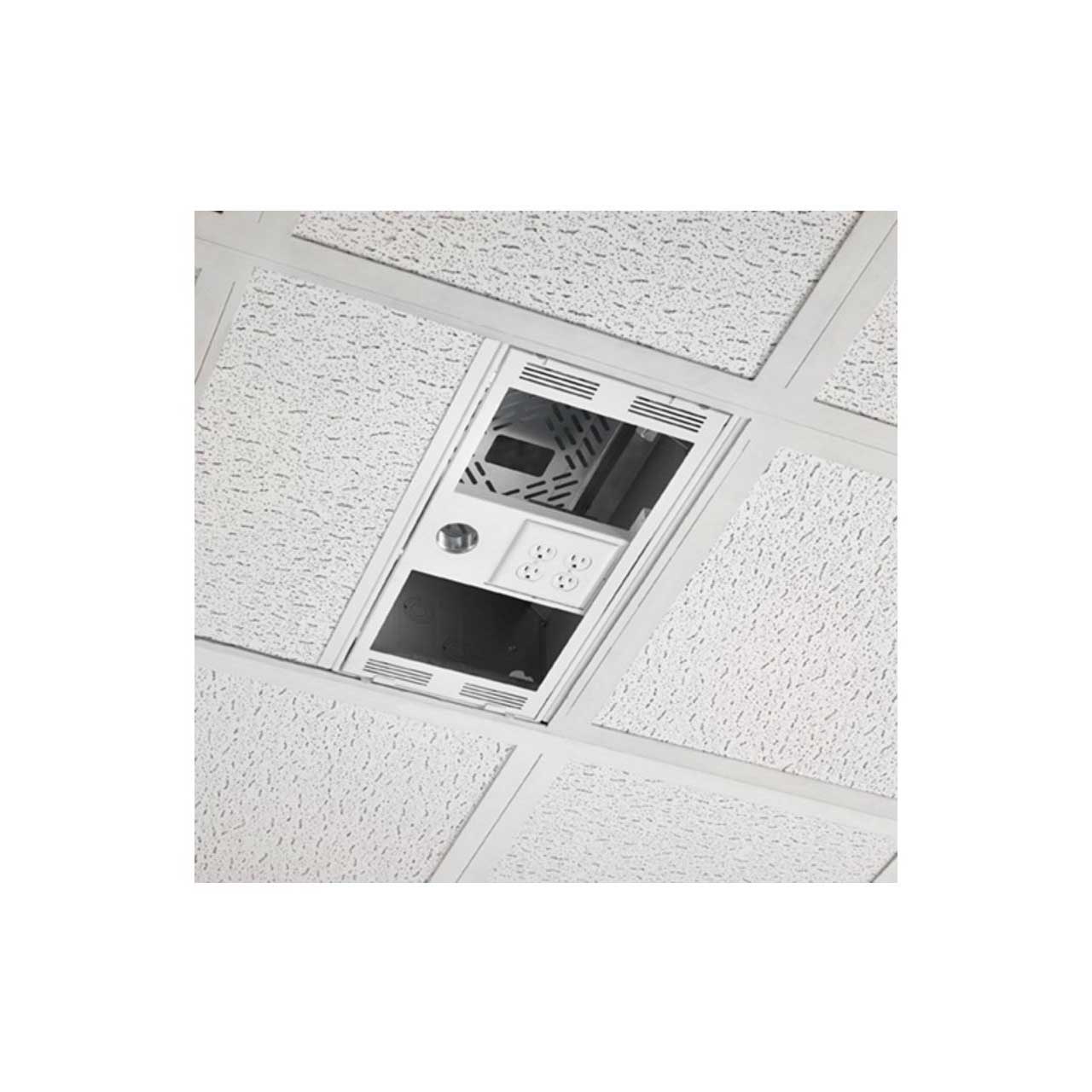

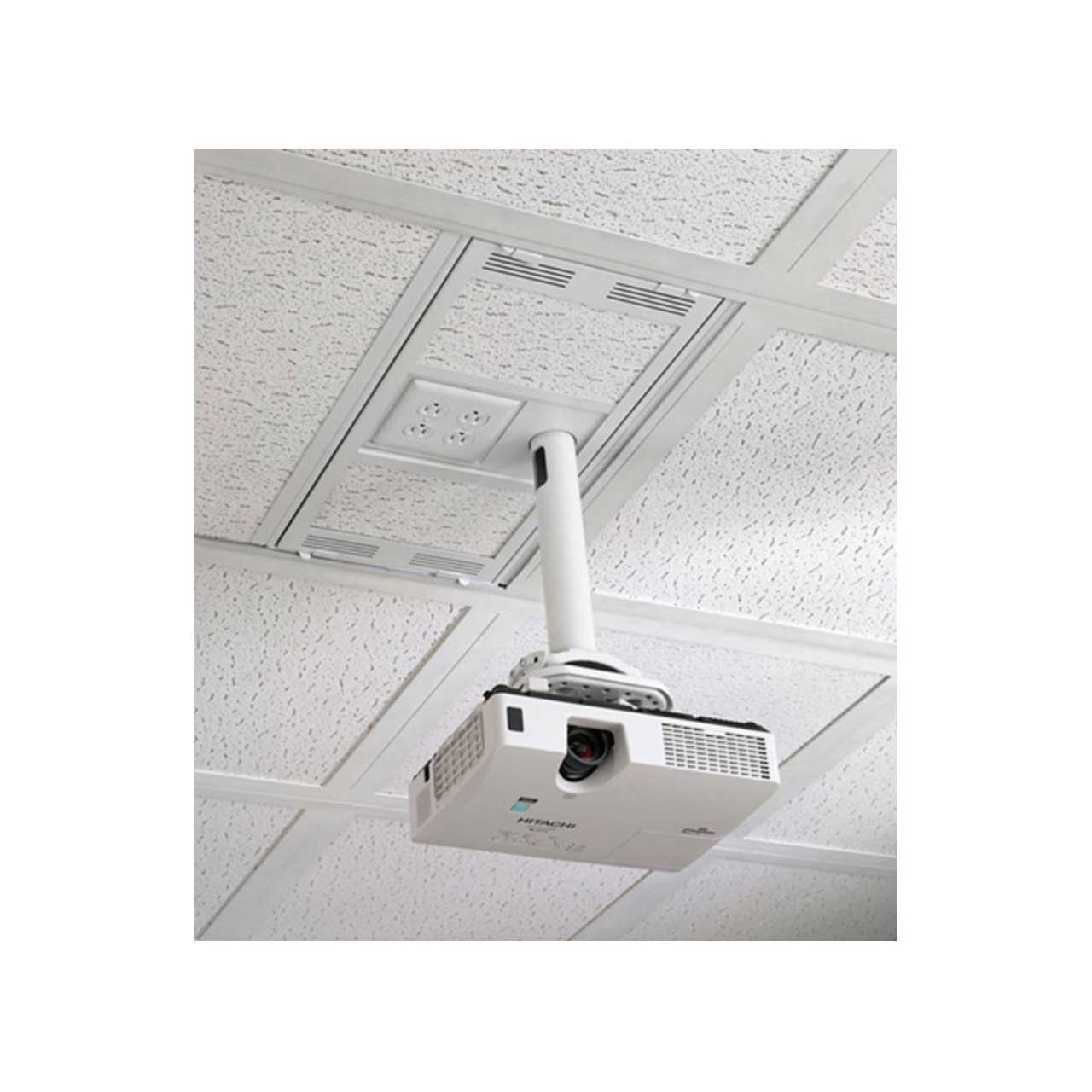

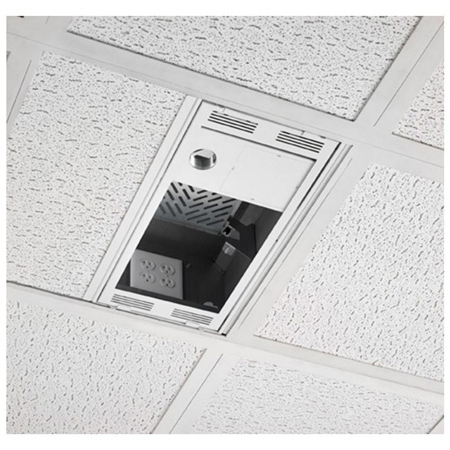

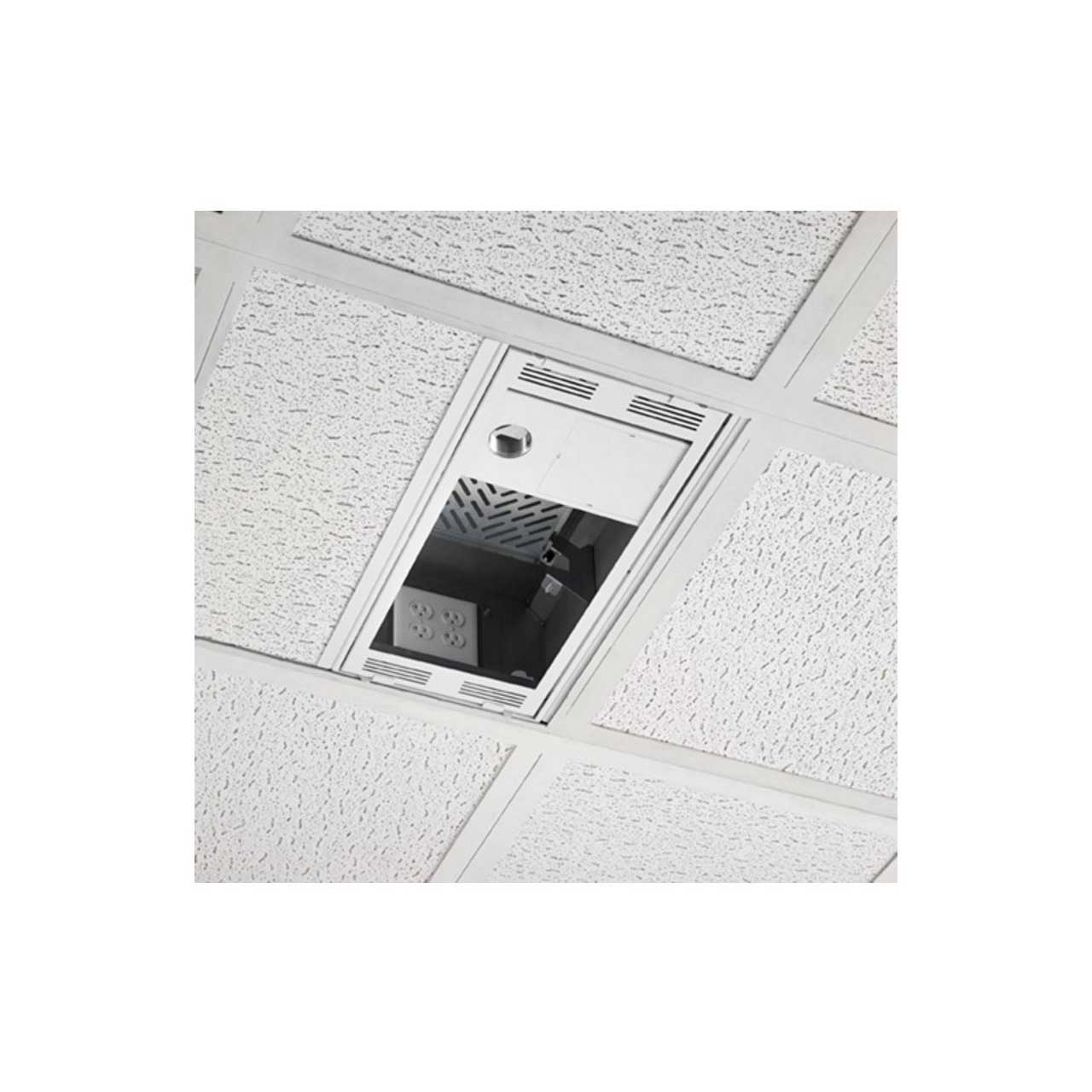

Chief 1 Foot x 2 Foot Above Suspended Ceiling Storage Box with Column Drop - White

CMS491C - Overview

• Features:

  • Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
  • Drop carriage door improves accessibility and serviceability providing full access to equipment
  • Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
  • Inside the plenum box or facing the room
  • Up to 2 single gang or 1 dual gang outlet
  • 4 nested knockouts for 1-1/4" 1" & ½" diameter conduit
  • Built in ventilation
  • AV tray supports a variety of AV components
  • Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
  • Overall weight capacity 100 lbs (45 kg)
  • 50 lbs (22 kg) for projector ceiling plate
  • 25 lbs (11 kg) per shelf location
  • Ships with Speed-Connect installation hardware
  • Lightweight construction, one man installation
  • Plenum rated, UL approved in accordance to 2043
  • TAA Compliant


• Specifications:

  • Certifications: UL Listed, TAA Compliant
  • Color: White
  • Max Equip Size (HxWxD): 7.61" x 19.25" x 12"
  • Overall Dimensions (HxWxD): 8" x 12.97" x 23.67"
  • Shipping Weight: 31.9 lbs
  • Weight Capacity: 100 lbs


• Item Includes:

  • 1x - shelf
  • Speed-Connect installation hardware


• GTIN:

  0841872162881
