Chief CMS491CP2 1 Foot x 2 Foot Plenum Rated Storage Box and Column Drop with 2-Gang Filter & Surge

ITEM #: CHF-CMS491CP2 MFG #: CMS491CP2

Primary Image
Chief Mounts
Free Shipping with $49 Minimum Order

List Price:

$827.00

Our Price:

$661.60

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CMS491CP2 - Overview

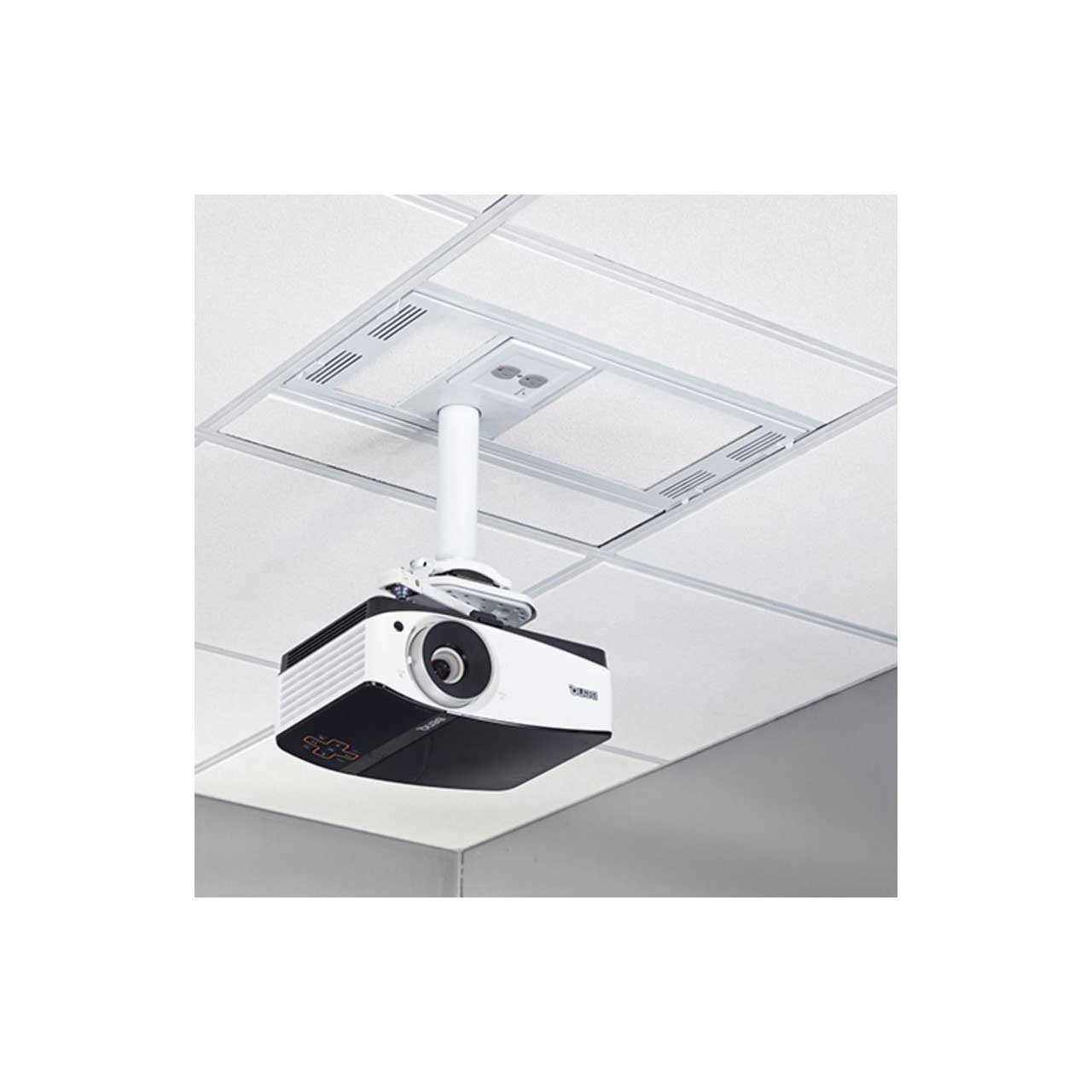

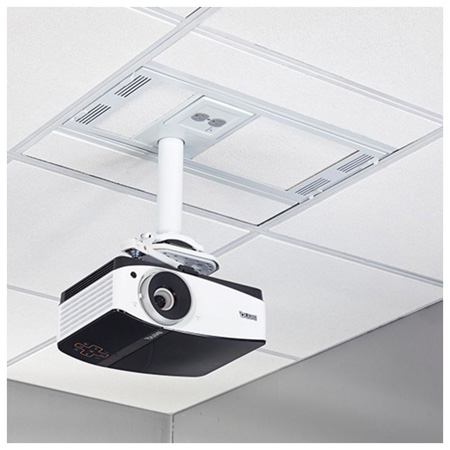

The Chief CMS491CP2 conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK Electronic Systems Protection.

Column and Projector not included, must be purchased separately.

  • Features:

    • Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
    • Drop carriage door improves accessibility and serviceability providing full access to equipment
    • Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
    • Built in ventilation
    • AV tray supports a variety of AV components
    • Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
    • Overall weight capacity 100 lbs (45 kg)
    • 50 lbs (22 kg) for projector ceiling plate
    • 25 lbs (11 kg) per shelf location
    • Ships with Speed-Connect installation hardware
    • Lightweight construction, one man installation
    • Plenum rated, UL approved in accordance to 2043
    • TAA Compliant
    • Non-volatile spike protection with LED power indicator
    • Non-sacrificial multi-stage technology
    • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
    • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
    • Line filter reduces common and differential mode noise by up to 40 dB
    • Rated for 125V~, 60Hz, 15 A
    • 1875 watt maximum
    • Ferrite toroid based EMI Filter
    • Withstand rating of 240 VAC continuous without damage or loss of protection


  • Specifications:

    • Certifications: UL Listed
    • Color: White
    • Max Equip Size (HxWxD): 7.61" x 19.25" x 12"
    • Notes: Output: 15A, 1875 W continuous
    • Overall Dimensions (HxWxD): 8" x 12.97" x 23.67"
    • Power Consumption: <0.5 watt
    • Type 3 Surge Protective Device (SPD)
    • Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
    • Maximum Continuous Operating Voltage (MCOV): 240V
    • Nominal Discharge Current (In): 3kA
    • Short Circuit Current Rating (SCCR): 5kA
    • Ambient Temperature Max: 40 degrees C
    • Shipping Weight: 31.9 lbs
    • Weight Capacity: 100 lbs


  • Item Includes:

    • 1x - Shelf
    • Speed-Connect installation hardware


  • GTIN:

    0841872166780
