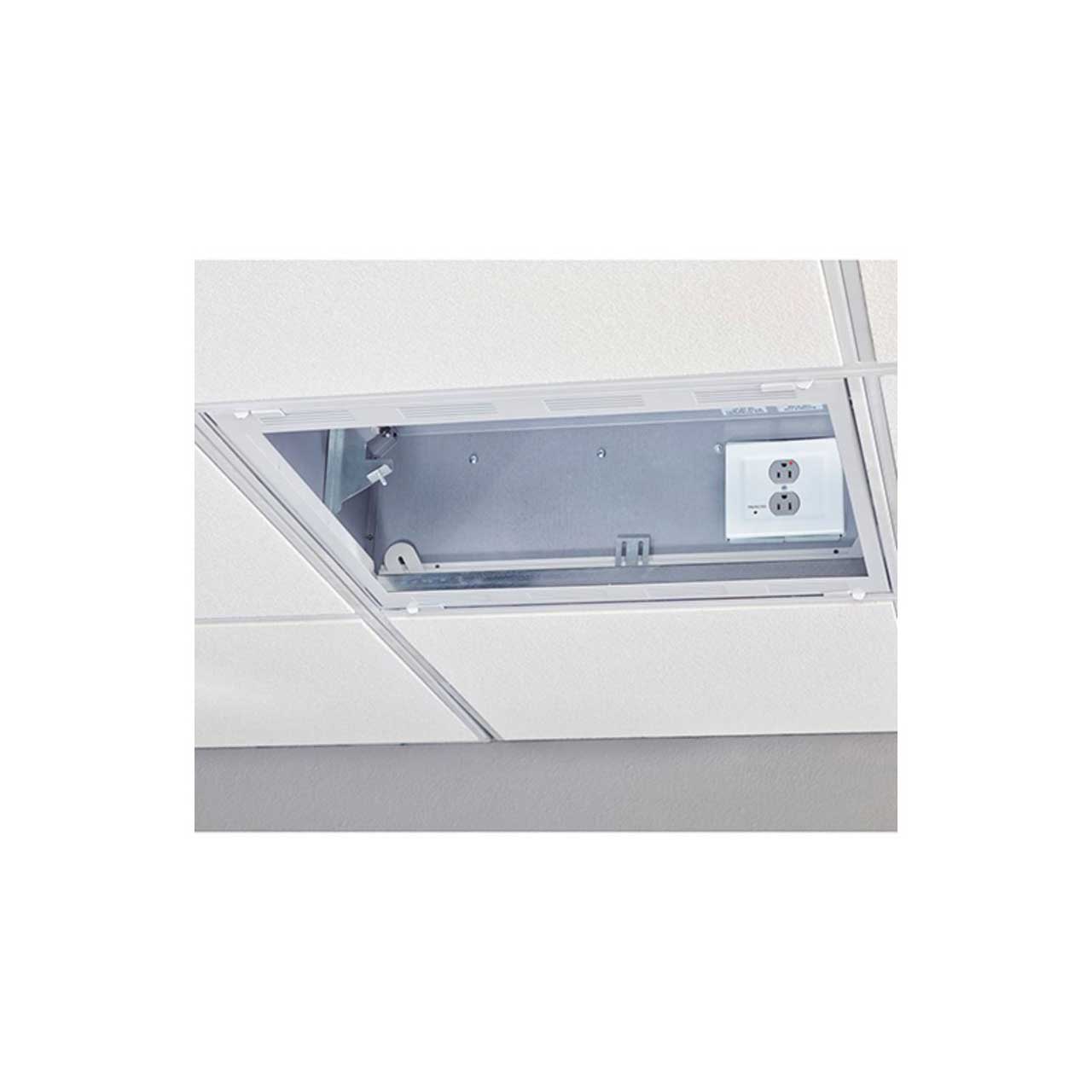

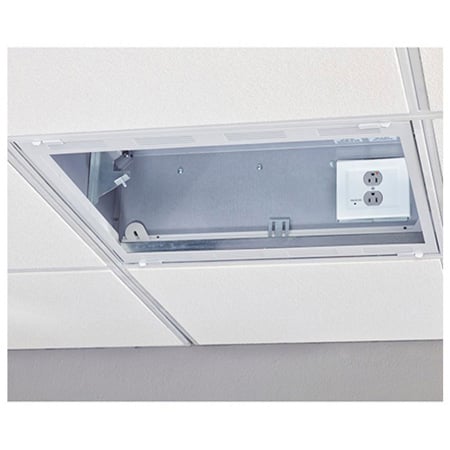

Chief 2 Foot x 2 Foot Above Ceiling Storage Box with 2-Gang Filter and Surge - White

CMS492P2 - Overview

• Features:

  • Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
  • Inside the plenum box or facing the room
  • Up to 2 single gang or 1 dual gang outlet
  • 4 nested knockouts for 1-1/4" 1" & ½" diameter conduit
  • Built in ventilation
  • AV tray supports a variety of AV components
  • Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
  • 1 RU rack rail brackets sold separately, see CMS1RU
  • Overall weight capacity 100 lbs (45 kg)
  • 50 lbs (22 kg) for projector ceiling plate
  • 25 lbs (11 kg) per shelf location
  • Ships with Speed-Connect installation hardware
  • Lightweight construction, one man installation
  • Plenum rated, UL approved in accordance to 2043
  • Non-volatile spike protection with LED power indicator
  • Non-sacrificial multi-stage technology
  • Non-current limiting design passes full power on a regular circuit; reduntant protection circuits
  • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightening strikes and electronic noise events that can cause gear degradation and downtime
  • TAA Compliant
  • Non-volatile spike protection with LED power indicator
  • Non-sacrificial multi-stage technology
  • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
  • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
  • Line filter reduces common and differential mode noise by up to 40 dB
  • Rated for 125V~, 60Hz, 15 A
  • 1875 watt maximum
  • Ferrite toroid based EMI Filter
  • Withstand rating of 240 VAC continuous without damage or loss of protection


• Specifications:

  • Certifications: CE Approved, ETL Approved, TÜV Certified, UL Listed
  • Color: White
  • Max Equip Size (HxWxD): 7.61" x 19.25" x 20"
  • Notes: Output: 15A, 1875 W continuous
  • Overall Dimensions (HxWxD): 8" x 24.97" x 23.67"
  • Power Consumption: <0.5 watt
  • Type 3 Surge Protective Device (SPD)
  • Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
  • Maximum Continuous Operating Voltage (MCOV): 240V
  • Nominal Discharge Current (In): 3kA
  • Short Circuit Current Rating (SCCR): 5kA
  • Ambient Temperature Max: 40 degrees C
  • Shipping Weight: 41 lbs
  • Weight Capacity: 100 lbs


• Item Includes:

  • Speed-Connect installation hardware
  • 1x - Shelf


• GTIN:

  0841872166810
