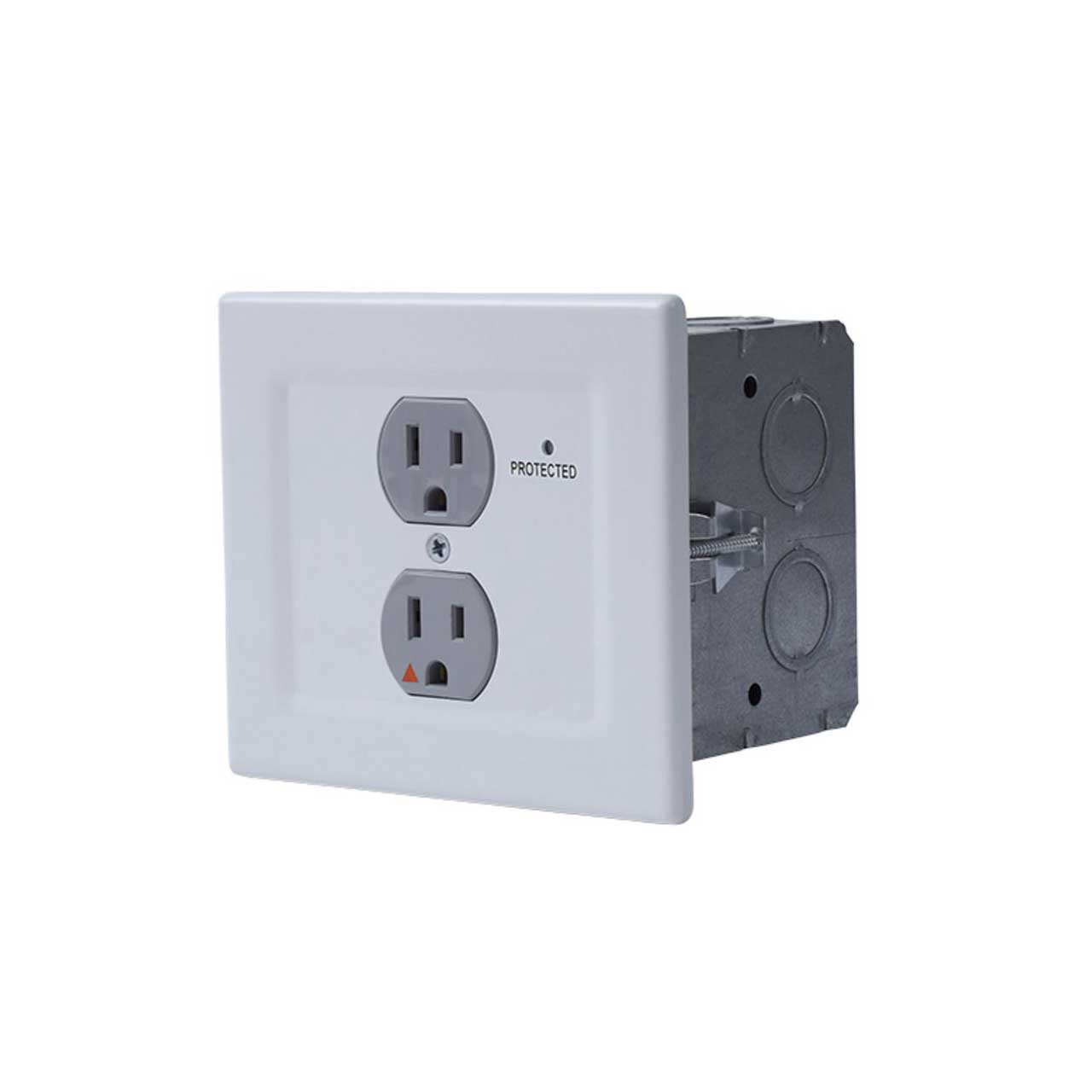

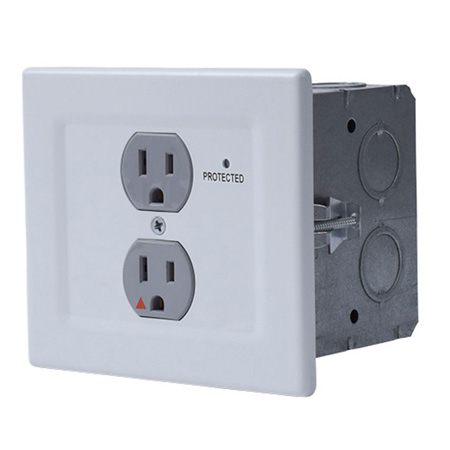

Chief EGX-SF2 Power Filtering & Surge Protection Wall Outlet

EGX-SF2 - Overview

• Features:

  • Non-volatile spike protection with LED power indicator
  • Non-sacrificial multi-stage technology
  • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
  • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
  • Line filter reduces common and differential mode noise by up to 40 dB
  • Rated for 125V~, 60Hz, 15 A
  • 1875 watt maximum
  • Ferrite toroid based EMI Filter
  • Withstand rating of 240 VAC continuous without damage or loss of protection


• Specifications:

  • Certifications: UL Listed
  • Housing Dimensions (HxWxD): 3.95" x 4.33" x 3.79”
  • Overall Dimensions (HxWxD): 4.5" x 5.25" x 4.04”
  • Power Consumption: <0.5 watt
  • Type 3 Surge Protective Device (SPD)
  • Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
  • Maximum Continuous Operating Voltage (MCOV): 240V
  • Nominal Discharge Current (In): 3kA
  • Short Circuit Current Rating (SCCR): 5kA
  • Ambient Temperature Max: 40°C
  • Primary Amperage: 15A, 1875 W continuous
  • Solution Type: Universal


• GTIN:

  0841872166827
