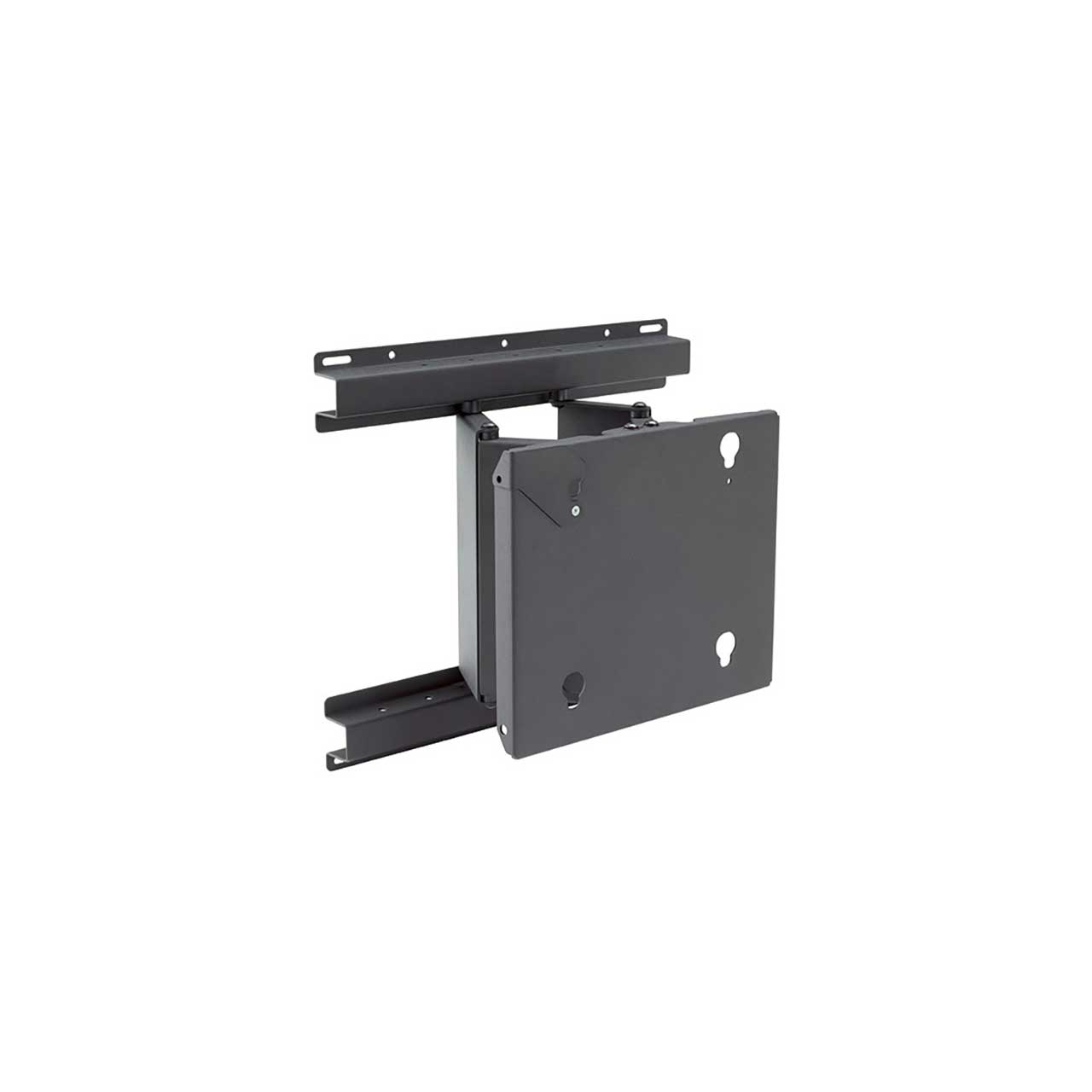

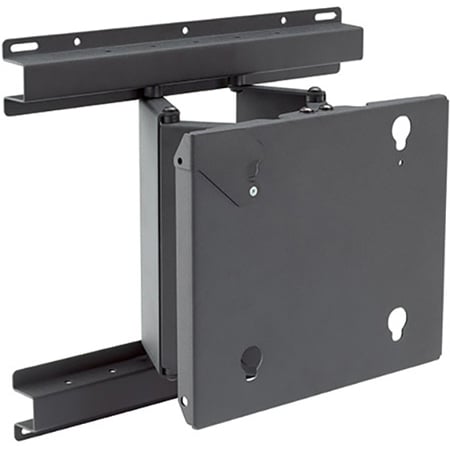

Chief Medium 8 Inch Monitor Arm Wall Mount - Black

MPW6000B - Overview

• Features:

  • Smooth extension up to 8.75" (222 mm) to achieve ideal viewing angle
  • Ultra low-profile in the home position, only 1.5" (38 mm) deep
  • Provides up to 45º of swivel in either direction (depending on screen size)
  • Locable in home position to prevent articulation (pin included)
  • Installs on 16" center studs
  • Integrated lateral shift allows repositioning of the mount right or left after installation for ultimate positioning flexibility
  • Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)


• Specifications:

  • Color: Black
  • Lateral Shift: 4.5" (114.3mm)
  • Maximum Extension: 8.75" (222.3 mm)
  • Minimum Depth: 1.5" (38.1 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm
  • Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
  • Orientation:landscape and portrait
  • Overall Dimensions (H x W x D): 18.0" x 23.6" x 3.4" (457 x 600 x 87mm)
  • Shipping Weight: 24.15 lbs (10.95 kg)
  • Typical Screen Sizes: 30 - 55"
  • Wall Stud Compatibility In: 16" (406 mm)
  • Weight Capacity: 100 lbs (45.4 kg)


• GTIN:

  0841872074979
