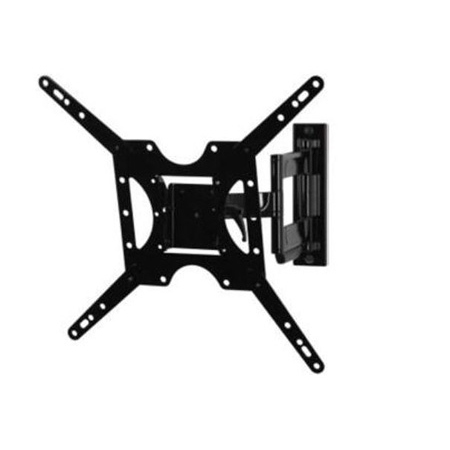

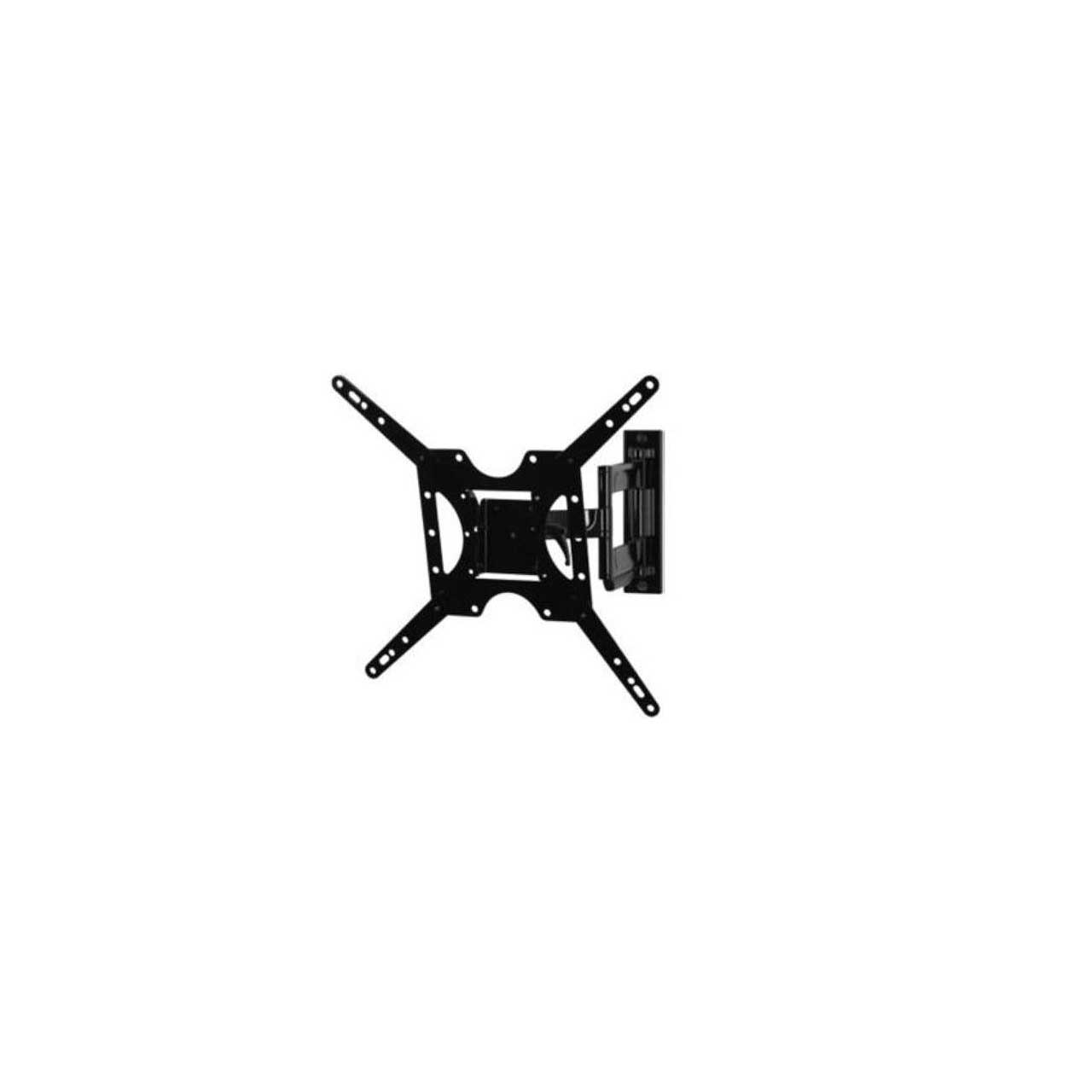

Peerless-AV PA746 Paramount Articulating Wall Mount - 32 Inch to 50 Inch Displays

PA746 - Overview

• Features:

  • Extends 15.08" (383mm) from the wall
  • Retracts to 2.81" (71mm) to save space
  • +15/-5° of tilt for optimal viewing angles
  • ±5° of roll for post installation display leveling
  • Up to ±90° of pivot
  • VESA 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 300 and 400 x 400mm compliant
  • Design is UL listed and tested to four times stated load capacity


• Specifications:

  • Minimum to Maximum Screen Size: 32" to 50"
  • VESA Pattern: 100, 200 x 100, 200, 300 x 200, 300, 400 x 300, 400
  • Mounting Pattern: 100, 200 x 100, 200, 300 x 200, 300, 400 x 300, 400mm (15.75 x15.75")
  • Weight Capacity: 80lb (36.3kg)
  • Color: Black
  • Finish: High Gloss
  • Security Features: Non-Security Hardware
  • Tilt: +15/-5
  • Swivel Yaw: +90/-90
  • Roll: +5/-5
  • Increlock Increments: N/a
  • Distance from Ceiling: N/a" (N/amm)
  • Distance from Wall: 2.32 - 14.74" (59 - 374mm)
  • Product Dimensions: 16.65 x 16.65 x 2.81 - 15.08" (423 x 423 x 71 - 299mm)


• GTIN:

  0735029304258
