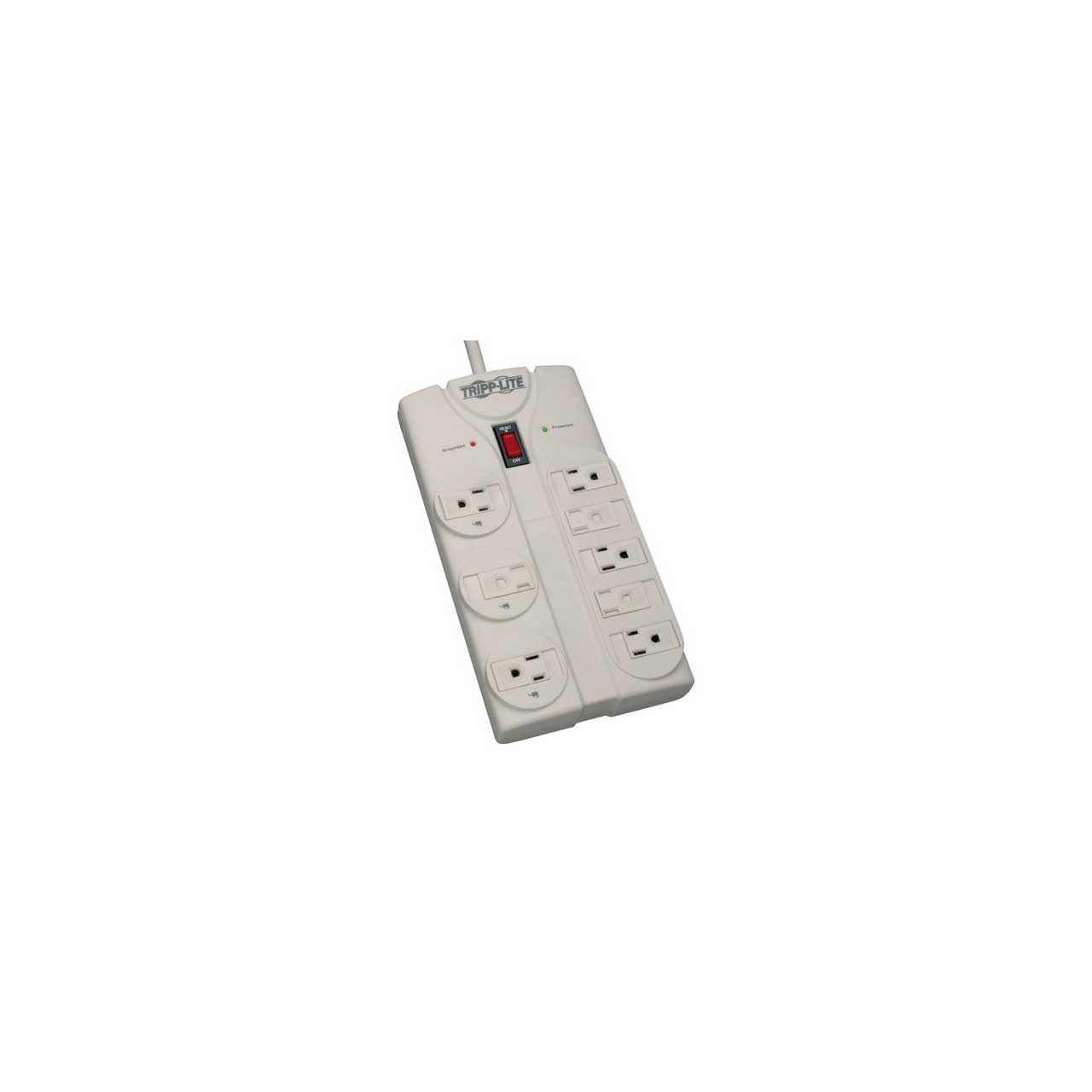

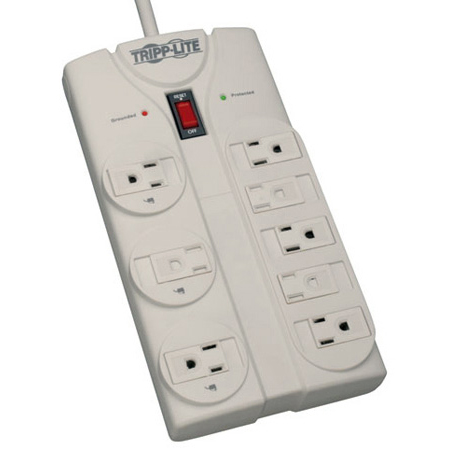

Tripplite TLP808 8-Outlet Surge Protector - Right-Angle Plug/1440 Joules/Diagnostic LEDs/Light Gray Housing - 8 Foot

ITEM #: TLP808 MFG #: TLP808

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$47.23

Our Price:

$38.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TLP808 - Overview

Perfect for your home or office workstation, the Tripplite TLP808 Protect It!® 8-Outlet Surge Protector features a surge protection rating of 1440 joules to defend your sensitive electronic components against strong surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $75,000 for life (valid in the U.S., Canada and Puerto Rico only).

Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the TLP808 protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

Your devices plug into eight NEMA 5-15R outlets, three of which are widely spaced to accept bulky transformers without blocking adjacent outlets. Sliding safety covers block accidental contact with unused outlets. An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm your wall outlet is properly grounded and your connected equipment is protected.

The eight-foot AC power cord allows the TLP808 to reach distant outlets, while its right-angle NEMA 5-15P plug allows furniture and equipment to be moved flush against the wall to save space in your workstation. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the light gray plastic housing.

  • Features:

    • Protects your computer, printer, scanner, router, modem and other small home electronics against even the strongest surges and spikes
    • Recommended for any desktop, network or home electronics application requiring AC line protection
    • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
    • Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
    • Exceeds IEEE 587 Category A and B surge suppression specifications
    • 8 NEMA 5-15R AC outlets accept most computers and peripherals
    • 3 widely spaced outlets accommodate bulky transformers without blocking other outlets
    • Sliding safety covers block accidental contact with unused outlets
    • Lighted on/off switch provides one-touch control over connected equipment
    • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
    • Diagnostic LEDs confirm grounding and protection status at a glance
    • Conforms to current UL 1449 3rd Edition safety standards

  • Specifications:

    • Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (8) 5-15R
    • Output (Watts): 1800
    • Circuit Breaker (amps): 15
    • Transformer Accommodation: Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 6 transformers total
    • Outlet Orientation: Single row of 5, plus a second row of 3 for transformer accommodation
    • Right-Angle Outlets: No

      Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 120V (110-125V)
    • Input Connection Type: NEMA 5-15P
    • Input Plug Features: Space-saving right angle input plug
    • Input Cord Length (ft.): 8
    • Input Cord Gauge Type: 14 gauge, SJT
    • Voltage Compatibility (VAC): 120
    • Maximum Surge Amps: 84000
    • Right-Angle Plug: Yes

      User Interface, Alerts & Controls
    • Diagnostic LED(s): Yes
    • Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
    • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status

      Surge / Noise Suppression
    • AC Suppression Joule Rating: 1440
    • AC Suppression Response Time: < 1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS): 150
    • UL1449 Let Through Rating: 330 L-G, 400 L-N, 400 N-G
    • EMI / RFI Filtering: Up to 40 dB

      Dataline Surge Suppression
    • Telephone/DSL Protection: No
    • Cable (Coax) Protection: No
    • Network (Ethernet) Protection: No

      Physical
    • Shipping Dimensions (hwd / in.): 12.30 x 7.40 x 2.00
    • Shipping Weight (lbs.): 1.70
    • Unit Dimensions (hwd / in.): 4.86 x 9.55 x 1.51
    • Unit Weight (lbs.): 1.76
    • Material of Construction: Plastic
    • Integrated Keyhole Mounting Tabs: Keyhole mounting tabs enable wall mounting
    • Housing Color: Light Gray
    • Receptacle Color: Light gray
    • Color (AC Line Cord): Light Gray
    • Outlets Measurement (Center to Center): Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm

      Certifications
    • UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
    • UL1363 (Power Tap): UL1363
    • cUL / CSA (Canada): cUL
    • Approvals: Exceeds IEEE 587 category A&B specifications

  • Item Includes:

    • TLP808 Protect It! 8-Outlet Surge Protector, Light Gray Housing
    • Owner's manual

  • GTIN:

    0037332097439
