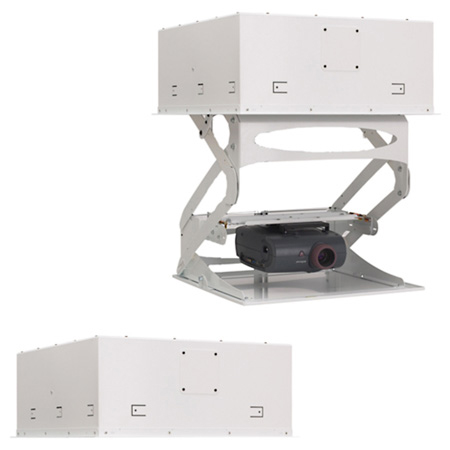

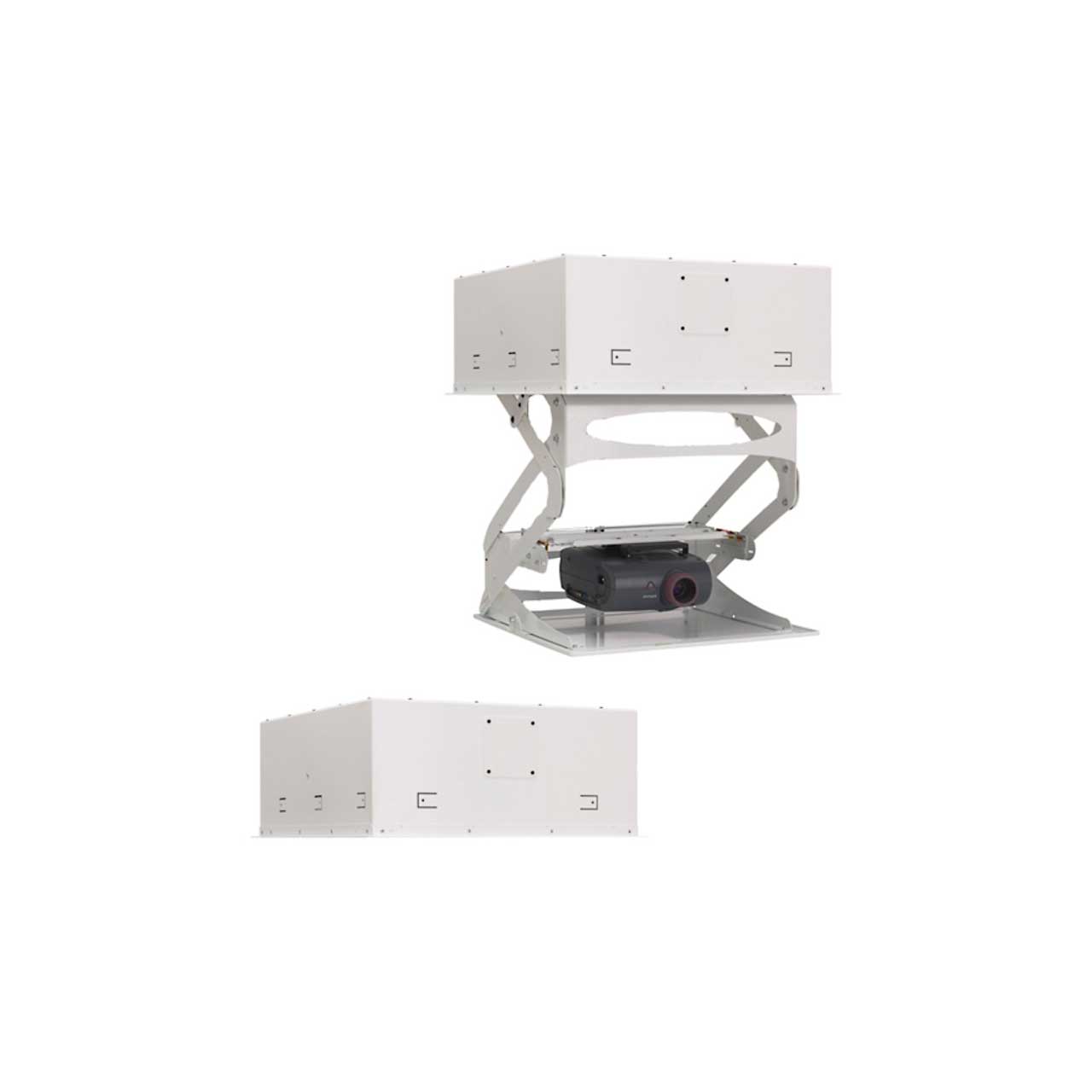

Chief SL236SP SMART-LIFT Automated Projector Mount (for Suspended Ceilings)

Name: Chief SL236SP SMART-LIFT Automated Projector Mount (for Suspended Ceilings)
Brand: Chief Mounts
SKU: CHF-SL236SP
Price: 4788.00 USD
Availability: InStock

ITEM #: CHF-SL236SP MFG #: SL236SP

Chief Mounts

Models:

Models

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$6,651.00

Our Price:

$4,788.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Shipped truck freight.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SL236SP - Overview

Exceptionally smooth and quiet movement, the SL236 is a good in-ceiling LCD projector mount choice for finished ceilings in homes and corporate offices. Fits most installation requirements, needing only 11" of clearance above the ceiling Easily accommodates multiple control options Rated for other air handling spaces; not UL Listed. **To confirm the compatibility of this mount with your projector, visit Chief's MountFinder PRO. the MountFinder PRO will determine which SLB Interface Bracket you will need to order for your specific projector to fit INTO the SMART-LIFT. Select "Interface Bracket" from the list of Mount Types.

Specifications:
- Downward Travel: 36" (914 mm) Minimum Clearance Above Ceiling: 11" (279 mm) Overall Dimension (Up Position - H x W x D): 11 x 25 x 27.5" (279 x 635 x 699 mm) Maximum Projector Size (H x W x D): 9.25 x 20.5 x 22.75" (235 x 521 x 578 mm) Ceiling Opening (W x D): 25.5 x 27.75" (647 x 705 mm) Ceiling Closure Panel (W x D): 24 x 24" (610 x 610 mm) Voltage: 120V or 230V Low Voltage: Will accept 5-30V AC/DC for triggering commands Current Draw: 0.75 Amps Continuous.All electrical components are CSA and VDE listed Net Weight: 107 lbs (48.5 kg) Lift Capacity: 35 lbs (15.9 kg) Roll/Pitch/Yaw Adjustments: +/-2°, +/- 15°, +/-10° Fore/aft and right/left projector cradle positioning CHF-SL236FD: For Fixed Ceiling Installations CHF-SL236SP: For Suspended Ceiling Installations
GTIN:
0841872024523

SL236SP - Required Accessories

Chief Universal RPA Interface Bracket - Black
CHF-SLBU
Our Price: $151.20

SL236SP - Reviews

SL236SP - Attachments

See Chief Mounts SL236SP Manual/Specs (PDF)

Overview

SL236SP - Overview

Specifications:
- Downward Travel: 36" (914 mm) Minimum Clearance Above Ceiling: 11" (279 mm) Overall Dimension (Up Position - H x W x D): 11 x 25 x 27.5" (279 x 635 x 699 mm) Maximum Projector Size (H x W x D): 9.25 x 20.5 x 22.75" (235 x 521 x 578 mm) Ceiling Opening (W x D): 25.5 x 27.75" (647 x 705 mm) Ceiling Closure Panel (W x D): 24 x 24" (610 x 610 mm) Voltage: 120V or 230V Low Voltage: Will accept 5-30V AC/DC for triggering commands Current Draw: 0.75 Amps Continuous.All electrical components are CSA and VDE listed Net Weight: 107 lbs (48.5 kg) Lift Capacity: 35 lbs (15.9 kg) Roll/Pitch/Yaw Adjustments: +/-2°, +/- 15°, +/-10° Fore/aft and right/left projector cradle positioning CHF-SL236FD: For Fixed Ceiling Installations CHF-SL236SP: For Suspended Ceiling Installations
GTIN:
0841872024523
