Tripp Lite DUNVPJT Full Motion Universal Ceiling Mount for Projectors

ITEM #: TRL-DUNVPJT MFG #: DUNVPJT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$75.13

Our Price:

$63.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DUNVPJT - Overview

The DUNVPJT Full Motion Universal Ceiling Mount saves valuable wall and floor space by suspending your digital projector from the ceiling. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, the DUNVPJT fits most projector brands. An integrated ball-joint design allows easy customization of your viewing at any time. A 360° swivel and -20° to +20° tilt capability provides comfortable viewing from multiple angles. The easy-grip adjustment knob holds the image position with no sag or drift. A quick-release connector allows easy removal of the projector for cleaning or light bulb replacement and reinstallation with no realignment necessary. The durable all-metal unit supports up to 55 pounds. The scratch-resistant powder-coated finish tolerates frequent handling and blends with any décor. Installation hardware is included. The DUNVPJT’s base plate and four adjustable support arms conform to hole patterns located on the housing of most projectors.

  • Features:

    • Save Valuable Wall and Floor Space
    • Suspends digital projector from ceiling
    • Fits most projector brands
    • Installation hardware included
    • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants Easy Adjustment for Comfortable Viewing
    • 360° swivel and -20° to +20° tilt capability provides comfortable viewing from multiple angles
    • Integrated ball-joint design enables easy view customization
    • Easy-grip knob holds image position with no sag or drift Quick-Release Connector
    • Allows projector to be removed for maintenance and reinstalled quickly with no realignment necessary Durable Metal Construction
    • Supports up to 55 lb.
    • Scratch-resistant powder-coated finish blends with any décor Universal Mount Fits Most Projector Brands
    • Base plate and 4 adjustable support arms conform to hole patterns on projector’s housing

  • Specifications:

    • Mounting Location: Ceiling
    • Unit Dimensions (hwd / in.): 5.31 x 5.90 x 19.68
    • Unit Dimensions (hwd / cm): 13.9 x 15.0 x 49.9
    • Unit Weight (lbs.): 3.61
    • Unit Weight (kg): 1.64
    • Material of Construction: Steel
    • Color: Black
    • Screen Size Compatibility (in.): Universal
    • Screen Size Compatibility (cm): Universal
    • Motion: Full
    • Degrees of Motion: 360-degree full motion rotation; 20-degree tilt
    • Maximum Weight Capacity (lbs.): 55
    • Maximum Weight Capacity (kg): 25
    • Tools Necessary: Yes
    • Cord Management: No
    • Product Warranty Period (Worldwide): 5-year limited warranty

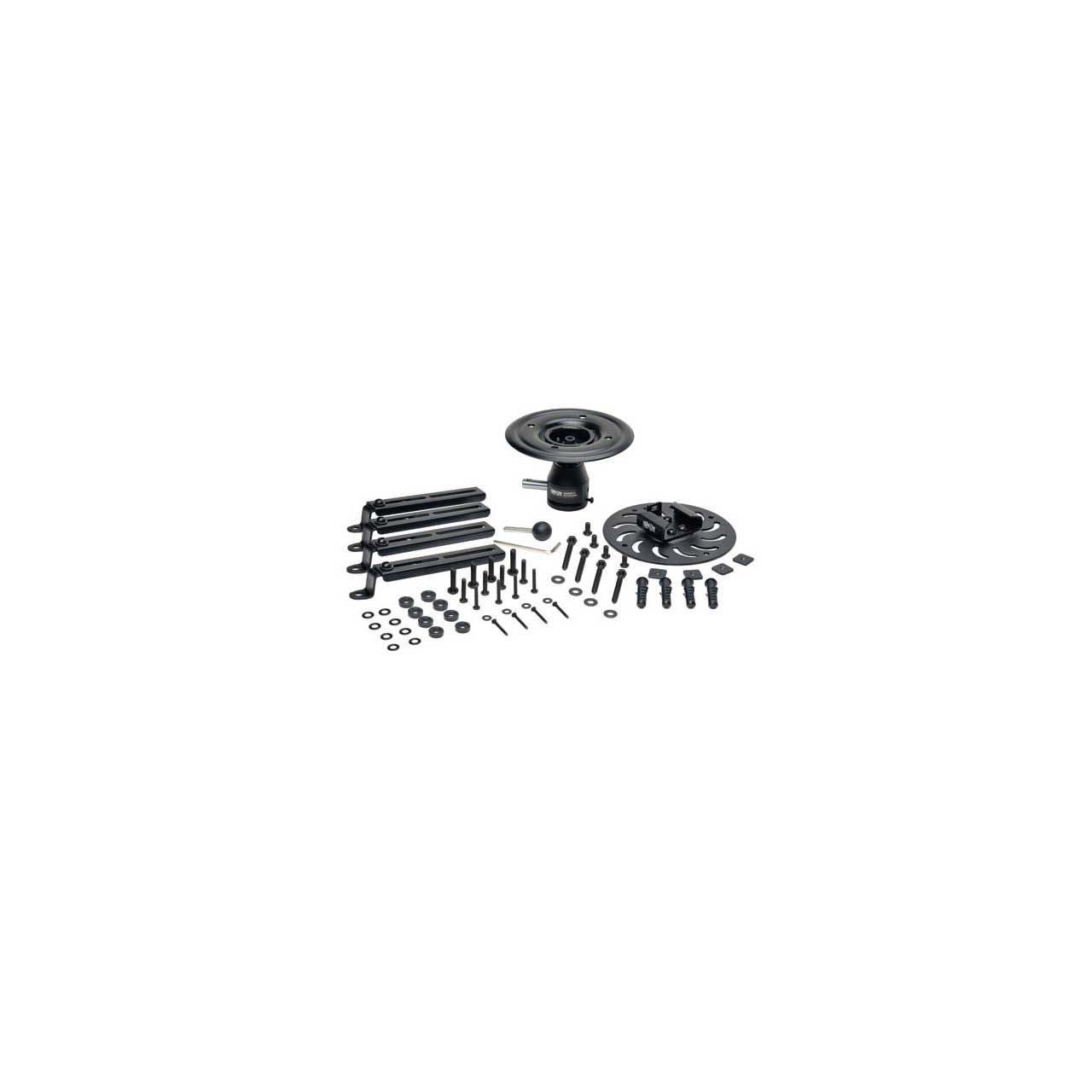

  • Item Includes:

    • Base assembly
    • Base
    • (4) Adjustable support arms
    • Locking screw
    • (4) M3 x 25 mm screws
    • (4) M4 x 25 mm screws
    • (4) M5 x 25 mm screws
    • (4) M6 x 25 mm screws
    • (4) M6 x 12 mm screws
    • (4) M4 washers
    • (8) M6 washers
    • (8) Spacers
    • (4) Anchor bolts
    • (4) Concrete anchors
    • (4) Washers (for anchor bolts)
    • (4) Mounting plates
    • Hex key
    • Owner’s manual

  • Warranty:

    • 5 Year

  • GTIN:

    0037332185679
