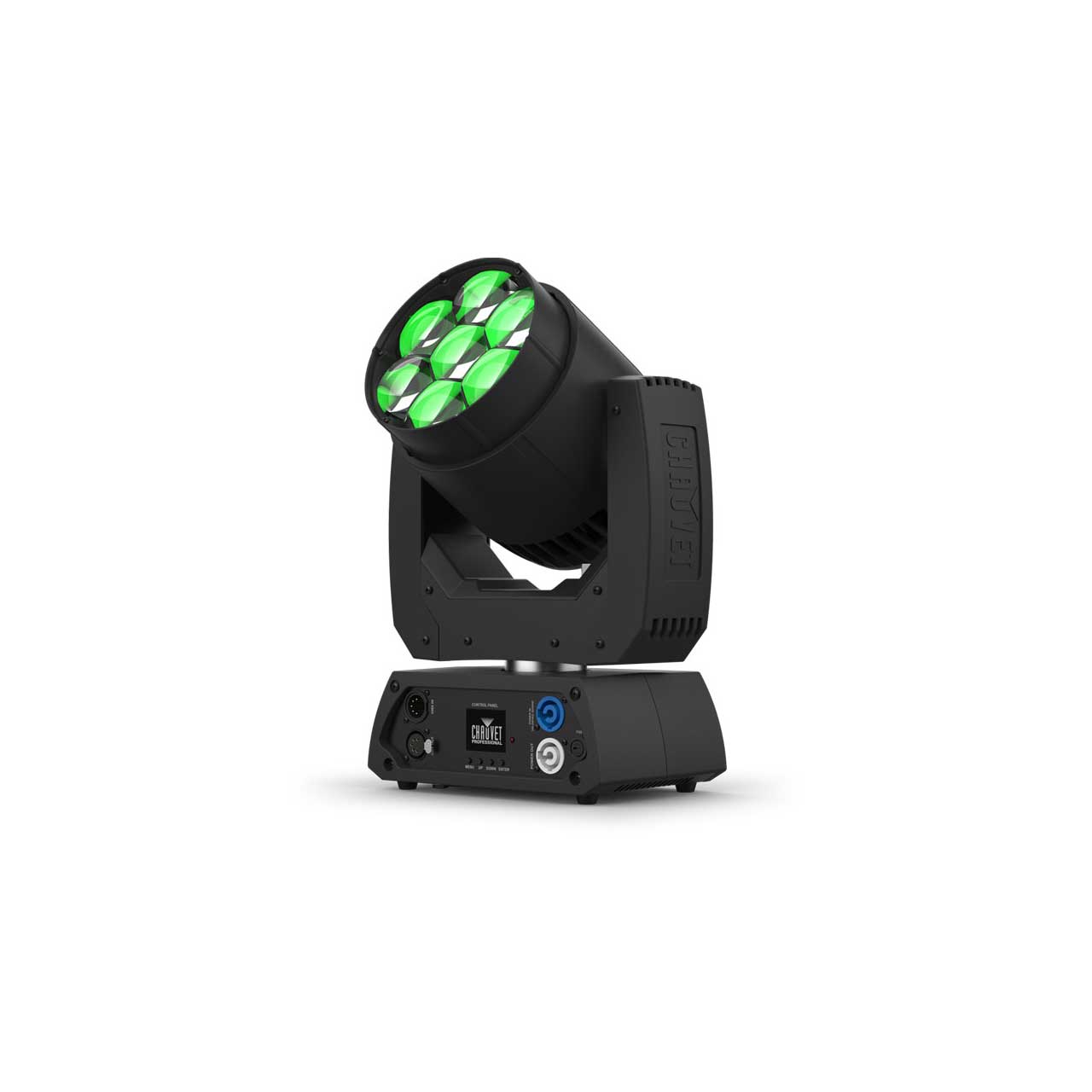

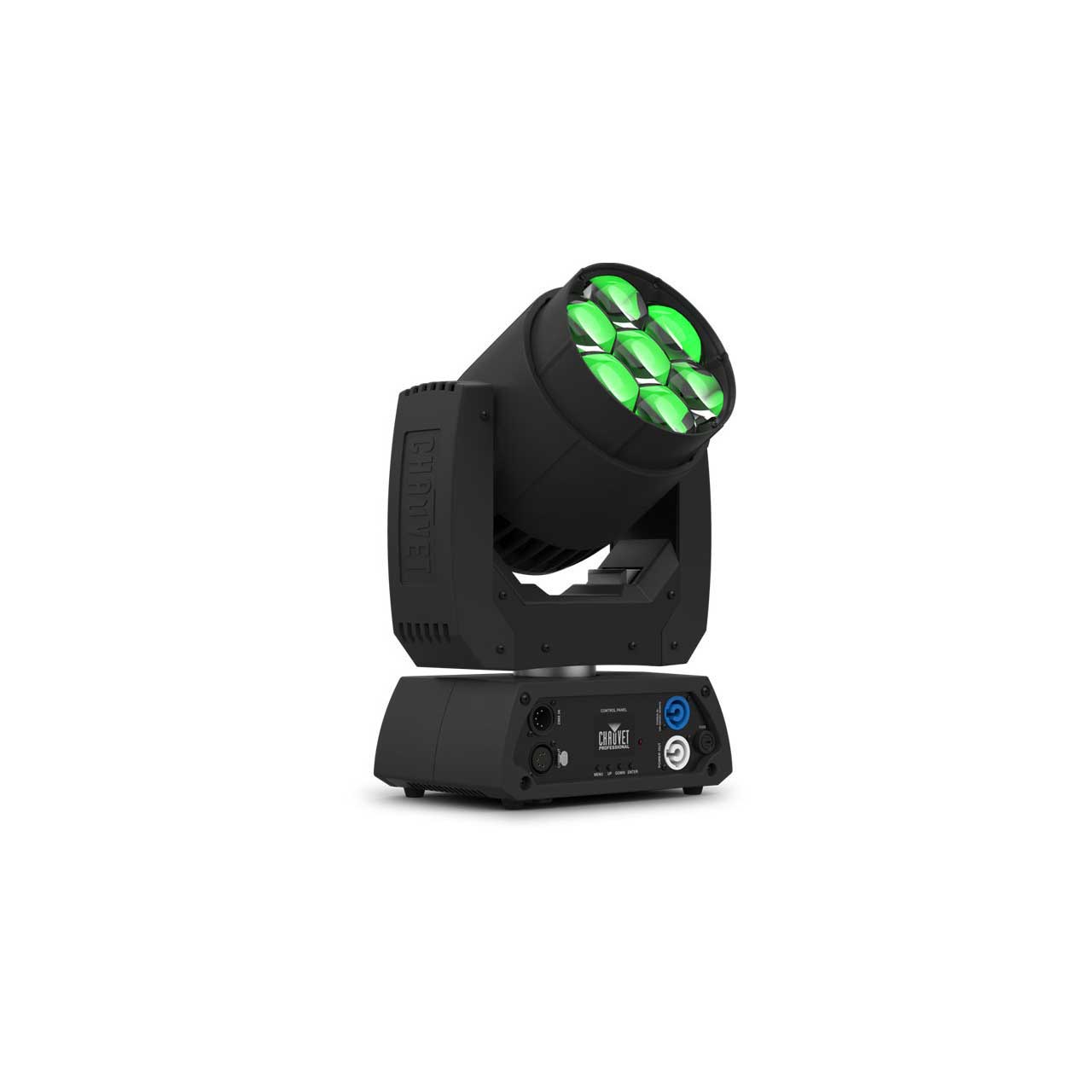

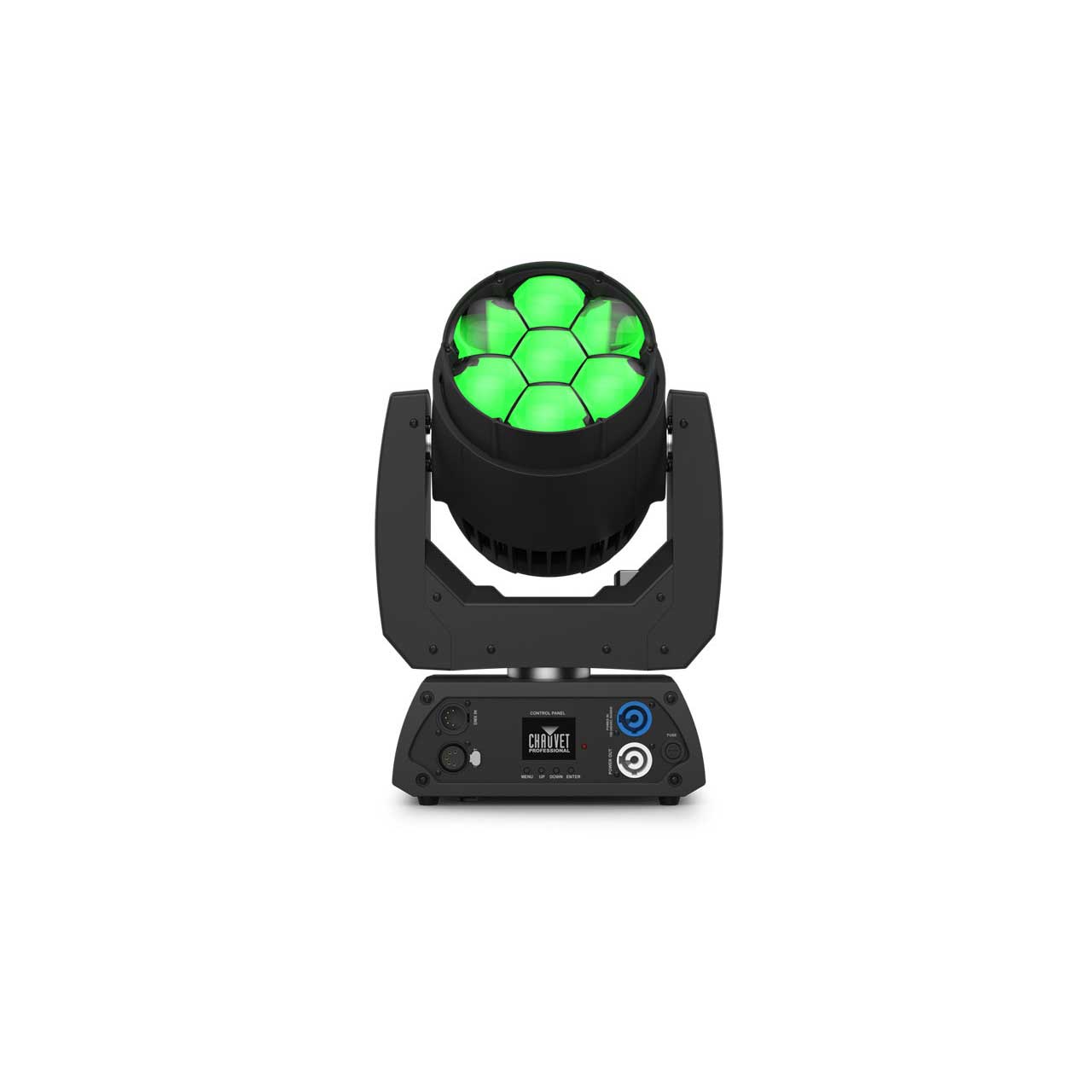

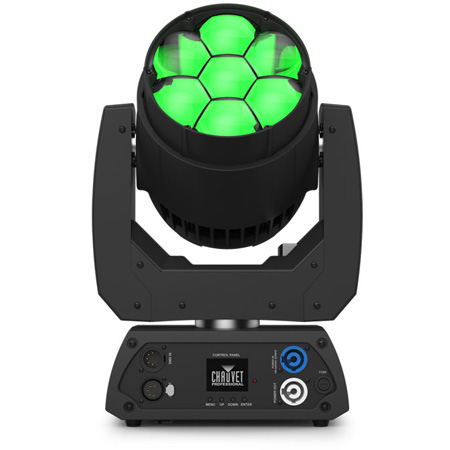

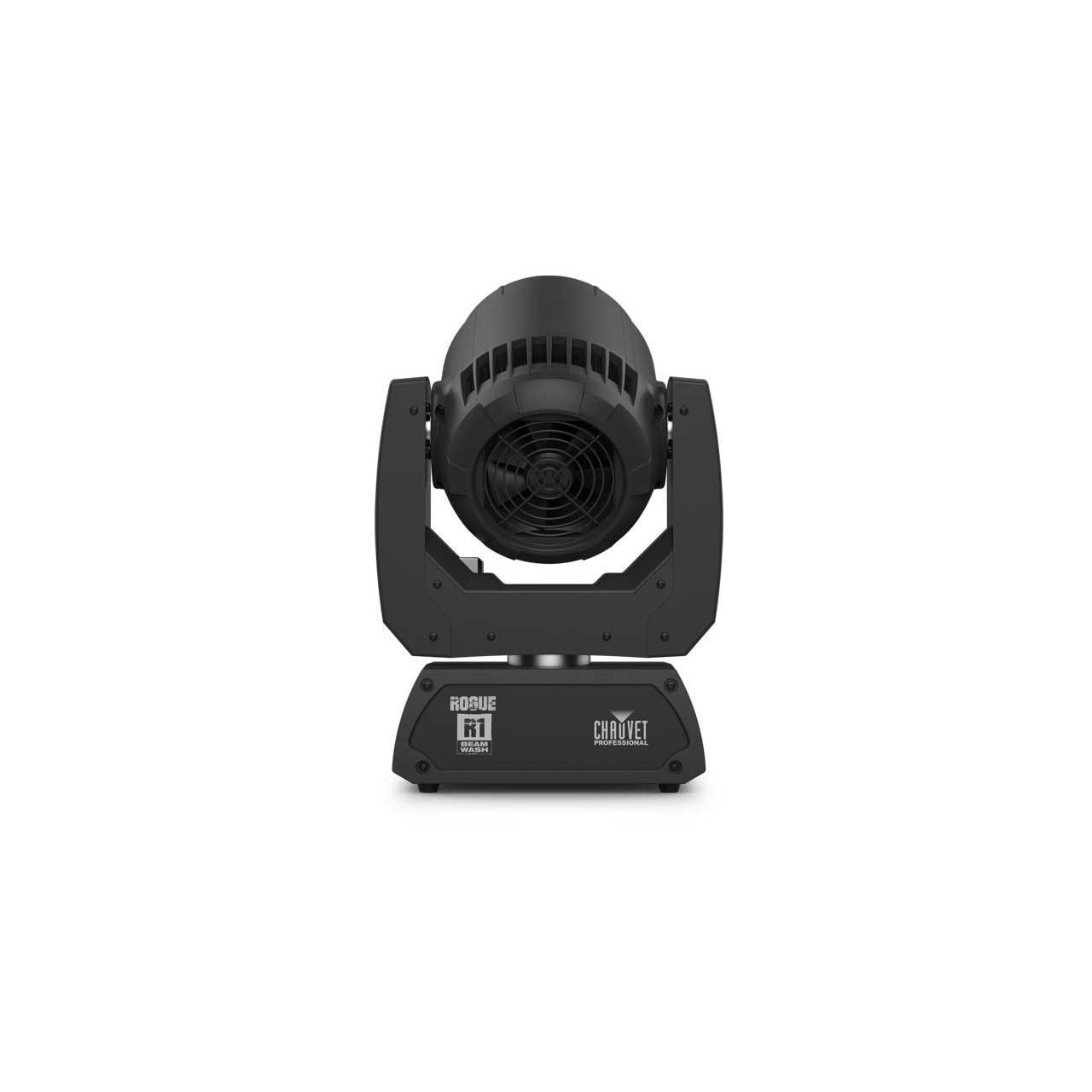

Chauvet ROGUER1BW Rogue R1 BeamWash 40 Watt 7-RGBW LED Light with Compact Moving Head

ROGUER1BW - Overview

• Features:

  • Fully-featured RGBW LED yoke wash fixture with zoom
  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
  • 7 RGBW LEDs, 40 W each
  • 5-pin DMX input/output connections
  • Unique lens design for excellent color blending and tight beam effects
  • Extremely fast, smooth pan and tilt movement
  • RDM enabled for remote addressing and trouble shooting
  • Selectable PWM settings for camera operation
  • User-selectable calibrated white for 7500 K at full output
  • 6 distinct dimming modes for advanced control
  • Omega mounting bracket fits all Rogue and Maverick fixtures
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility


• Specifications:

  • Optical
  • Light Source: 7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 4° to 37.8°
  • Field Angle: 5° to 58.2°
  • Zoom Angle: 5° to 58.2°
  • Lumens - Source: 5,400
  • Lumens - Output: 3,967 Wide, 1,420 Narrow
  • Illuminance (5°): 13,939 lux @ 5 m
  • Illuminance (55°): 383 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

    Dynamic Effects
  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: ElectronicShutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4Built-in Automated Programs: Yes
  • Customizable Programs: NoRecall Custom Programs: No

    Construction / Physical
  • Dimensions: 8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)
  • Weight: 11.8 lb (5.35 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

    Connections
  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: DMX
  • DMX Channels: 14, 15, 19 or 21
  • Modes/Personalities: 4 personalities (14, 15, 19, 21)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V
  • Power and Current: 285 W, 2.38 A @ 120 V, 60 Hz
  • Power and Current: 285 W, 1.37 A @ 208 V, 60 Hz
  • Power and Current: 284 W, 1.23 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE, METIP Rating: IP20, dry location


• Item Includes:

  • 1x Rogue R1 Beam
  • 1x WashNeutrik® powerCON® power cord
  • 1x Omega bracket with mounting hardware


• GTIN:

  0781462219680
