Neutrik NAC3MM-1 powerCON NAC3MPA-1 (Power In) - powerCON NAC3MPB-1 (Power Out) Coupler for Linking Cables powerCON 20 A

ITEM #: NAC3MM MFG #: NAC3MM

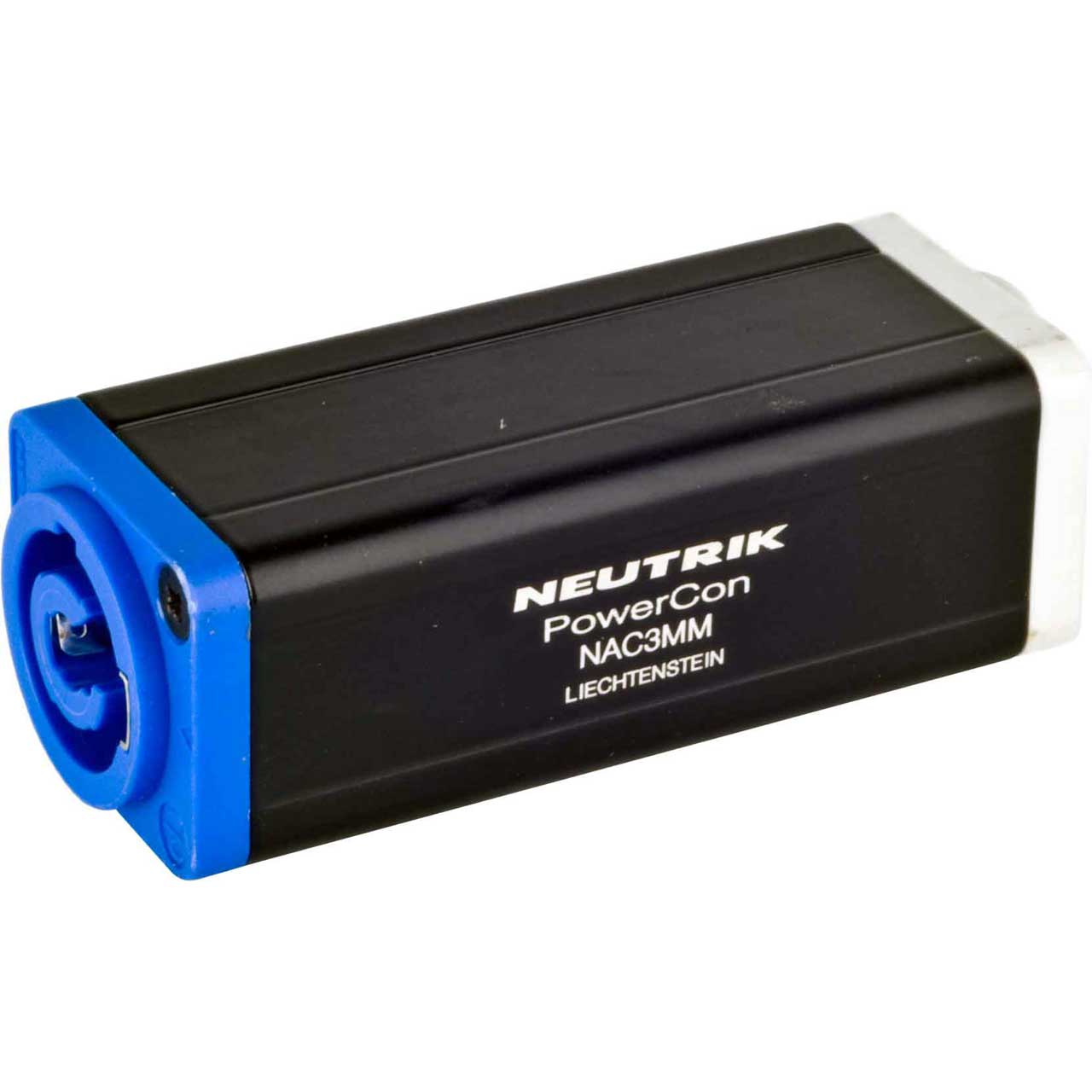

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NAC3MM

NAC3MM - Overview

20 amp powerCON NAC3MPA-1 (Power In) - powerCON NAC3MPB-1 (Power Out) Coupler for Linking Cables

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

  • Specifications:

    • Electrical
    • Contact resistance: < 3 mΩ (inner)
    • Dielectric strength: 4 kVdc
    • Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
    • Rated current per contact: 20 A rms
    • Rated voltage: 250 V ac

    • Mechanical
    • Lifetime: > 1000 mating cycles
    • Locking device: Quick Lock

    • Material
    • Contact plating: 2 µm Ag
    • Locking element: Steel Ck67
    • Shell: Polyamide (PA 6.6 30 % GR)
    • Contacts: Bronze (CuNi1Si0.2)

    • Environmental
    • Flammability: UL 94 V-0
    • Protection class: IP 20 (mated)
    • Safety Requirements: EN/IEC 61984
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
