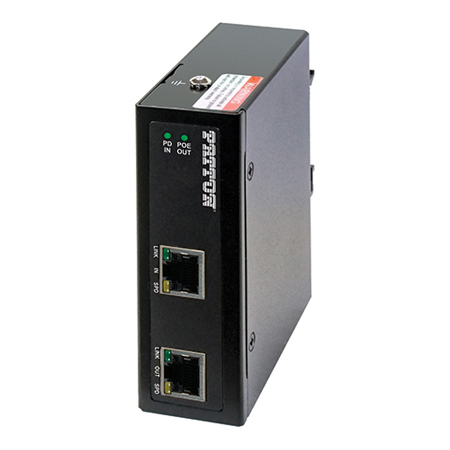

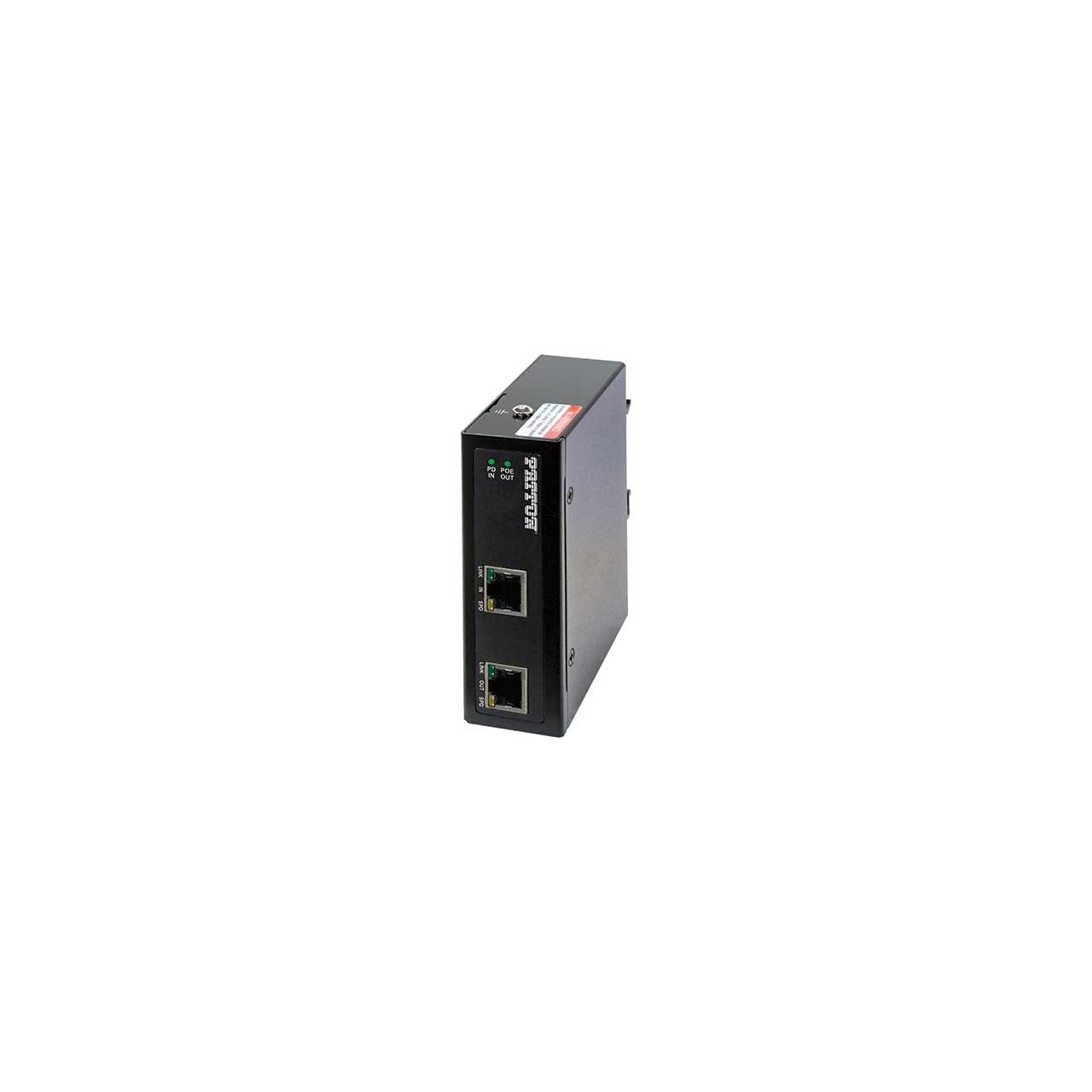

Patton CL1401E/BT60/PD95 CopperLink Industrial Gigabit PoE Booster - 60W - In-Line Repeater - Single-Port

ITEM #: CL1401E-BT60PD95 MFG #: CL1401E/BT60/PD95

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$235.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CL1401E/BT60/PD95 - Overview

Patton's CL1401E/BT60 is a ruggedized extended-temperature PoE booster that requires no AC or DC power outlets to operate. The available power, industrial build, and gigabit bandwidth makes this product suitable for many industrial and security applications that include such PDs as PLCs, BACs, IP cameras, access controls, IP phones and more.

The CL1401E/BT60 is equipped with a gigabit 95-watt PD (Power Delivery) input (PoE) and 1-gigabit PoE outputs capable of 15 to 60 watts of PoE power (depending on the power budget).

Harness the true power and flexibility of Power over Ethernet!

  • Features:

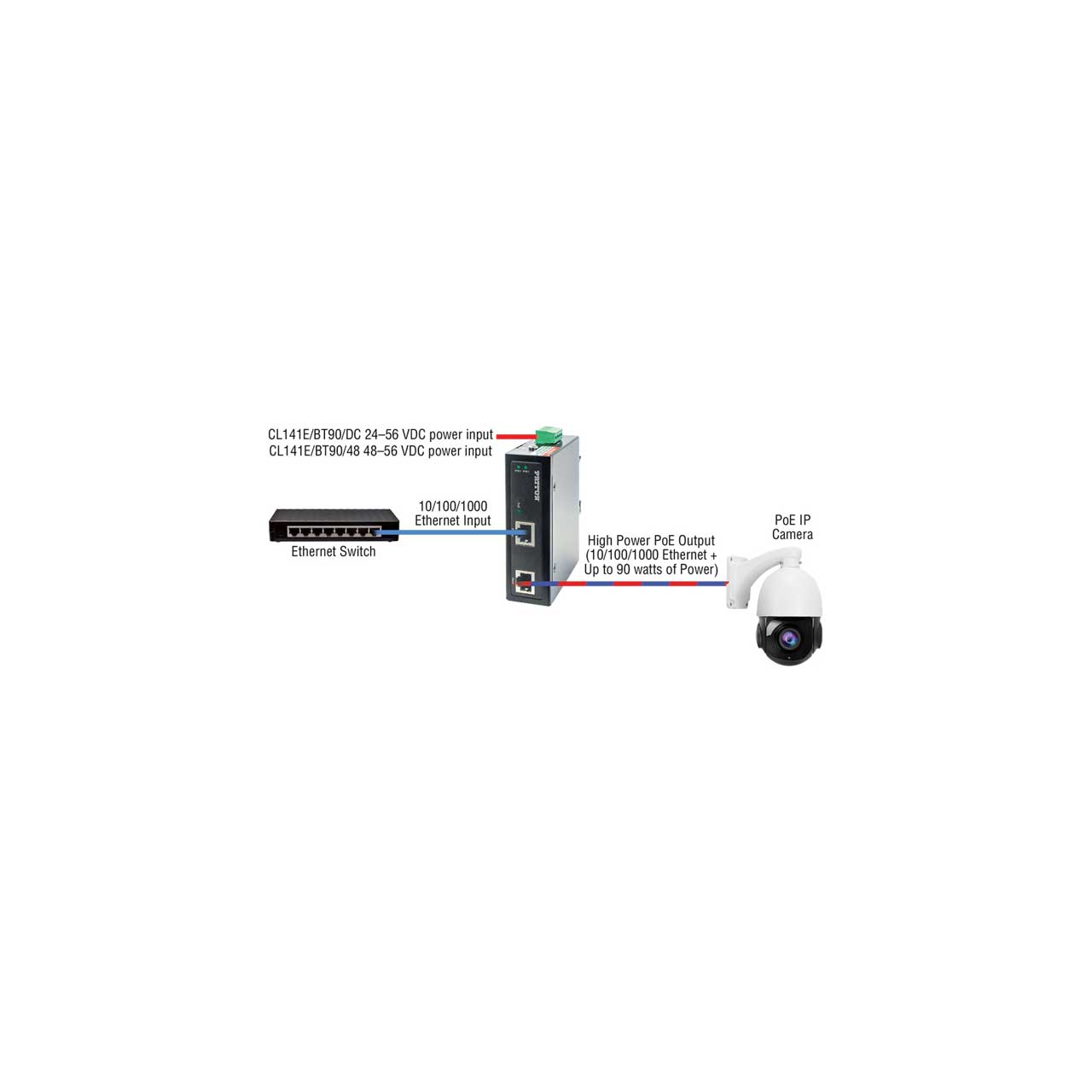

    • Ethernet and PoE Extension - Doubles 10/100/1000 Ethernet and PoE distance limit to 656 feet (200m). Multiple units can be daisy-chained for even longer extensions.
    • Compliant to all PoE Standards - Works from 802.3af (15 watts or less) up to 802.3bt (90 watts)
    • Operates over Cat 5e/6 - No special cable required; these extenders operate over standard networking cable.
    • Transparent LAN Operation - Completely transparent operation ensures maximum throughput, minimum latency, and best of all: interoperability with any network enabled device.
    • No External Power Required - Our device acts as a PD, meaning it takes power from any standards-based PoE switch, Injector or another CL1400.
    • TAA Compliant - Top-notch quality and reliability with local support

  • Specifications:

    • Ethernet Interfaces
    • 1x RJ-45 10/100/1000BaseT(X) Data/Power input (95W) PD
    • 1x RJ-45 10/100/1000BaseT(X) Data/Power output (60W) PSE
    • Auto MDI-X / MDI crossover
    • Auto Negotiation, 10/100/1000 Mbps
    • Auto-Negotiation, Full or Half Duplex

      Line Protection
    • ESD: Air 8KV DC Contact: 6KV DC
    • Surge: 6KV

      Ethernet
    • Auto-Sensing 10/100/1000 Base-TX
    • Supports Flow Control (IEEE803.x)
    • Store-and-Forward Switching
    • Switch Fabric: 4 Gbps back- plane
    • Data Buffer: 1 Mbit
    • Jumbo Frame Support: 9Kbit
    • MAC Address Table: 2K; auto- learning

      IEEE Standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE802.3af for PoE
    • IEEE802.3at for PoE+
    • IEEE802.3bt for high power PoE

      Management
    • Plug and Play operation

      LEDs
    • PoE IN (Green): ON-Power is detected; OFF-Power not detected
    • PoE OUT (Green): ON-PSE activated & PD is detected
    • BT (Green): ON-802.3bt is detected; OFF-802.3bt is not detected
    • LINK (Green): ON-TX port is detected; Flashing-TX data is transmitting/receiving
    • Speed (Amber): ON-Gigabit speed is detected

      Regulatory Appeals
    • EMC/EMS: CE, FCC 15B Class A, VCCI
    • Safety: UL UL 60950-1 (pending), IEC EN60950-1
    • Free Fall: EN60068-2-32
    • Shock: EN60068-2-27
    • Vibration : EN60068-2-6

      Power
    • PoE Input 50-57 VDC, 95 watts (max.)
    • Terminal Block (DC Input) 200 watts (max.)

      Power Consumption
    • 2.7W without PoE load

      PoE
    • PD PoE Power Input (15-95W)
    • PSE PoE Power Output 60W (max.)

      Physical
    • Dimensions (WxHxD): 1.26 x 4.07 x 3.2" (32 x 103.5 x 81.5mm)
    • Weight: 1 lb (0.45 kg)

      Environmental
    • Operating Temperature -40 to 75°C (-40 to -167°F)
    • Storage Temperature: -40 to 85°C (-40 to -185°F)
    • Relative Humidity: 5 to 95% non-condensing

      Protection Class
    • IP67 (certified)

  • Item Includes:

    • 1x Patton CL1401E/BT60/PD95 Industrial Gigabit 60W PoE Booster - In-Line Repeater PD

  • Warranty:

    • 1 Year
