Clear-Com 647G006 DX 2-way Antenna Splitter/Combiner for DX Series Intercom Systems

ITEM #: CLCM-647G006 MFG #: 647G006

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Clear-Com
Free Shipping with $49 Minimum Order

Our Price:

$143.20

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

647G006 - Overview

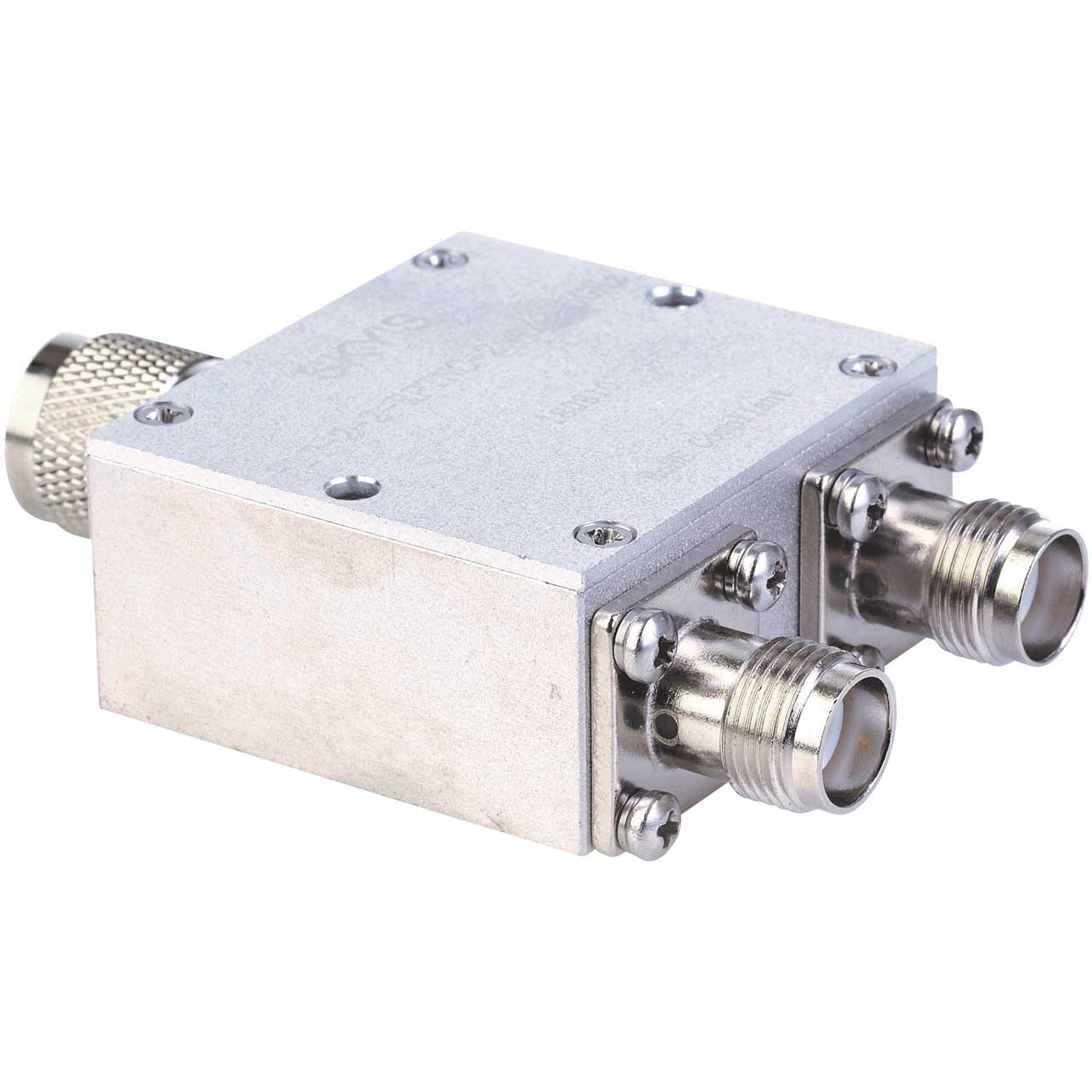

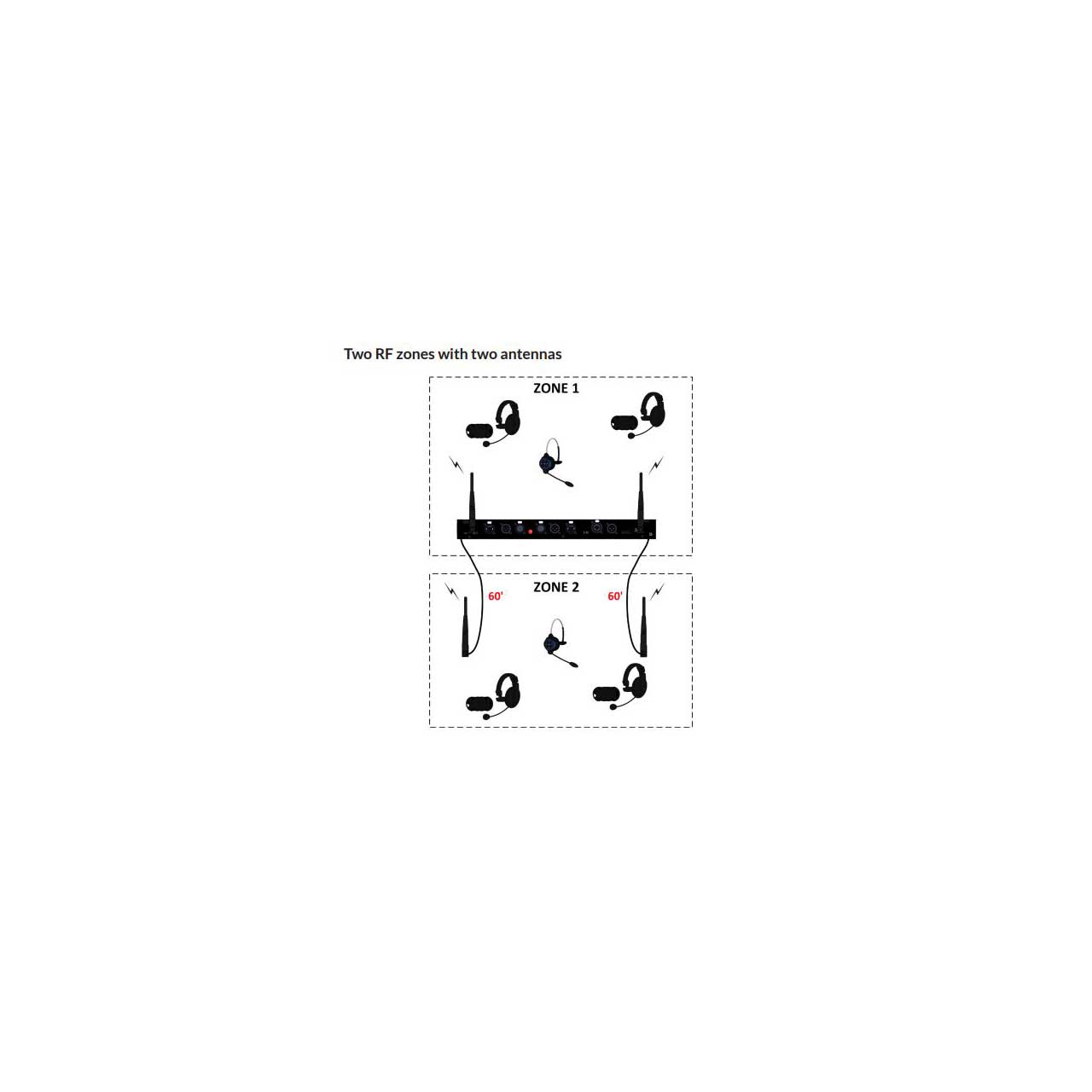

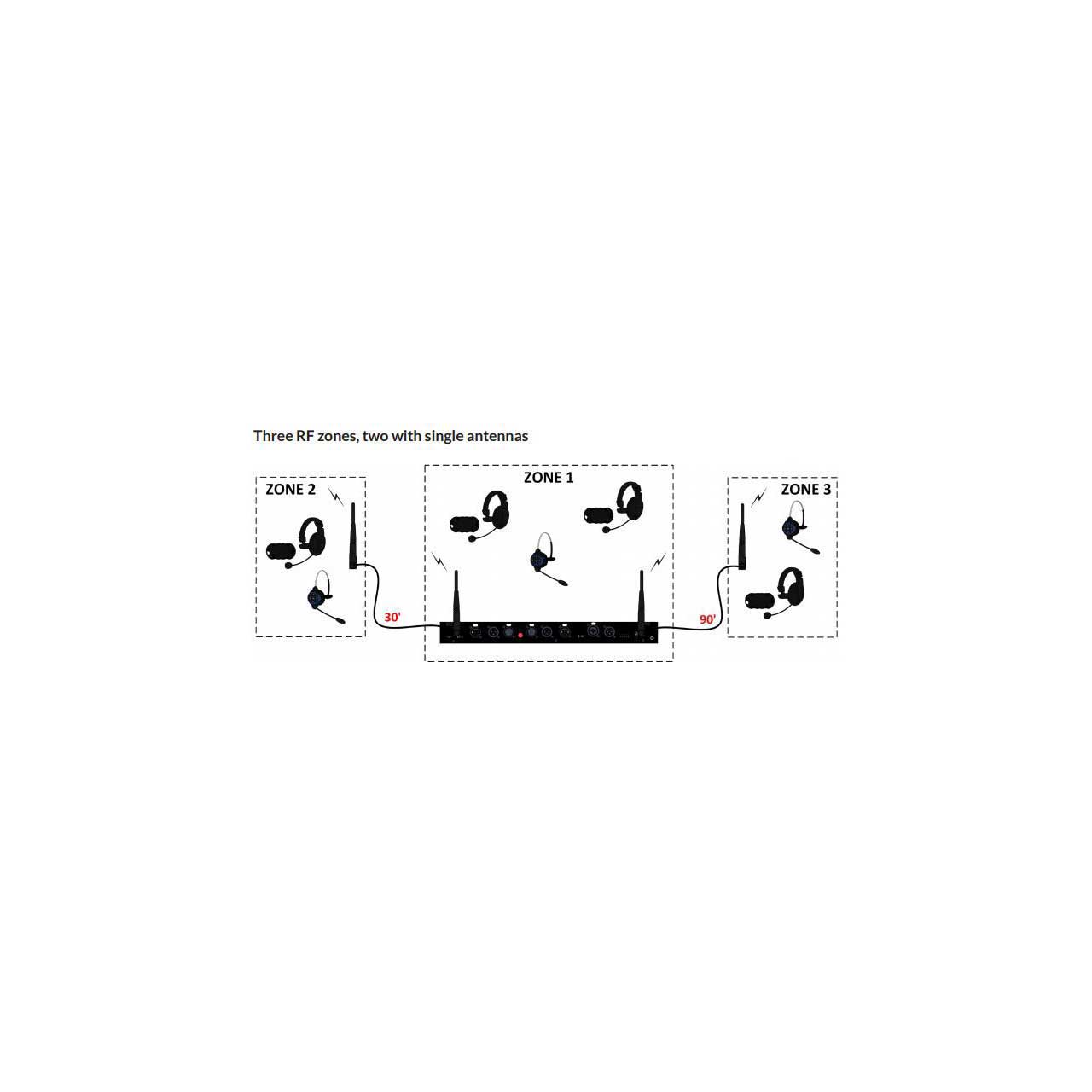

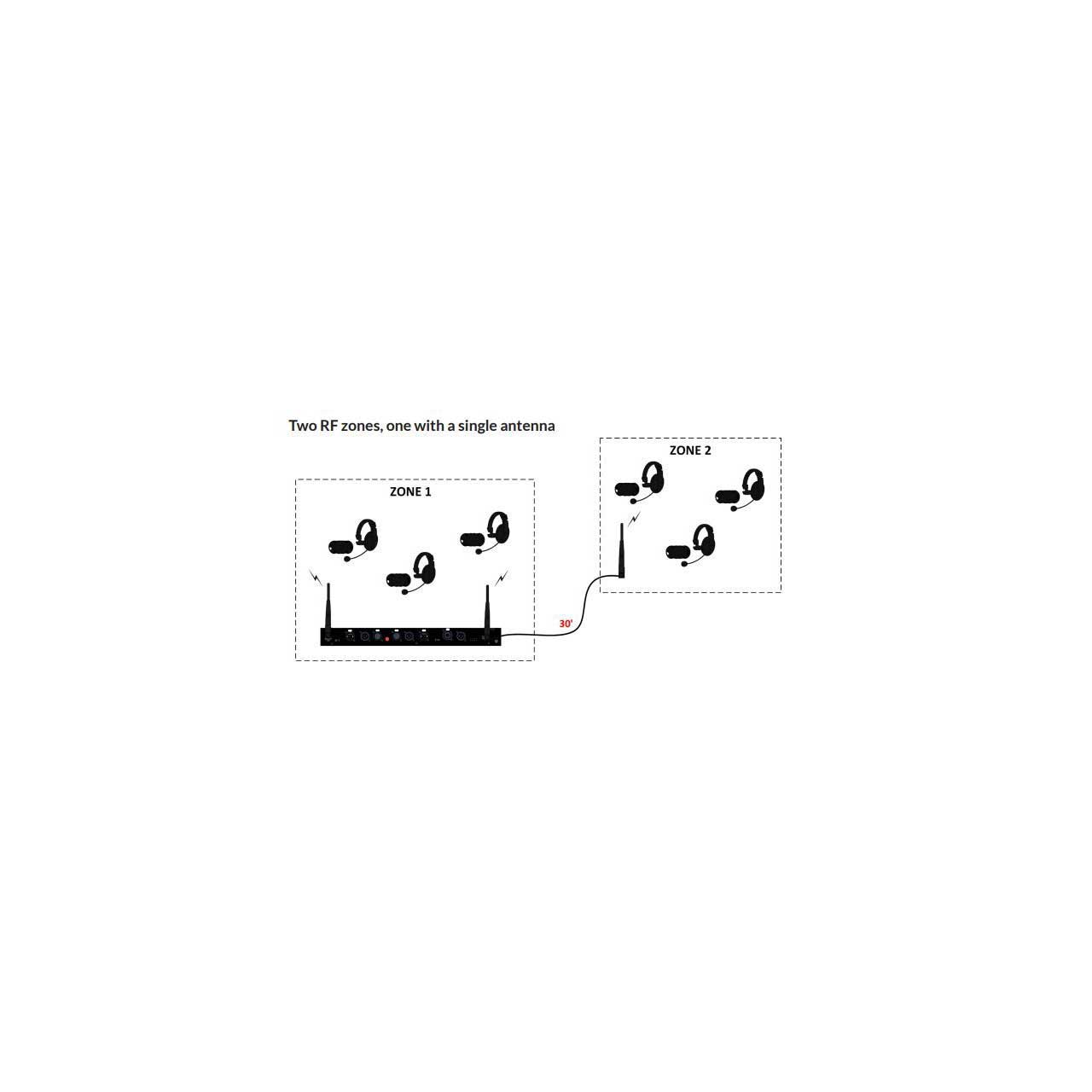

The Clear-Com 647G006 DX is a 2-Way Antenna Splitter/Combiner that is designed to increase the normal signal coverage area of DX Series Wireless Intercom Systems. The Splitter/Combiner makes it possible to add one or two additional antenna(s) to the base station. With additional cabling, additional antennas can be positioned further from the base station or in remote areas.

  • Features:

    • Allows flexible expansion of the typical coverage area
    • Provides a solution for coverage in hard-to-penetrate areas
    • Allows splitting of coverage area while maintaining antenna diversity


  • Specifications:

    • Frequency Range: 2.4 to 2.5GHz
    • Insertion Loss: 0.2dB typ / 0.3dB max
    • Isolation: 25dB typ / 20dB min
    • VSWR: 1.15 typ / 1.30 max
    • Input Impedance: 50Ω
    • Output Impedance: 50Ω
    • Operating Temperature: -31° to 176°F (-35° to 80°C)
    • Max Power: < 1w

      Connector
    • Sum port - Male Reverse Polarity TNC
    • Split port - Female Reverse Polarity TNC
