M374A - Overview

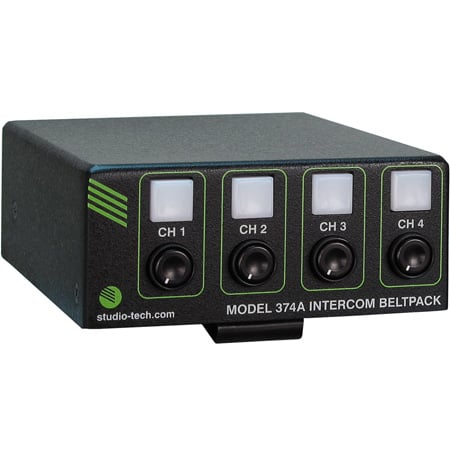

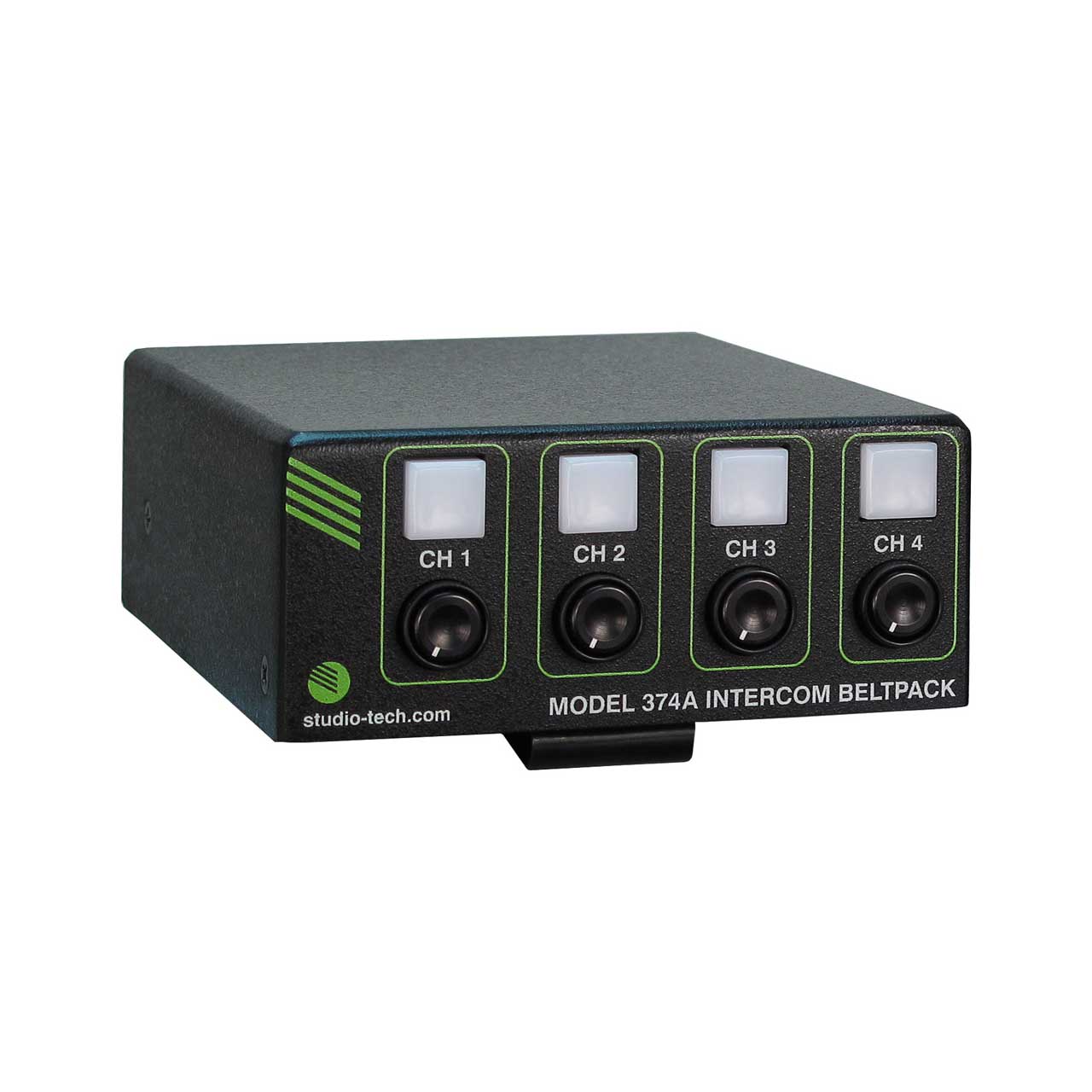

The Studio Technologies M374A Intercom Beltpack begins with the features offered by traditional party-line intercom user devices and adds a range of new capabilities along with the advanced performance and flexibility that Dante® audio-over-Ethernet provides. With four independent talk and listen channels the M374A bridges the gap between typical single- and dual-channel party-line devices and permanently installed multi-channel intercom panels. Imagine the possibilities-four channels of high-quality party-line intercom in a compact, user-worn package.

  • Features:

    • Dante audio-over-Ethernet technology
    • Four independent talk and listen channels
    • Supports dynamic and electret microphones
    • 5-pin female XLR headset connector
    • Configurable operating modes
    • Excellent audio quality
    • Uses STcontroller for configuration
    • AES67 and Dante Domain Manager™ support
    • Power-over-Ethernet (PoE) powered

  • Specifications:

    • Power Source: Power-over-Ethernet (PoE): class 1 (very low power, =3.84 watts) per IEEE® 802.3af

      Network Audio Technology:
    • Type: Dante audio-over-Ethernet
    • AES67-2013 Support: yes
    • Dante Domain Manager (DDM) Support: yes
    • Bit Depth: up to 24
    • Sample Rate: 48 kHz
    • Number of Transmitter (Output) Channels: 4
    • Number of Receiver (Input) Channels: 4
    • Dante Audio Flows: 4; 2 transmitter, 2 receiver

      Network Interface:
    • Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
    • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)

      Audio Channels: 4 talk, 4 listen

      Microphone Input:
    • Compatibility: dynamic or electret (low-voltage DC-powered) microphones
    • Type: unbalanced
    • Electret Microphone Power: 5 volts DC via 2.21 k resistor, selectable on/off
    • Gain: 22, 30, 42, or 48 dB, selectable, ref. -60 dBu input to Dante output (-20 dBFS nominal)
    • Frequency Response: 50 Hz to 10 kHz, -3 dB
    • Distortion (THD+N): <0.02%
    • Dynamic Range: 75 dB

      Call Function:
    • Receive Support: channels 1-4
    • Send Support: channels 1-3
    • Signaling Method: 20 kHz, ±800 Hz, within audio channels
    • Receive Level: -27 dBFS minimum
    • Send Level: -20 dBFS

      Compressor:
    • Threshold: 1 dB above nominal level (-19 dBFS)
    • Slope: 2:1
    • Status LED: compressor active

      Headphone Output:
    • Type: 2-channel
    • Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headsets with nominal impedance of 50 ohms or greater
    • Maximum Output Voltage: 3.8 Vrms, 1 kHz, 150 ohm load
    • Frequency Response: 20 Hz to 10 kHz, -3 dB
    • Distortion (THD+N): <0.002%
    • Dynamic Range: >100 dB

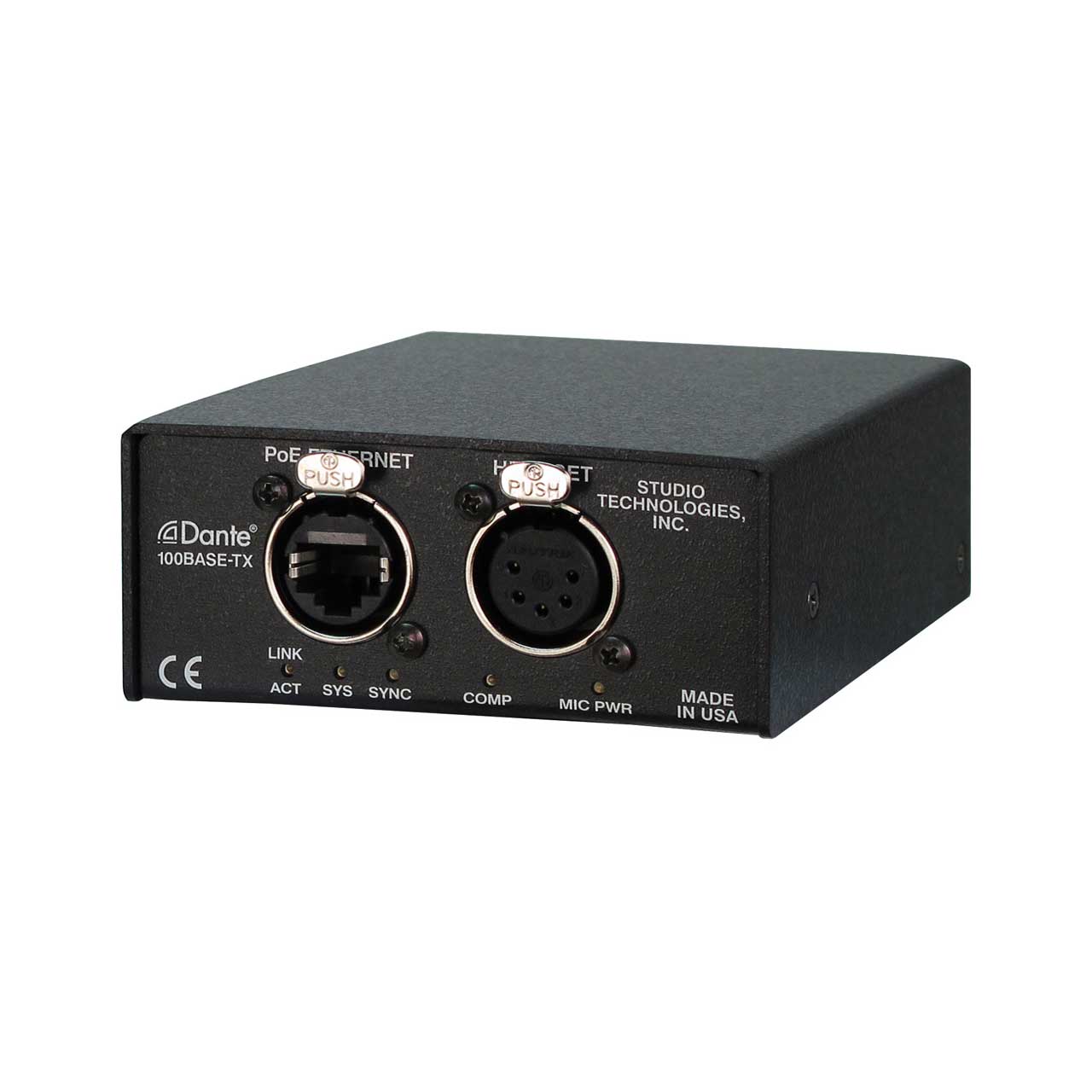

      Connectors:
    • Headset: 5-pin female XLR
    • Ethernet: Neutrik NE8FBH etherCON RJ45 receptacle
    • USB: type A receptacle (located inside Model 374A's enclosure and used only for application firmware updates)

      Configuration: requires Studio Technologies STcontroller software application, version 1.06.00 and later (STcontroller is compatible with Windows version 7 and later)

      General
    • Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
    • Storage Temperature: -40 to 70 degrees C (-40 to 158 degrees F)
    • Humidity: 0 to 95%, non-condensing
    • Altitude: not characterized
    • Mounting: intended for portable applications; contains integral belt clip; optional MBK-01 Mounting Bracket Kit allows Model 374A to be permanently mounted
    • Dimensions (WxHxD): 3.6 x 1.6 x 4.8" (9.2 x 4 x 12.6cm)
    • Weight: 0.6 pounds (0.3 kg)
