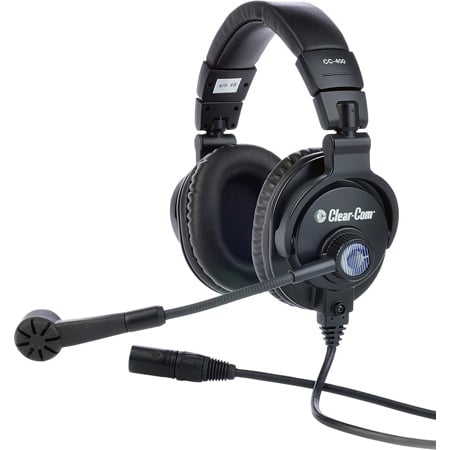

The ClearCom CC-400-X5 is a double-ear Intercom Headset terminated with a 5 Pin Male XLR connector. The CC-400 features professional, high performance headphones and a cardioid dynamic microphone that works with the HXII-BP-X5 Beltpack as part of a ClearCom Intercom System.
Operation
The CC-400 headset can be easily adjusted to accommodate your preference. The rotating, super flexible microphone boom has a 300° rotation to allow the mic to be worn on the left or right side of the head. You can easily make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette padding, the headphones sit lightly on the ear to provide you hours of comfort.
Integrated Mute Switch Operation
The CC-400 headset microphone can be turned on and off by simply moving the microphone boom! To turn ON the microphone, pull the boom gently downwards (past the 10 o'clock/2 o'clock position). To turn the microphone OFF, push the boom gently upwards (above the 10 o'clock/ 2 o'clock position).
Interchangeable Cabling
The CC-400 headset has been designed so that the cabling and connector type can be adapted quickly to the application. Users can order cables with different XLR connector choices and appropriate pinouts. To change the connector cable in the field, simply disconnect the cable from the headset and exchange the cable with a standard Phillips screwdriver. The same process can be used to repair and replace a damaged cable on the fly.
Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.
