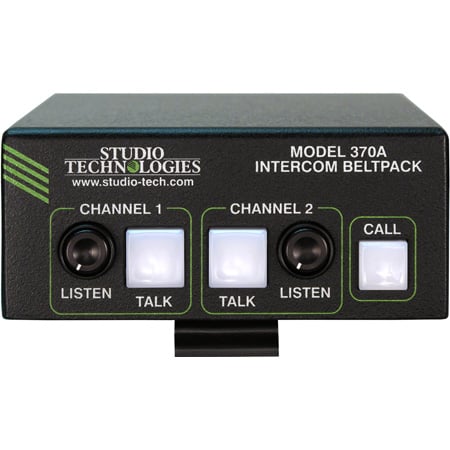

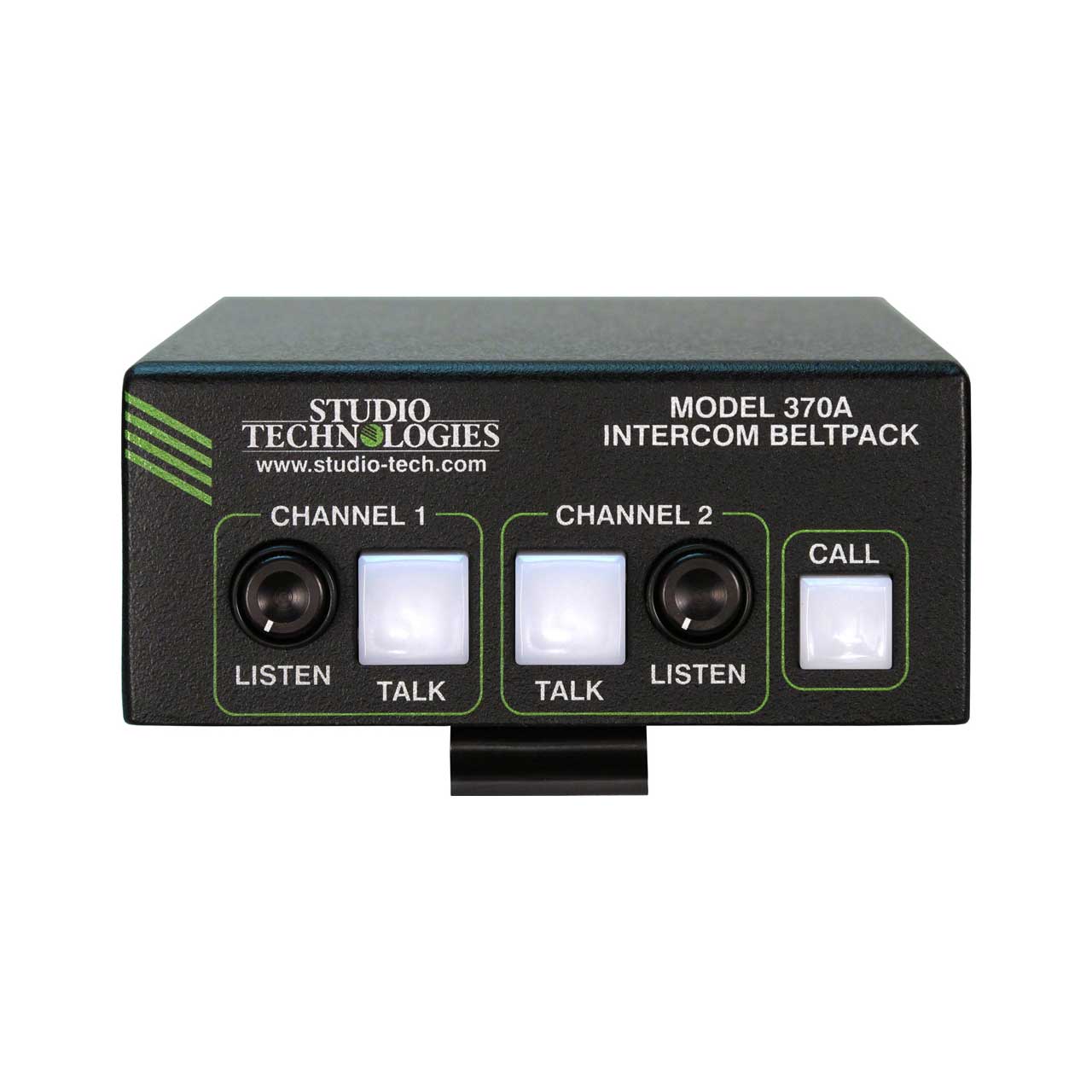

Studio Technologies M370A 2-Channel Intercom Beltpack with Dante - 5-Pin Female Headset Connector

M370A - Overview

• Features:

  • Dante audio-over-Ethernet technology
  • Two independent talk and listen channels
  • Integrated call function
  • Supports dynamic and electret microphones
  • 5-pin female XLR headset connector
  • Excellent audio quality
  • Uses STcontroller for configuration
  • AES67 and Dante Domain Manager™ support
  • Power-over-Ethernet (PoE) powered


• Specifications:

  • Power Source: Power-over-Ethernet (PoE): class 1 (very low power, =3.84 watts) per IEEE® 802.3af

    Network Audio Technology:
  • Type: Dante audio-over-Ethernet
  • AES67-2013 Support: yes
  • Dante Domain Manager (DDM) Support: yes
  • Bit Depth: up to 24
  • Sample Rate: 48 kHz
  • Number of Transmitter (Output) Channels: 2
  • Number of Receiver (Input) Channels: 2
  • Dante Audio Flows: 4; 2 transmitter, 2 receiver

    Network Interface
  • Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
  • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)

    Audio Channels 2 talk, 2 listen

    Microphone Input
  • Compatibility: dynamic or electret (low-voltage DC-powered) microphones
  • Type: unbalanced
  • Electret Microphone Power: 5 volts DC via 2.21 k resistor, selectable on/off
  • Gain: 22, 30, 42, or 48 dB, selectable, ref. -60 dBu input to Dante output (-20 dBFS nominal)
  • Frequency Response: 50 Hz to 10 kHz, -3 dB
  • Distortion (THD+N): <0.02%
  • Dynamic Range: 75 dB

    Compressor
  • Threshold: 1 dB above nominal level (-19 dBFS)
  • Slope: 2:1
  • Status LED: compressor active

    Headphone Output
  • Type: 2-channel
  • Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headsets with nominal impedance of 50 ohms or greater
  • Maximum Output Voltage: 3.8 Vrms, 1 kHz, 150 ohm load
  • Frequency Response: 20 Hz to 10 kHz, -3 dB
  • Distortion (THD+N): <0.002%
  • Dynamic Range: >100 dB

    Call Function
  • Signaling Method: 20 kHz, ±800 Hz, within audio channels
  • Call Send Level: -20 dBFS
  • Call Receive Level: -27 dBFS minimum

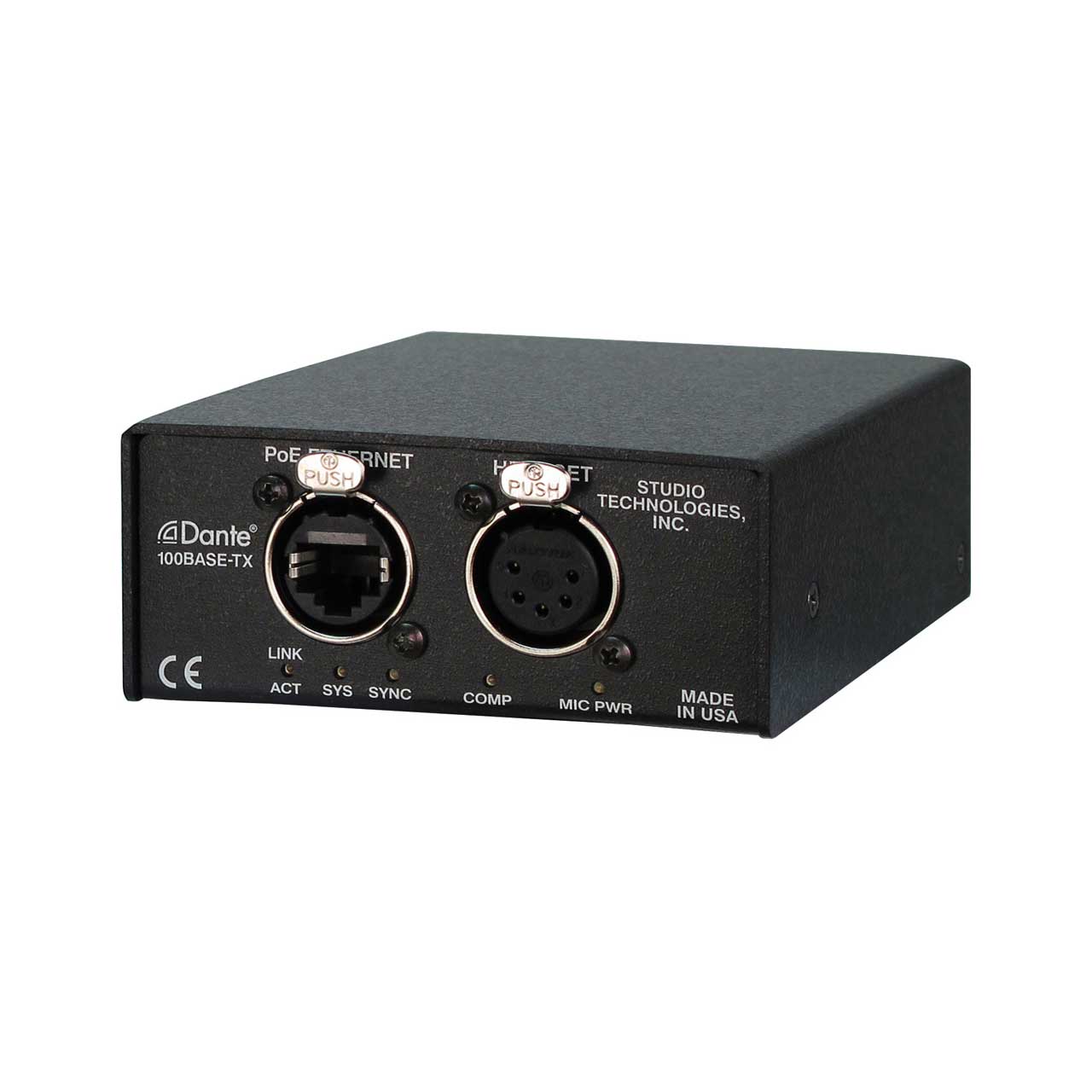

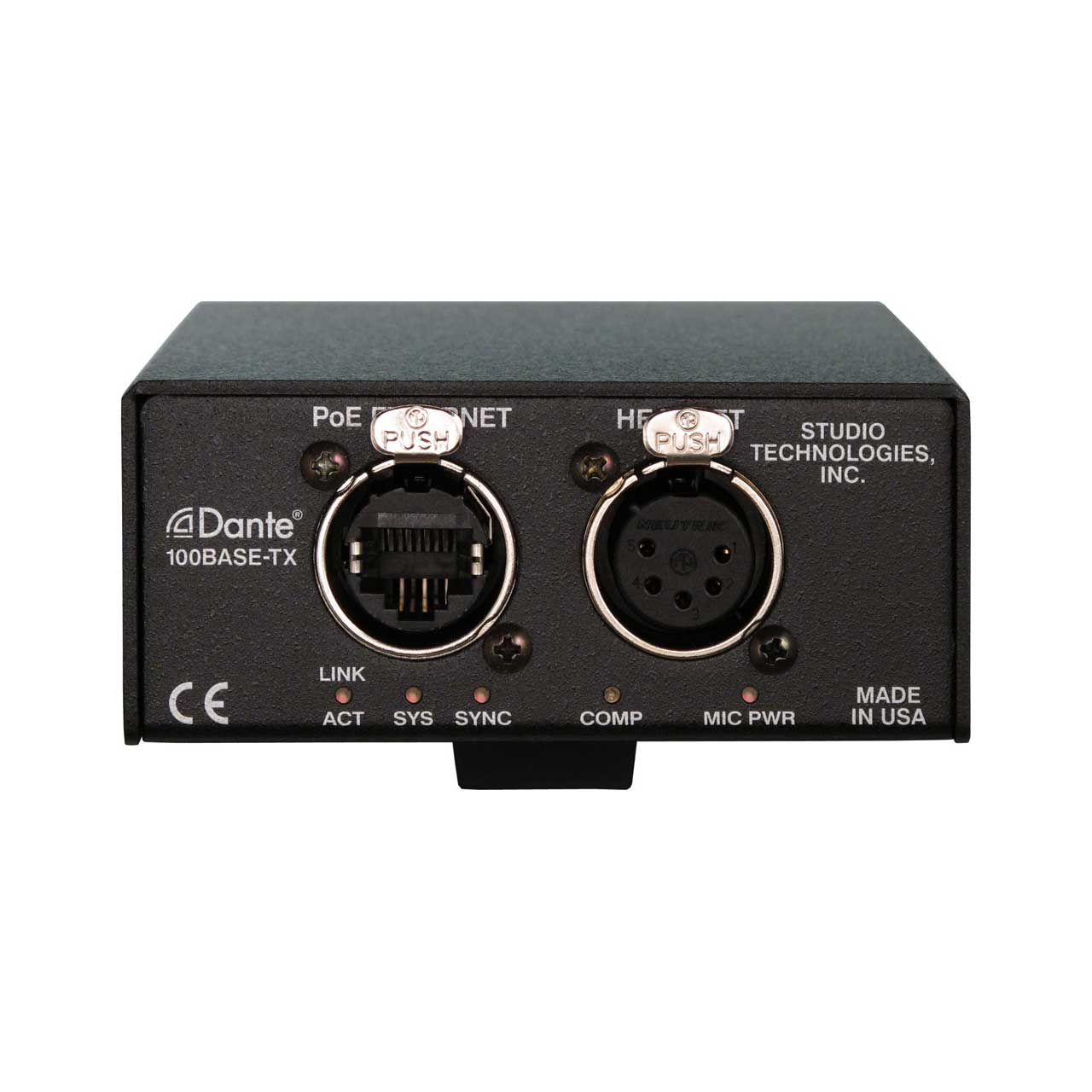

    Connectors
  • Headset: 5-pin female XLR
  • Ethernet: Neutrik NE8FBH etherCON RJ45 receptacle
  • USB: type A receptacle (located inside Model 370A's enclosure and used only for application firmware updates)

    Configuration Requires Studio Technologies STcontroller software application, version 1.06.00 and later (STcontroller is compatible with Windows version 7 and later)

    General
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -40° to 158°F (-40° to 70°C)
  • Humidity: 0 to 95%, non-condensing
  • Altitude: not characterized
  • Dimensions (WxHxD): 3.6 x 1.6 x 4.8" (9.2 x 4.0 x 12.6cm)
  • Mounting: intended for portable applications; contains integral belt clip; optional MBK-01 Mounting Bracket Kit allows Model 370A to be permanently mounted
  • Weight: 0.6Lbs (0.3kg)
