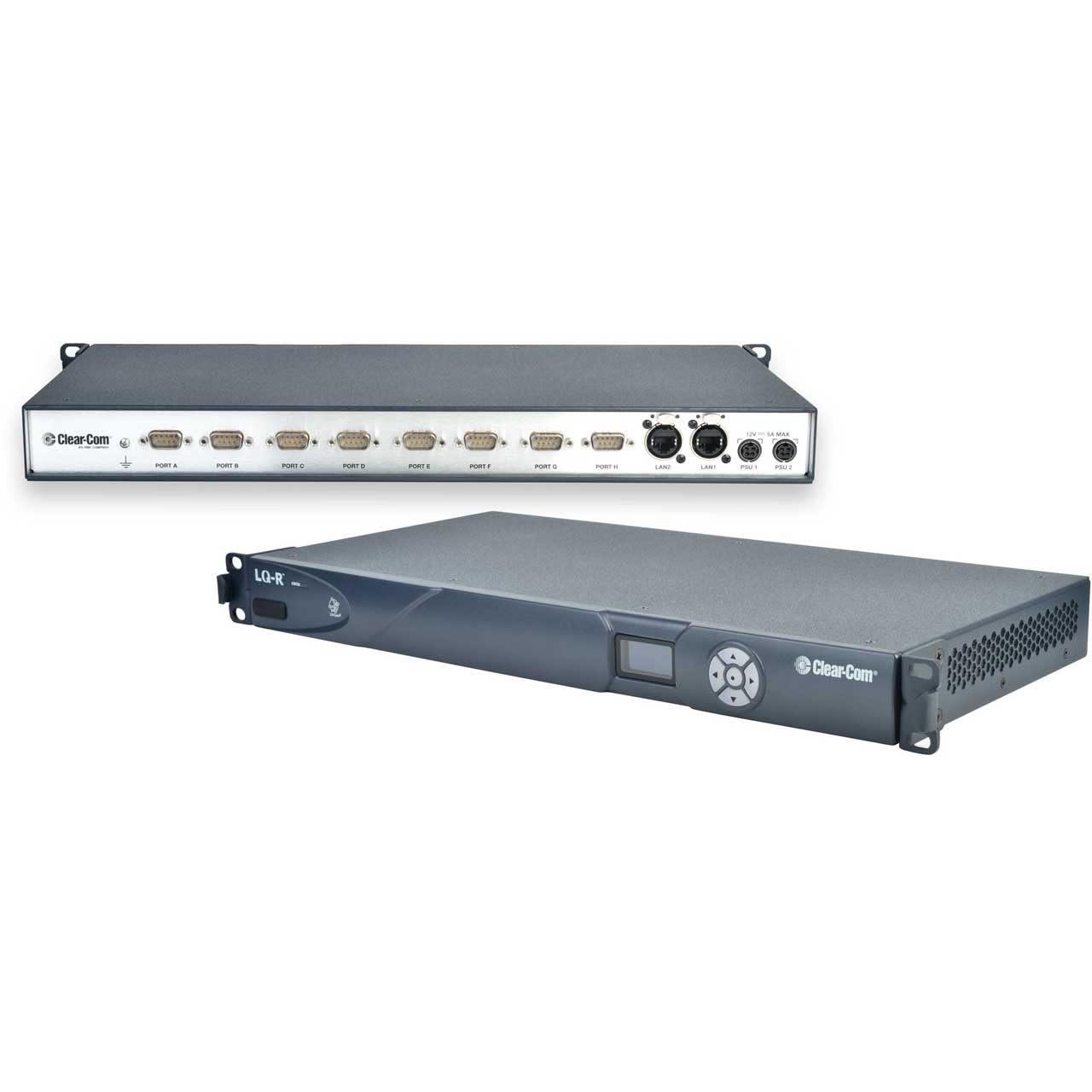

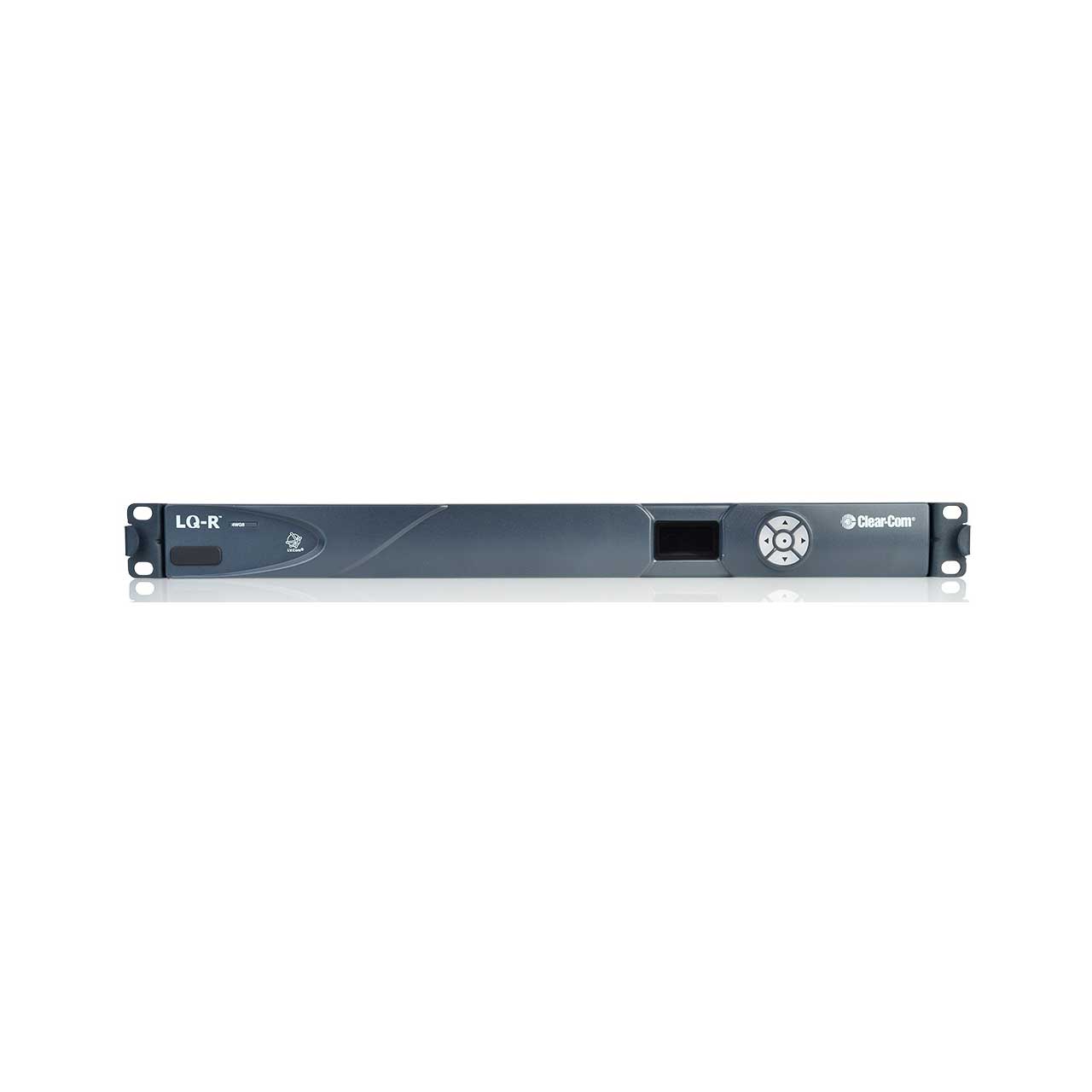

Clear-Com LQ-R4WG8 8 Channel 4-Wire LQ Series IP Interface with GPIO 1RU

LQ-R4WG8 - Overview

• Features:

  • 8-port 1RU Panel with 8 ports forLinking 4-wire with GPIO Audio
  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • Connect up to 6 LQ devices together over LAN, WAN, Internet
  • Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per device
  • Connects with matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles
  • Supports up to 8 Agent-IC and Station-IC clients per LQ device (license required)
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
  • Adjustable bandwidth on a per port basis
  • Connectors: Network/LAN: EtherCON/RJ45 (female); 4-wire with GPIO Audio I/O: 9-way D-type (male)
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager application
  • Networked Control Events for multi-unicast one-to-many routing


• Specifications:

  • Audio
  • Resolution: 12, 24 bit
  • Sample Rate: 24, 48 KHz
  • Frequency Response: 100 - 12 KHz or 100 - 20 KHz
  • CODEC: OPUS
  • Line Level: (0 dB)
  • Input Gain: -12dB to +12dB
  • Output Gain: -12dB to +12dB
  • Mic Level: (-50 dB)
  • Input Gain: -12dB to +12dB
  • Output Gain: -12dB to +12dB

    Network Setting
  • Bit Rates: 16, 32, 48, 64, 128Kbps
  • Packet Size: 5, 10, 20, 40, 60ms
  • Jitter Buffers: 0 - 1000ms

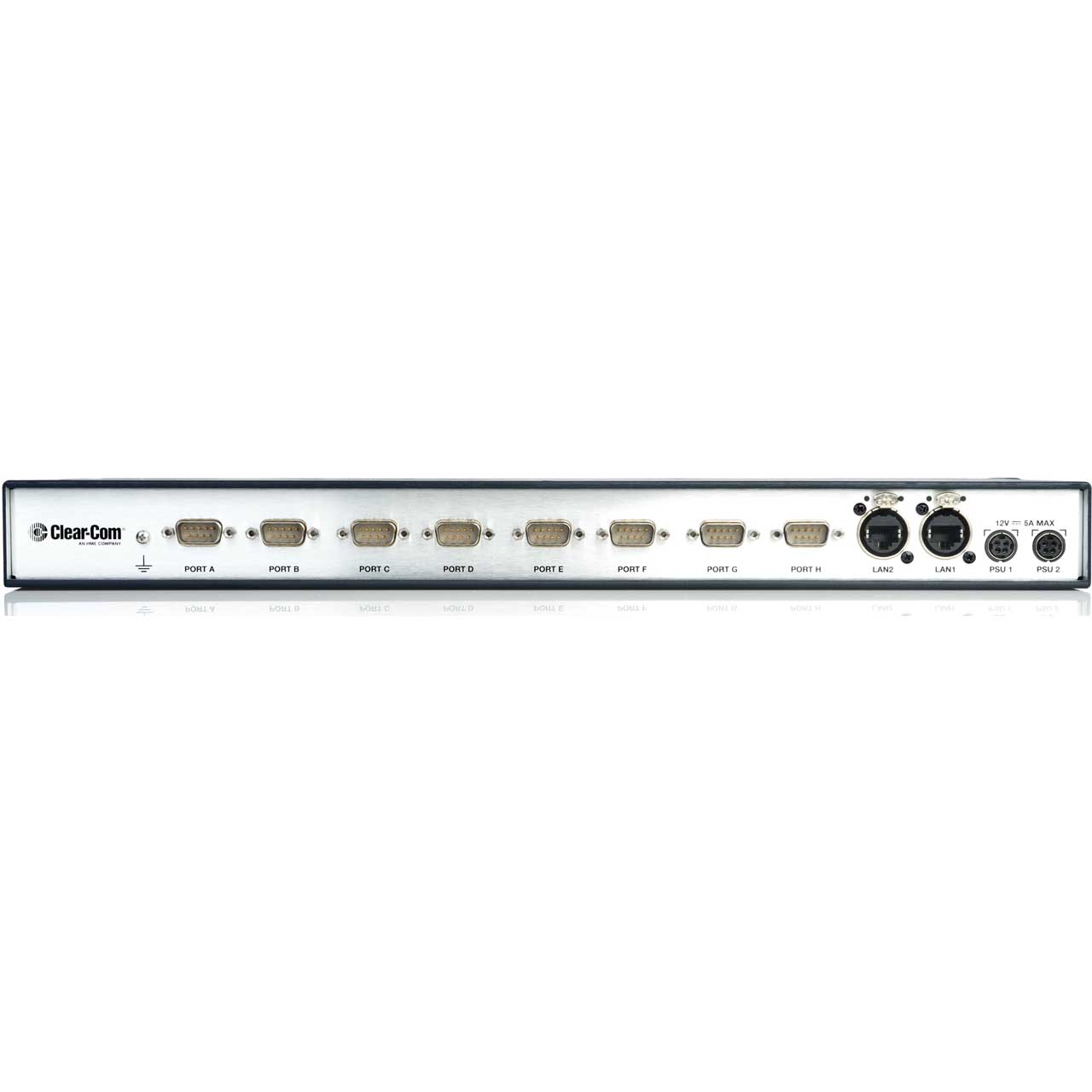

    Connectors
  • Network/LAN: EtherCON/RJ45 (female)
  • 4-wire with GPIO Audio I/O: 9-way D-type (male)

    Partyline Output Current
  • Type: Clear-Com & RTS TW
  • Local DC Powered: 250mA per pair of partyline ports (500mA total)

    Power Supply
  • In-line supply with sleeve locking connector
  • Input: 100-240V, 50-60Hz, 1.4A MAX
  • Output: DC 12V, 5A, 60W MAX

    Environmental
  • Operating Temperature: +32°F - +104°F (0°C - +40°C)
  • Storage Temperature: -67°F - +158°F (-55°C - +70°C)
  • Humidity: 90%, non-condensing

    Physical
  • 19 x 1.79 x 8.8 in (WxHxD)
  • Weight: 4.29lbs (1.95kg)


• GTIN:

  0609385859021
