JK Audio Outerloop 3.5 Universal Intercom Beltpack for 4 Pin or 5 Pin Female XLR Headsets

ITEM #: JK-OUTERLOOP-35M MFG #: OTL3.5-M

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$355.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


OTL3.5-M - Overview

The JK Audio Outerloop 3.5 provides you with a wireless link to your intercom system. This universal belt pack provides XLR connections for your existing 4-pin or 5-pin intercom headset, routing audio through a wired connection to your mobile device. Use your mobile device to call into your intercom phone bridge, station phone coupler, or any phone-based intercom app such as Clear-Com Agent-IC.

Outerloop 3.5 includes a cable that plugs into the 3.5 mm TRRS headset/earbud jack of your mobile device, providing two-way communications. Separate Send and Receive level controls, a push-on, push-off Talk button, as well as a recessed sidetone level control let you adapt to any situation whether you are around the corner or around the world.

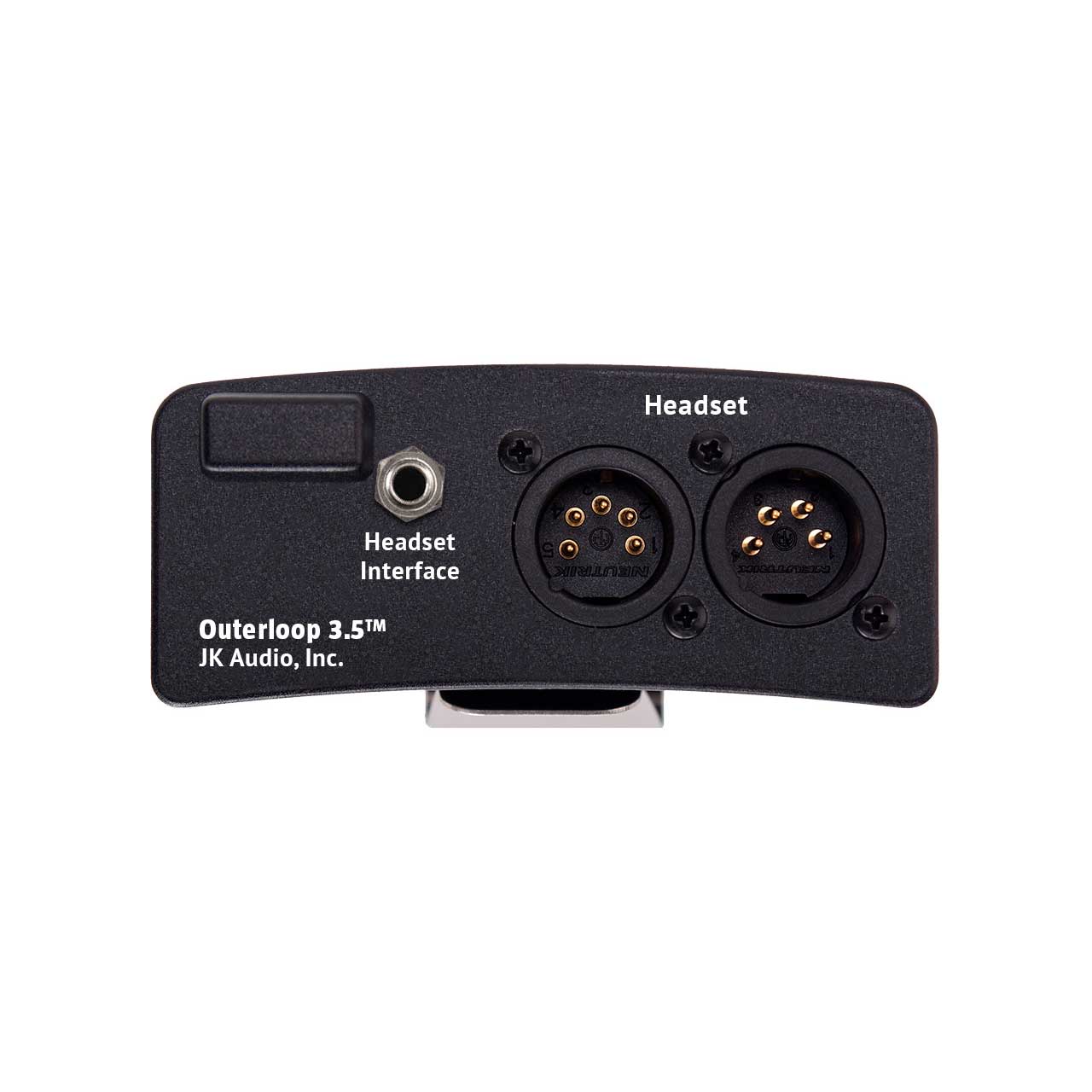

Adapting to the mixed-up intercom world, model OUTERLOOP-3.5-M features both 4-pin and 5-pin Male XLR headset jacks, for Female see JK-OUTERLOOP-35F which features both 4-pin and 5-pin Female XLR headset jacks.

  • Features:

    • HD Voice Compatible (7 kHz Wide-Band Speech)
    • Connects to Phones and Notebooks with 4-conductor 3.5mm Headset Interface
    • 4-pin and 5-pin Male or Female Headset Jacks
    • Send and Receive Volume Controls
    • Push-On, Push-Off Talk Button
    • Recessed Sidetone Level control
    • Made in America

  • Specifications:

    • Model Outerloop 3.5-M
    • Headset 4-pin Male XLR, 5-pin Male XLR
    • Headset Microphone
    • Impedance 50-2000 ohms
    • Headset Earpiece
    • Load Impedance 50-600 ohms
    • Power >50 mW into 150 ohms
    • Misc
    • Frequency Response 50Hz - 15 kHz
    • Power >20 hours on one 9 VDC Battery
    • Size 4.7" x 3.75" x 1.65" (12 x 9.5 x 4.2 cm)
    • Weight 10 oz (275 g)


OTL3.5-M - Required Accessories
