Clear-Com HLI-FBS HelixNet Fiber Module

ITEM #: CLCM-HLI-FBS MFG #: HLI-FBS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLCM-HLI-FBS

HLI-FBS - Overview

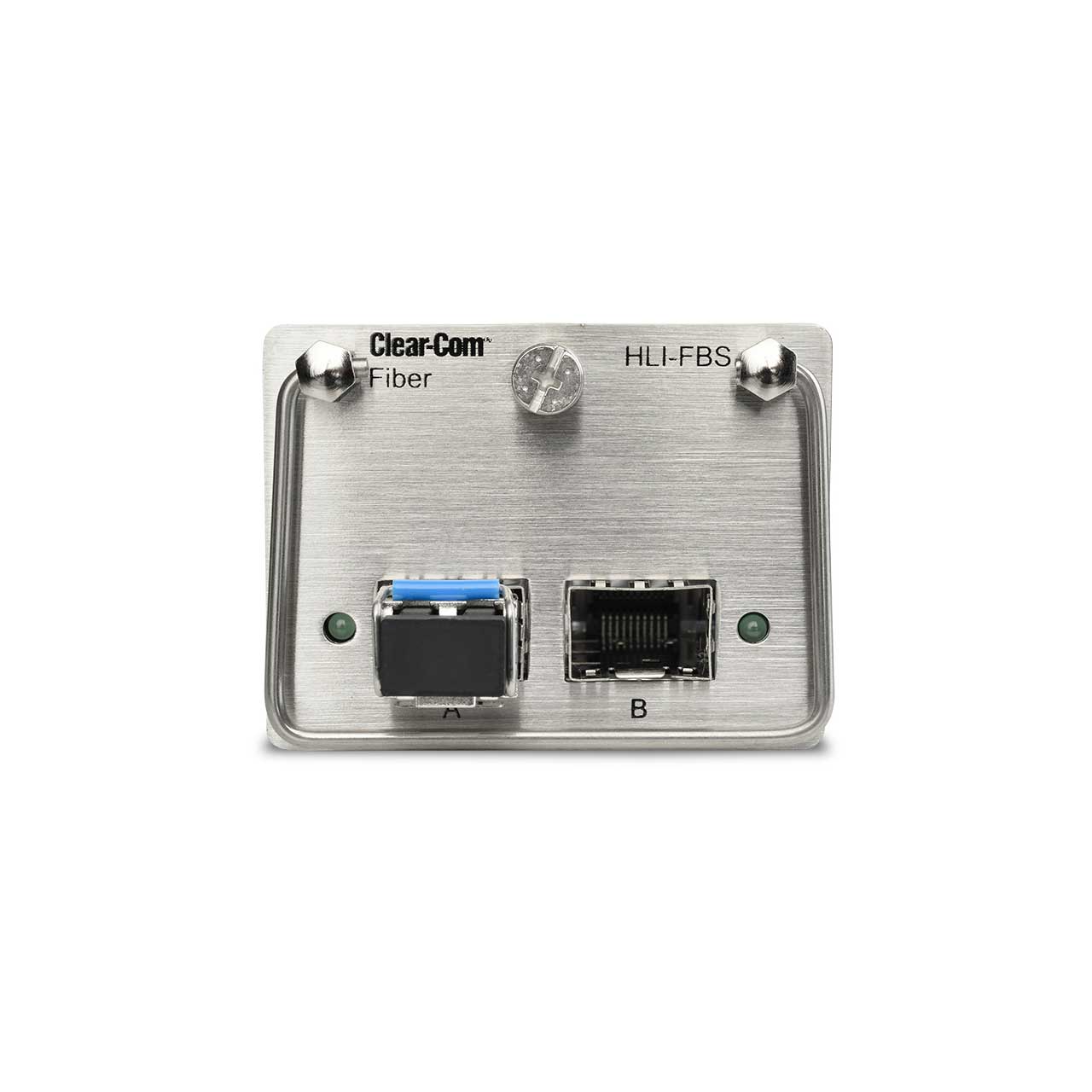

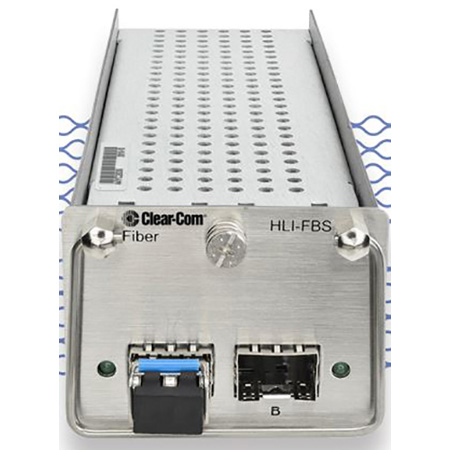

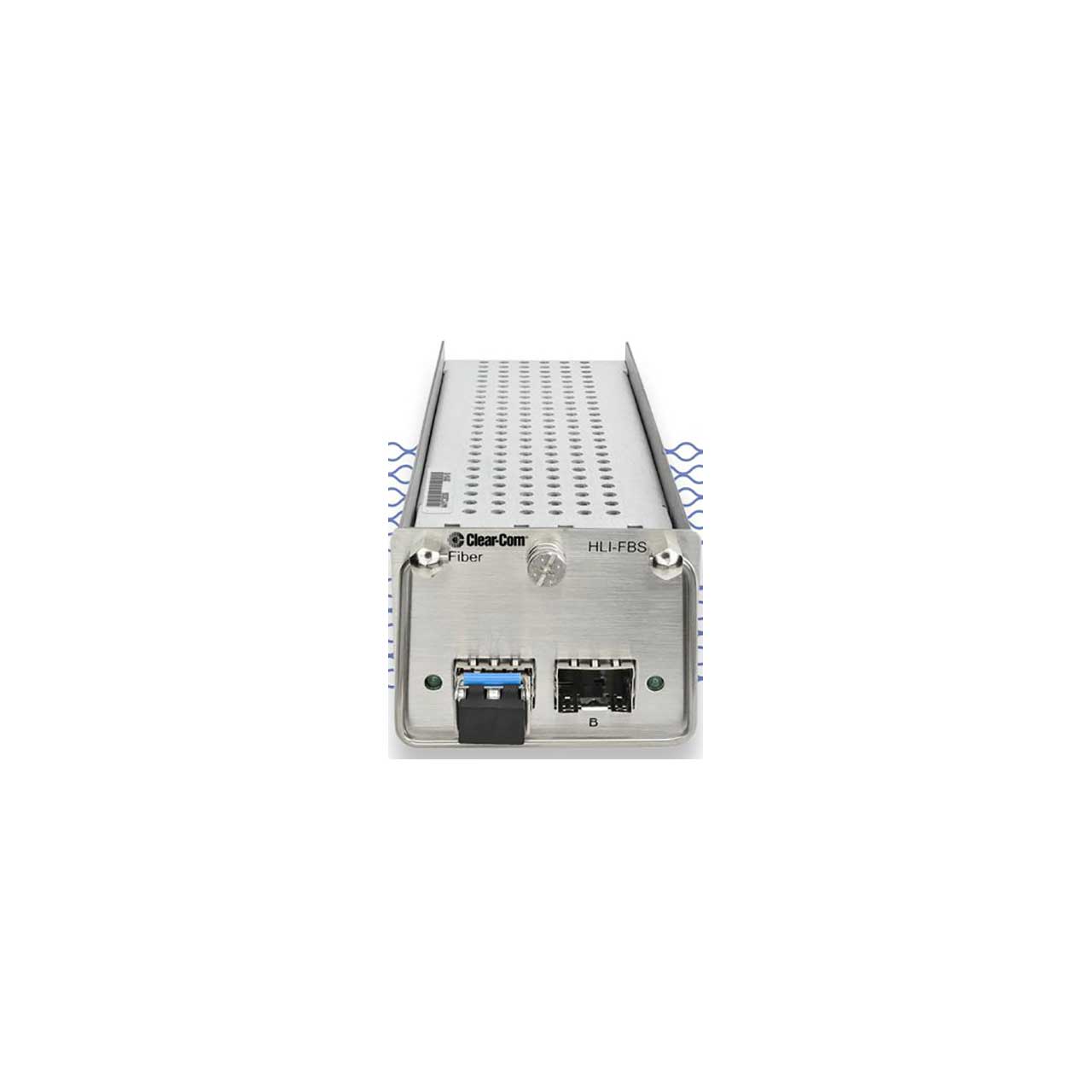

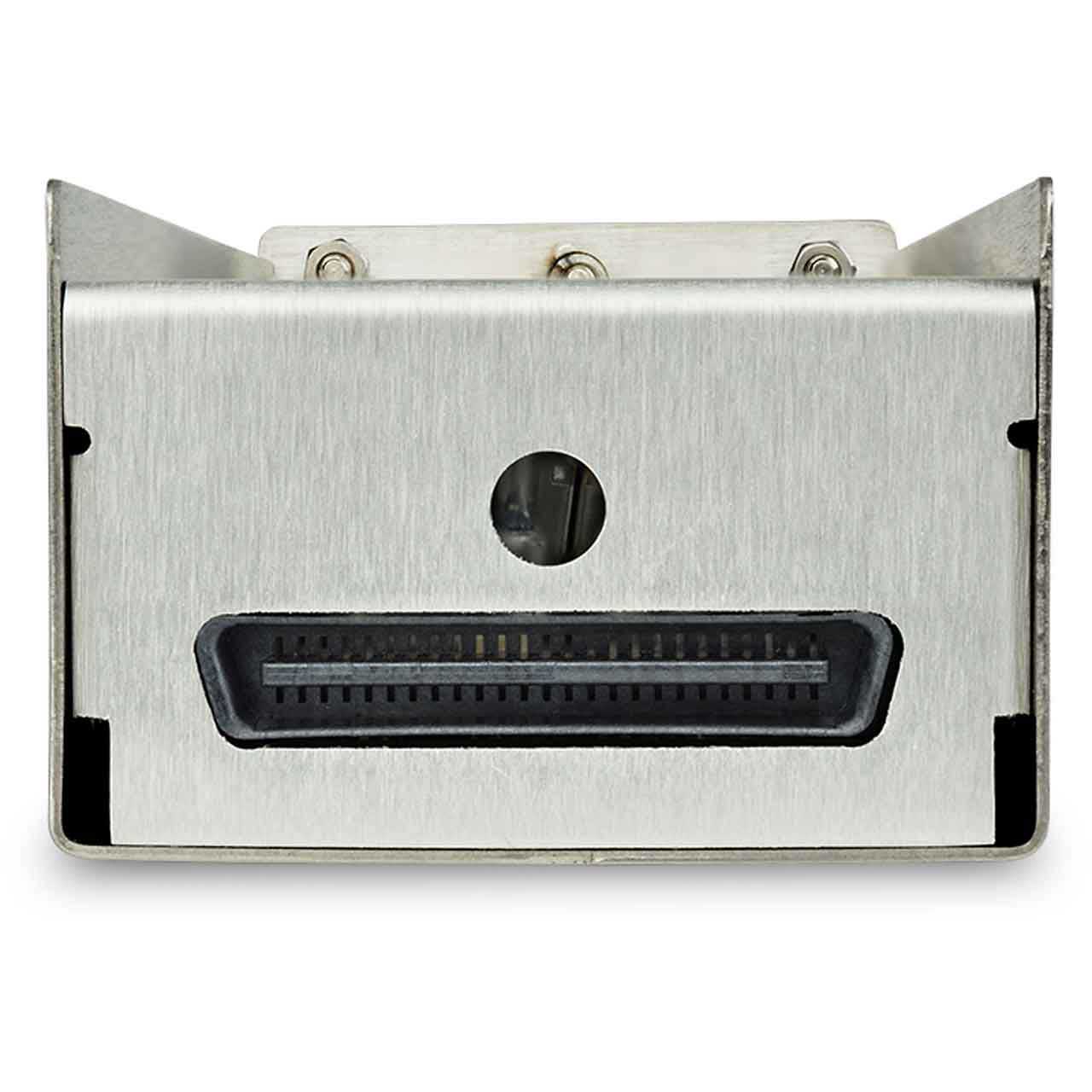

The ClearCom HelixNet HLI-FBS fiber linking interface is a dual port Ethernet switch interface module with 100MB SFP connectors for the HMS-4X main station. The HLI-FBS 100MB SFP connectors can be populated with compatible single or multi-mode fiber transceivers like the CLCM-HLI-SMFO Single-mode transceiver or the CLCM-HLI-MMFO Multi-mode transceiver. The HLI-FBS ships with one single-mode SFP fitted and the other position is left blank.

Networking HLI-FBS allows access to HelixNet's internal network for direct fiber connected HMS-4X linking. LQ® Series linking and user station network connection, system control and monitoring from the browser-based Core Configuration Manager ™ (CCM) can be established with the use of third-party 100MB network peripherals. HLI-FBS can be added to any HMS-4X main station with an available option slot.

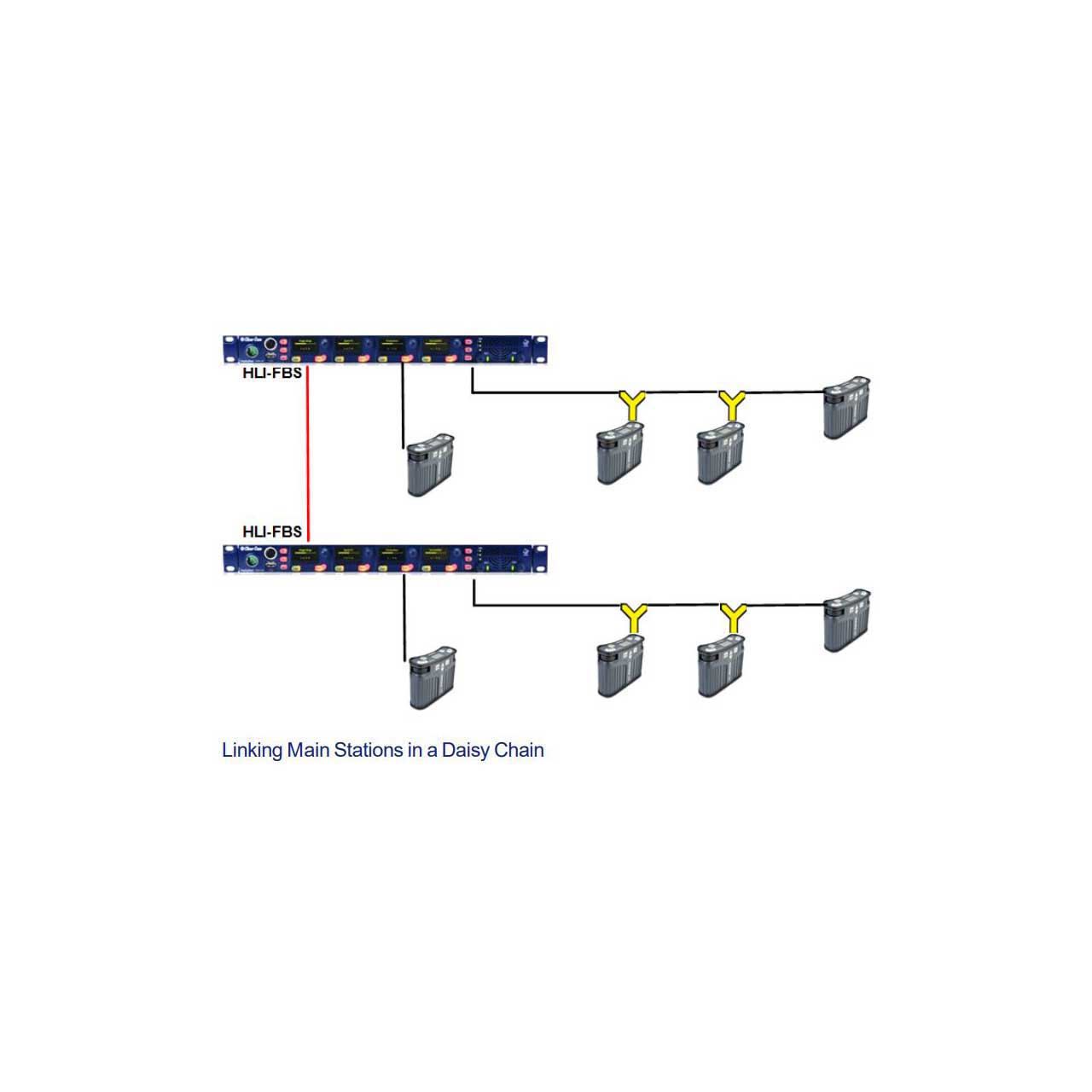

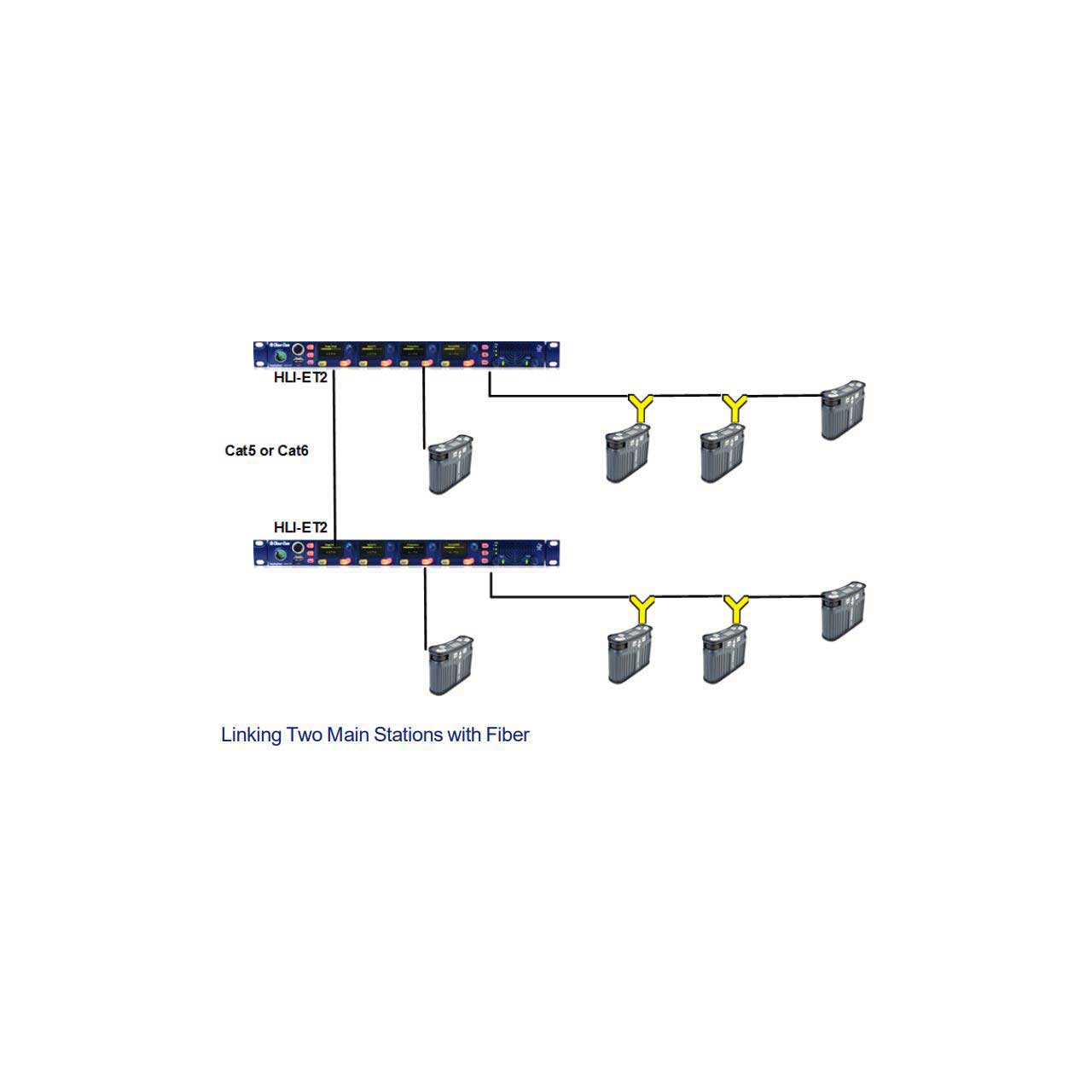

Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system

  • Features:

    • Fiber Linking Interface
    • HMS fiber linking

      The HelixNet System
    • Networked Intercom System
    • Flexible cabling
    • 12 partyline channels; expandable to 24 channels via optional license
    • Program Audio distribution with independent level control

      Effortless Management
    • Fast front panel control and configuration
    • Easy to use CCM browser configuration
    • Plug-and-go with auto discovery
    • Central upgrades from main station


  • Specifications:

    • Transceiver Connectors
    • (2) 100Mb SFP Ethernet Connections
    • For use with:
    • HLI-SMFO Single-Mode transceiver (1 included)
    • HLI-MMFO Multi-Mode transceiver

      Dimensions
    • 2.2 x 7.4 x 1.5in (HxWxD)

      Weight
    • 13oz

      Network Specifications (Version 4.2+)
    • Network Protocols
    • Ethernet IPv4-Unicast Audio and Control
    • mDNS-Multicast Device Discovery
    • Layer 3 routable with mDNS function limitations
    • HTTP-Management
    • RTP-Audio Transport
    • WavPack-Audio Codec

      Network Ports
    • Unicast:
    • Port 80 TCP-System Management
    • Port 655 TCP-Link Group Audio/Database Communication
    • Port 6001 TCP-System Management
    • Port 6001 UDP-Audio Streams
    • Multicast:
    • Port 5353 UDP-mDNS, Names, Discovery, Linking, Expansion
    • Optional for device names and linking

      Network Parameters
    • Endpoint Resource Use: None
    • Bandwidth: 300 kbps each audio input linking between HMS/LQ
    • Link Group audio sent dynamically between members
    • 300-600 (max) kbps from an active audio input to HMS
    • 1200-2400 (max) kbps from HMS to endpoint
    • Network Jitter Tolerance: <= 128ms jitter buffer per audio stream receiver automatically adjusted to network performance
    • QoS Tags: DSCP=41, Assured Forwarding (AF)
    • Link-Local Default IP Address Range: 169.254.0.0/16
    • System Reserved IP Ranges:
    • 10.0.0.0/8 for endpoints
    • 172.23.0.0/16 for Link Group

      Recommended Ethernet Switches
    • Managed Ethernet Switch - Layer 3
    • 100/1000 Base-T ports for endpoints
    • 1000 Base IP Trunks between switches
    • QoS configuration
    • Energy Efficient Ethernet bypass option
    • IGMP Snooping bypass option
