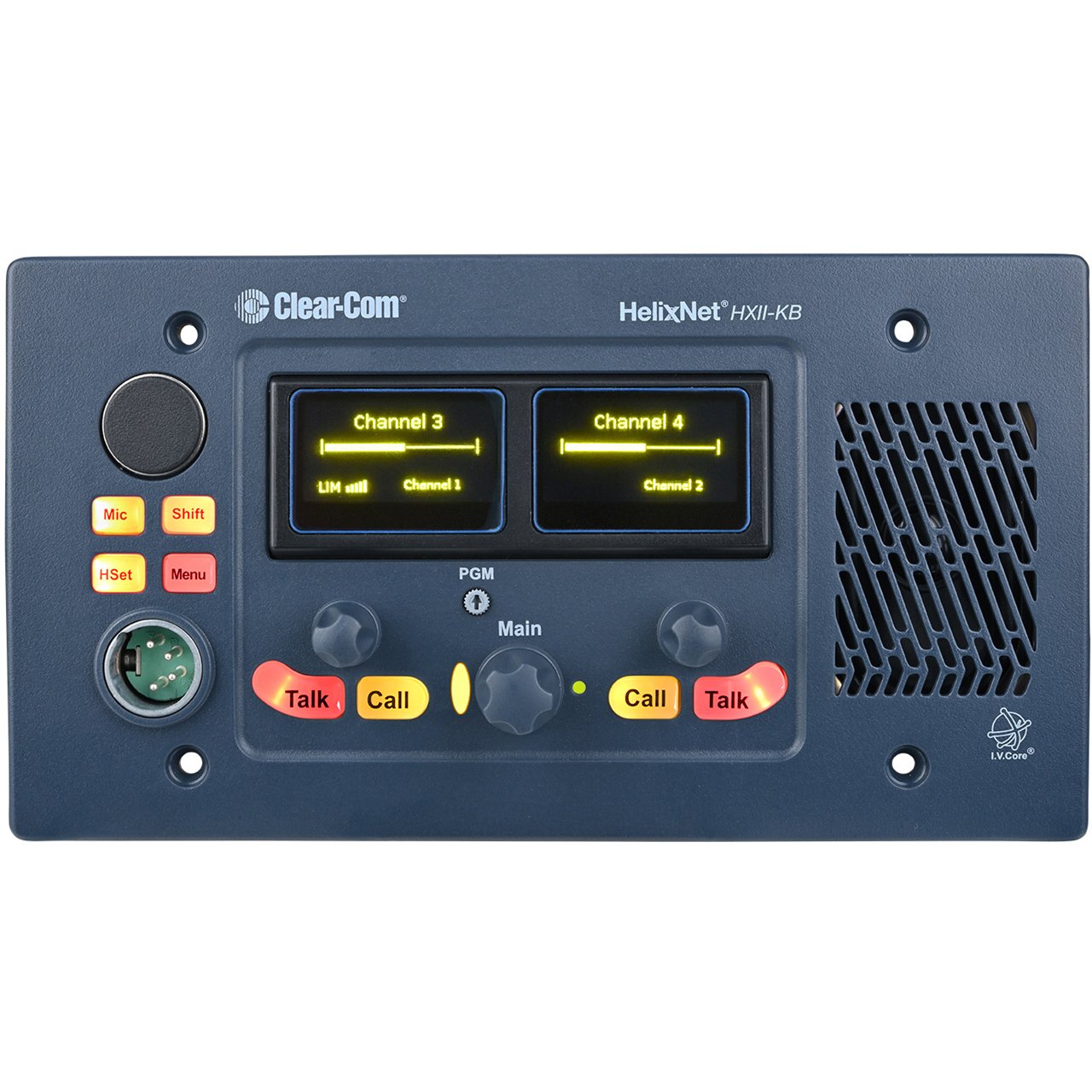

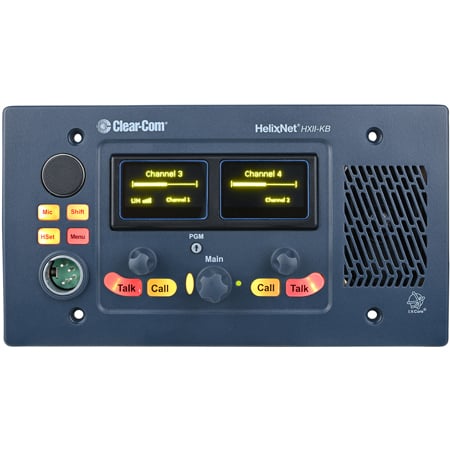

The HelixNet Speaker Station HXII-KB is a 4-gang flush-mountable user station with four channels over two shift pages hosted by the Arcadia® Central Station or HelixNet main station.
User Station
This innovative front panel user station provides two keysets assignable to any intercom channel to each of the two pages, which the user can toggle between for a total of four channels. The station's displays can be swiveled for optimal viewing angle. The user station is provided with a headset connection, gooseneck mic connector, loudspeaker and Program Audio level controls. HelixNet Speaker Station can be mounted in a standard 4-gang electrical enclosure or the optional Speaker Station enclosure (HXII-MOUNT, S-MOUNT) for portable and desktop applications. The X7 variant of the speaker station provides seven-pin headset connection with additional PTT GPI, assignable to user station keys.

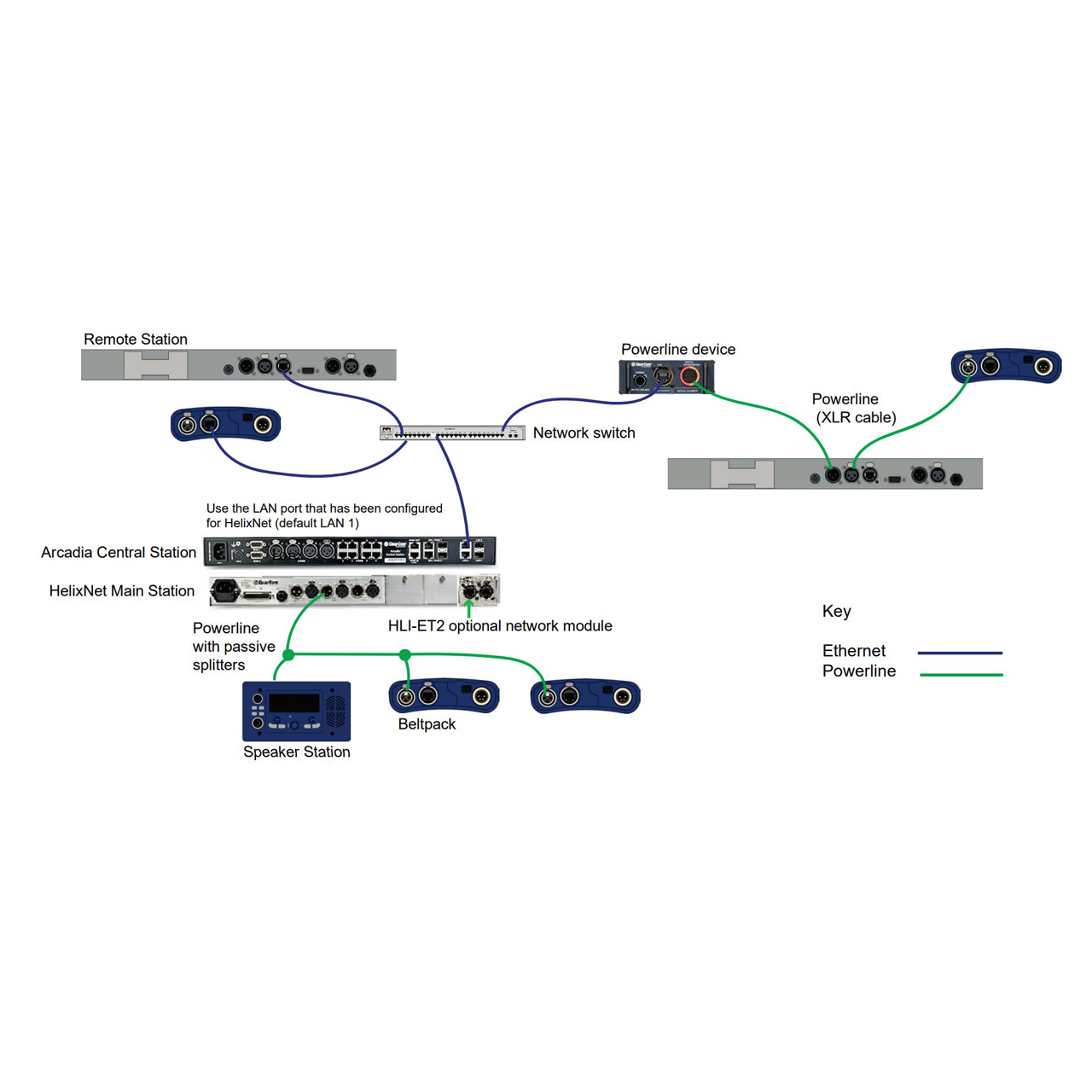

HelixNet System Hosts
Arcadia: Supports up to 128 HelixNet User Stations over Ethernet or Powerline via the HXII-DPL Powerline Device. Up to 24 Channels can be HelixNet Enabled using a Licensed Port for assignment to any HelixNet User Station keyset.
HMS-4X: Supports up to 64 endpoints (Remote Stations, Speaker Stations, Beltpacks, HLI-2W2, HLI-4W2, LQ port). User stations can connect directly to the 2 HMS-4X Powerlines or via optional HLI-ET2 module using HXII-DPL Powerline Device or 3rd party network switch connection. HMS allows use of 12 channels which can be expanded to 24 using optional license.
