Clear-Com HXII-RM-X4 HelixNet HKB 4 Channel Remote Station - Program Audio with Stage Announce & Hot-Mic - 4-Pin XLR-M

ITEM #: CLCM-HXII-RM-X4 MFG #: HXII-RM-X4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,980.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    HXII-RM-X4 - Overview

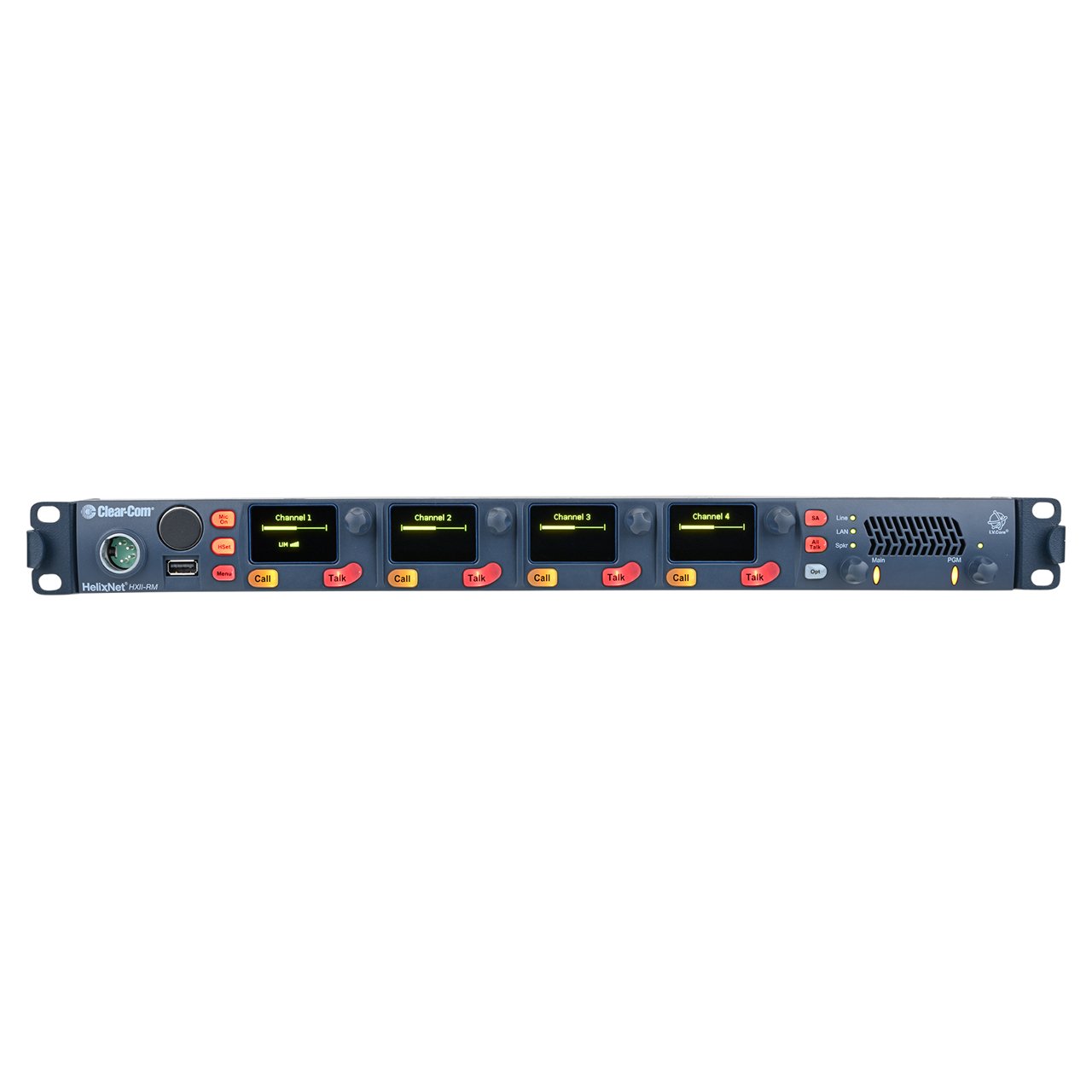

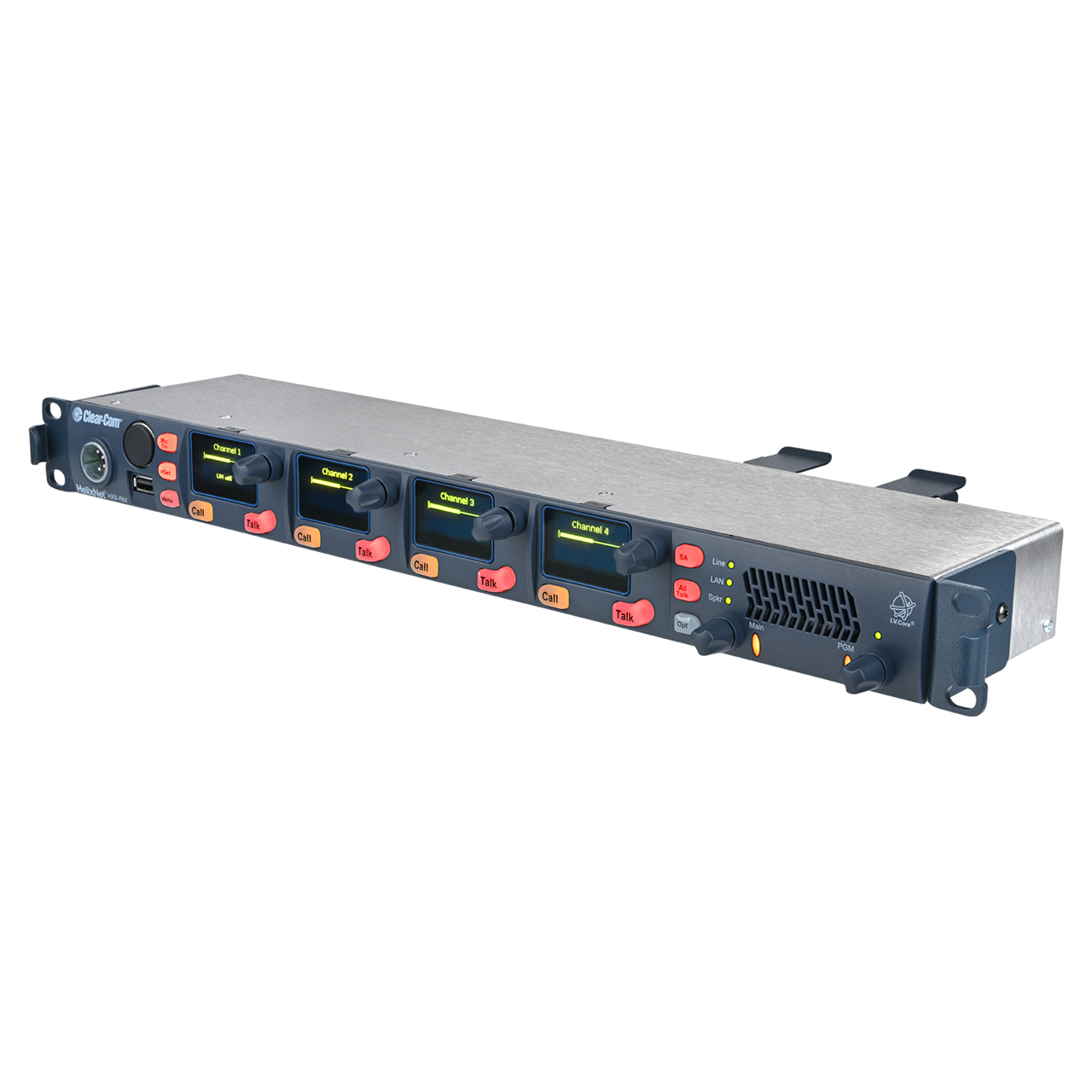

    The Clear-Com HXII-RM-X4 is a direct replacent for the now discontinued HRM-4X and is a completely functional replacement.The HXII-RM-X4 sports an easy to use front panel with OLED displays & backlit keys. Headset or hands-free support with speaker and mic. 4 Keysets assignable to channels. All Talk, Stage Announce, RMK & Program Audio level control. Expansion mode for 8-24 channels.

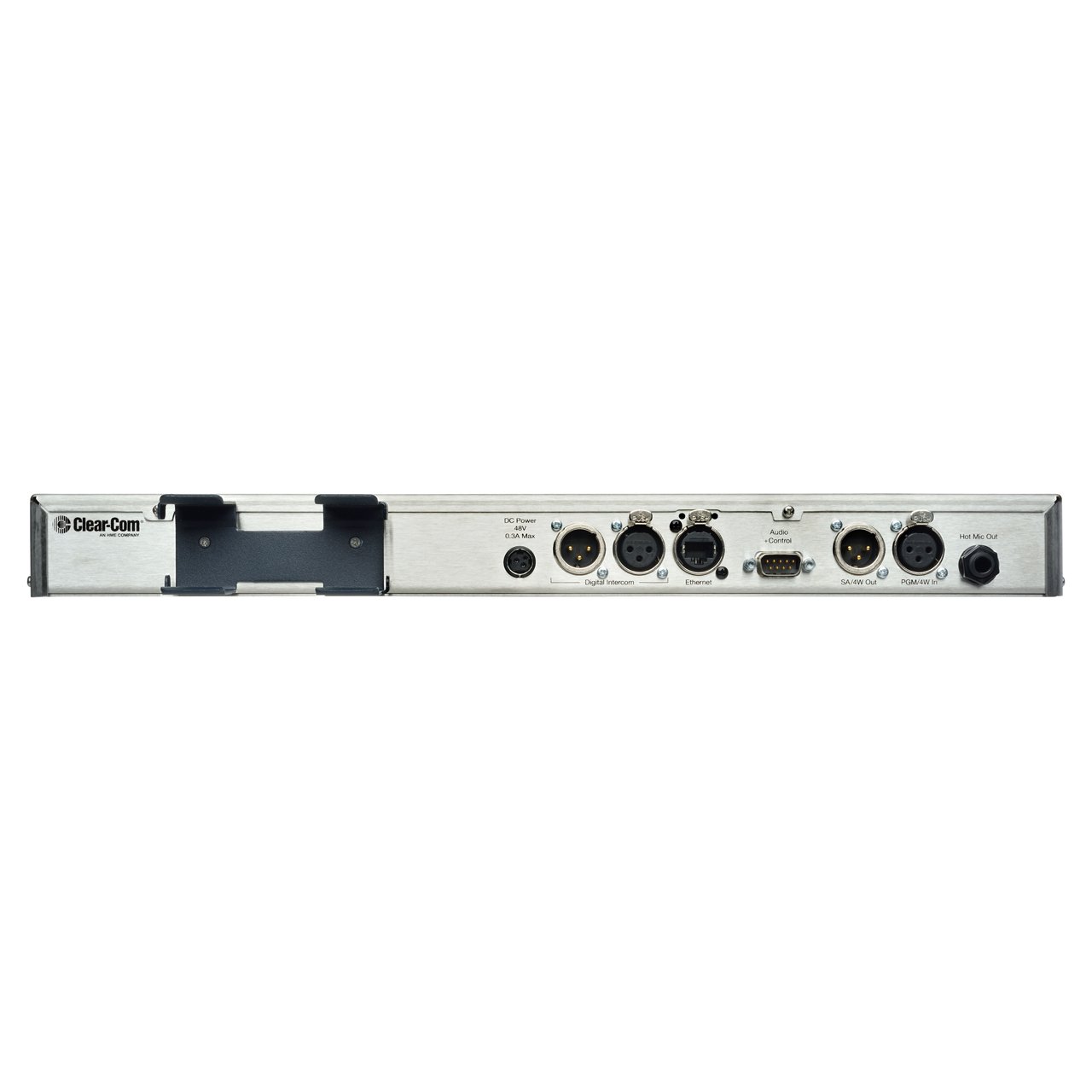

    Connectivity: Ethernet Network port with PoE. Powerline loop-through on XLR. Program Audio input. Stage Announce output. Contact closure input & output.

    HelixNet System: Wired Partyline - Networked. Hosted by Arcadia. Up to 24 Channels - Licensed. Up to 64 or 128 HelixNet Endpoints. Program Audio user level control

    HelixNet System Hosts
    Arcadia: Supports up to 128 HelixNet User Stations over Ethernet or Powerline via the HXII-DPL Powerline Device. Up to 24 Channels can be HelixNet Enabled using a Licensed Port for assignment to any HelixNet User Station keyset.

    Please Note: Clear-Com HXII-RM-X4 (featured) is the direct replacement model for the now discontinued HRM-4X. It is identical in function with only minor cosmetic differences.

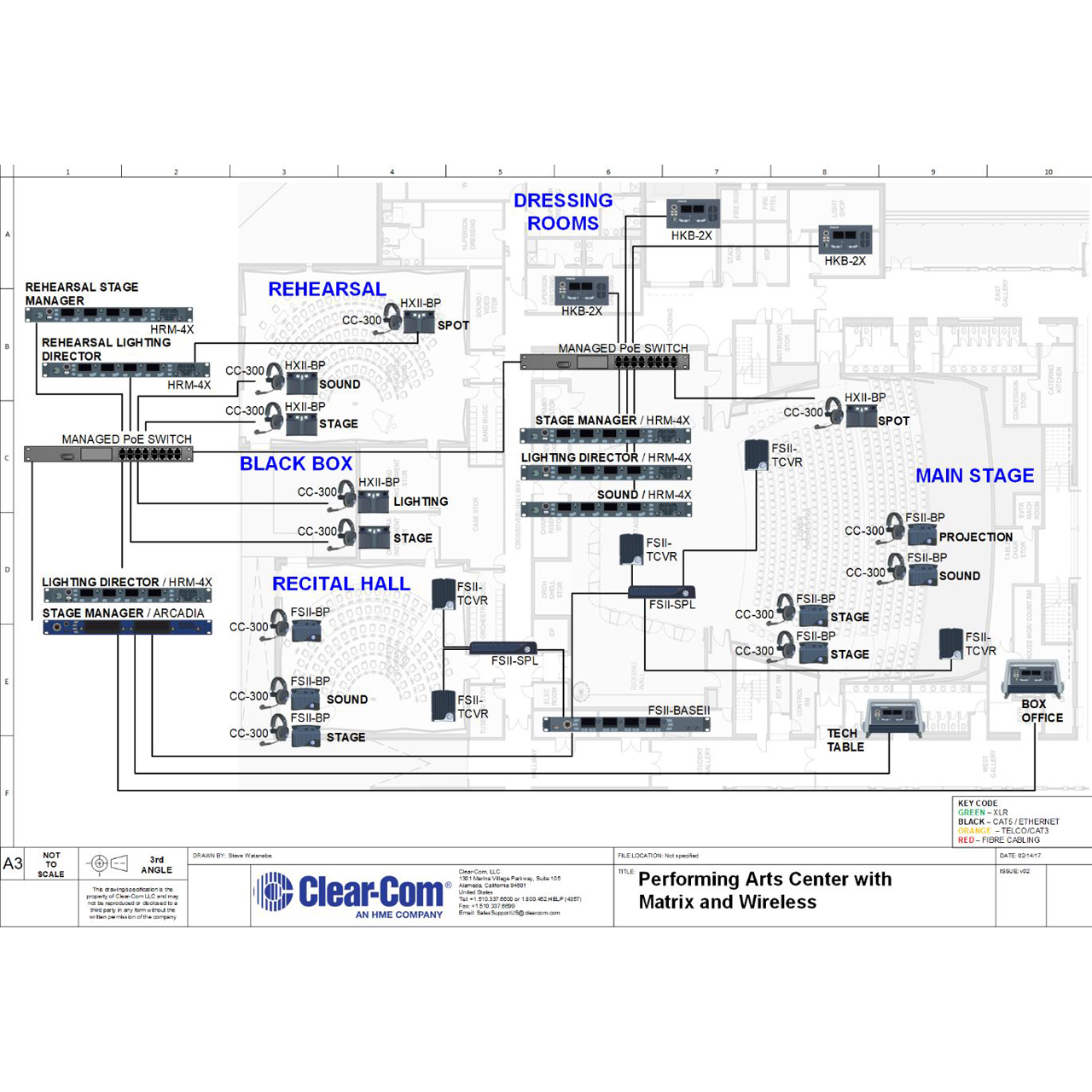

    When referring to the application diagram above, substitute the HXII-RM-X4 for the HRM-4X.

    • Features:

      • Easy to use CCM browser configuration
      • Fast front panel control & configuration
      • Central discovery & pairing on Arcadia
      • Plug-and-go Powerline
      • Central firmware upgrades from host
      • Powerline loop-through on XLR
      • Ethernet Network port with PoE
      • Program Audio input and Stage Announce output
      • Contact closure input and output

    • Specifications:

      • XLR Powerline: 3-pin XLR-M/F
      • Ethernet/PoE: EtherCON RJ45
      • Headset: 4-pin XLR-M
      • Gooseneck Mic: 3-pin Tuchel
      • Program Audio: 3-pin XLR-F
      • Stage Announce: 3-pin XLR-M
      • Hot Mic/IFB Interface: 1/4" (0.64cm) TRS jack
      • GPIO: 9-pin D-type male (1x GPI, 1x GPO)
      • USB: Type A
      • DC Power: 3-pin KPJX-PM-3-S
      • Headset Mic Impedance: 200Ω (Dynamic)
      • Headset Mic Voltage: 1.7V (Electret selectable)
      • Limiter: +23dB
      • Headphone Amplifier:
        - Load Impedance: >32Ω
        - Output Level, +12dBu before clipping
        - Sidetone: -12dB (selectable).
      • Loudspeaker Amplifier:
        - Load Impedance: 8Ω
        - Output Level: +18dBu before clipping

    • Item Includes:

      • 1x Inline PSU 15W 48V DC (453G026)
