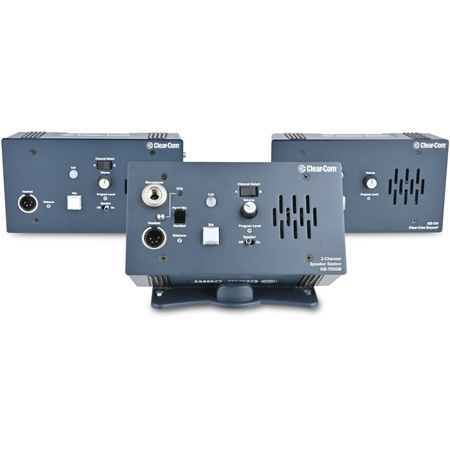

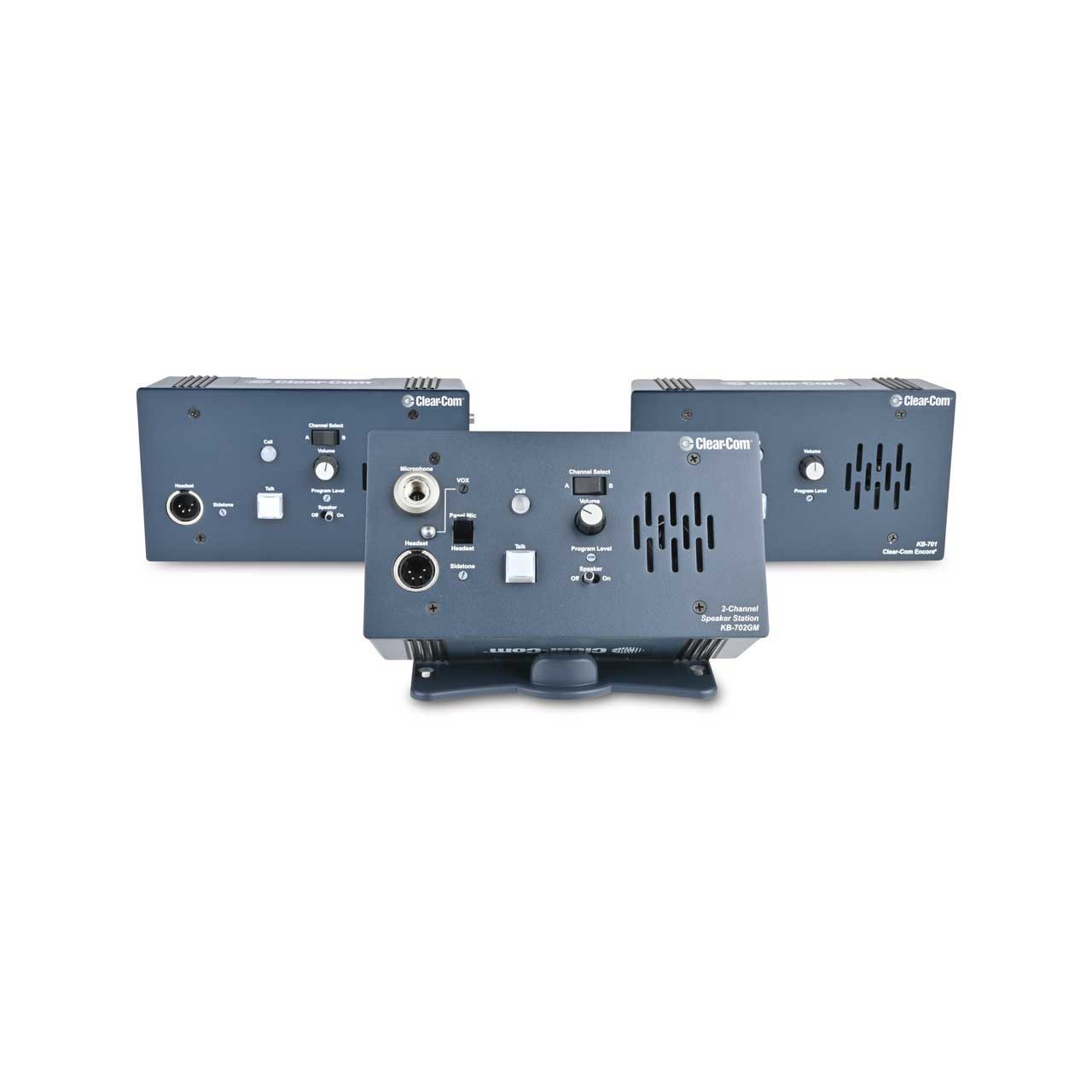

The Clear-Com U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation. Each version of the U-Box contains all necessary wiring to attach a respective KB device to the enclosure. The U-Box can be mounted flush to a wall or desk with a provided angled mounting bracket. The mounting bracket provides 45® operation of the KB speaker station from horizontal and vertical surfaces. Screw head eyelets are available on both the U-Box and the wall mount for permanent fastening. The U-Box can also be fastened to a VESA 75 universal mount providing a wide range of mounting options available from third party vendors.
U-Box-X3 - Single Channel

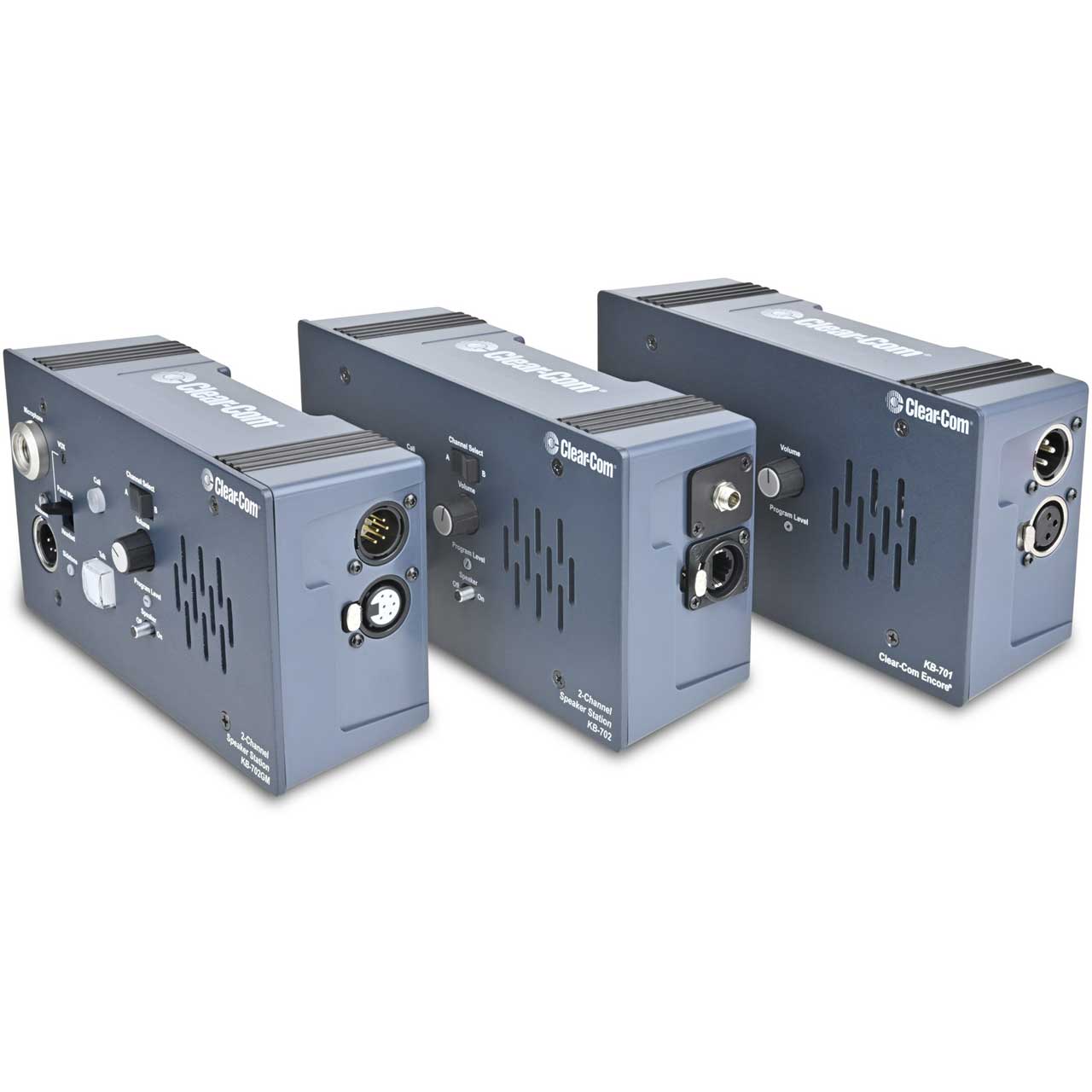

The U-Box is equipped with 3-pin male and female XLR connectors on the side of the U-Box, wired in parallel, for a single channel connectivity to a partyline intercom line. Internally, a pre-wired wiring harness is provided for an easy connection to the KB station. U-Box can be series-connected with other Clear-Com user stations and power supply.
Note: The U-Box-X3 connector harness wires Dual channel KB to Channel B of the intercom line for single channel KB compatibility. Moving the pin 3 wire to pin 2 of the terminal block connector wires the intercom line to Channel A on dual channel KB.
