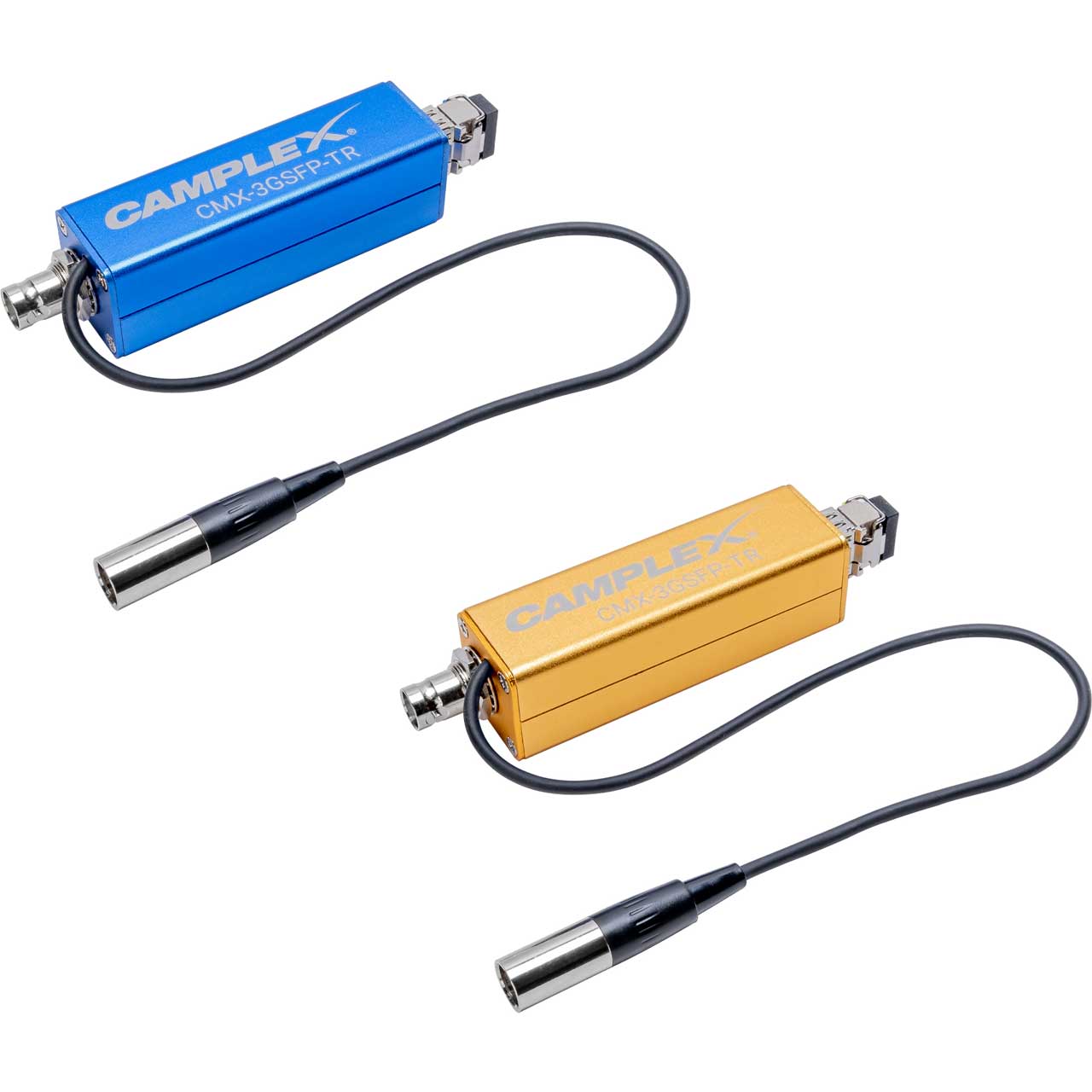

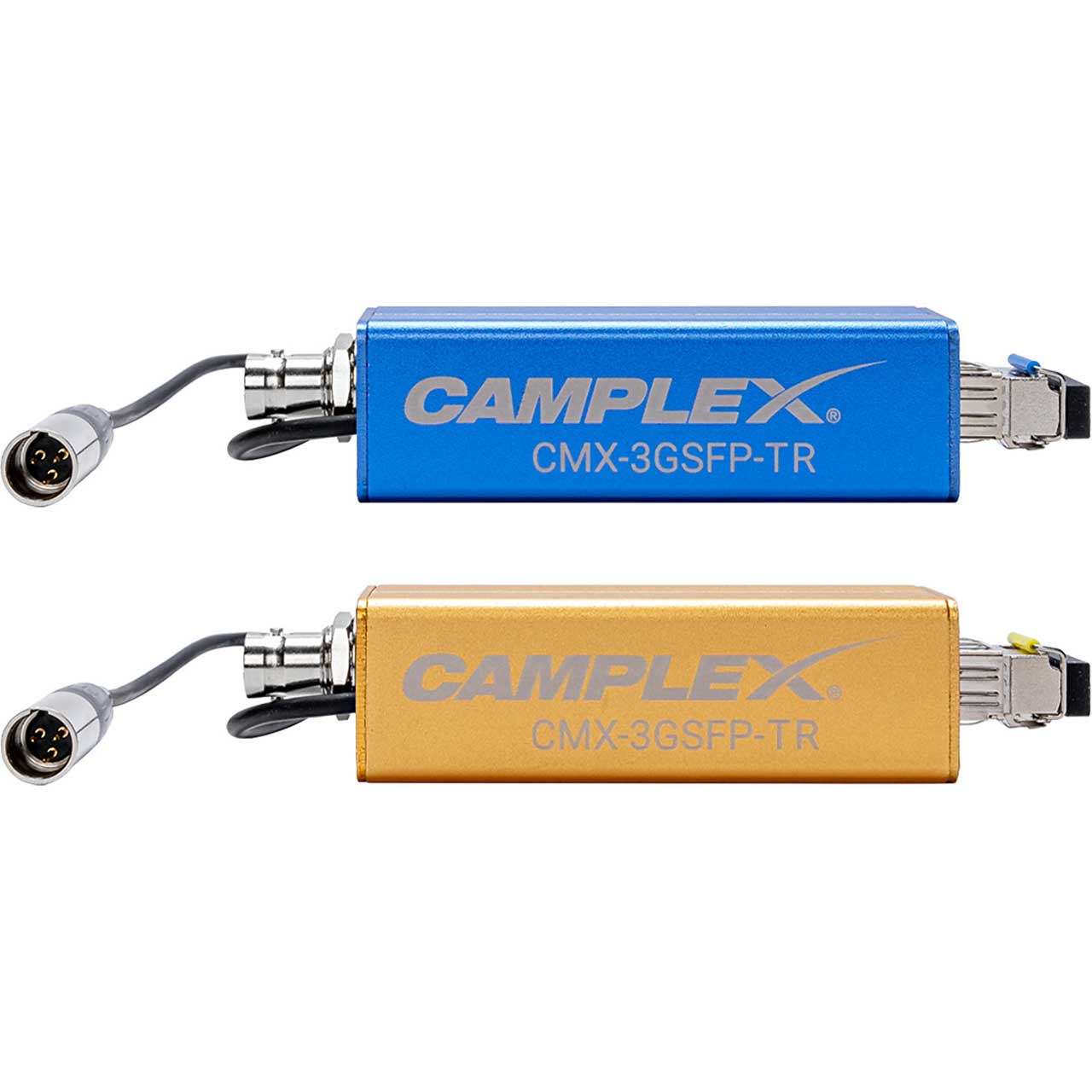

If you're looking to extend 3G SDI over single mode fiber LC, nothing meets the standards demanded by broadcast video engineers better than the Camplex CMX-3GSFP-TR. Its compact size and light form factor makes it perfect for OB truck camera links in sports and live productions especially when you need to cover the longest distances and maintain 1080p@60Hz quality video. Units are compatible with SMPTE 424M, 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI and DVB-SSI signal Standards.

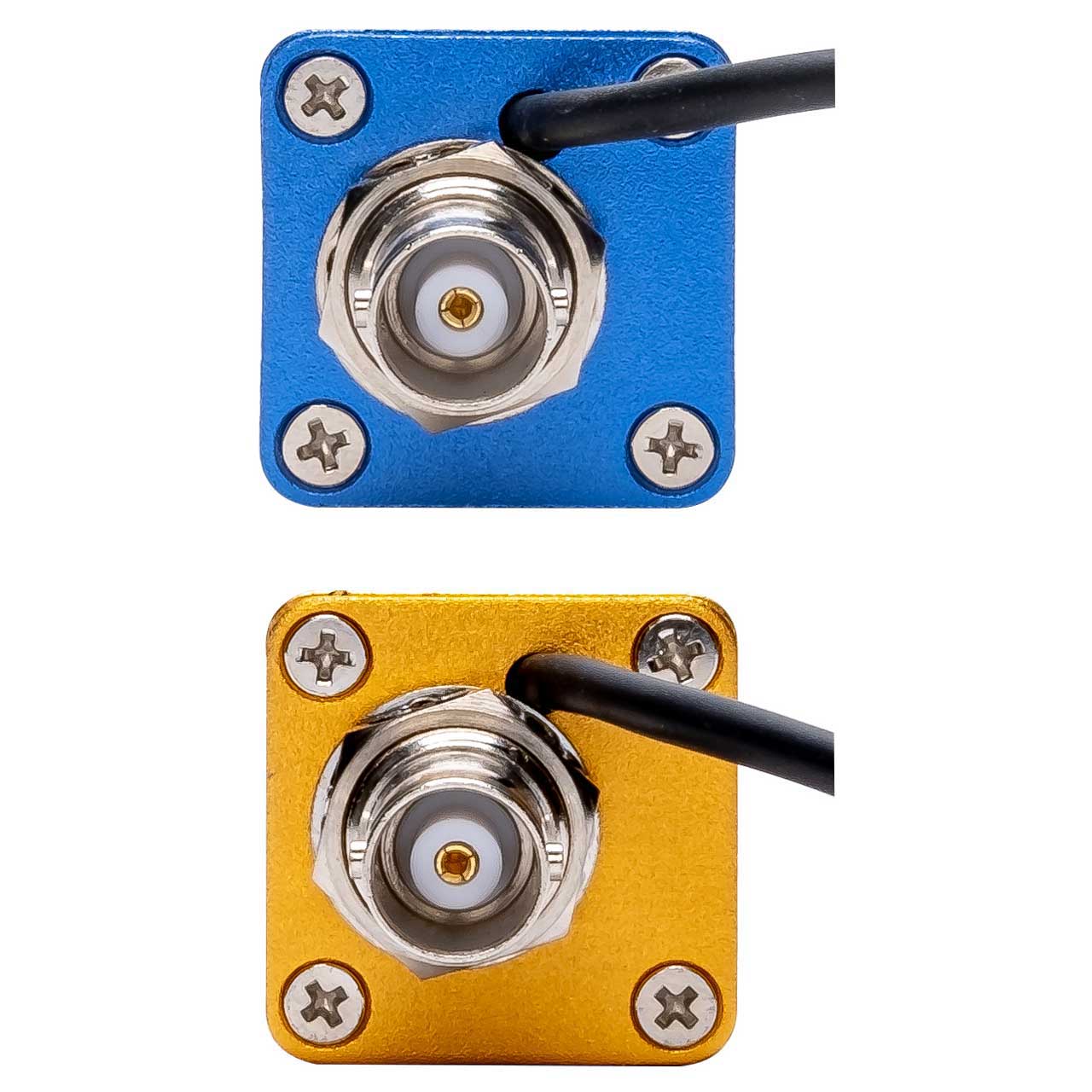

The Camplex CMX-3GSFP-TR transmitter module accepts a 75 ohm BNC coax input and converts it into an optical stream to be sent via a standard LC fiber cable. At the receive end, the unit coverts the signal back to a standard BNC output. LED indicators are included on the products to help indicate fiber connection, power and SDI signal presence.

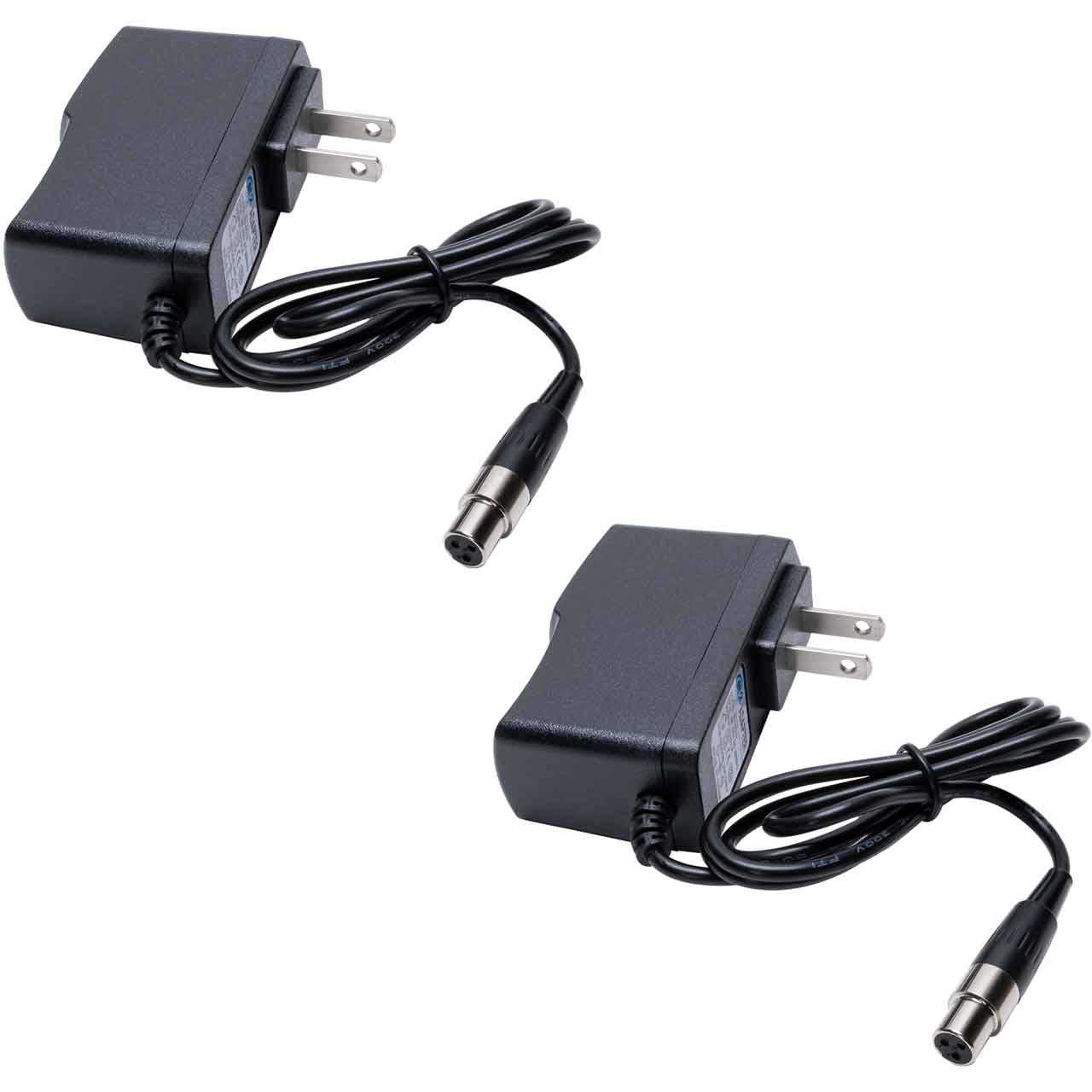

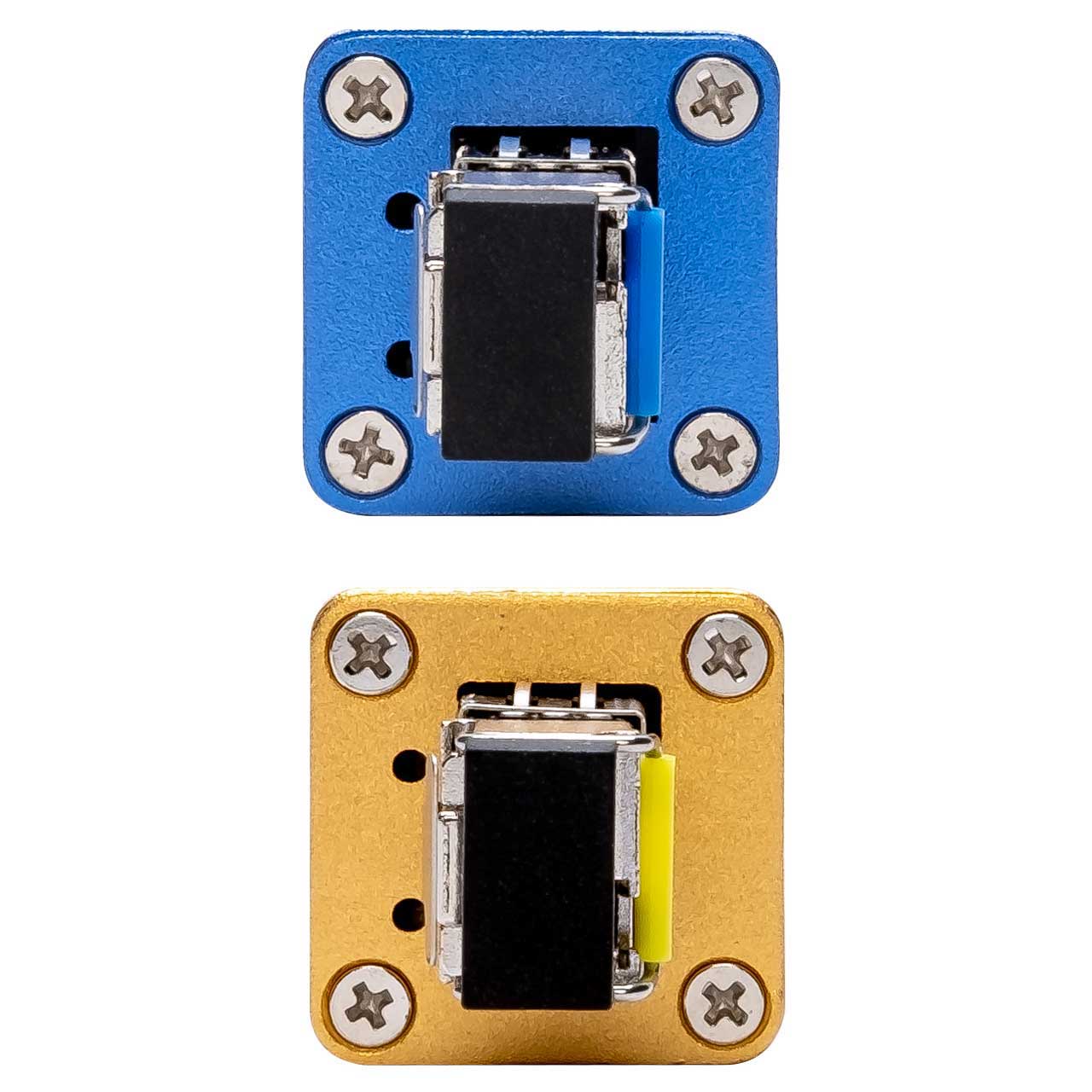

Units use their own power supplies or accept any 5V DC power via mini-XLR connection. Because the optical transceivers are SFP based, you can swap out the SFP module for CWDM wavelength or DWDM wavelength applications if you are seeking to create a MUX system.
