Camplex Quick Assembly Connector SC-UPC Multimode 62.5/125 - Beige - 5 Pack

Name: Camplex Quick Assembly Connector SC-UPC Multimode 62.5/125 - Beige - 5 Pack
Brand: Camplex
SKU: CMX-CA-2002
Price: 17.49 USD
Availability: InStock

ITEM #: CMX-CA-2002 MFG #: QCSCSMBG

Camplex

List Price:

$18.95

Our Price:

$17.49

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

QCSCSMBG - Overview

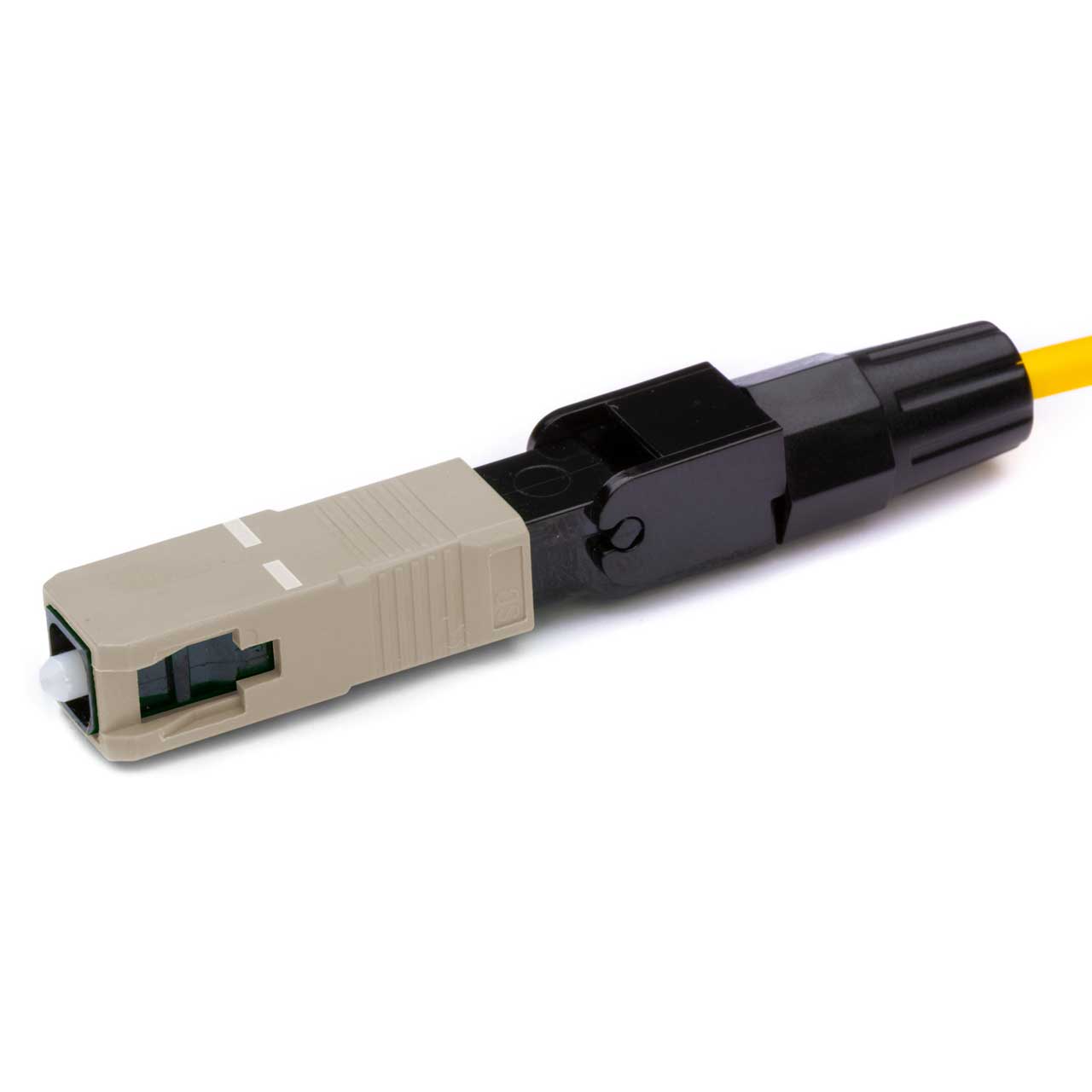

Fast, reliable fiber terminations start with the Camplex CA-2002 quick assembly connector. This CA-2002 is a pre-polished SC/UPC Beige fiber optic connector designed for multimode fiber. Its index matching gel ensures proper alignment of your fiber optic signals. Designed formultimode 62.5/125 multimode fiber cable. Strain relief boot included.

Features:
- Connection: Multimode SC-UPC
- Quick termination
- With strain relief
- Pre-polished connector
- For 900um, 2mm, 3mm and drop cables
- RoHS compliant
Specifications:
- Insertion loss: 0.30dB
- Return loss: >55dB (UPC)
- Durability: >1,000 Matings
- Fiber compatibility: multimode 62.5/125
- Boot size: 0.9mm, 2.0mm, 3.0mm
- Connector type: SC simplex
- Operational Temperature: -40 to +80 Celsius
Item Includes:
- Connector Shell & Connector Body
Warranty:
- 1 Year
