Camplex opticalCON MTP Single Mode APC to LC 12 Fiber Breakout Cable - NKO12S-LC-A-0 - 10 Foot

ITEM #: CMX-OCMTPSMLC10 MFG #: CMX-OCMTPSMLC10

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,545.49

Our Price:

$1,416.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CMX-OCMTPSMLC10 - Overview

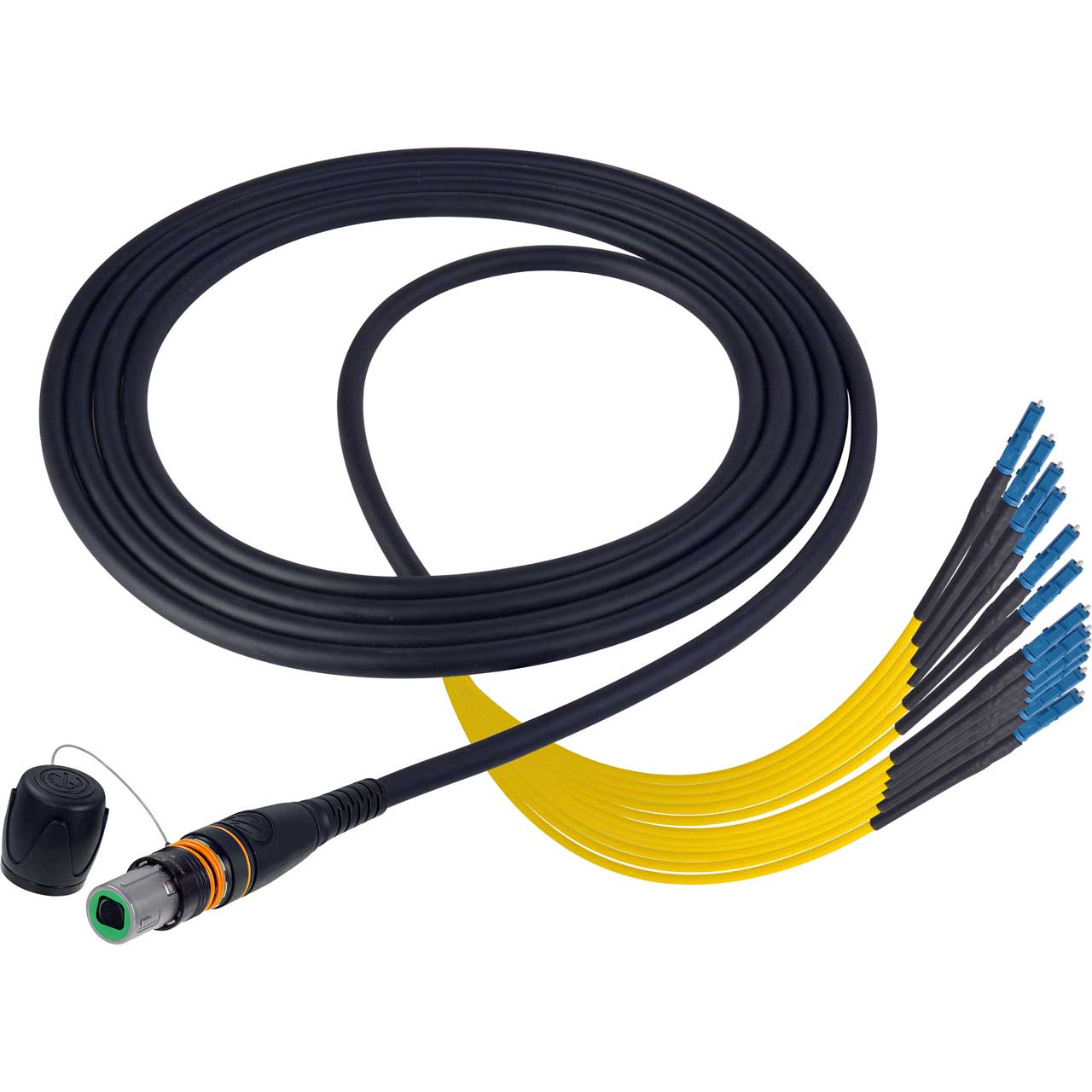

The Camplex opticalCON MTP Elite Male to 12 fiber LC field deployable tactical single mode breakout cable with OFNP plenum rated jacket ensures low insertion loss and high performance for permanent installations. The MTP Elite connector is broken out to 12 standard LC fibers making it ideal for field applications requiring multiple signal paths such as video, audio, data, and other fiber converters.

Use in conjunction with Camplex trunk cables, Neutrik opticalCON MTP chassis connectors NO12FDW-A, and Camplex breakout boxes for durability and high performance.

  • Features:

    • Low insertion loss and optimized optical return loss values
    • Designed for permanent internal breakout installations
    • Neutrik opticalCON MTP connectors- lockable & waterproof caps with hinged dust covers
    • LC breakout connectors
    • Single mode
    • Made and tested in the USA

  • Specifications:

    • OFNP plenum rated cable jacket
    • Low loss MTP Elite male connectors
    • 12-channel fiber optic connection
    • 0.9mm breakouts
    • Length: 10 ft
