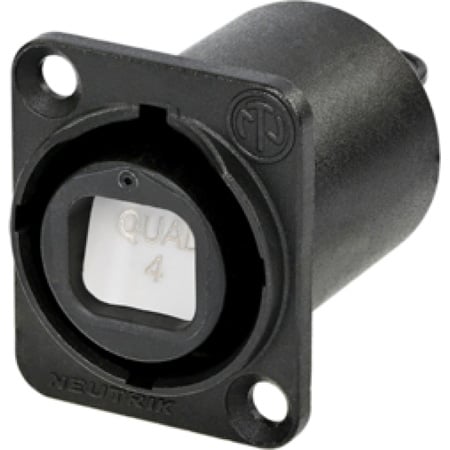

Neutrik NO4FDW-A opticalCON QUAD Chassis Connector - Black

Name: Neutrik NO4FDW-A opticalCON QUAD Chassis Connector - Black
Brand: Neutrik Americas
SKU: NO4FDW-A
Price: 107.26 USD
Availability: InStock

ITEM #: NO4FDW-A MFG #: NO4FDW-A

Neutrik Americas

List Price:

$125.13

Our Price:

$107.26

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NO4FDW-A - Overview

Neutrik NO4FDW-A Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features:
- Rugged 4-channel Point-to-Point multichannel routing solution
- Laser protected metal shutter seals dust proof with two-component rubber gasket
- Water resistant according to IP65 (mated), rubber sealing gasket
- Accommodates standard LC connectors on the rear for cost effective and simple installations
- Color coding to identify fiber mode:
- Multi mode - black
- Single mode PC - blue
- Single mode APC - green
Specifications:
- Insertion Force: < 45 N
- Withdrawal Force: < 45 N
- Lifetime: > 5000 mating cycles:
- Locking Device: Push-Pull
- Mounting Direction: Front mounting
- Chassis Shape: D
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Black chromium
- Environmental:
- Flammability: UL 94 V-0
- Temperature Range: -40 °C to +75 °C:
- Insertion Loss: < 0.5 dB / connection
Item Includes:
- 1x Neutrik NO4FDW-A opticalCON QUAD Chassis Connector - Black
GTIN:
7613187007828
