Camplex opticalCON QUAD to Four (4) LC Breakout Adapter - Single Mode

Name: Camplex opticalCON QUAD to Four (4) LC Breakout Adapter - Single Mode
Brand: Camplex
SKU: OPADAP-4
Price: 201.49 USD
Availability: PreSale

ITEM #: OPADAP-4 MFG #: OPADAP-4

Camplex

List Price:

$212.49

Our Price:

$201.49

Add to Wish List Leasing Options

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Extended Lead Time; estimated delivery in November.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OPADAP-4 - Overview

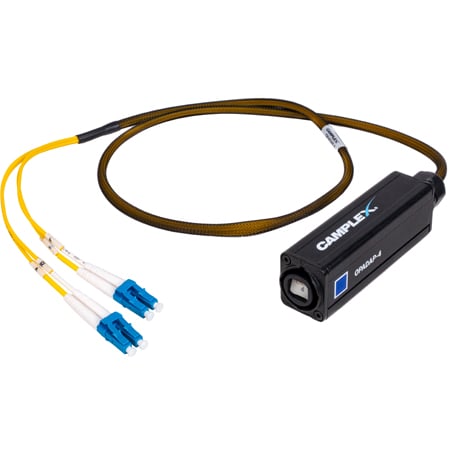

Connect your Neutrik opticalCON QUAD singlemode cables to standard LC fiber optic connectors with these handy in-line adapters by Camplex. Rugged yet lightweight design is perfect to strap to cameras and other gear.

Each channel is clearly numbered and 1 meter in length with Techflex protective tubing for years of professional use. Supplied with opticalCON rubber dust cap for maximum protection.

opticalCON QUAD adapters feed out to four (4) individual fiber cable channels.

Features:
- Single Mode Cable
- Lightweight Design
- Numbered Channels
- (4) LC Connectors
- Rubber Dustcap for Connector Protection
Specifications:
- Neutrik NO4FDW-A:
- Insertion Force: < 45 N
- Withdrawal Force: < 45 N
- Lifetime: > 5000 Mating Cycles
- Locking Device: Push-Pull
- Mounting Direction: Front Mounting
- Chassis Shape: D
- Insertion Loss: < 0.5 dB / Connection

  Fiber Optic Patch Cable Single Mode Duplex LC to LC:
- 9æm core and 125æm cladding
- Insertion Loss: ≤0.30dB max (PC, UPC) / ≤0.20dB max (PC)
- Return Loss: ≤45dB (PC) / ≤55dB (UPC) / ≤65dB (PC)
- Tensile Strength: Long Term: 160N / Short Term: 300N
- Pressive Strength: Long Term: 300N / Short Term: 1000N
- Bend Radius (mm): Dynamic: 80mm / Static: 40mm
- Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
- Temperature: -20°C ~ 80°C
