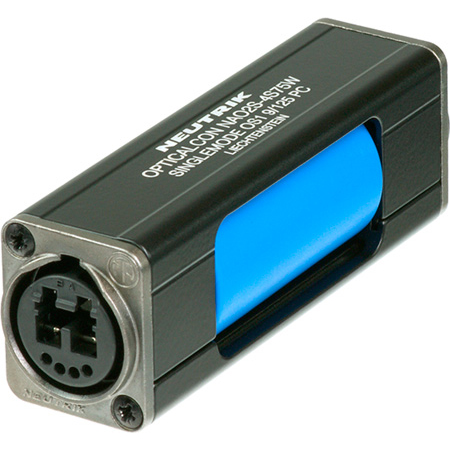

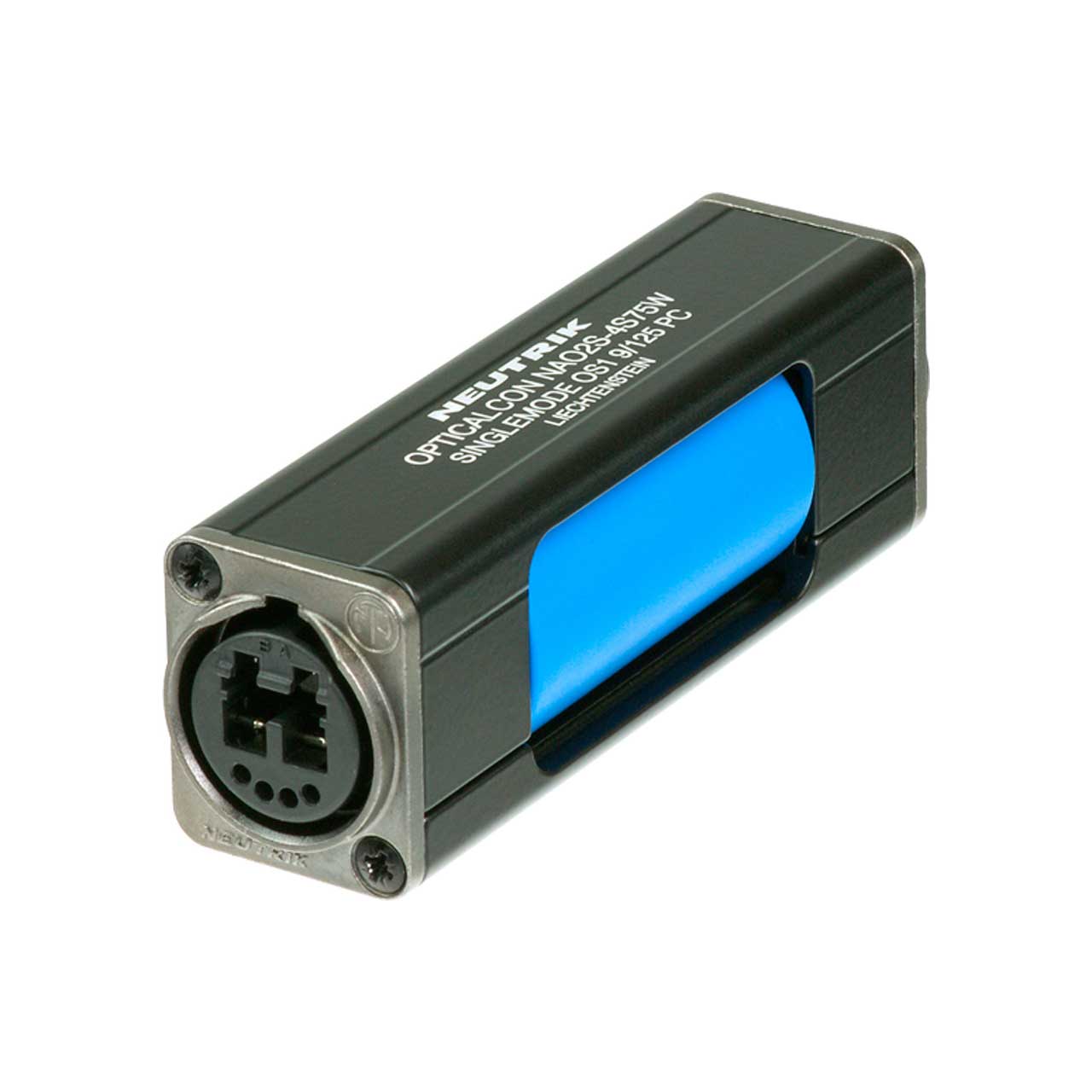

Neutrik NAO2S-H1W-A opticalCON DUO LC Duplex Singlemode SMPTE Compatible Coupler - IP65 - Blue

NAO2S-H1W-A - Overview

• Specifications:

  • Electrical
  • Contact resistance: < 7 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)
  • Rated voltage: < 50 V (1)

    Mechanical
  • Insertion force: < 45 N
  • Withdrawal force: < 45 N
  • Lifetime: > 1000 mating cycles

    Wiresize
  • Locking device: Push-Pull

    Material
  • Contact plating: 0.2 µm Au over 2 µm Ni
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
  • Shell: AlMgSi 0.5, black plated
  • Split sleeve: ceramics

    Environmental
  • Temperature range: -30 °C to +80 °C

    Optical
  • Insertion loss: < 0.4 dB / connection
  • Optical connector: LC-Duplex
