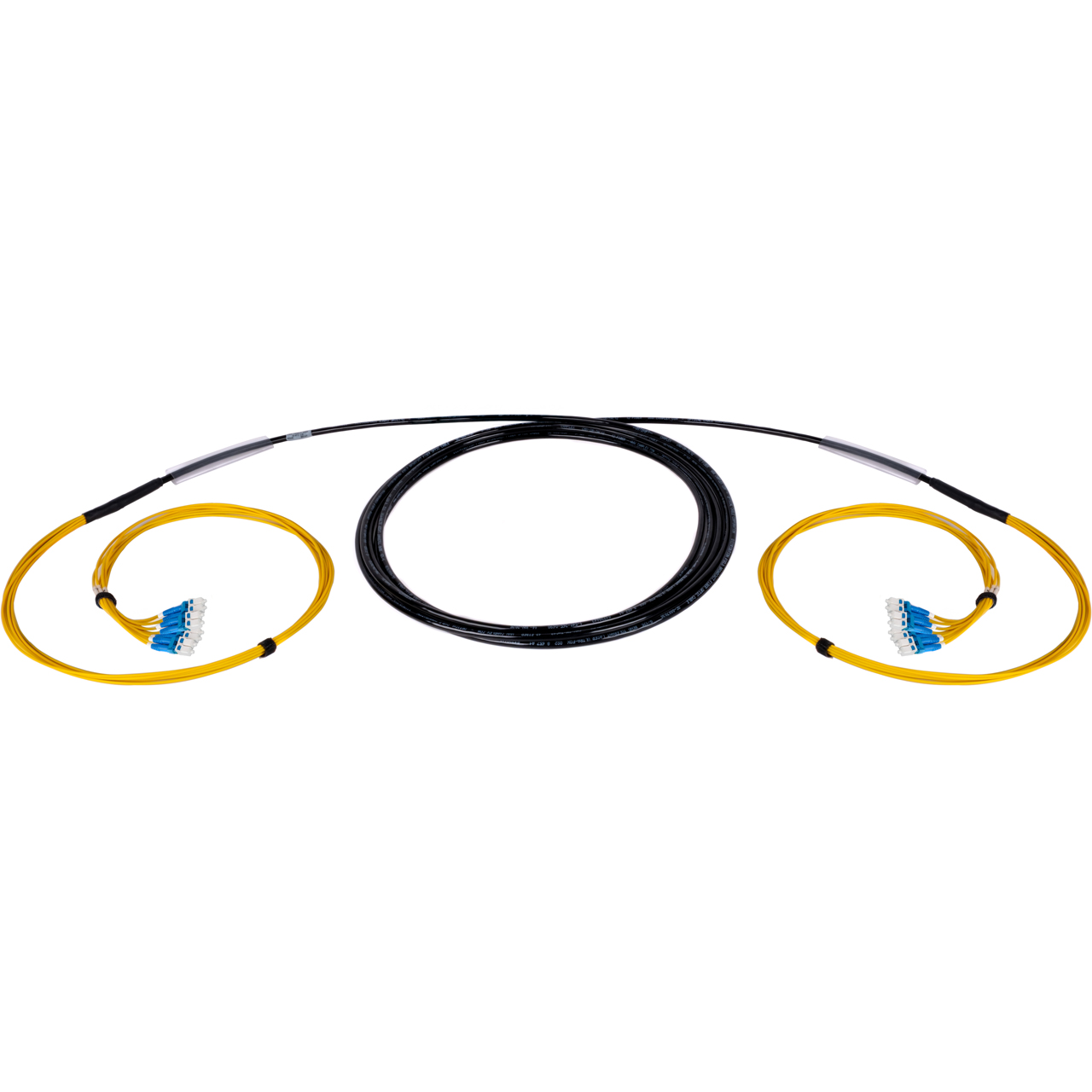

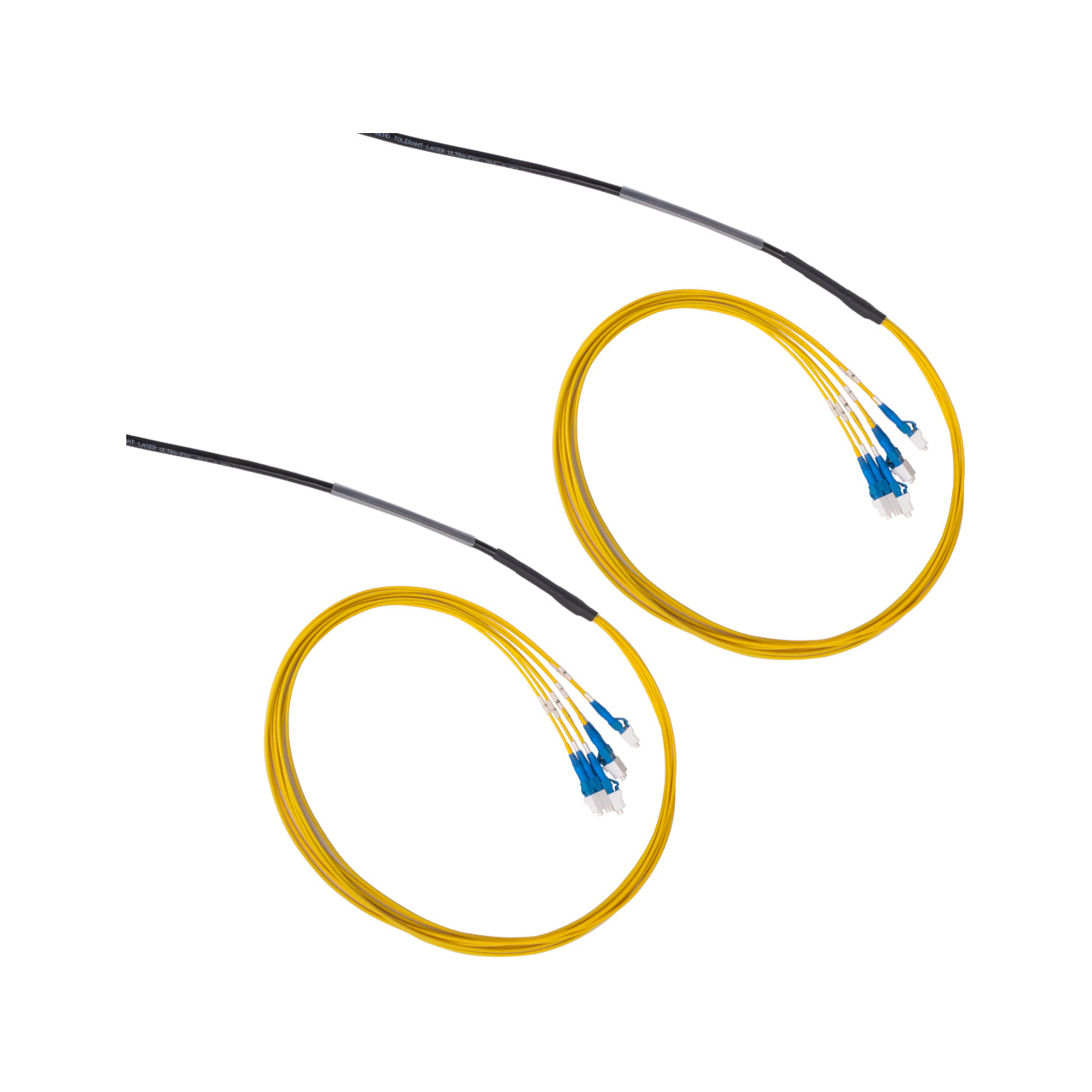

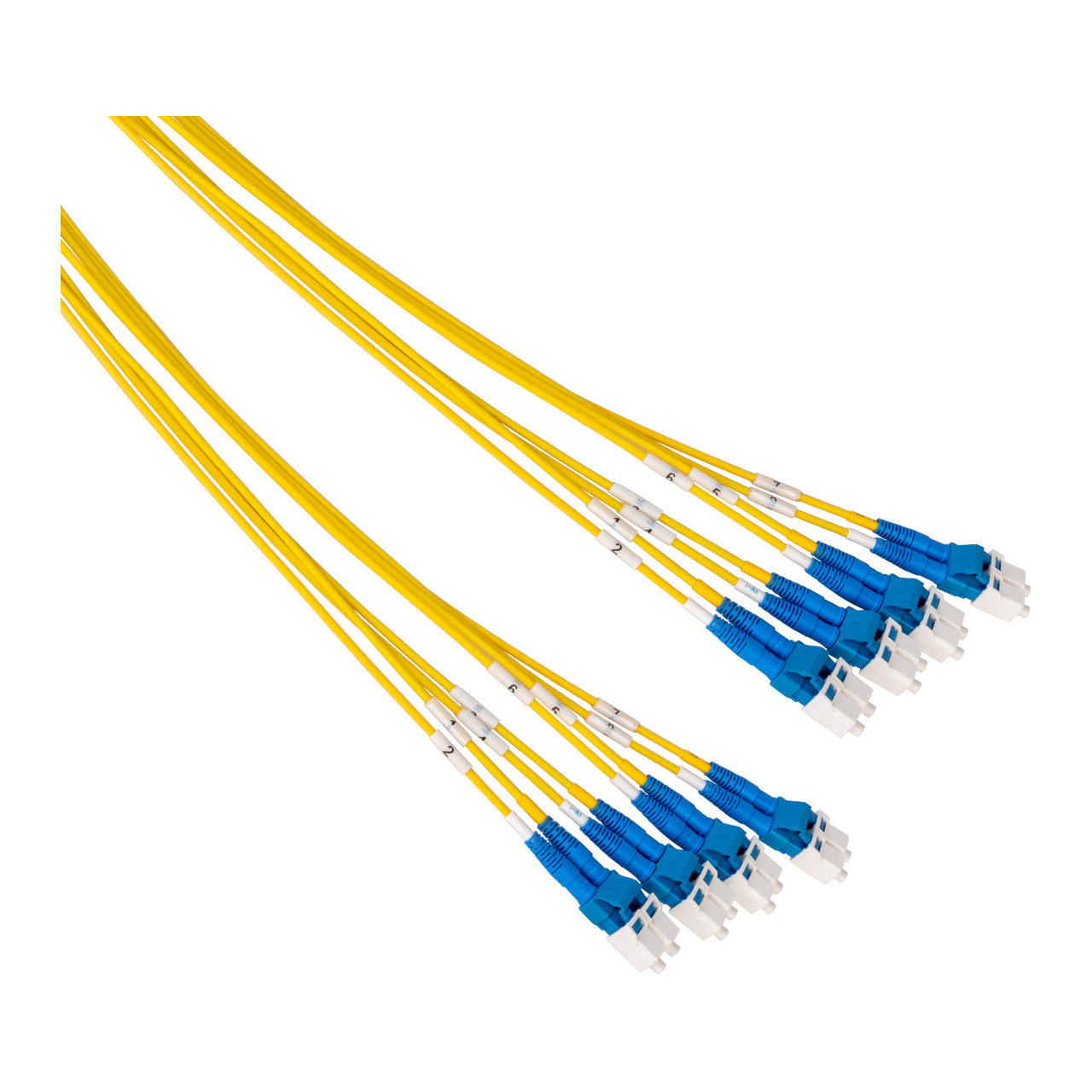

Camplex 8-Channel LC Single Mode Fiber Optic Tactical Snake 50 Foot

ITEM #: CMX-TS08LC-0050 MFG #: CMX-TS08LC-0050

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$326.95

Our Price:

$295.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CMX-TS08LC-0050 - Overview

Flexible and Crush Resistant Outdoor Fiber Cable
High quality and cost-effective Camplex CMX-TS series tactical fiber cables are designed for broadcast and pro-AV deployment applications and meet all tactical needs for applications requiring an outdoor rated crush and impact resistant design. The tough thermoplastic polyurethane core-locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field.
Camplex CMX-TS ruggedized multi-channel fiber optic cables are designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. All products are 100% tested and a complete set of test documentation of your cable is available upon request.

  • Features:

    • Indoor/Outdoor rated jacket.
    • Wide temperature range (typically -55°C to 85°C)
    • 500um primary acrylate buffer with 900um secondary hard buffer
    • Excellent crush and impact resistance due to their polyurethane core-locked outer jacket
    • Designed to withstand crush and impact after deployment
    • Strong, lightweight and extremely durable cable

  • Specifications:

    • Typical RL <-55dB and IL<0.25dB
    • Industry Standard Designation: SMF-28
    • Core/Cladding Diameter (um): 9/125
    • Wavelength (nm): 1310/1550
    • Maximum Cabled Attenuation (dB/km): 0.5/0.5
    • Primary Coating Diameter (um): 500
    • Secondary Buffer Diameter (um): 900
