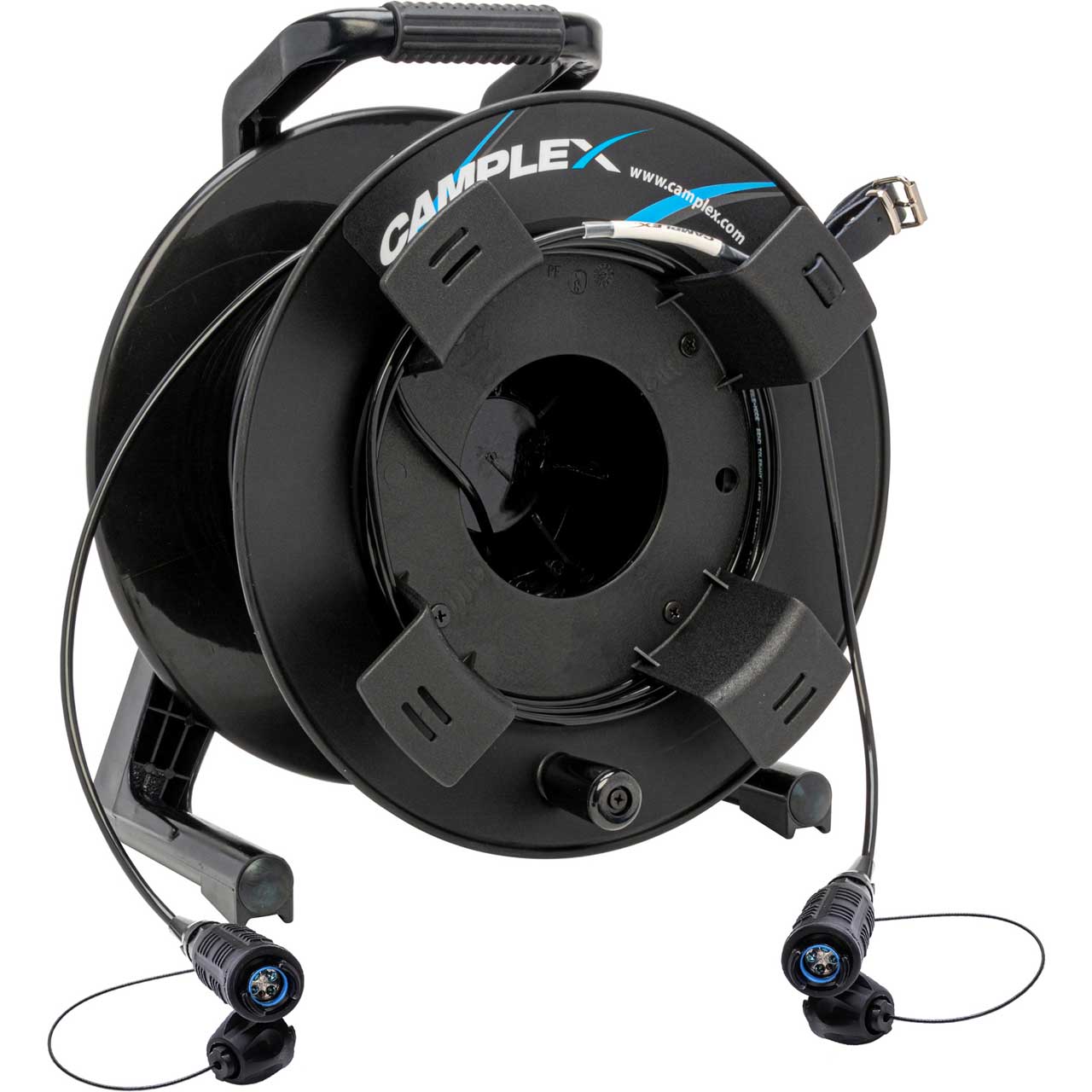

Camplex QPC QMicro HMC/MX Compatible 4-Fiber OM4 Multimode Expanded Beam Fiber Cable on Reel - 250 Foot

ITEM #: CMX-X2Q04MR0250 MFG #: CMX-X2Q04MR0250

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,027.49

Our Price:

$2,724.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CMX-X2Q04MR0250 - Overview

Broadcaster engineers, stadium venue techs, live event production teams and system integrators are among those joining the migration to expanded beam cables from Camplex. Expanded Beam systems offer less down-time as a result of dirt and contamination while offering the same rugged cable core in other tactical offerings.

The Camplex CMX-X2Q04MR QMicro series is a 4-Fiber MultiMode Tactical Cable Reel featuring QPC's QMicro Expanded Beam Fiber Optic Connectors, which are designed to meet the requirements of MIL-PRF-83526/20 & /21 Military Specifications. This cable is designed for peak performance in harsh environments utilizing non-physical contact fiber optic termini that are fully sealed behind an anti-reflective coated ball lens. This lens expands the beam to many times its original size aiding optical alignment and minimizing the effects of dust, debris, vibration, and other environmental conditions. Because there is no wear on the optical surfaces / end faces of the termini during use, the QMicro connector has excellent durability, in excess of 3,000 mating cycles, providing a long service life interconnect solution.

The Camplex CMX-X2Q04MR QMicro is a hermaphroditic connector allowing multiple plug-to-plug cable assemblies to be combined to extend the length of the system. These connectors are available with two or four channels and with single mode or multimode lenses. Not only are these cables perfect for broadcast video and audio applications, they are also widely used in Oil & Gas, Mining, Factory Automation, Heavy Equipment, Marine, Medical, Military, Aerospace, and Defense for Communications and Sensing Applications.

The cable itself is a MIL-tactical cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required. It's incredibly strong yet very lightweight for ease of transportation and deployment. Its OM4 core is a laser-optimized for the highest bandwidth applications in 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission.

  • Features:

    • 4 Channel Hermaphroditic Expanded Beam Connector System
    • Rubber Grip Plugs
    • Intermateability: Tyco Pro Beam Mini, Stratos HMC, Fibreco Mini 2, Telecast MX
    • Low Profile Receptacle Backshell Available for 2mm Simplex Cables
    • Sealed to IP68 Rating
    • Lightweight MIL-Tactical Cable Ideal for use in Harsh Environments Where Deployment and Retrieval for Reuse are Req

  • Specifications:

    • Insertion Loss: MM (50/125µm): 0.50-1.5dB Max.
    • Operating Temperature: -46°C to +85°C
    • Vibration: 10 to 2000Hz / 10g, EIA/TIA-455-11, Condition III and 10 to 2000Hz / 20g / 9g RMS Avg, EIA/TIA-455-11, Condition IV
    • Mating Durability: 3000 Cycles
    • Impact: 8 Impacts @ 8FT (2.5MT),EIA/TIA-455-2
    • Shock: 50g for 11ms, EIA/TIA-455-14, Condition A
    • IP Rating: QMicro, QMicro45S, QMicro90S Plugs and Receptacles with Backshells: IP68 - Dust Tight, No ingress of dust; complete protection against contact, Water Immersion, 1m |Testing Conditions & Duration – Plug with Dust Cover and Mated Plug / Receptacle, 3 Meters for 24 Hours
    • Designed to Meet MIL-PRF-83526/20 & /21 Military Specification Requirements

  • Warranty:

    • 1 Year
