Broadcaster engineers, stadium venue techs, live event production teams and system integrators are among those joining the migration to expanded beam cables from Camplex. Expanded Beam systems offer less down-time as a result of dirt and contamination while offering the same rugged cable core in other tactical offerings.

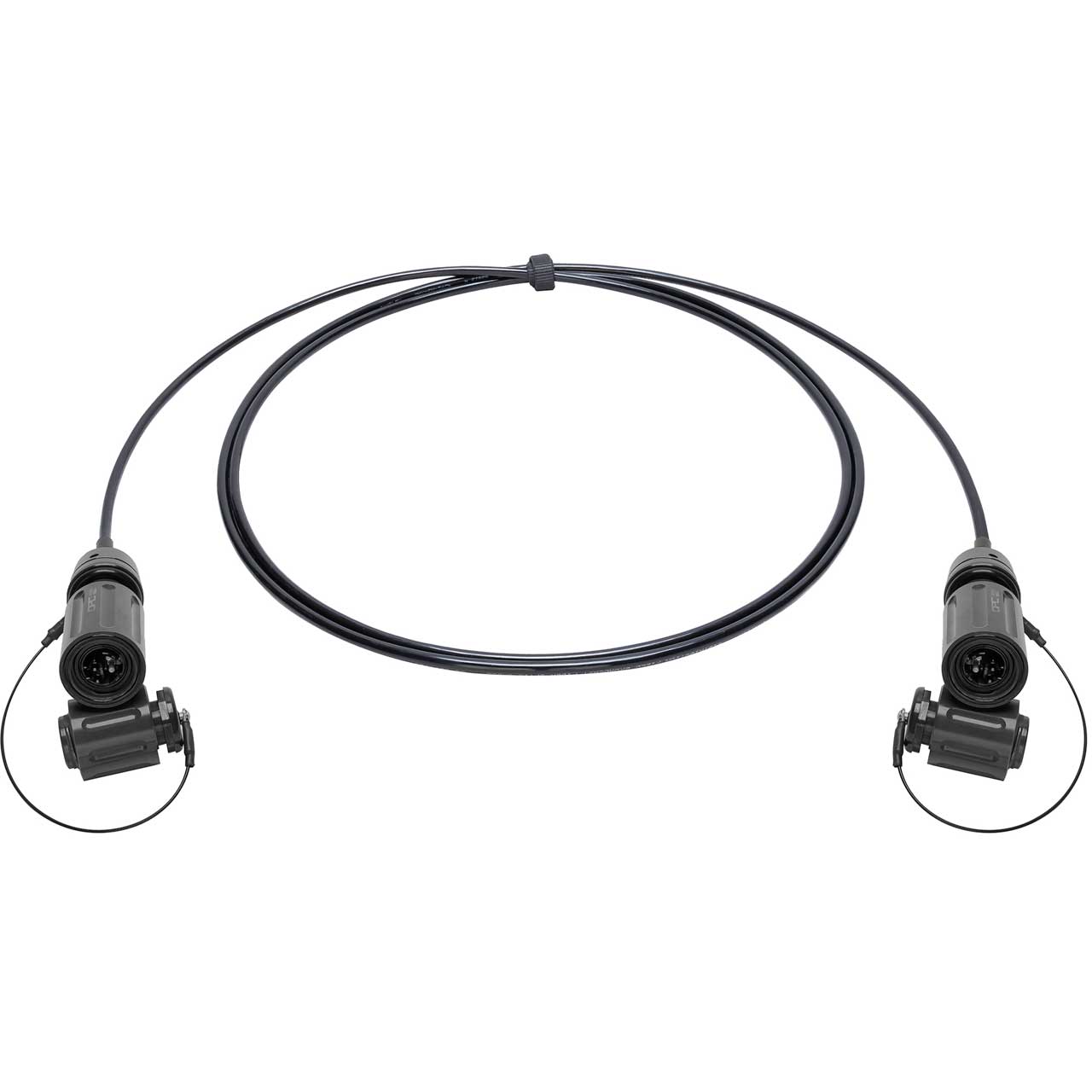

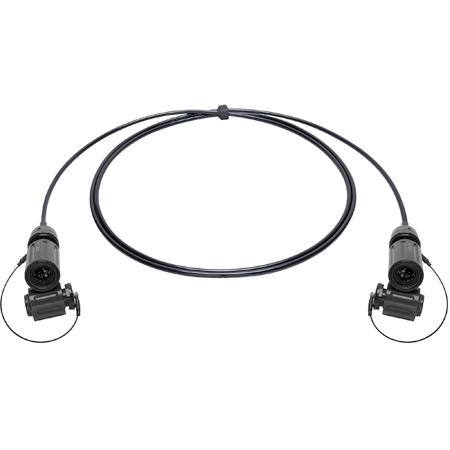

The Camplex CMX-X3Q04M QFoca series is a 4-Fiber MultiMode Tactical Cable featuring QPC's QFoca Hermaphroditic Tactical Connector which is engineered for Harsh Environment and Military Ground Tactical applications. The QFoca 4 Channel version is designed to meet the requirements of MIL-DTL-83526/16 Military Specifications.
The Camplex CMX-X3Q04M is highly versatile cabling system. It is hermaphroditic allowing multiple plug-to-plug cable assemblies to be combined to extend the length of the system. The QFoca can accommodate a wide range of cable designs and diameters using molded boots and wire mesh cable grips. The QFoca-K1 option is designed to capture and bond the metallic braids in armored cables for electrical safety, and the QFoca-G2 option includes a gas tight gland at the cable interface for use in hazardous applications.
QFoca cables are used in Military Ground Tactical, Aerospace Ground Communications, Oil & Gas, Mining, Factory Automation, Heavy Equipment, Broadcast, Audio / Video, and Sensing Applications.
The cable itself is a MIL-tactical cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required. It's incredibly strong yet very lightweight for ease of transportation and deployment. Its OM4 core is a laser-optimized for the highest bandwidth applications in 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission.
